Separate Outer Rear Center Section - Ar64.20-D-1000-01TS

Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.

AS00.00-Z-0017-01A

Model 907.6/7, 910.6

The following operation steps are shown on model 907.733 with code D03 (Roof and rear-end doors, high version).

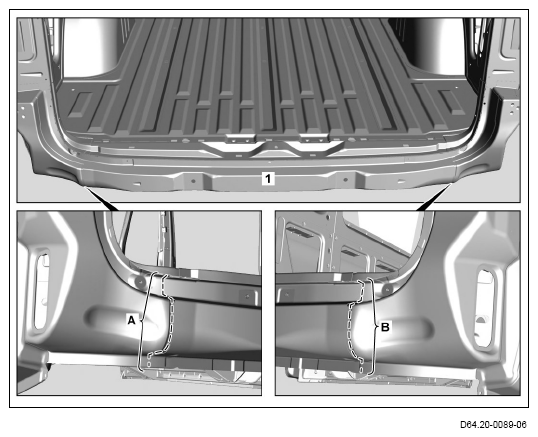

1. Expose weld seams on outer rear-end center section (1) (areas A and B).
2. Cut weld seams on outer rear-end center section (1) (areas A and B).

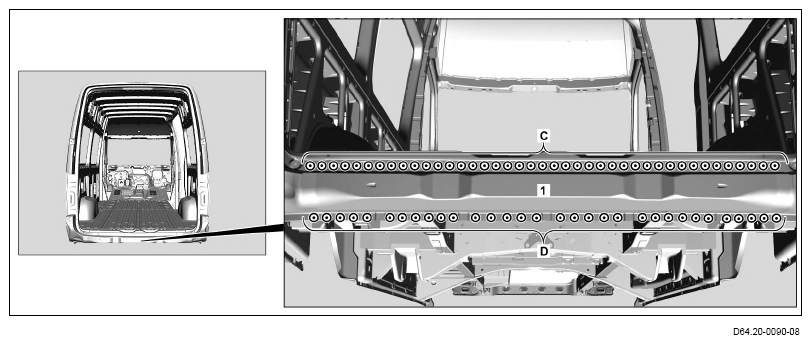

3. Expose spot welds on outer rear-end center section (1) (areas C and D).
4. Cut off spot welds on outer rear-end center section (1) (areas C and D).
5. Remove damaged rear center section outer section (1).

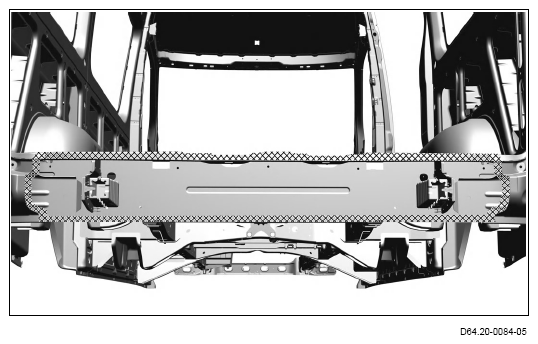

6. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

7. Remove shavings and milling chips.
8. Zinc dust paint to insides of spot weld flanges.
