Remove Rear Wall Partial Section - Ar64.10-D-5747-01TS
Model 907.1/2
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.
The next steps are shown on model 907.2 with code F35 (cab rear panel with window) and must be carried out in the same way for vehicles without code F35 (cab rear panel with window).

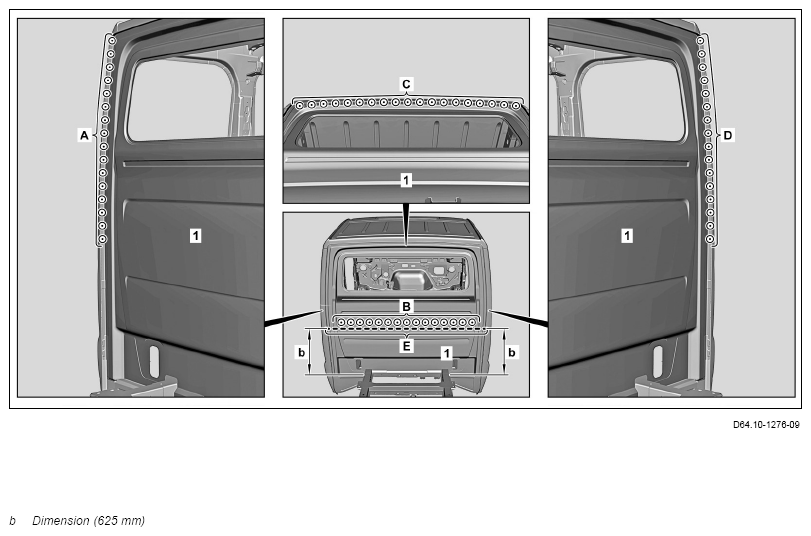

- Expose spot welds on rear panel (1) (areas A, B, C, and D).
Commercially available devices/tools
Rotary wire brush
- Cut off spot welds on rear panel (1) (areas A, B, C, and D).
Spot weld milling machine
- Mark separating point as shown on rear panel (1) (area E).
- Cut rear panel (1) at separating point (area E).
Do not cut too deeply.
Otherwise the components underneath will be damaged and strength will be impaired.
Body power jigsaw

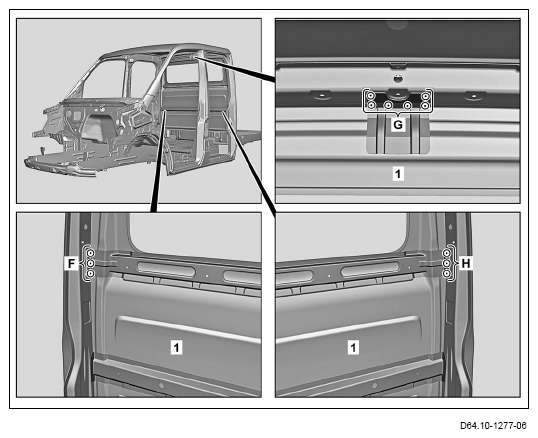

- Expose spot welds on rear panel (1) (areas F, G, and H).
Rotary wire brush
- Cut off spot welds on rear panel (1) (areas F, G, and H).
Spot weld milling machine
- Remove damaged rear panel (1).

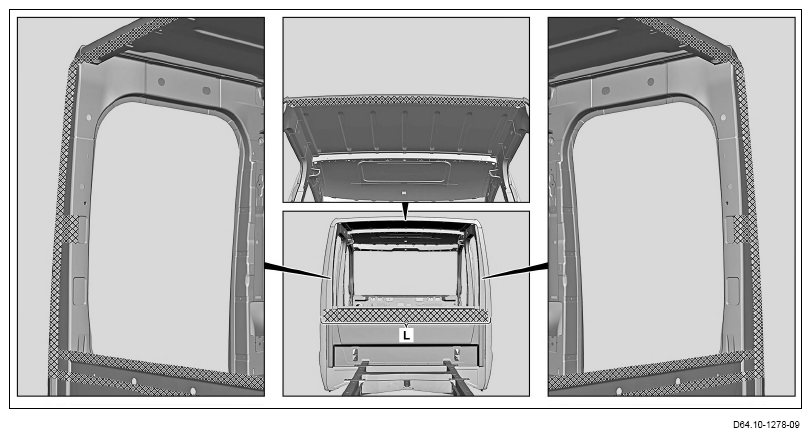

- Grind mating surfaces in cross-hatched areas (except area L) down to bare metal.
Rotary wire brush
- Grind mating surface in cross-hatched area (area L) down to bare metal.
Sheet metal crimping pliers
Rotary wire brush
- Bead rear panel (1) in cross-hatched area (area L) approx. 10 mm.
- Remove shavings and milling chips.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.
