Prepare Rear Wall For Installation - Ar64.10-D-5746-02TSB
| 000 588 01 84 00 Welder | WS60.00-P-0021K | |
| 000 588 02 84 00 Welder | WS60.00-P-0022K |
Model 907.1/2 except code F35 (Cab rear wall with window)
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
Additional information can be found in the superordinate service document.

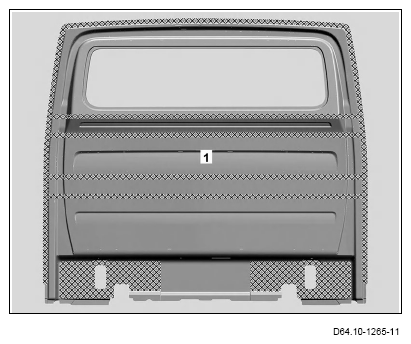

- Grind mating surfaces in cross-hatched areas on rear panel (1) down to bare metal.
Sand down spot weld flanges to bare metal on both sides.
Rotary wire brush
- Remove shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.
Shown on model 907.2 with code F35 (cab rear panel with window)

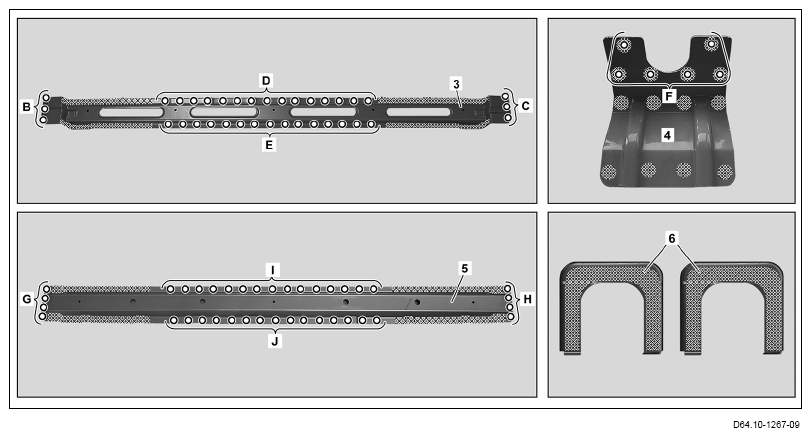

- Punch holes in the crossmember (3) (areas B, C, D, and E), crossmember (5) (areas G, H, I, and J), and bracket (4) (area F) with a diameter of 6 mm.
The safety information in the superordinate service document must be observed.
Hole punching pliers
- Grind mating surfaces in the cross-hatched areas and around holes (areas B, C, D, E, F, G, H, I, and J) down to bare metal.
Rotary wire brush
- Remove shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.

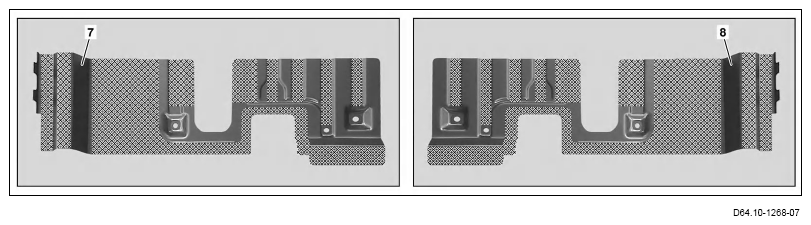

- Grind mating surfaces in cross-hatched areas on reinforcements (7, 8) down to bare metal.

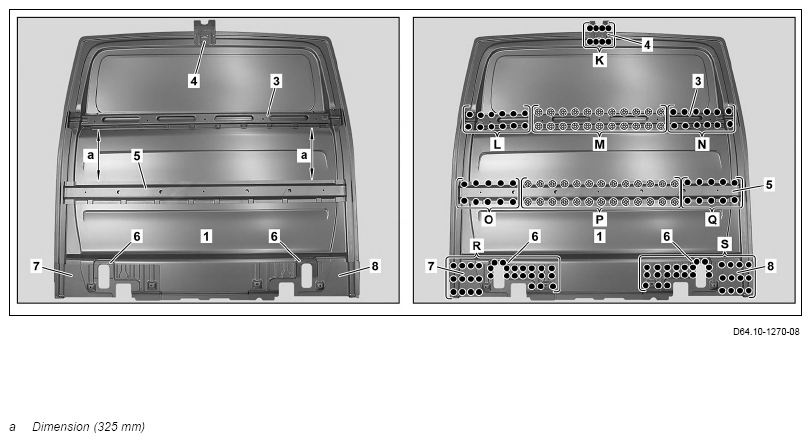

- Attach reinforcements (6, 7, 8), crossmembers (3, 5), and bracket (4) to the rear panel (1), adapt, and fix in place.
Rotary wire brush
Clamping pliers (Standard)
- Reinforcements (6, 7, 8)
(areas R and S).
- Bracket (4)
- Crossmember (3)
- Crossmember (5)
- Crossmember (3)
(area M).
- Crossmember (5)
- Surface grind inert gas plug welds (areas M and P).
Angular grinder
- Remove shavings.
Wet and dry vacuum cleaner

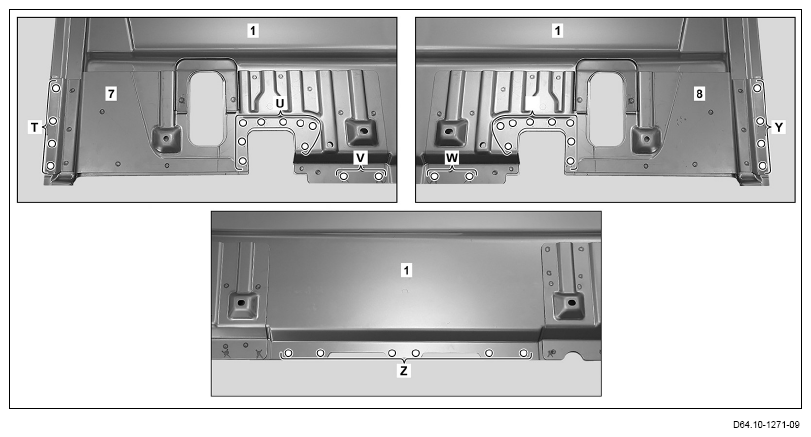

- Punch holes in rear panel (1) with a diameter of 6 mm (areas T, V, W, Y and Z).
Hole punching pliers
- Grind areas around holes (areas T, V, W, Y and Z) on rear panel (1) down to bare metal.
Rotary wire brush
- Remove shavings.
Wet and dry vacuum cleaner
