Prepare Outer Rear Center Section - Ar64.20-D-1000-09TS

CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A

Model 907.6/7, 910.6

REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00

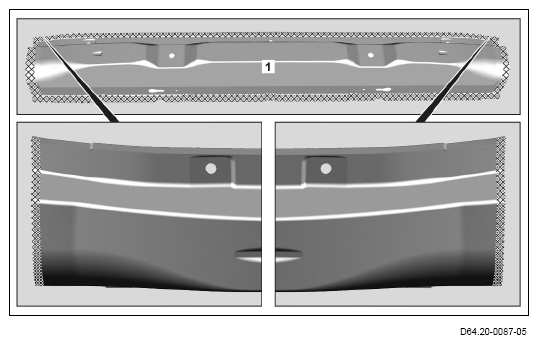

  1. Grind mating surfaces on rear center section outer section (1) down to bare metal in crosshatched areas.
  2. Zinc dust paint to insides of spot weld flanges.
    G13788706
