Install Rear Wall - Ar64.10-D-5746-03TS

	000 588 01 84 00 Welder	WS60.00-P-0021K
	000 588 02 84 00 Welder	WS60.00-P-0022K

Model 907.1/2

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

The next steps are shown on model 907.2 with code F35 (cab rear panel with window) and must be carried out in the same way for vehicles without code F35 (cab rear panel with window).

1. Install rear panel (1), fit, and fix in place.

   Commercially available devices/tools

   Clamping pliers (Standard)

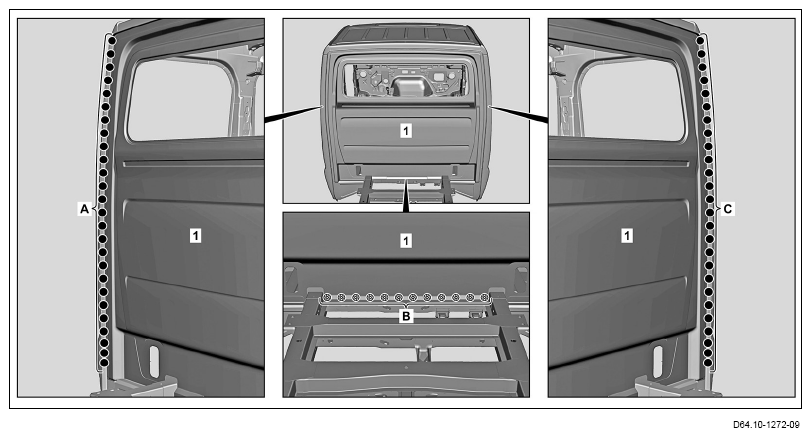

2. Rear panel (1) (areas A and C).
3. Rear panel (1) (area B).

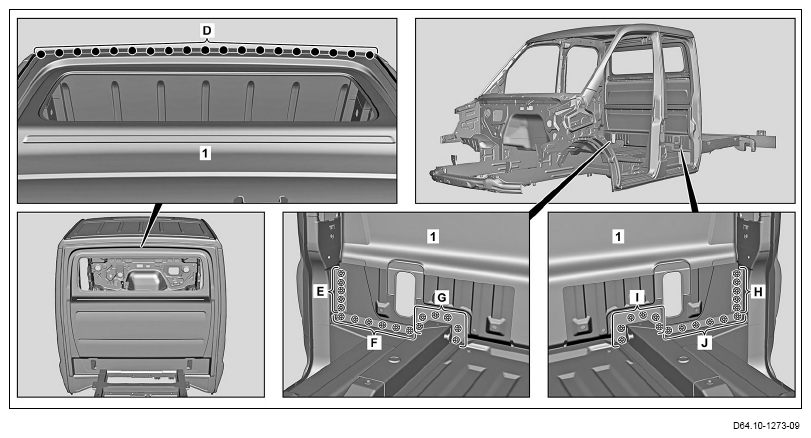

4. Rear wall (1) (area D).
5. Rear panel (1) (areas E, F, G, H, I, and J).

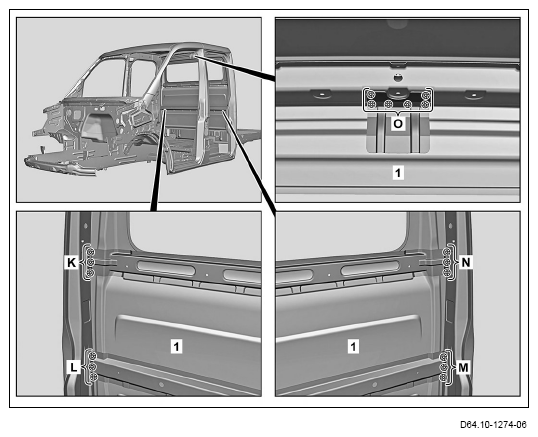

6. Rear panel (1) (areas K, L, M, N, and O).
