Install Inner Part Of Rear-End Center Section - Ar64.20-D-1121-03TS

	000 588 01 84 00 Welder		WS60.00-P-0021K
	000 588 02 84 00 Welder		WS60.00-P-0022K

Model 907.6/7

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

The following operation steps are shown for model 907.633.

1. Install, fit and fix in place rear-end center section inner part (1).

   Commercially available devices/tools

   Clamping pliers (Standard)

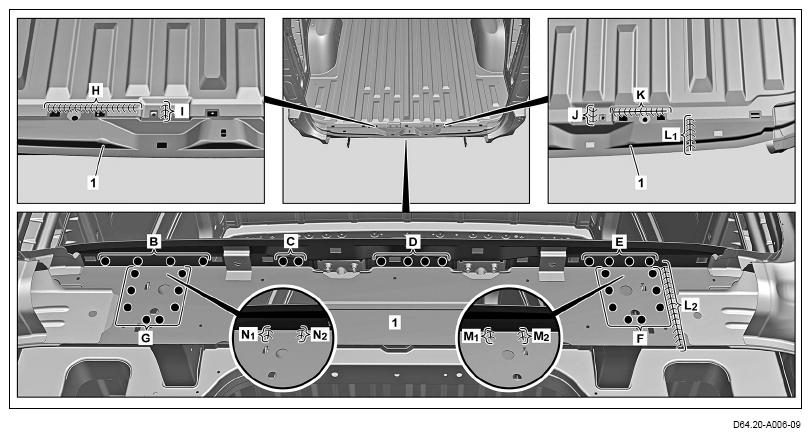

2. Rear-end center section inner part (1) (areas B, C, D, E, F and G).
3. Rear-end center section inner part (1) (areas H, I, J, K, L₁ , L₂ , M₁ , M₂ , N₁ and N₂ ).

   Inert gas weld in intervals and allow to cool down in between.

   Heat distortion is reduced as a result.

4. Surface-grind inert gas welds (areas H, I, J, K and L).

   Commercially available devices/tools

   Angular grinder

5. Remove shavings.

   Commercially available devices/tools

   Wet and dry vacuum cleaner

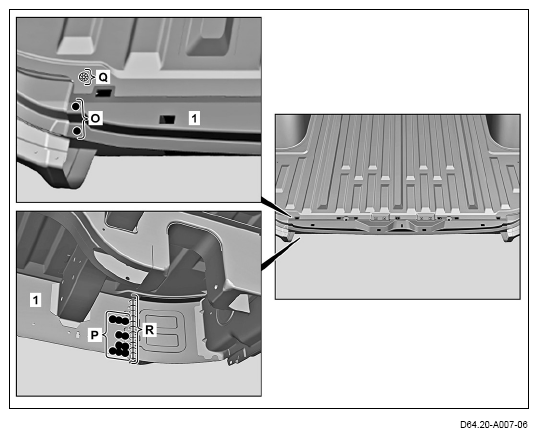

6. Rear-end center section inner part (1) (areas P and O).
7. Rear-end center section inner part (1) (area Q).
8. Rear-end center section inner part (1) (area R).

   Inert gas weld in intervals and allow to cool down in between.

   Heat distortion is reduced as a result.

9. Surface-grind inert-gas plug welds (area Q).

   Commercially available devices/tools

   Angular grinder

10. Remove shavings.

    Commercially available devices/tools

    Wet and dry vacuum cleaner

11. Model 907.6/7

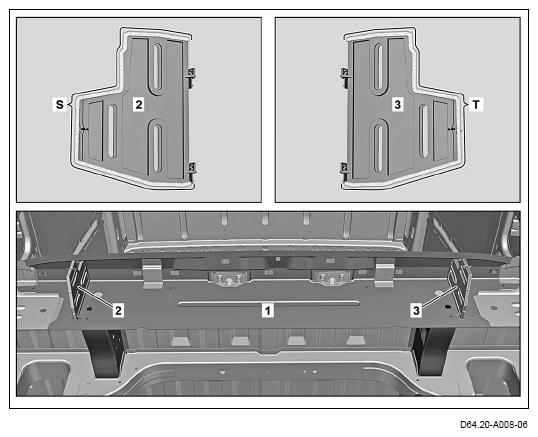

    Apply seam seal to soundproofing (2) (area S) and soundproofing (3) (area T).

    Commercially available devices/tools

    Squeeze gun

12. Model 907.6/7 Install soundproofings (2, 3) in rear-end center section inner part (1).
