Cut Off Rear Panel - Ar64.10-D-5746-01TS

Model 907.1/2

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

The next steps are shown on model 907.2 with code F35 (cab rear panel with window) and must be carried out in the same way for vehicles without code F35 (cab rear panel with window).

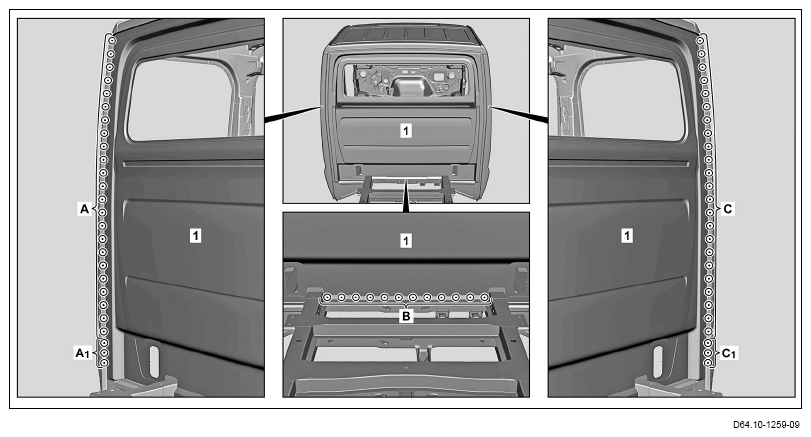

1. Expose spot welds on rear panel (1) (areas A, A B, C and C₁ ).

   Commercially available devices/tools

   Rotary wire brush

2. Cut off spot welds on rear panel (1) (areas A, A1, B, C and C₁ ).

   Cut off spot welds through 2 panel thicknesses (areas A1 and C₁ ).

   Commercially available devices/tools

   Spot weld milling machine

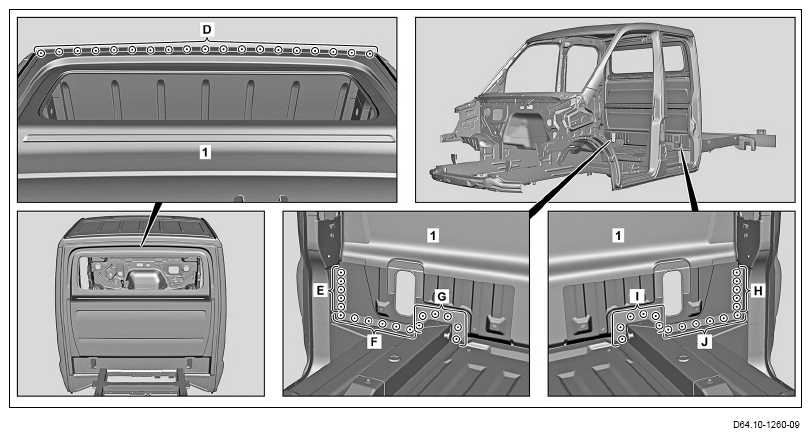

3. Expose spot welds on rear panel (1) (areas D, E, F, G, H, I and J).

   Commercially available devices/tools

   Rotary wire brush

4. Cut off spot welds on rear panel (1) (areas D, E, F, G, H, I and J).

   Commercially available devices/tools

   Spot weld milling machine

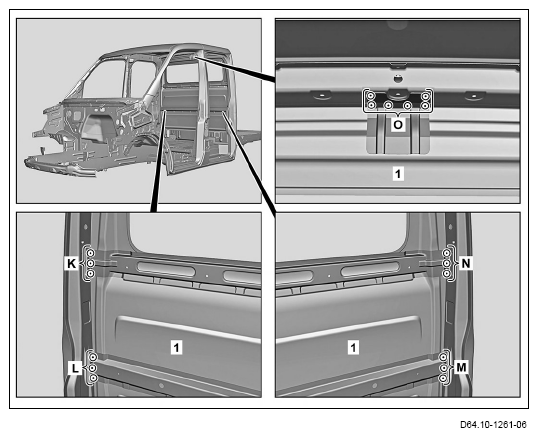

5. Expose spot welds on rear panel (1) (areas K, L, M, N and O).

   Commercially available devices/tools

   Rotary wire brush

6. Cut off spot welds on rear panel (1) (areas K, L, M, N and O).

   Commercially available devices/tools

   Spot weld milling machine

7. Remove damaged rear panel (1).

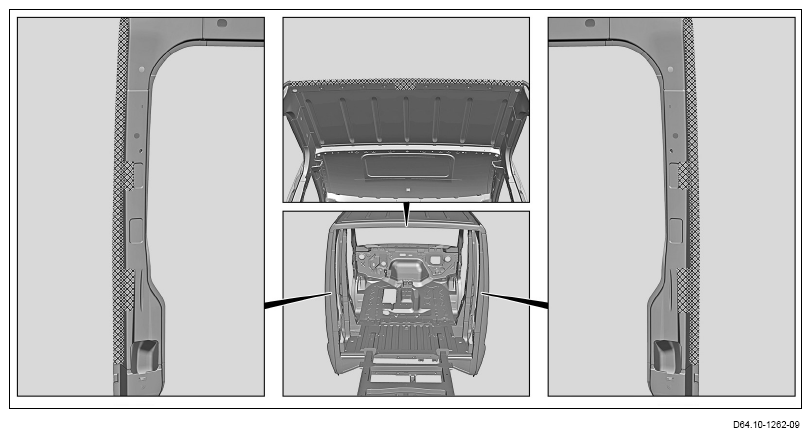

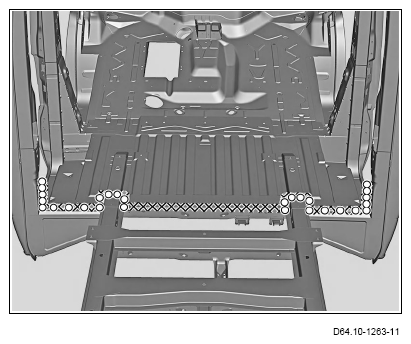

8. Grind down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

   Commercially available devices/tools

   Rotary wire brush

9. Remove shavings and milling chips.

   Commercially available devices/tools

   Wet and dry vacuum cleaner

10. Zinc dust paint to insides of spot weld flanges.
11. Grind mating surfaces in cross-hatched area and around holes down to bare metal.

    Sand down spot weld flanges to bare metal on both sides.

    Commercially available devices/tools

    Rotary wire brush

12. Remove shavings.

    Commercially available devices/tools

    Wet and dry vacuum cleaner
