Prepare Upper Front Longitudinal Member - Ar62.20-D-1286-02TS

AR62.20-D-1286-02TS	Prepare upper front longitudinal member
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A

Model 907

The next steps are shown on the left component part and must be performed in a similar way in the event of damage on the right side of the vehicle.

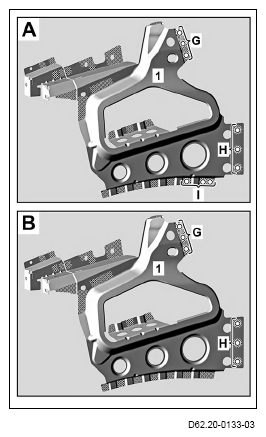

1. Punch holes on the upper front longitudinal member (1) with diameter 6 mm (areas G and H).
2. Model 907

   Punch holes on the upper front longitudinal member (1) with diameter 6 mm (area I) (picture A).

3. Model 907

   Grind area around holes down to bare metal (area I) (picture A).

4. Grind mating surfaces in cross-hatched areas and around holes down to bare metal (areas G and H).

   Model 907

   See Fig. A.

   Sand down spot weld flanges to bare metal on both sides.

5. Remove shavings.
6. Zinc dust paint to insides of spot weld flanges.
