Separate CRASHBOX - Ar64.20-D-1002-01TS

Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.

AS00.00-Z-0017-01A

Model 907.6/7 with code Z1M (M1 registration)

The next steps are shown on the left side of the vehicle for model 907.733 and must be similarly performed on the right side of the vehicle in the event of damage.

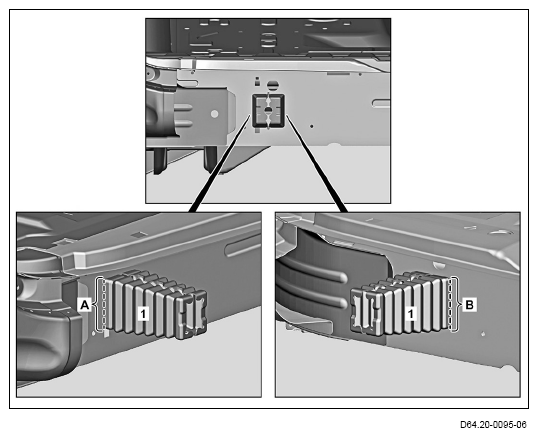

1. Separate weld seams on crash box (1) (areas A and B).
2. Remove damaged crash box (1).
3. Grind down mating surfaces to bare metal in cross-hatched areas.
4. Remove shavings.
