Prepare Upper Section On Outer Corner Pillar Paneling - Ar64.30-D-5732-02TS

Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts

Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.

AS00.00-Z-0017-01A

Model 907.6/7

The following operation steps are shown on the right component part and must be similarly performed on the left side of the vehicle in the event of damage.

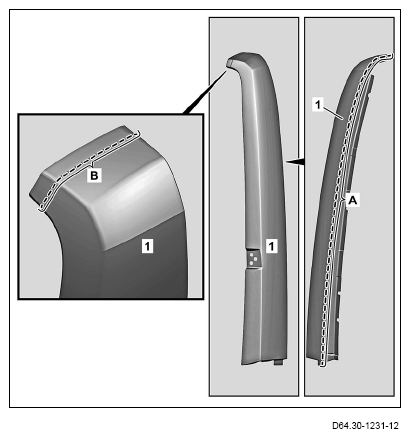

1. Mark separating point on outer corner pillar paneling upper section (1) (area A).

   Mark separating point along edge.

2. Cut separating point at outer corner pillar paneling upper section (1) (area A).

   Commercially available devices/tools

   Body power jigsaw

3. Mark separating point on outer corner pillar paneling upper section (1) (area B).

   Take over dimension for separating point from vehicle.

4. Cut separating point at outer corner pillar paneling upper section (1) (area B).

   Commercially available devices/tools

   Body power jigsaw

5. Dispose of cut-off pieces.

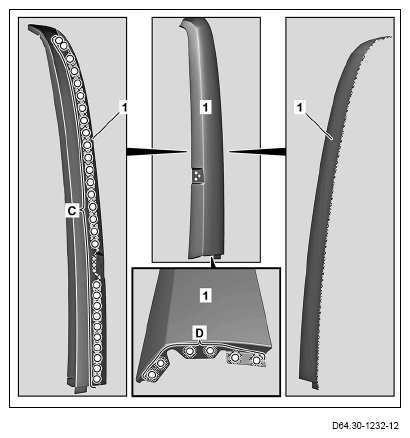

6. Punch holes in outer corner pillar paneling upper section (1) with Ø 6 mm (areas C and D).

   Commercially available devices/tools

   Hole punching pliers

7. Grind mating surfaces in cross-hatched areas and around holes (areas C and D) down to bare metal.

   Commercially available devices/tools

   Rotary wire brush

8. Remove shavings.

   Commercially available devices/tools

   Wet and dry vacuum cleaner
