Prepare Rear Wall Partial Section For Installation - Ar64.10-D-5747-02TS
| 000 588 02 84 00 Welder | WS60.00-P-0022K |
Model 907.1/2 with code F35 (Cab rear wall with window)
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.

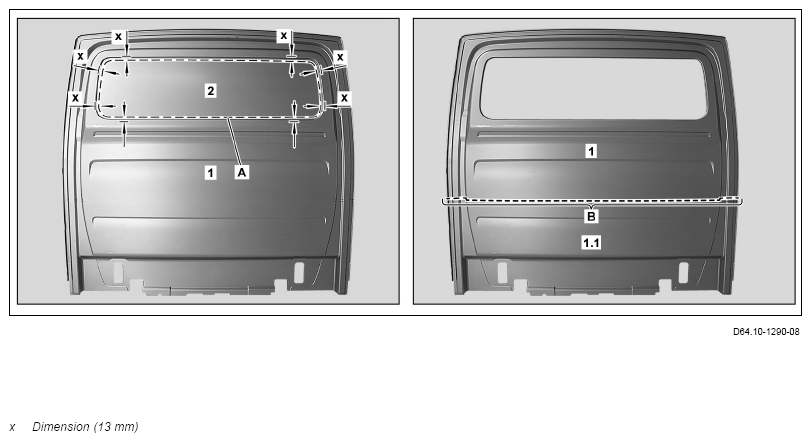

- Mark separating point as shown on the rear panel (1) (area A).
Mark separating point next to the edge.
Observe dimension (x).
- Cut rear panel (1) at separating point (area A).
Body power jigsaw
- Remove window cutout remaining piece (2).
- Mark separating point as shown on rear panel (1) (area B).
- Cut rear panel (1) at separating point (area B).
Body power jigsaw
- Remove rear panel remaining piece (1.1).

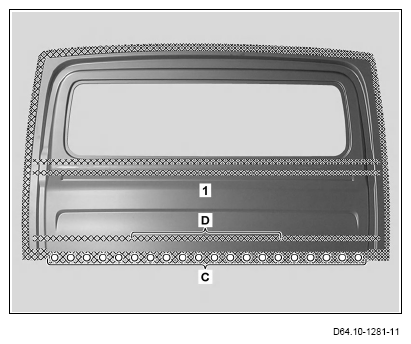

- Punch holes in rear panel (1) with a diameter of 6 mm (area C).
Hole punching pliers 6 mm
- Grind mating surfaces in cross-hatched areas and around holes (area C) down to bare metal.
Rotary wire brush
- Grind mating surfaces in cross-hatched area (area D) down to bare metal from the rear.
Rotary wire brush
- Remove shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.

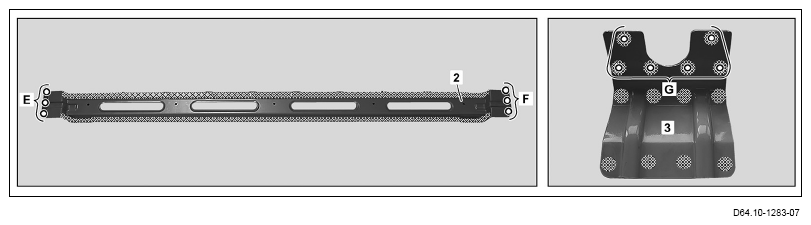

- Punch holes in crossmember (2) (areas E and F) and bracket (3) (area G) with a diameter of 6 mm.
Hole punching pliers 6 mm
- Grind mating surfaces in cross-hatched areas and around holes (areas E, F and G) down to bare metal.
Rotary wire brush
- Remove shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.

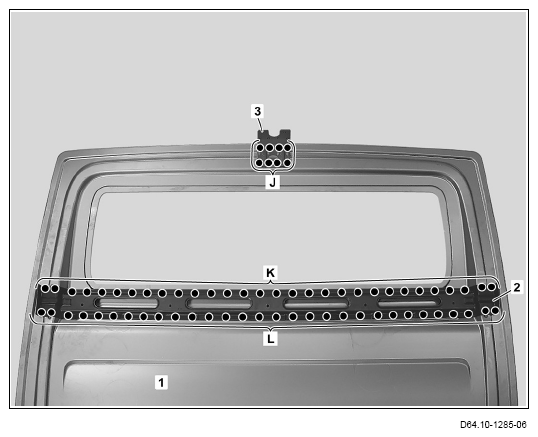

- Attach bracket (3) and crossmember (2) to rear panel (1), fit, and fix in place.
Clamping pliers (Standard)
- Bracket (3)
(area J).
- Crossmember (2)
