Install Outer Corner Pillar Paneling Upper Section And Weld In - Ar64.30-D-5732-03TS
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-N-0005-01A | ||
| 000 588 02 84 00 Welder | WS60.00-P-0022K |
Model 907.6/7
The following operation steps are shown on model 907.633 with code D03 (Roof and rear-end doors, high version) on the right side of vehicle and must be performed analogously on the left side of vehicle if damaged.

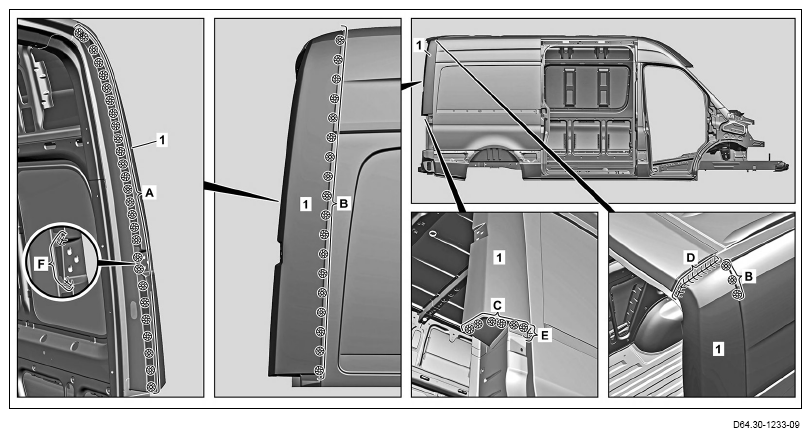

- Install, align and fix upper section of outer corner pillar paneling (1) in place.
Commercially available devices/tools
Clamping pliers (Standard)
- Outer corner pillar paneling upper section (1)
(areas A and C).
Inert gas weld in intervals and allow to cool down in between.
Reduces heat distortion.
- Tack weld outer corner pillar paneling upper section (1)
Reduces heat distortion.
- Outer corner pillar paneling upper section (1)
(areas D, E and F).
Reduces heat distortion.
Wet and dry vacuum cleaner
- Surface-grind inert gas spot welds, inert-gas tack welds and inert gas welds (areas A, B, C, D, E and F).
Angular grinder
- Clean weld joints.
Rotary wire brush
- Remove shavings.
