Weld In Wheelhouse Paneling Front Section - Ar62.20-D-1280-03TS

AR62.20-D-1280-03TS	Weld in wheelhouse paneling front section
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases	Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system.	AS00.00-Z-0007-01A
	Measures for preventing damage to vehicles or components when performing electric welding work		AH00.00-N-0005-01A
	000 588 01 84 00 Welder		WS60.00-P-0021K
	000 588 02 84 00 Welder		WS60.00-P-0022K

Model 907

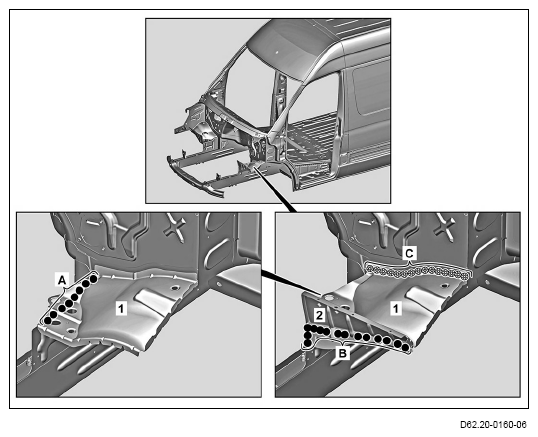

The following operation steps are shown on model 907.633 with code D03 (Roof and rear-end doors, high version) on the left side of vehicle and must be performed analogously on the right side of vehicle if damaged.

1. Install, fit and fix in place wheel well paneling front section (1) and wheel well paneling section (2).
2. Front section of wheel well paneling (1) (area A).
3. Wheel well paneling section (2) (area B).
4. Weld in wheel well paneling front section (1) with (area C).
5. Clean weld joints (area C).
6. Remove shavings.
