Remove Firewall Half - Ar62.25-D-1110-01TS
Model 907.### 1#
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.

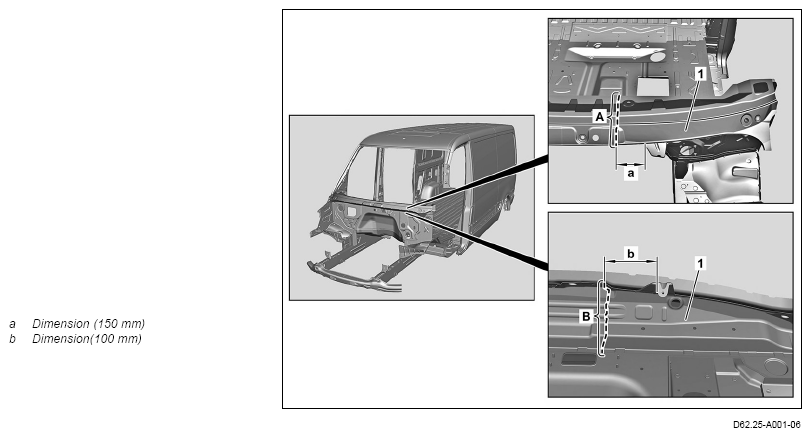

- Mark separating points at firewall half (1) (areas A and B).
Observe dimensions (A, B).
- Cut firewall half (1) at separating points (areas A and B).
Do not make the cuts too deep.
Otherwise the components underneath will be damaged and strength will be impaired.
Body power jigsaw

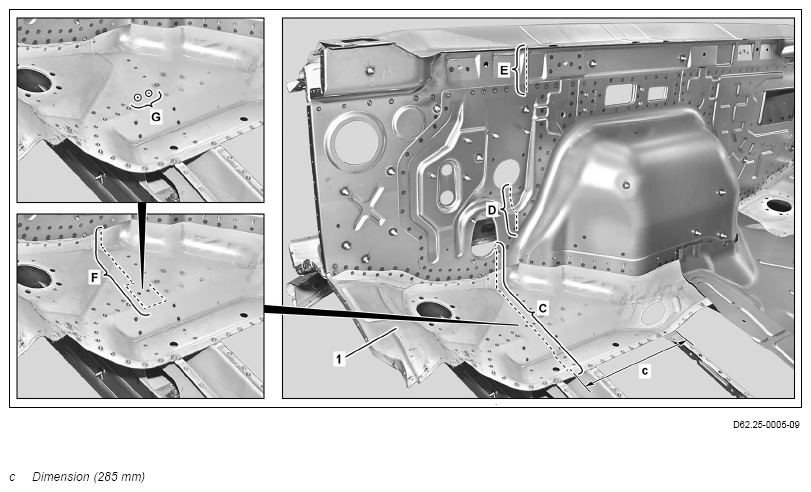

- Mark separating points at firewall half (1) (areas C, D, E and F).
- Cut firewall half (1) at separating points (areas C, D, E and F).
Otherwise the components underneath will be damaged and strength will be impaired.
Body power jigsaw
- Expose spot welds at firewall half (1) (area G).
Rotary wire brush
- Cut off spot welds at firewall half (1) (area G).
Spot weld milling machine
- Bend up sheet metal lug (1.1).

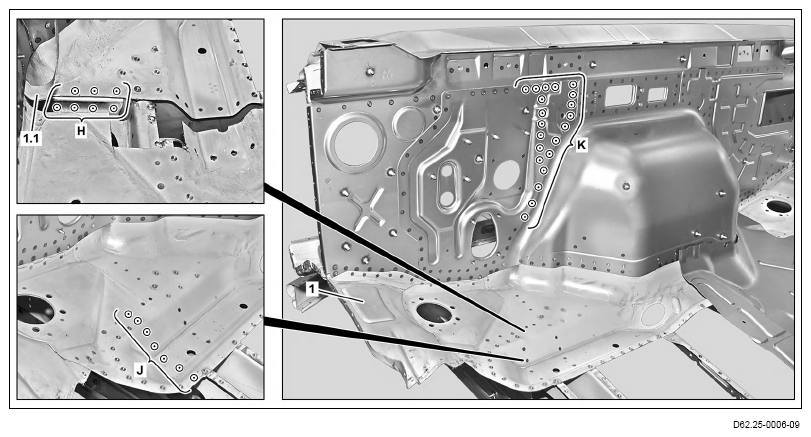

- Expose spot welds at firewall half (1) (areas H, J and K).
Rotary wire brush
- Cut off spot welds at firewall half (1) (areas H, J and K).
Spot weld milling machine

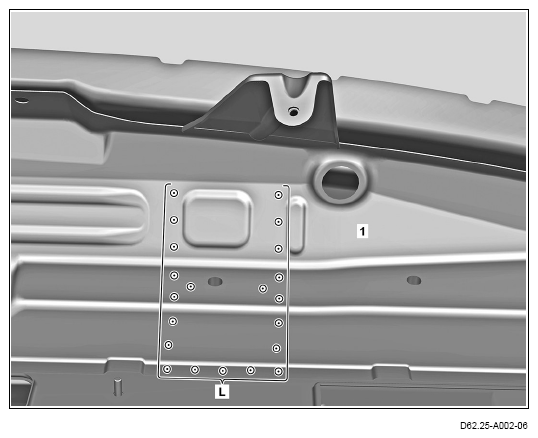

- Expose spot welds at firewall half (1) (area L).
Rotary wire brush
- Cut off spot welds at firewall half (1) (area L).
Spot weld milling machine

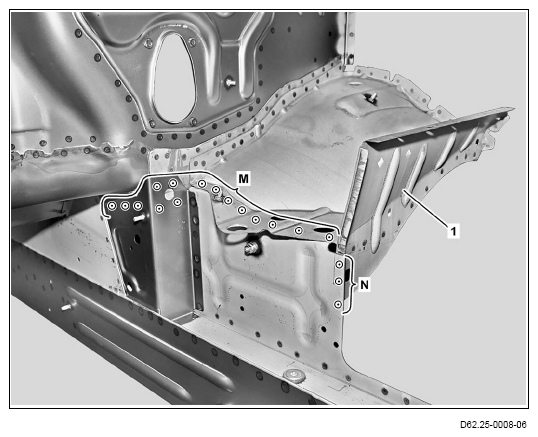

- Expose spot welds at firewall half (1) (area M and N).
Rotary wire brush
- Cut off spot welds at firewall half (1) (areas M and N).
Spot weld milling machine

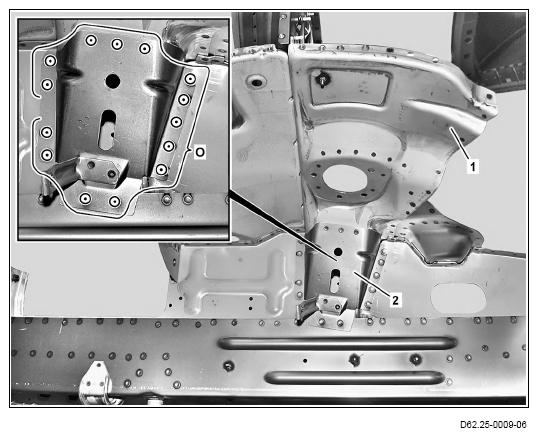

- Expose spot welds at reinforcement (2) (area O).
Rotary wire brush
- Cut off spot welds at reinforcement (2) (area O).
Spot weld milling machine
- Remove damaged firewall half (1) and reinforcement (2).

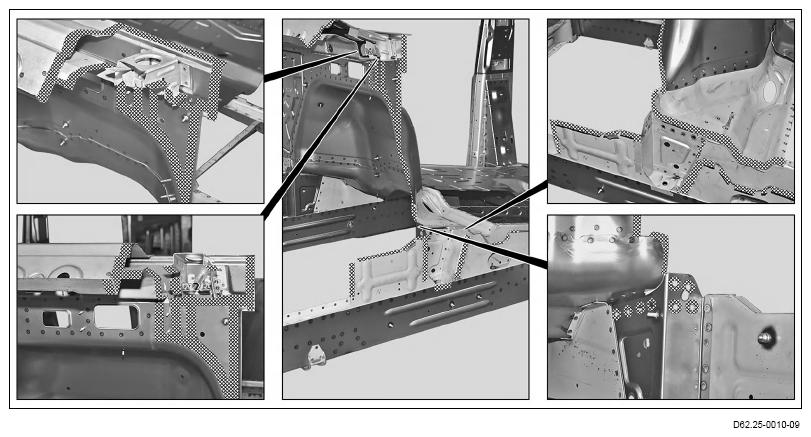

- Grind down mating surfaces to bare metal in cross-hatched areas.
Rotary wire brush
- Remove shavings and milling chips.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.
