Preparing Wheel Well Panel Front Section - Ar62.20-D-1280-04TS

AR62.20-D-1280-04TS	Preparing wheel well panel front section
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A

Model 907

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

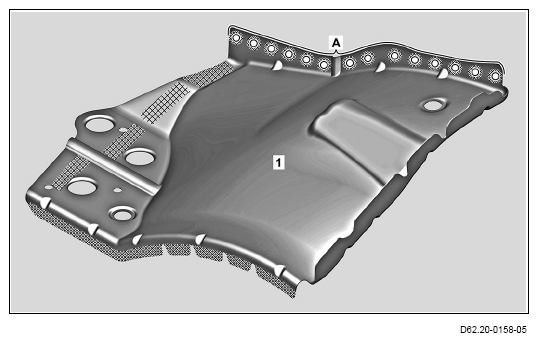

1. Punch holes in wheel well paneling front section (1) with Ø 6 mm (area A).
2. Grind mating surfaces on wheel well paneling front section (1) down to bare metal in cross-hatched areas and around holes (area A).

   Sand down spot weld flanges to bare metal on both sides.

3. Remove shavings.
4. Zinc dust paint to insides of spot weld flanges.

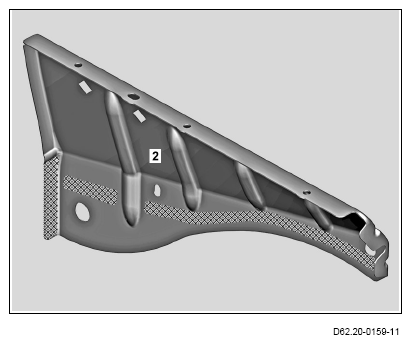

5. Grind mating surfaces on wheel well paneling section (2) down to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

6. Remove shavings.
7. Zinc dust paint to insides of spot weld flanges.
