Prepare Firewall Half For Installation - Ar62.25-D-1110-02TS
Model 907.### 1#
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
Additional information can be found in the superordinate service document.
The safety information in the superordinate service document must be observed.

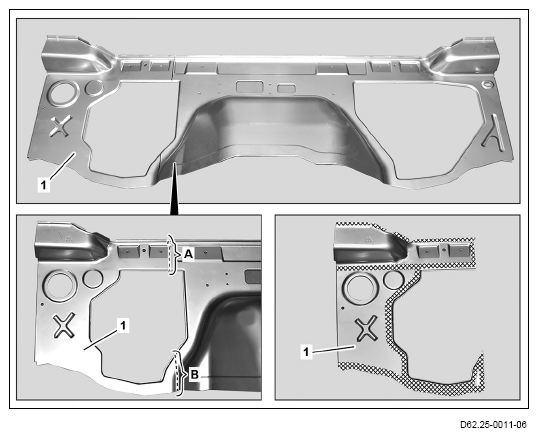

- Mark separating points on firewall (1) (areas A and B).
Take over dimensions for separating points from vehicle.
- Cut firewall (1) at separating points (areas A and B).
Body power jigsaw
- Dispose of larger remaining section of firewall (1).
- Grind down mating surfaces to bare metal in cross-hatched areas.
Rotary wire brush
- Remove shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.

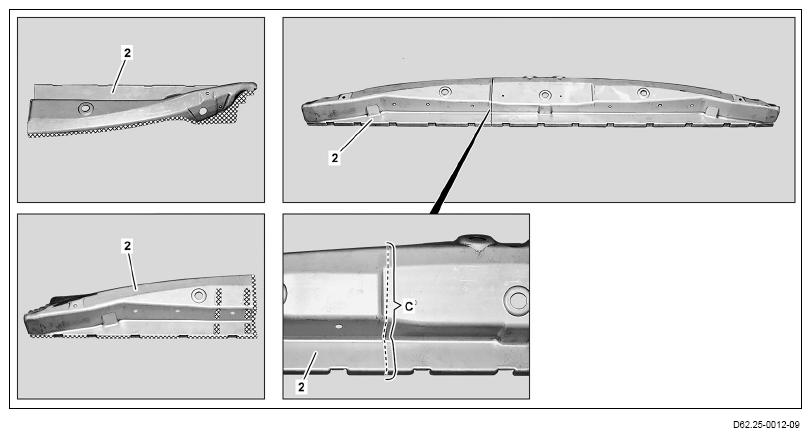

- Mark separating point on reinforcement (2) (area C).
- Cut reinforcement (2) at separating point (area C).
Body power jigsaw
- Dispose of larger remaining section of reinforcement (2).
- Grind down mating surfaces to bare metal in cross-hatched areas.
Rotary wire brush
- Remove shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.

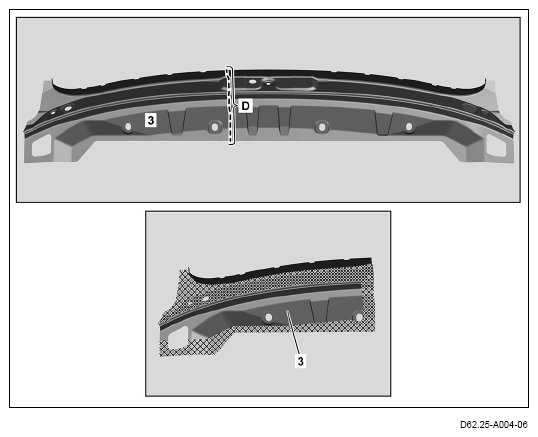

- Mark separating point on paneling under windshield (3) (area D).
- Cut paneling under windshield (2) at separating point (area D).
Body power jigsaw
- Dispose of larger remaining section of paneling under windshield (2).
- Grind down mating surfaces to bare metal in cross-hatched areas.
Rotary wire brush
- Remove shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.

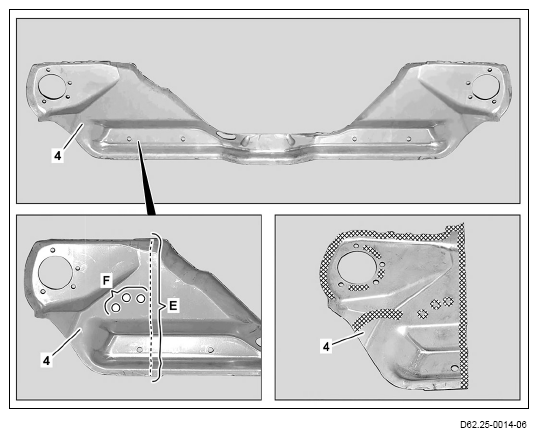

- Mark separating point on suspension strut support upper section (4) (area E).
- Cut paneling under suspension strut support upper section (4) at separating point (area E).
Body power jigsaw
- Dispose of larger remaining section of paneling under suspension strut support (4).
- Drill holes in suspension strut support upper section (4) with Ø 7 mm (area F).
Hand drill
- Grind mating surfaces down to bare metal in cross-hatched areas and around holes (area F).
Rotary wire brush
- Remove drilling chips/shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.

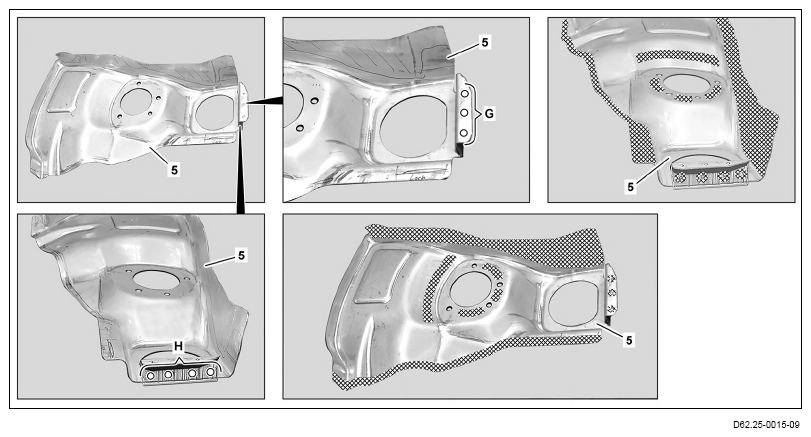

- Drill holes in suspension strut support lower section (5) with Ø 7 mm (areas G and H).
Hand drill
- Grind mating surfaces in cross-hatched areas and around holes down to bare metal (areas G and H).
Rotary wire brush
- Remove drilling chips/shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.

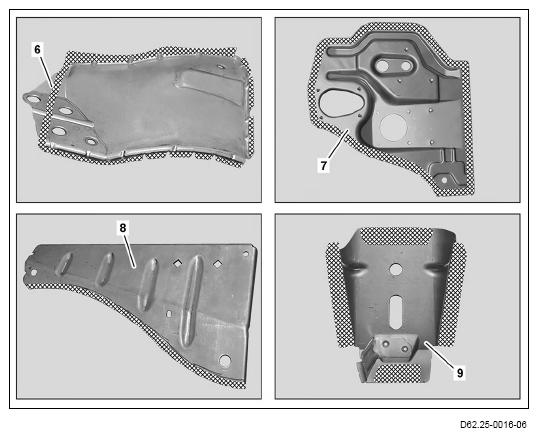

- Grind mating surfaces in cross-hatched areas down to bare metal on wheel well (6), reinforcements (7, 9) wheel well front section (8).
Rotary wire brush
- Remove shavings.
Wet and dry vacuum cleaner
- Zinc dust paint to insides of spot weld flanges.
