Partially Separate Front Longitudinal Member - Ar62.20-D-1255-01TSR

Model 907

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

The following steps are shown on the left side of the vehicle and must be performed analogously on vehicles with damage on the right side of the vehicle.

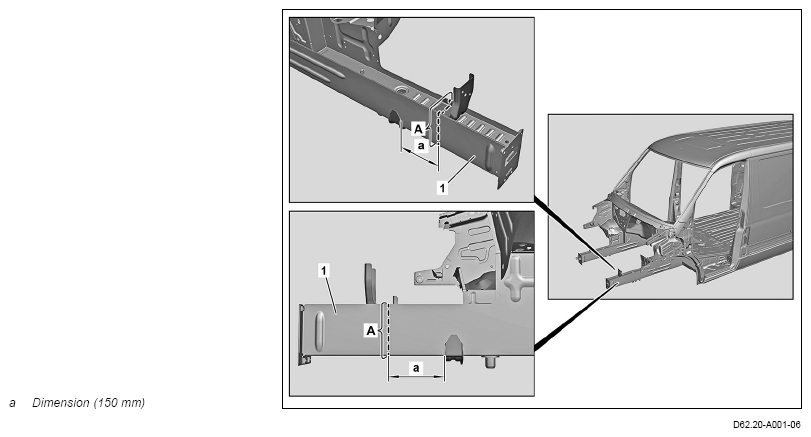

1. Mark the separating point around the longitudinal member at the front (1) (area A).

   Observe dimension (A).

   Measure dimension (a) on the bottom of the front longitudinal member (1).

2. Separate front longitudinal member (1) at separating point (area A).

   Commercially available devices/tools

   Body power jigsaw

3. Remove damaged front longitudinal member (1).

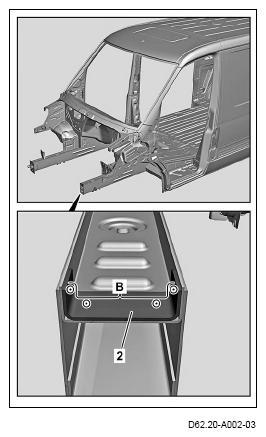

4. Expose spot welds on remaining section (2) (area B).

   Commercially available devices/tools

   Rotary wire brush

5. Cut off spot welds on remaining section (2) (area B).

   Commercially available devices/tools

   Spot weld milling machine

6. Remove remaining piece (2).

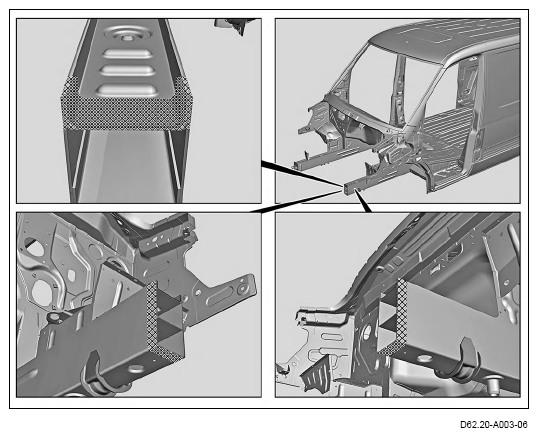

7. Grind down mating surfaces to bare metal in cross-hatched areas.

   Commercially available devices/tools

   Rotary wire brush

8. Remove shavings and milling chips.

Commercially available devices/tools

Wet and dry vacuum cleaner
