Partially Prepare Front Longitudinal Member - Ar62.20-D-1255-02TSR

Model 907

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

The next steps are shown on the left component part and must be performed analogously on vehicles with damage on the right side of the vehicle.

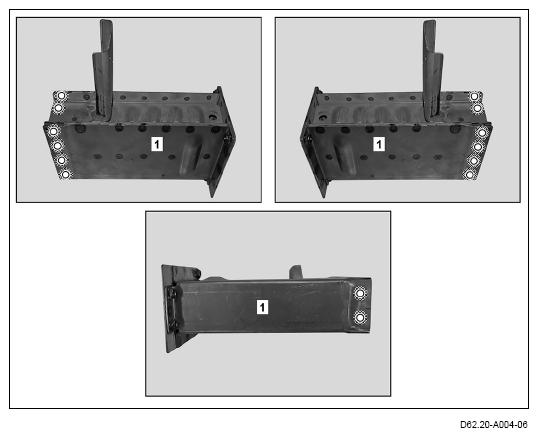

1. Grind cross-hatched areas on front longitudinal member (1) down to bare metal around holes.

   Commercially available devices/tools

   Rotary wire brush

2. Remove shavings.

Commercially available devices/tools

Wet and dry vacuum cleaner
