Partially Install Front Longitudinal Member - Ar62.20-D-1255-03TSR

AR62.20-D-1255-03TSR	Partially install front longitudinal member
	000 588 02 84 00 Welder	WS60.00-P-0022K

Model 907

Fig 1: Welding Device (907 589 00 23 00)

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

1. Insert the front longitudinal member (1), fit it and fix it in place.

   Use welding fixture.

   Commercially available devices/tools

   Clamping pliers (Standard)

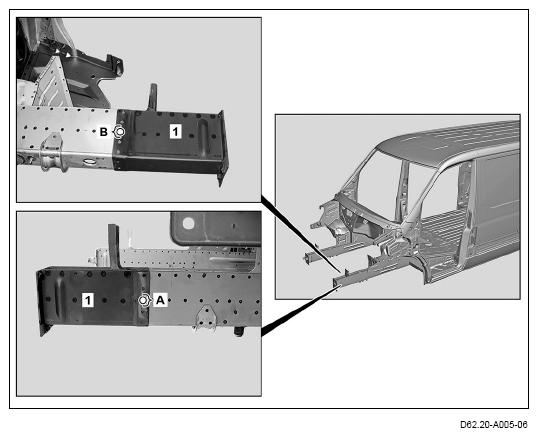

2. Drill pilot holes (areas A and B).

   Commercially available devices/tools

   Hand drill

3. Remove drilling chips.

   Commercially available devices/tools

   Wet and dry vacuum cleaner

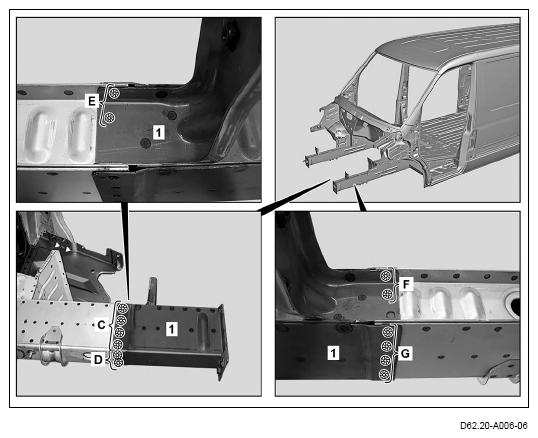

4. The front longitudinal member (1) (areas C, D, E, F and G).
