AR62.25-D-1110-05TS	Install firewall half
	000 588 01 84 00 Welder	WS60.00-P-0021K
	000 588 02 84 00 Welder	WS60.00-P-0022K

Model 907.### 1#

Additional information can be found in the superordinate service document.

The safety information in the superordinate service document must be observed.

1. Install, fit and fix in place suspension strut support lower section (5) and wheel well (6).

   Commercially available devices/tools

   Clamping pliers (Standard)

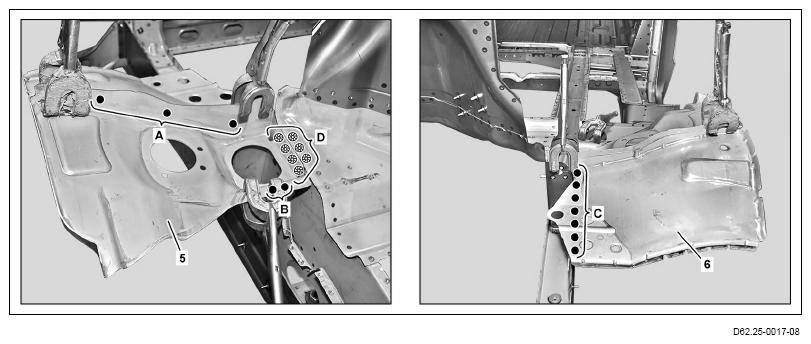

2. Suspension strut support lower section (5) and wheel well (6) (areas A, B and C).
3. Suspension strut support lower section (5) (area D).

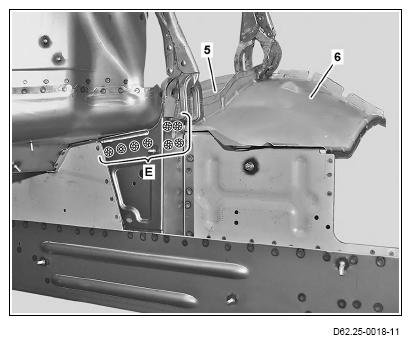

4. Suspension strut support lower section (5) and wheel well (6) (area E).
5. Install, fit and fix in place firewall half (1).

   Commercially available devices/tools

   Clamping pliers (Standard)

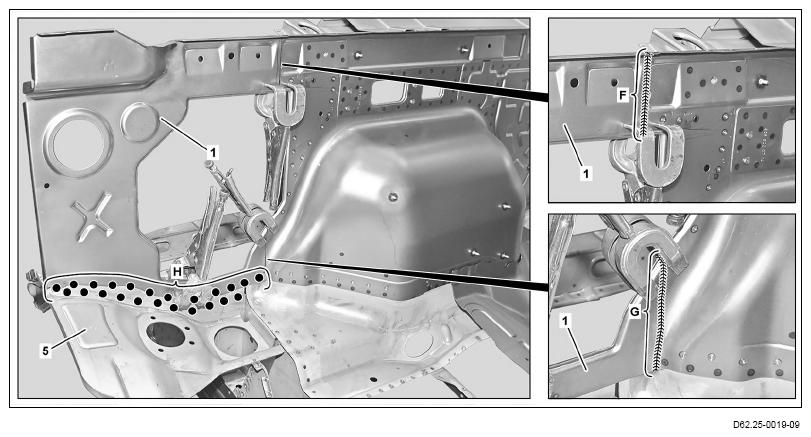

6. Suspension strut support lower section (5) (area H).
7. Firewall half (1) (areas F and G).

   Inert gas weld in intervals and allow to cool down in between.

   Heat distortion is reduced as a result.

8. Install reinforcement (2), fit and fix in place.

   Commercially available devices/tools

   Clamping pliers (Standard)

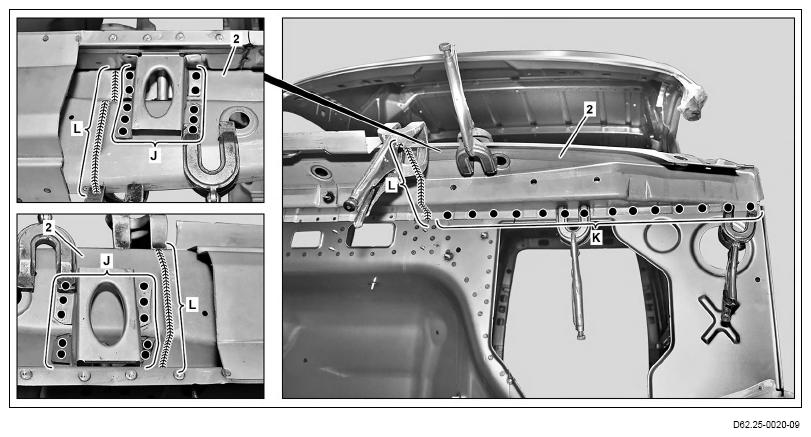

9. Reinforcement (2) (areas J and K).
10. Reinforcement (2) (area L).

    Inert gas weld in intervals and allow to cool down in between.

    Heat distortion is reduced as a result.

11. Install, fit and fix in place wheel well front section (8).

    Commercially available devices/tools

    Clamping pliers (Standard)

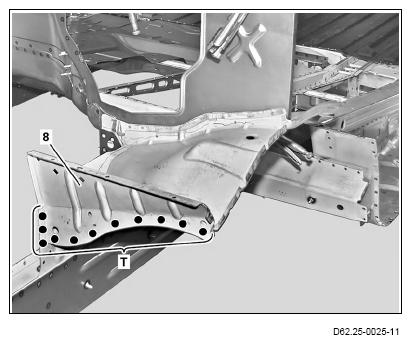

12. Wheel well front section (8) (area T).
13. Install, fit and fix in place suspension strut support upper section (4).

    Commercially available devices/tools

    Clamping pliers (Standard)

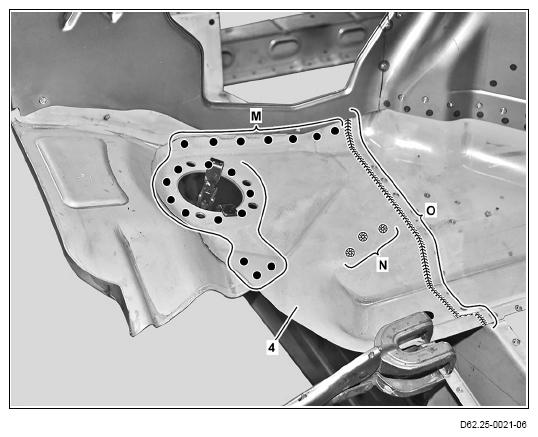

14. Suspension strut support upper section (4) (area M).
15. Suspension strut support upper section (4) (area N).
16. Suspension strut support upper section (4) (area O).

    Inert gas weld in intervals and allow to cool down in between.

    Heat distortion is reduced as a result.

17. Install, fit and fix in place paneling under windshield (3).

    Commercially available devices/tools

    Clamping pliers (Standard)

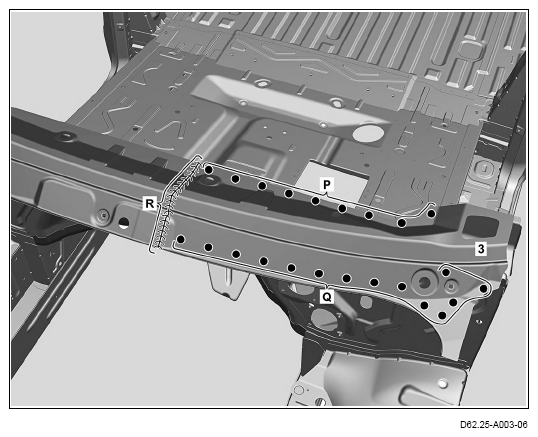

18. Paneling under windshield (3) (areas P and Q).
19. Paneling under windshield (3) (area R).

    Inert gas weld in intervals and allow to cool down in between.

    Heat distortion is reduced as a result.

20. Surface-grind inert gas weld (area R).

    Commercially available devices/tools

    Angular grinder

21. Install, fit and fix in place reinforcement (7).

    Commercially available devices/tools

    Collet (long)

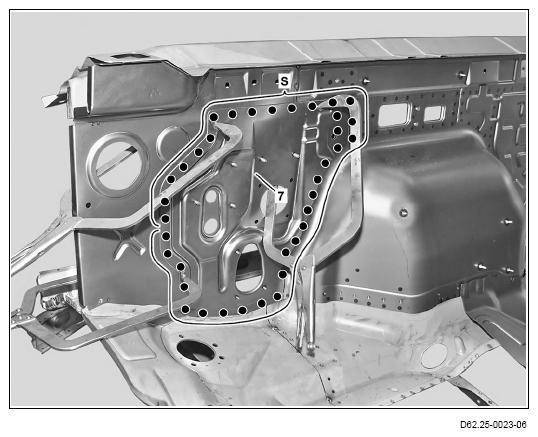

22. Reinforcement (7) (area S).

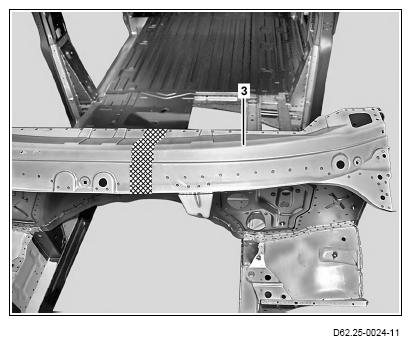

23. Restore surface in cross-hatched area on paneling under windshield (3) and smooth.

Different methods can be used to restore the surfaces.
