| AO |
Color code key |
72L |

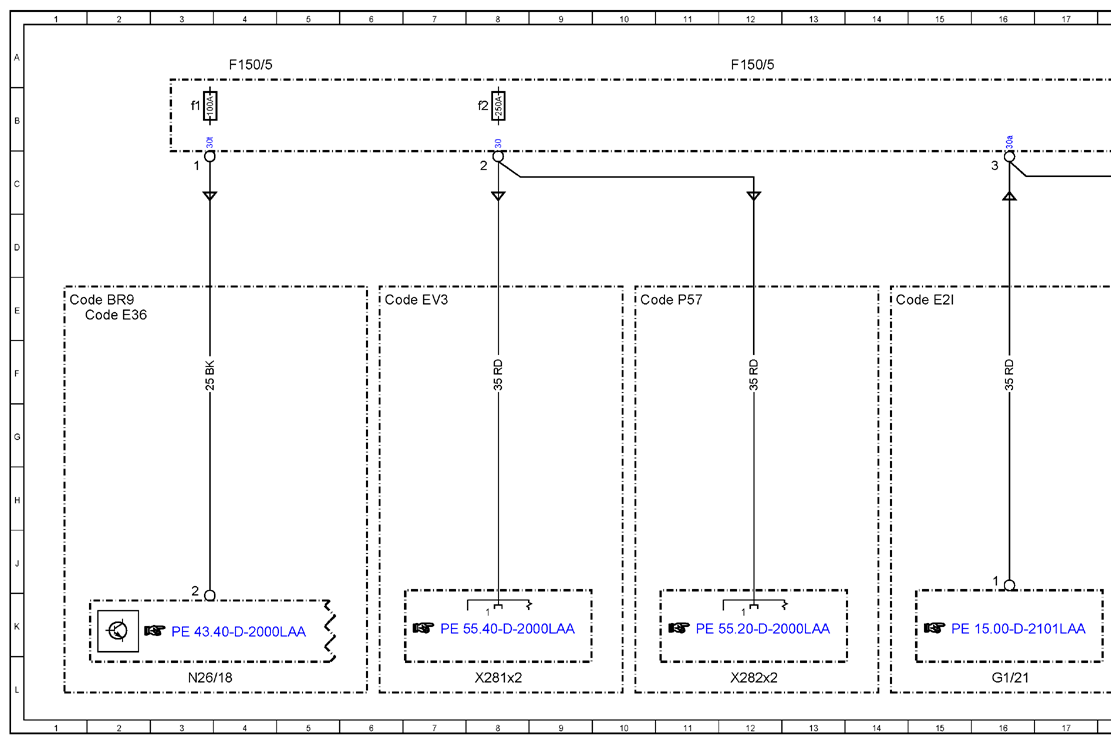

| Code BR9 |
Preinstallation for Telma retarder |
1E |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
14E |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
38E |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
51E |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
60E |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
60F |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
66E |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
18E |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
38E |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
51E |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
60E |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
60G |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
66F |

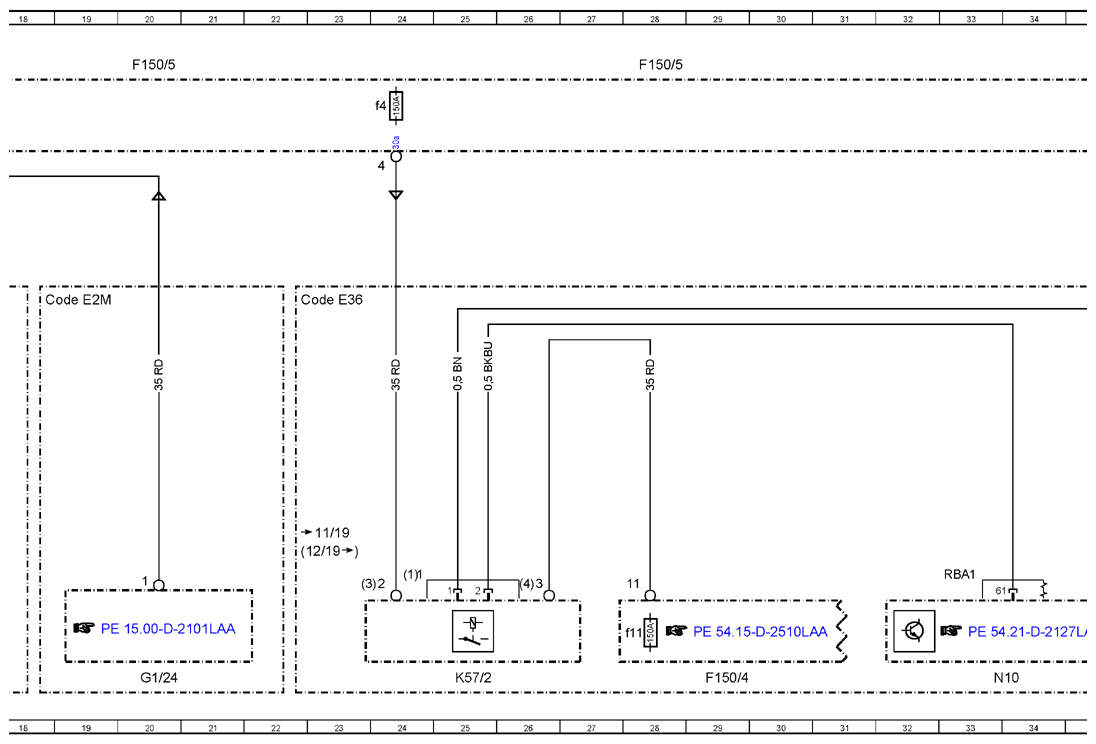

| Code E36 |
Cutoff relay with additional battery |
1E |
| Code E36 |
Cutoff relay with additional battery |
22E |
| Code E46 |
Socket, in cab |
42G |
| Code E46 |
Socket, in cab |
55G |
| Code ES2 |
Trunk/load compartment 12 V socket |
42G |
| Code ES2 |
Trunk/load compartment 12 V socket |
55G |
| Code EV3 |
Pre-installation of electrical scope for cargo liftgate |
6E |
| Code H11 |
Warm air auxiliary heater |
60G |
| Code H11 |
Warm air auxiliary heater |
66F |
| Code JA3 |
Intelligent body control |
60F |
| Code JA3 |
Intelligent body control |
66E |
| Code P57 |
Preinstallation for three-way dump truck |
10E |
| F150/4 |
Driver seat base prefuse box |
29L |
| F150/4f11 |
Fuse 11 |
28K |

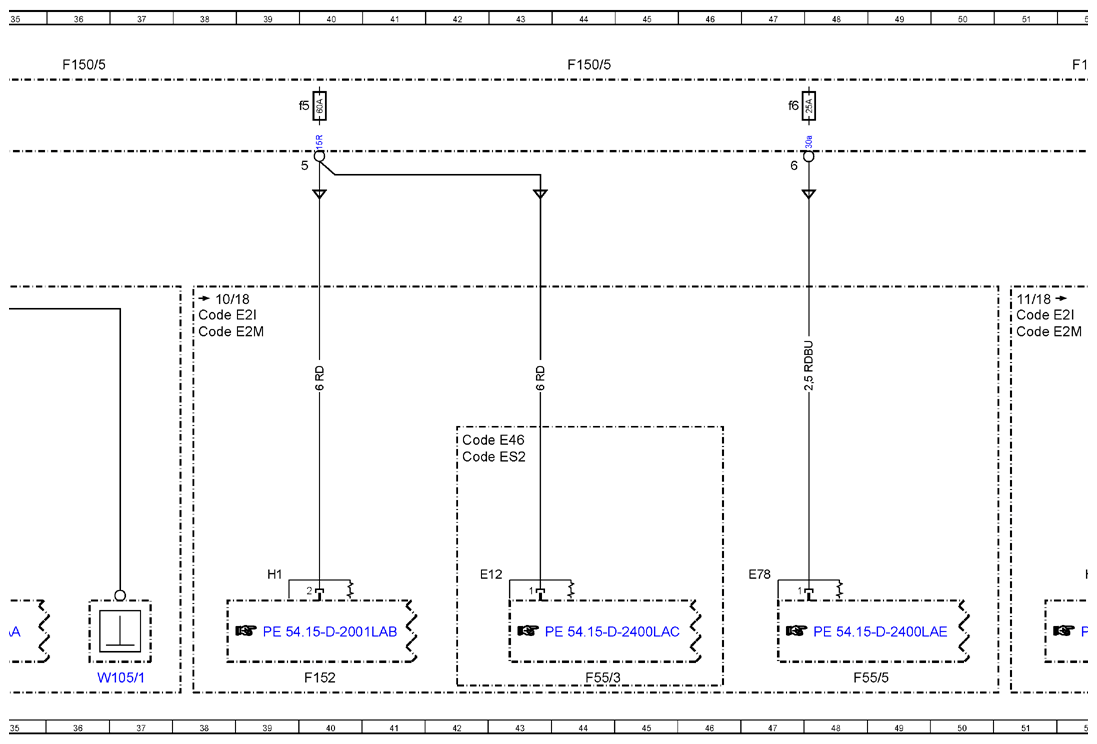

| F150/5 |
Auxiliary battery prefuse box |
4A |
| F150/5 |
Auxiliary battery prefuse box |
28A |
| F150/5 |
Auxiliary battery prefuse box |
36A |
| F150/5 |
Auxiliary battery prefuse box |
12A |
| F150/5 |
Auxiliary battery prefuse box |
20A |
| F150/5 |
Auxiliary battery prefuse box |
44A |
| F150/5 |
Auxiliary battery prefuse box |
52A |
| F150/5 |
Auxiliary battery prefuse box |
60A |
| F150/5f1 |
Fuse 1 |
3B |
| F150/5f2 |
Fuse 2 |
8B |
| F150/5f4 |
Fuse 4 |
24B |
| F150/5f5 |
Fuse 5 |
40B |
| F150/5f5 |
Fuse 5 |
52B |
| F150/5f6 |
Fuse 6 |
47B |
| F150/5f6 |
Fuse 6 |
62B |

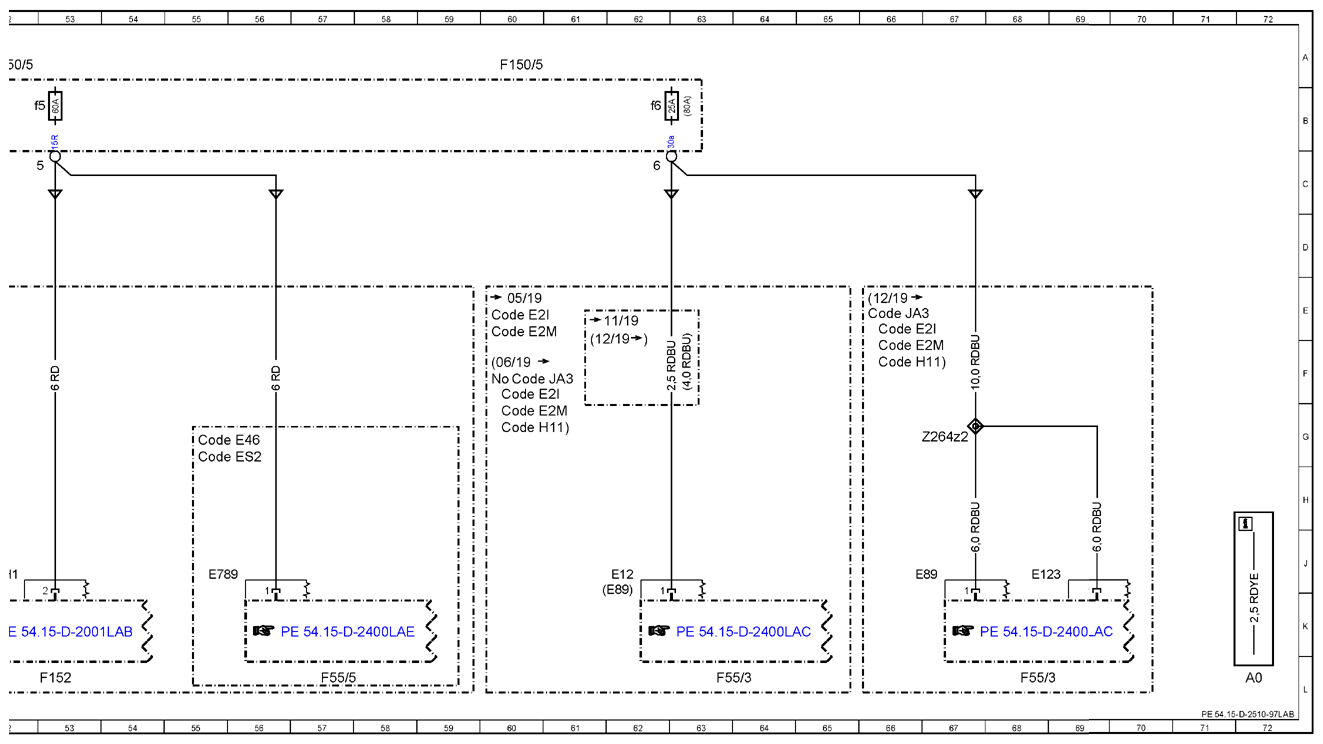

| F152 |
Vehicle interior fuse and relay module |
40L |
| F152 |
Vehicle interior fuse and relay module |
53L |
| F55/3 |
Fuse block 3 (9-pin) |
44L |
| F55/3 |
Fuse block 3 (9-pin) |
63L |
| F55/3 |
Fuse block 3 (9-pin) |
68L |
| F55/5 |
Fuse block 5 (9-pin) |
48L |
| F55/5 |
Fuse block 5 (9-pin) |
57L |
| G1/21 |
Front passenger seat base auxiliary battery |
16L |
| G1/24 |
Engine compartment auxiliary battery |
20L |
| K57/2 |
Additional battery relay |
25L |
| N10 |
SAM control unit |
33L |
| N26/18 |
Retarder control unit |
3L |
| W105/1 |
Driver seat frame ground point 1 |
37L |
| X281x2 |
Cargo liftgate electrical connector 2 |
8L |
| X282x2 |
Dump truck electrical connector 2 |
12L |
| Z264z2 |
Tml. 30 connector sleeve |
67G |
