| A0 |
Color code key |
72L |
| A2/153 |
Roof antenna |
31L |
| A2/191 |
Antenna switchbox |
25L |
| A2/191 |
Antenna switchbox |
37L |
| B25/1 |
Microphone |
22L |
| B25/20 |
Driver hands-free system microphone |
18L |
| CAN HMI |
User interface CAN |
9K |
| Code E1D |
Digital radio (DAB) |
35E |
| Code E1D |
Digital radio (DAB) |
30E |
| Code E1D |
Digital radio (DAB) |
27E |
| Code E3D |
Pre-installation for DSP box |
55E |
| Code E3D |
Pre-installation for DSP box |
45E |
| Code E4A |
Antenna interface for radio, navigation and cellular telephone system |
23E |
| Code E4A |
Antenna interface for radio, navigation and cellular telephone system |
27E |
| Code E4A |
Antenna interface for radio, navigation and cellular telephone system |
35E |
| Code E4A |
Antenna interface for radio, navigation and cellular telephone system |
31E |
| Code EL9 |
Front and rear two-way speaker system |
49E |
| Code EL9 |
Front and rear two-way speaker system |
49E |
| Code EP7 |
Electrics pre-installation for rear speakers |
49E |
| Code EP7 |
Electrics pre-installation for rear speakers |
49E |
| Code F50 |
Base |
16E |
| Code F50 |
Base |
20E |
| Code JH3 |
Communication module (LTE) for digital services |
11E |
| Code JH3 |
Communication module (LTE) for digital services |
39E |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
11E |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
39E |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
39E |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
11E |

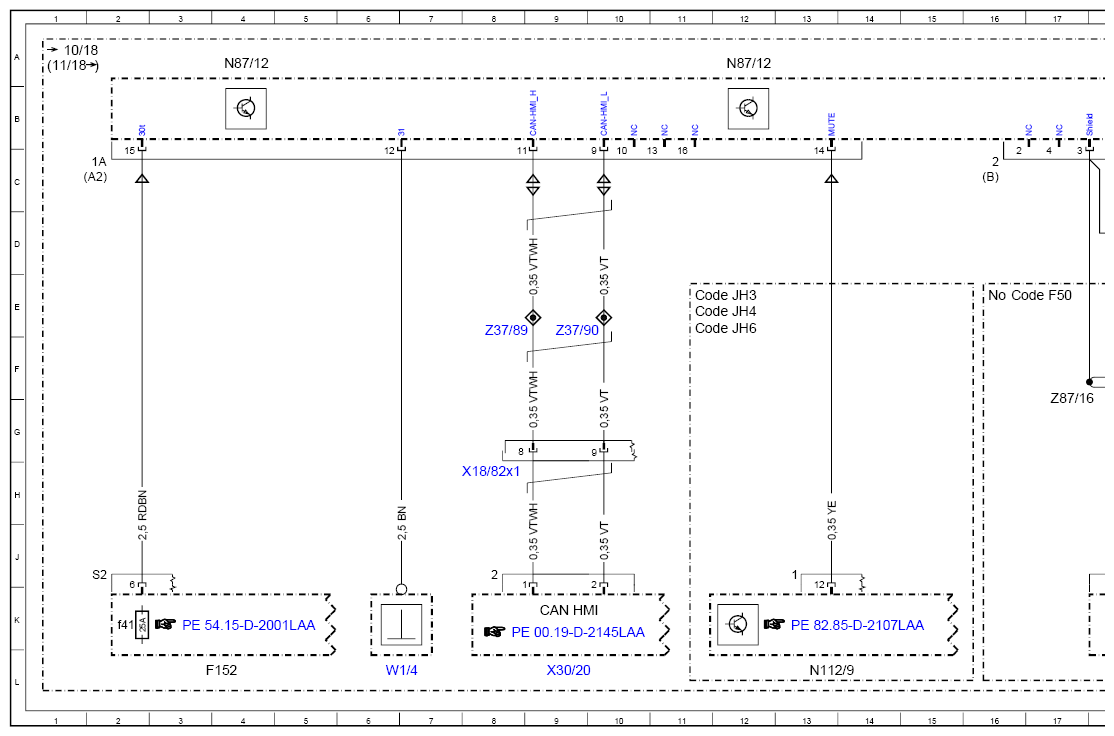

| F152 |
Vehicle interior fuse and relay module |
4L |
| F152f41 |
Fuse 41 |
2K |
| N112/9 |
HERMES control unit |
41L |
| N112/9 |
HERMES control unit |
13L |

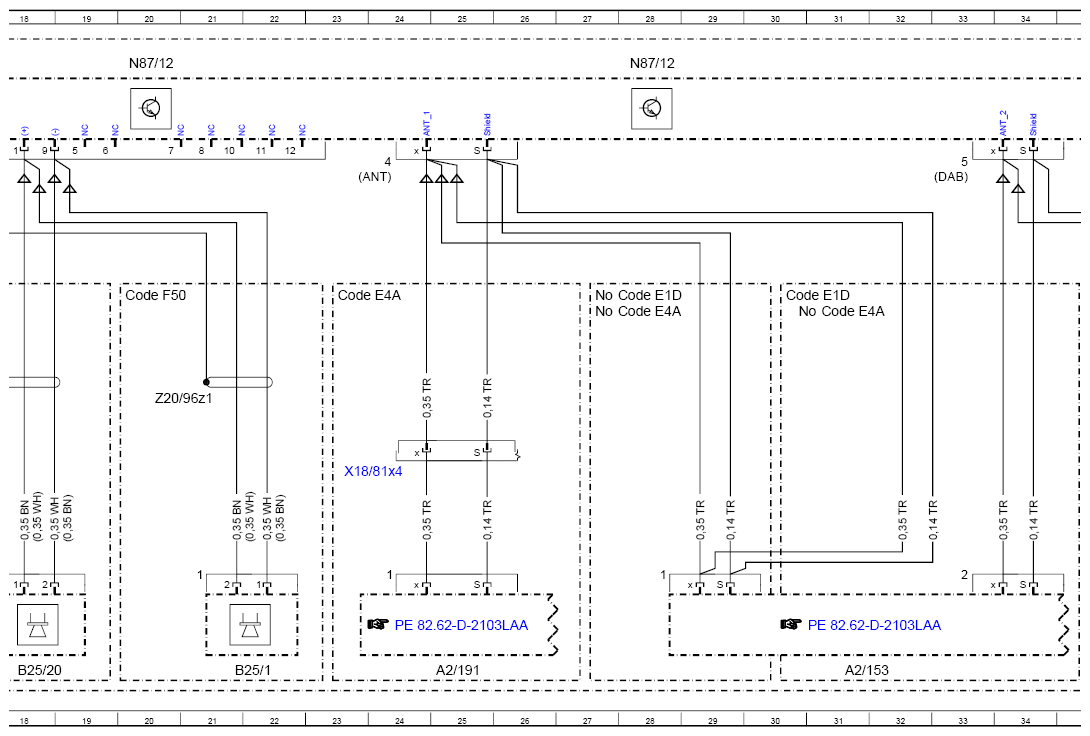

| N87/12 |
Radio |
4A |
| N87/12 |
Radio |
12A |
| N87/12 |
Radio |
20A |
| N87/12 |
Radio |
28A |
| N87/12 |
Radio |
36A |
| N87/12 |
Radio |
44A |
| N87/12 |
Radio |
52A |
| N87/12 |
Radio |
60A |
| W1/4 |
HLS cockpit ground point |
6L |

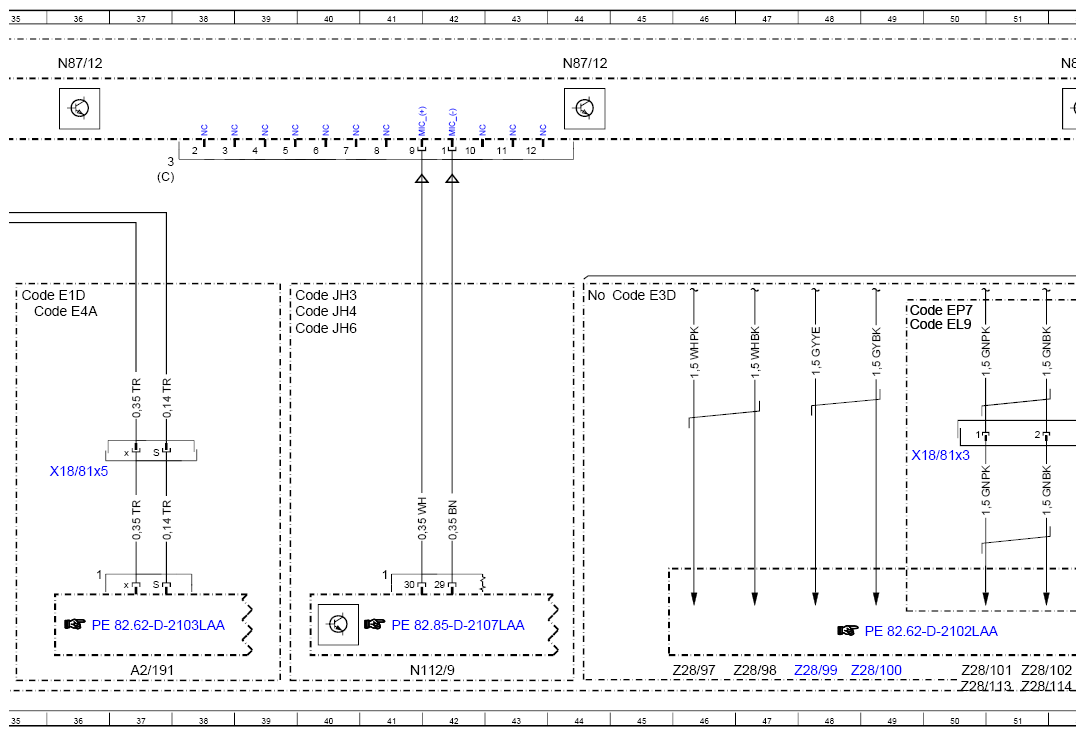

| X18/81x3 |
Left cockpit/MWH electrical connector 3 |
50G |
| X18/81x4 |
Left cockpit/MWH electrical connector 4 |
23H |
| X18/81x5 |
Left cockpit/MWH electrical connector 5 |
36H |
| X18/82x1 |
Right cockpit/MWH electrical connector 1 |
8H |

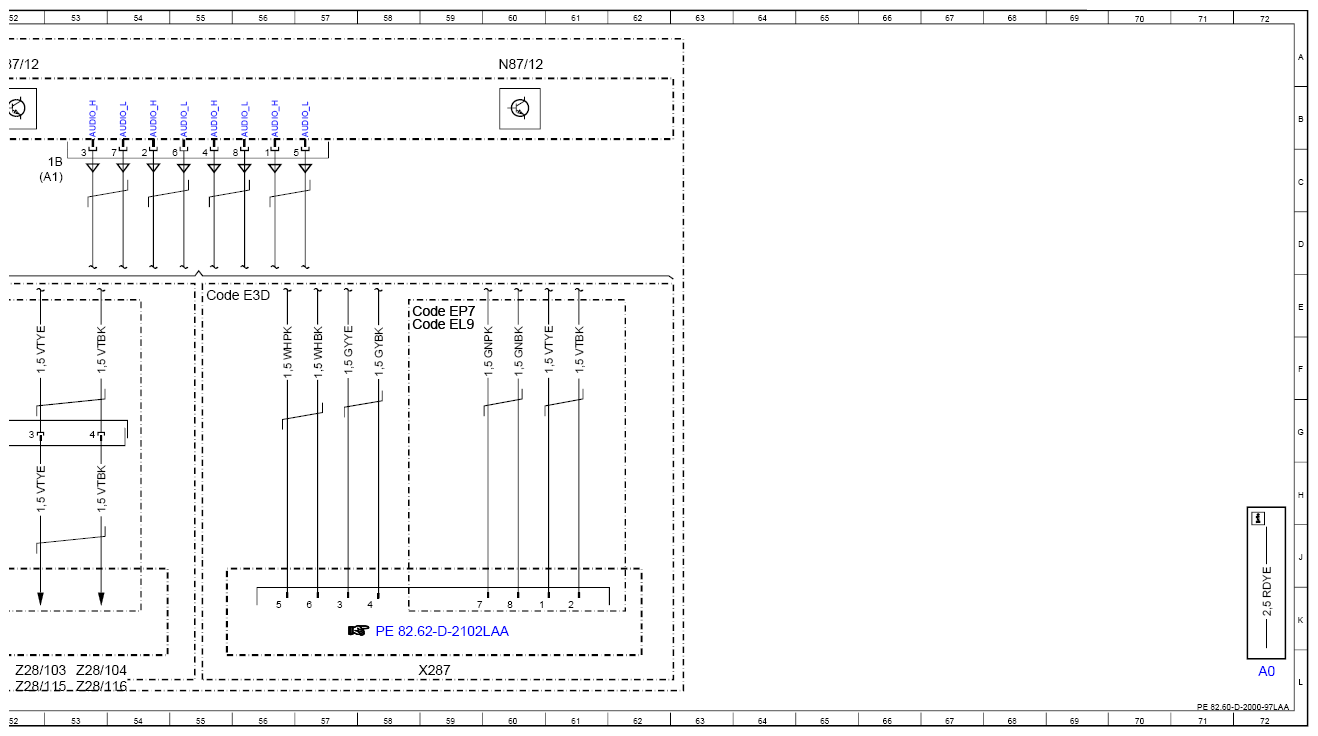

| X287 |
DSP box electrical connector |
59L |
| X30/20 |
User interface CAN (CAN HMI) potential distributor electrical connector |
9L |
| Z20/96z1 |
Shielding connector sleeve |
21G |
| Z28/100 |
Right front speaker connector sleeve (-) |
49L |
| Z28/101 |
Left rear speaker end sleeve (+) |
50L |
| Z28/102 |
Left rear speaker end sleeve (-) |
51L |
| Z28/103 |
Right rear speaker end sleeve (+) |
52L |
| Z28/104 |
Right rear speaker end sleeve (-) |
53L |
| Z28/113 |
Rear left rear speaker end sleeve (+) |
50L |
| Z28/114 |
Rear left rear speaker end sleeve (-) |
51L |
| Z28/115 |
Rear right rear speaker end sleeve (+) |
52L |
| Z28/116 |
Rear right rear speaker end sleeve (-) |
53L |
| Z28/97 |
Left front speaker connector sleeve (+) |
46L |
| Z28/98 |
Left front speaker connector sleeve (-) |
47L |
| Z28/99 |
Right front speaker connector sleeve (+) |
48L |
| Z37/89 |
User interface CAN end sleeve (low) |
8E |
| Z37/90 |
User interface CAN end sleeve (high) |
9E |
| Z87/16 |
Microphone shielding end sleeve |
17G |
