| A0 |
Color code key |
121L |
| A1 |
Instrument cluster |
34L |

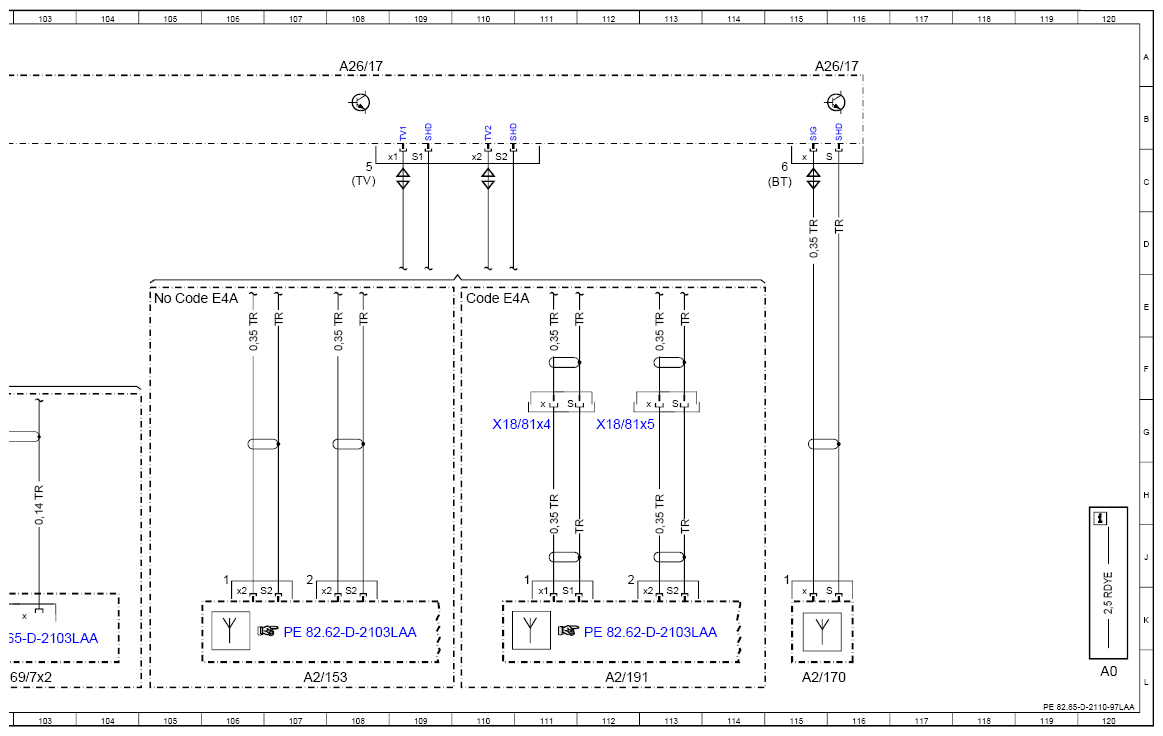

| A2/153 |
Roof antenna |
108L |
| A2/170 |
Bluetooth® and WLAN antenna |
116L |
| A2/191 |
Antenna switchbox |
113L |
| A26/17 |
Head unit |
4A |
| A26/17 |
Head unit |
28A |
| A26/17 |
Head unit |
36A |
| A26/17 |
Head unit |
44A |
| A26/17 |
Head unit |
12A |
| A26/17 |
Head unit |
20A |
| A26/17 |
Head unit |
52A |
| A26/17 |
Head unit |
60A |
| A26/17 |
Head unit |
68A |
| A26/17 |
Head unit |
77A |
| A26/17 |
Head unit |
85A |
| A26/17 |
Head unit |
92A |
| A26/17 |
Head unit |
100A |
| A26/17 |
Head unit |
109A |
| A26/17 |
Head unit |
116A |

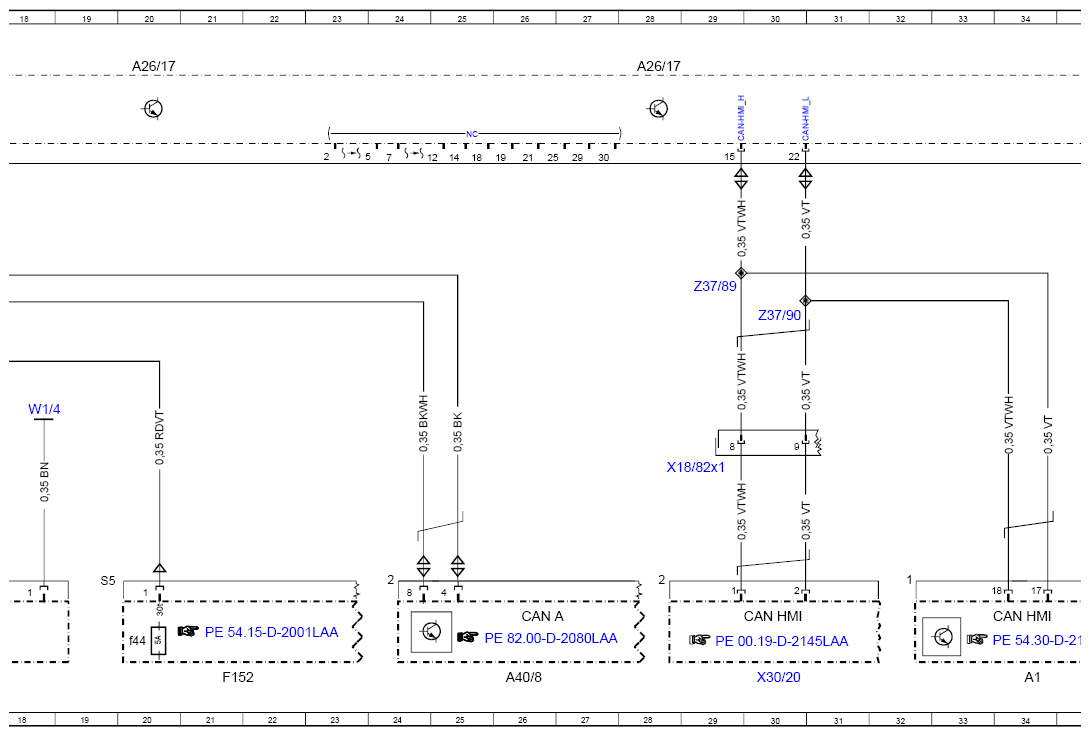

| A40/8 |
Audio/COMAND display control unit |
26L |
| A40/8 |
Audio/COMAND display control unit |
90L |

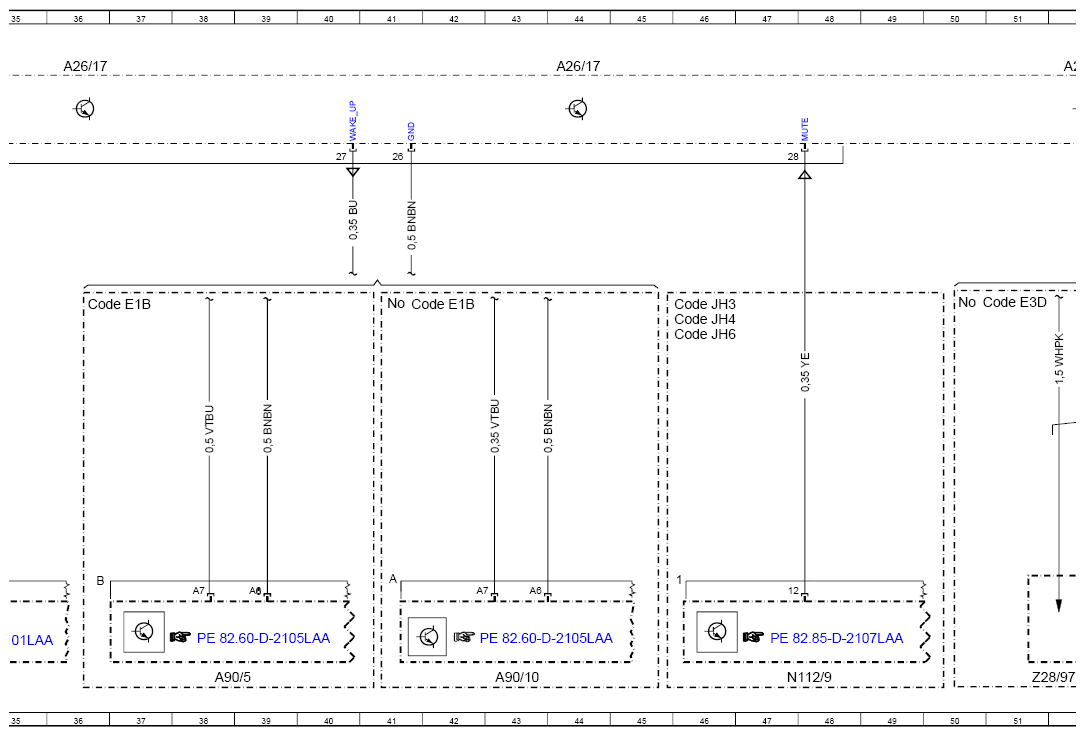

| A90/10 |
Multimedia connection unit remote control interface |
43L |
| A90/10 |
Multimedia connection unit remote control interface |
86L |
| A90/5 |
Multimedia connection unit |
38L |

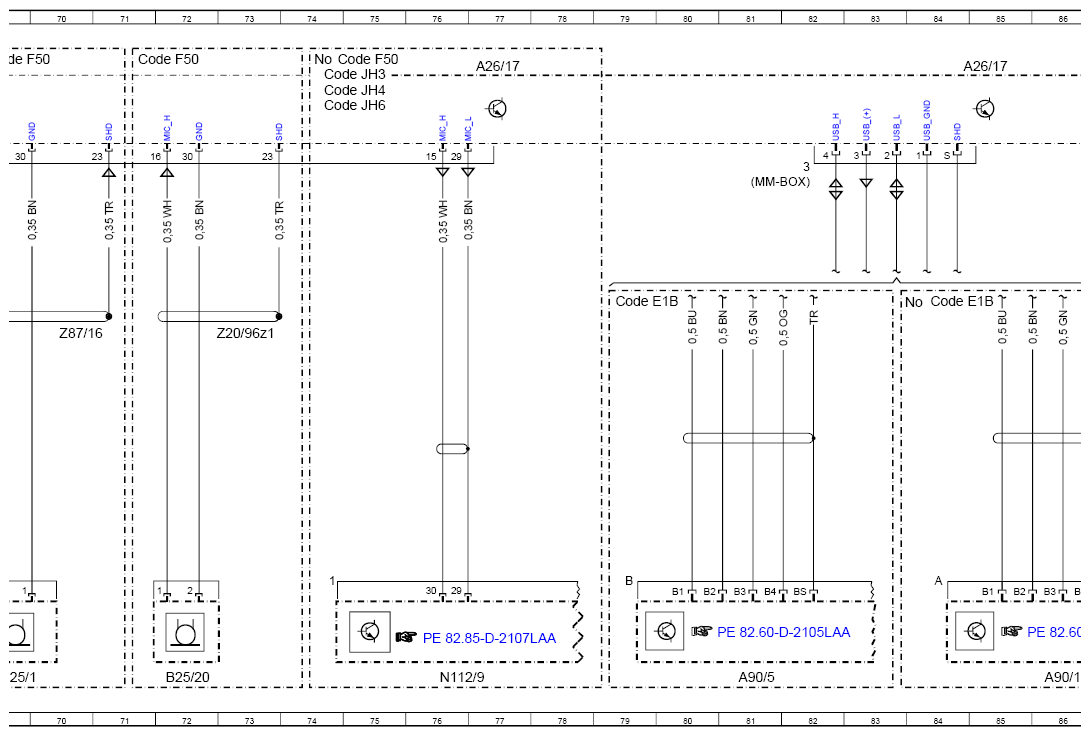

| A90/5 |
Multimedia connection unit |
81L |
| B25/1 |
Microphone |
69L |
| B25/20 |
Driver hands-free system microphone |
72L |

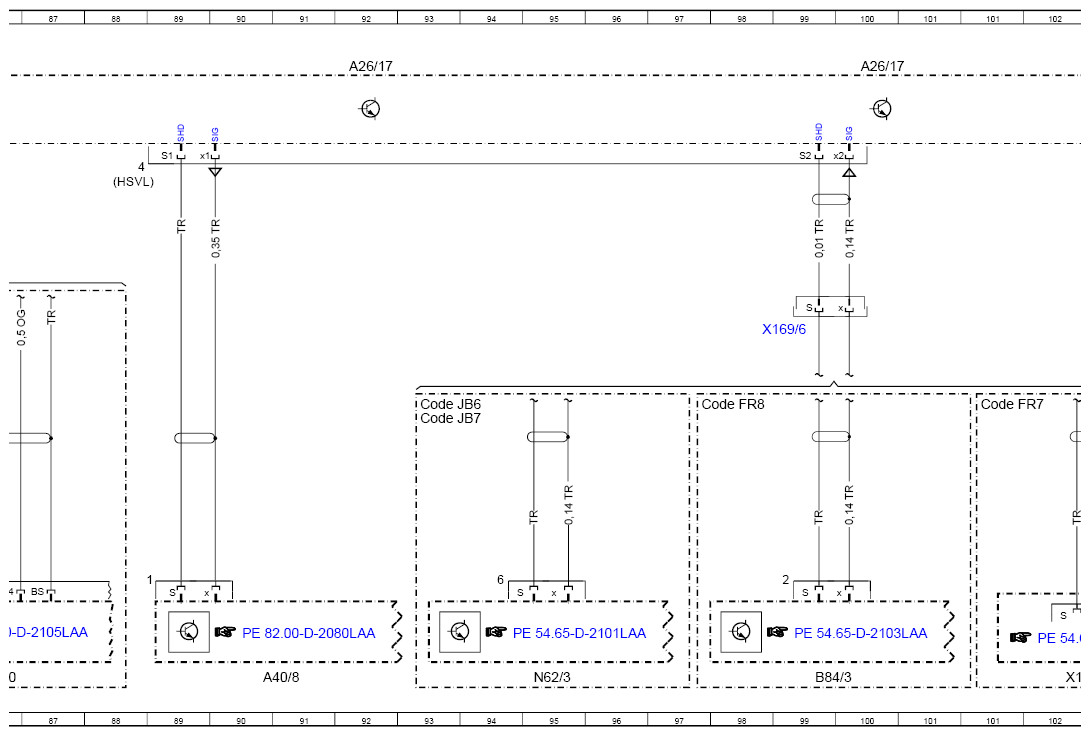

| B84/3 |
Reversing camera (RFK) control unit |
99L |
| CAN A |
Telematics CAN |
26K |
| CAN A |
Telematics CAN |
13K |
| CAN A |
Telematics CAN |
16K |
| CAN HMI |
User interface CAN |
30K |
| CAN HMI |
User interface CAN |
34K |
| Code E1B |
Stowage compartment for smartphones incl. wireless charging |
11F |
| Code E1B |
Stowage compartment for smartphones incl. wireless charging |
41E |
| Code E1B |
Stowage compartment for smartphones incl. wireless charging |
36E |
| Code E1B |
Stowage compartment for smartphones incl. wireless charging |
79E |
| Code E1B |
Stowage compartment for smartphones incl. wireless charging |
84E |
| Code E3D |
Pre-installation for DSP box |
61E |
| Code E3D |
Pre-installation for DSP box |
50E |
| Code E4A |
Antenna interface for radio, navigation and cellular telephone system |
106E |
| Code E4A |
Antenna interface for radio, navigation and cellular telephone system |
111E |
| Code EL9 |
Front and rear two-way speaker system |
55E |
| Code EL9 |
Front and rear two-way speaker system |
55E |
| Code EP7 |
Electrics pre-installation for rear speakers |
55E |
| Code EP7 |
Electrics pre-installation for rear speakers |
55E |
| Code F50 |
Base |
69A |
| Code F50 |
Base |
71A |
| Code F50 |
Base |
74A |
| Code FR7 |
Backup Assist electrical system pre installation |
102G |
| Code FR8 |
Backup camera |
97G |
| Code JB6 |
Parking package with 360° camera |
93G |
| Code JB7 |
Parking Package with reversing camera |
93G |
| Code JH3 |
Communication module (LTE) for digital services |
46E |
| Code JH3 |
Communication module (LTE) for digital services |
74A |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
46E |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
74B |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
46F |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
74B |

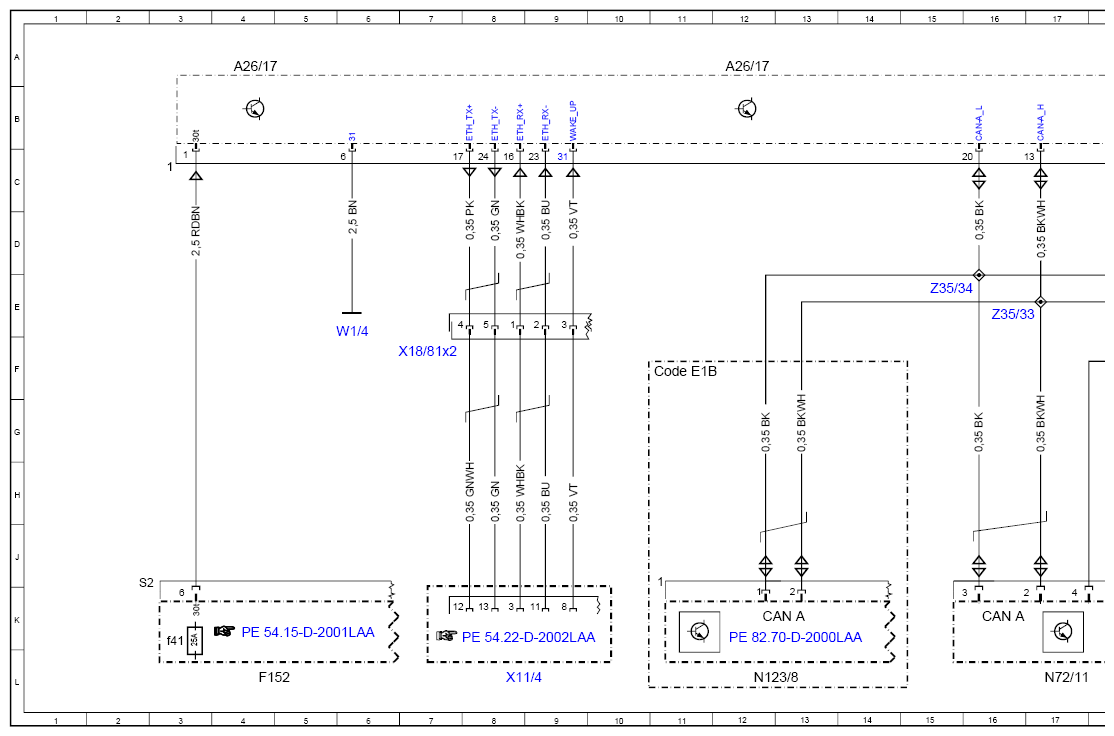

| F152 |
Vehicle interior fuse and relay module |
4L |
| F152 |
Vehicle interior fuse and relay module |
21L |
| F152f41 |
Fuse 41 |
3K |
| F152f44 |
Fuse 44 |
20K |
| N112/9 |
HERMES control unit |
48L |
| N112/9 |
HERMES control unit |
76L |
| N123/8 |
Mobile phone cradle control unit |
12L |
| N62/3 |
Parking system control unit |
95L |
| N72/11 |
Head unit control panel control unit |
17L |
| W1/4 |
HLS cockpit ground point |
18G |
| W1/4 |
HLS cockpit ground point |
6E |
| X11/4 |
Diagnostic connector |
8L |
| X169/6 |
Backup camera electrical connector |
99E |
| X169/7x2 |
Reversing camera electrical connector 2 |
103L |
| X18/81x2 |
Left cockpit/MWH electrical connector 2 |
7F |
| X18/81x3 |
Left cockpit/MWH electrical connector 3 |
56H |
| X18/81x4 |
Left cockpit/MWH electrical connector 4 |
112G |
| X18/81x5 |
Left cockpit/MWH electrical connector 5 |
113G |
| X18/82x1 |
Right cockpit/MWH electrical connector 1 |
29H |

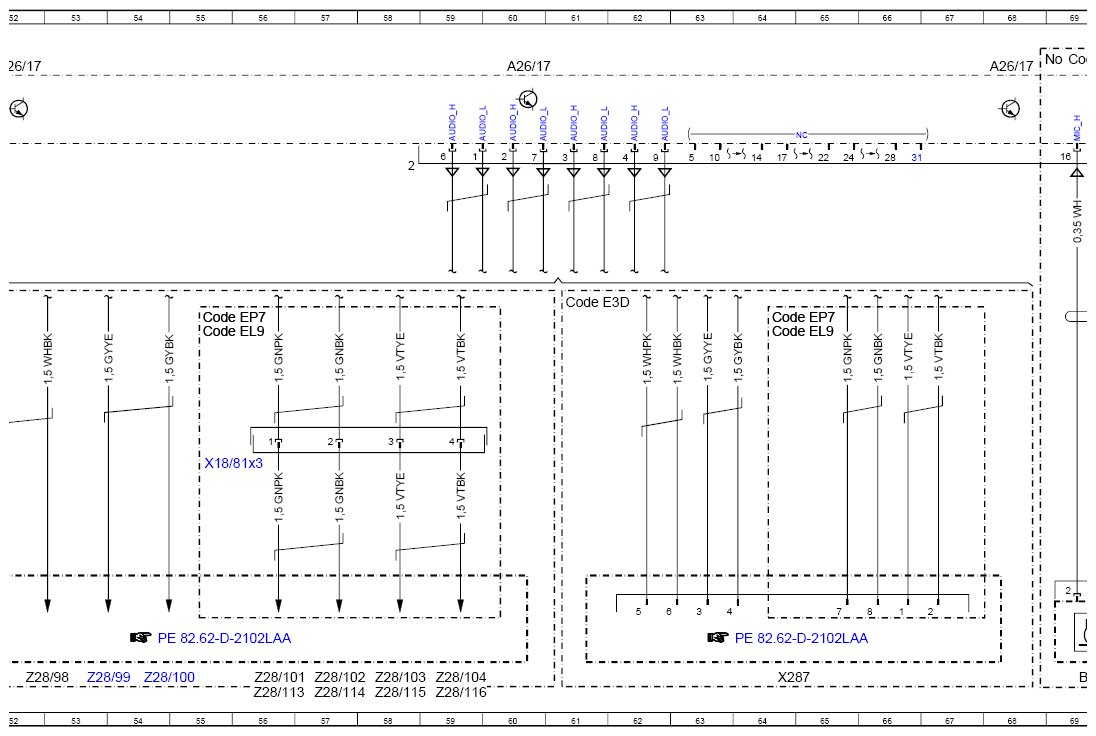

| X287 |
DSP box electrical connector |
64L |
| X30/20 |
User interface CAN (CAN HMD potential distributor electrical connector |
30L |
| Z20/96z1 |
Shielding connector sleeve |
73F |
| Z28/100 |
Right front speaker connector sleeve (-) |
54L |
| Z28/101 |
Left rear speaker end sleeve (+) |
56L |
| Z28/102 |
Left rear speaker end sleeve (-) |
57L |
| Z28/103 |
Right rear speaker end sleeve (+) |
58L |
| Z28/104 |
Right rear speaker end sleeve (-) |
59L |
| Z28/113 |
Rear left rear speaker end sleeve (+) |
56L |
| Z28/114 |
Rear left rear speaker end sleeve (-) |
57L |
| Z28/115 |
Rear right rear speaker end sleeve (+) |
58L |
| Z28/116 |
Rear right rear speaker end sleeve (-) |
59L |
| Z28/97 |
Left front speaker connector sleeve (+) |
51L |
| Z28/98 |
Left front speaker connector sleeve (-) |
52L |
| Z28/99 |
Right front speaker connector sleeve (+) |
53L |
| Z35/33 |
Telematics CAN (high) connector sleeve |
16E |
| Z35/34 |
Telematics CAN (low) connector sleeve |
15E |
| Z37/89 |
User interface CAN end sleeve (low) |
29E |
| Z37/90 |
User interface CAN end sleeve (high) |
30E |
| Z87/16 |
Microphone shielding end sleeve |
70F |
