| A0 |
Color code key |
192L |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
12D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
15D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
19D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
22D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
24D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
27D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
49D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
46D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
68D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
70D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
78D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
76D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
178D |
| Code E2A |
Tapping of body manufacturer special signals in cockpit |
181D |
| Code E5M |
Extension of PSM standard contact |
53D |
| Code E5M |
Extension of PSM standard contact |
55D |
| Code FR3 |
Reversing camera inside rearview mirror display |
2D |
| Code FR3 |
Reversing camera inside rearview mirror display |
5D |
| Code FR3 |
Reversing camera inside rearview mirror display |
172D |
| Code FR3 |
Reversing camera inside rearview mirror display |
175D |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
32D |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
34D |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
2D |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
5D |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
172D |
| Code FV1 |
Pre-installation for reversing camera with inside rearview mirror |
175D |
| Code JWO |
Backup warning system |
2D |
| Code JWO |
Backup warning system |
5D |
| Code JWO |
Backup warning system |
32D |
| Code JWO |
Backup warning system |
34D |
| Code JWO |
Backup warning system |
172D |
| Code JWO |
Backup warning system |
175D |
| Code JW3 |
Shutoff for backup warning system |
5D |
| Code JW3 |
Shutoff for backup warning system |
32D |
| Code JW3 |
Shutoff for backup warning system |
34D |
| Code JW3 |
Shutoff for backup warning system |
2E |
| Code JW3 |
Shutoff for backup warning system |
172D |
| Code JW3 |
Shutoff for backup warning system |
175D |
| Code L07 |
Clearance lamps |
37D |
| Code L07 |
Clearance lamps |
73D |
| Code L07 |
Clearance lamps |
164A |
| Code L10 |
Lights for left-hand traffic system |
8D |
| Code L10 |
Lights for left-hand traffic system |
51D |
| Code L10 |
Lights for left-hand traffic system |
59D |
| Code L10 |
Lights for left-hand traffic system |
10D |
| Code L10 |
Lights for left-hand traffic system |
54D |
| Code L10 |
Lights for left-hand traffic system |
56D |
| Code L13 |
Front fog lamps with cornering lights |
101A |
| Code L21 |
|
5E |
| Code L21 |
|
2D |
| Code L21 |
|
27D |
| Code L21 |
|
25D |
| Code L21 |
|
171A |
| Code L44 |
Front side turn signal lamps |
91A |
| Code L44 |
Front side turn signal lamps |
81A |
| Code L49 |
Identification lamps |
40D |
| Code L49 |
Identification lamps |
42D |
| Code L49 |
Identification lamps |
61D |
| Code L49 |
Identification lamps |
63D |
| Code L49 |
Identification lamps |
131A |
| Code L77 |
Electr. equipment for additional turn signal lamps |
49D |
| Code L77 |
Electr. equipment for additional turn signal lamps |
46D |
| Code L77 |
Electr. equipment for additional turn signal lamps |
78D |
| Code L77 |
Electr. equipment for additional turn signal lamps |
76D |
| Code LB1 |
Marker lamps, side |
37D |
| Code LB1 |
Marker lamps, side |
73D |
| Code LB1 |
Marker lamps, side |
114A |
| Code LB2 |
Preinstallation for marker lamps, side |
37D |
| Code LB2 |
Preinstallation for marker lamps, side |
73D |
| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
12D |
| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
15D |
| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
19D |
| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
22D |
| Code LB5 |
Center high-mounted stop lamp |
110A |
| Code LG7 |
LED High Performance headlamps |
133D |
| Code LG7 |
LED High Performance headlamps |
135D |
| Code LV4 |
Pre-installation of electr. scope for front fog lamps |
101A |
| Code LV7 |
Pre-installation for clearance lamps |
164A |
| Code PA7 |
|
2E |
| Code PA7 |
|
5E |
| Code PA7 |
|
172E |
| Code PA7 |
|
175E |
| Code PY2 |
Hymer Group scope of supply |
53D |
| Code PY2 |
Hymer Group scope of supply |
55D |
| Code ZU4 |
Argentina production |
101B |
| Code ZU7 |
Canada national version |
37D |
| Code ZU7 |
Canada national version |
73D |
| Code ZU7 |
Canada national version |
15D |
| Code ZU7 |
Canada national version |
22D |
| Code ZU8 |
USA national version |
37E |
| Code ZU8 |
USA national version |
15D |
| Code ZU8 |
USA national version |
22D |

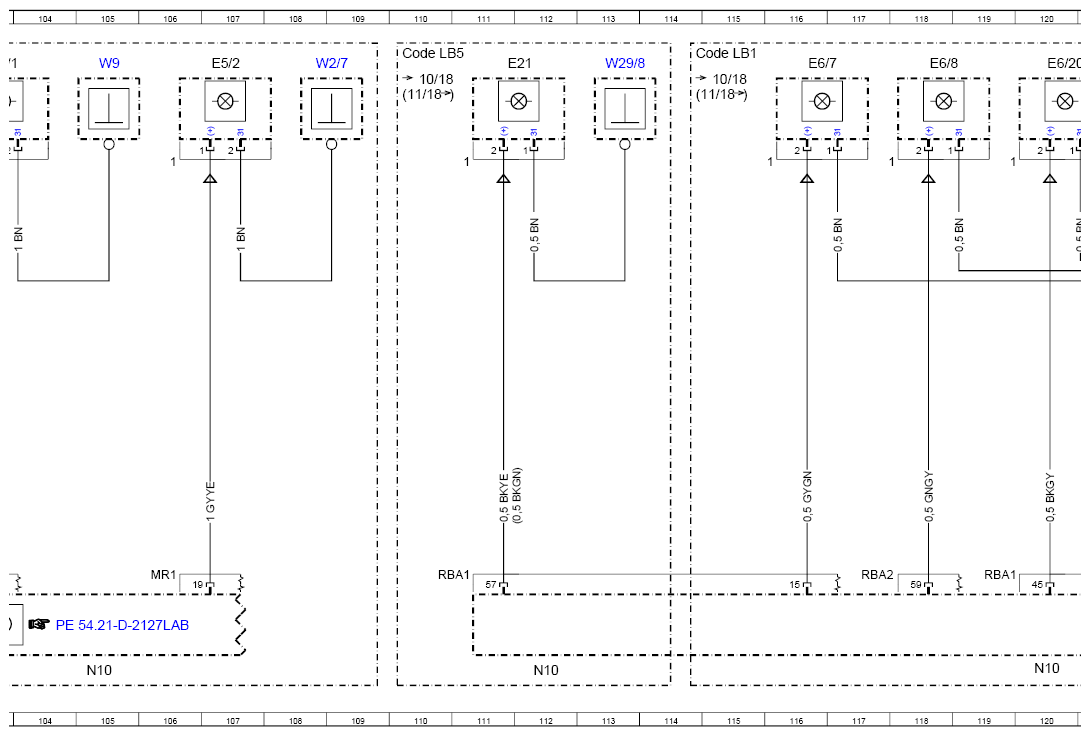

| E21 |
Center stop lamp |
111A |

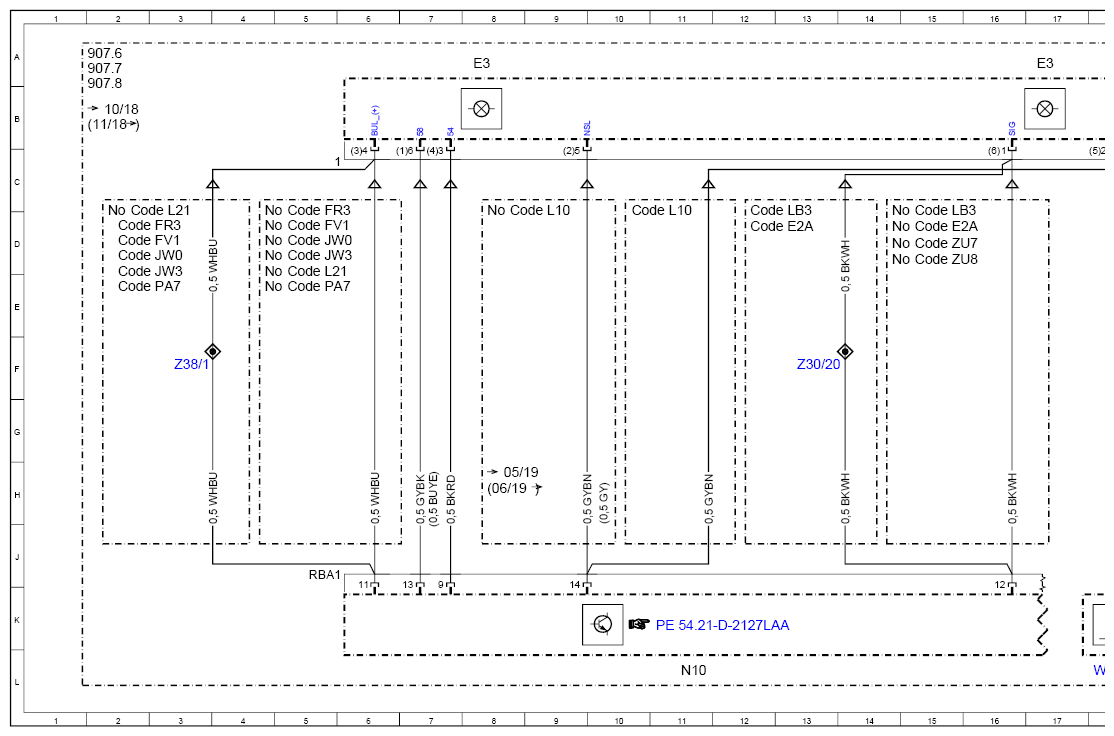

| E3 |
Left tail lamp |
8A |
| E3 |
Left tail lamp |
17A |

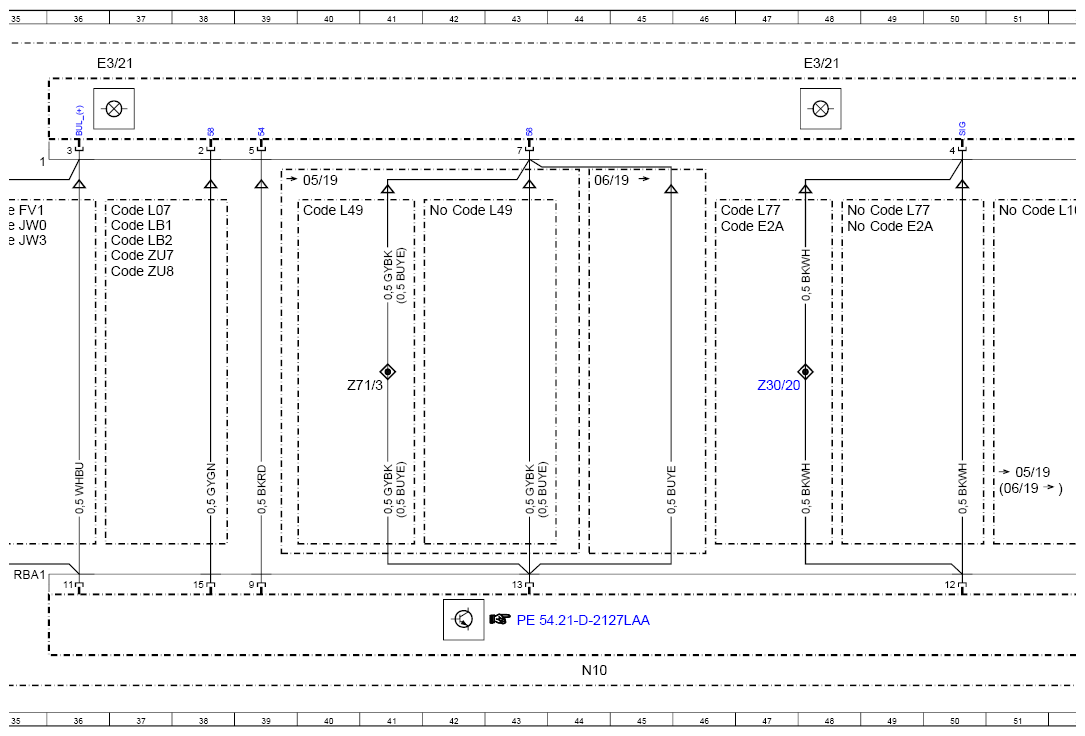

| E3/21 |
Left platform tail lamp |
48A |
| E3/21 |
Left platform tail lamp |
36A |
| E3/21 |
Left platform tail lamp |
57A |

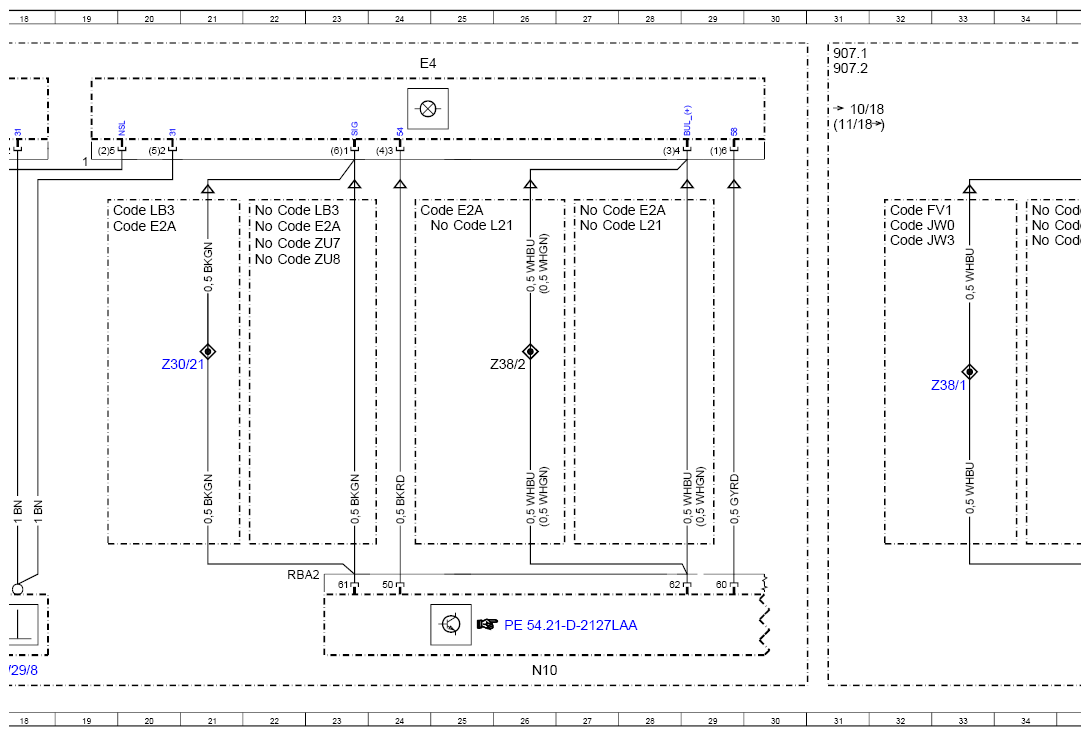

| E4 |
Right tail lamp |
24A |

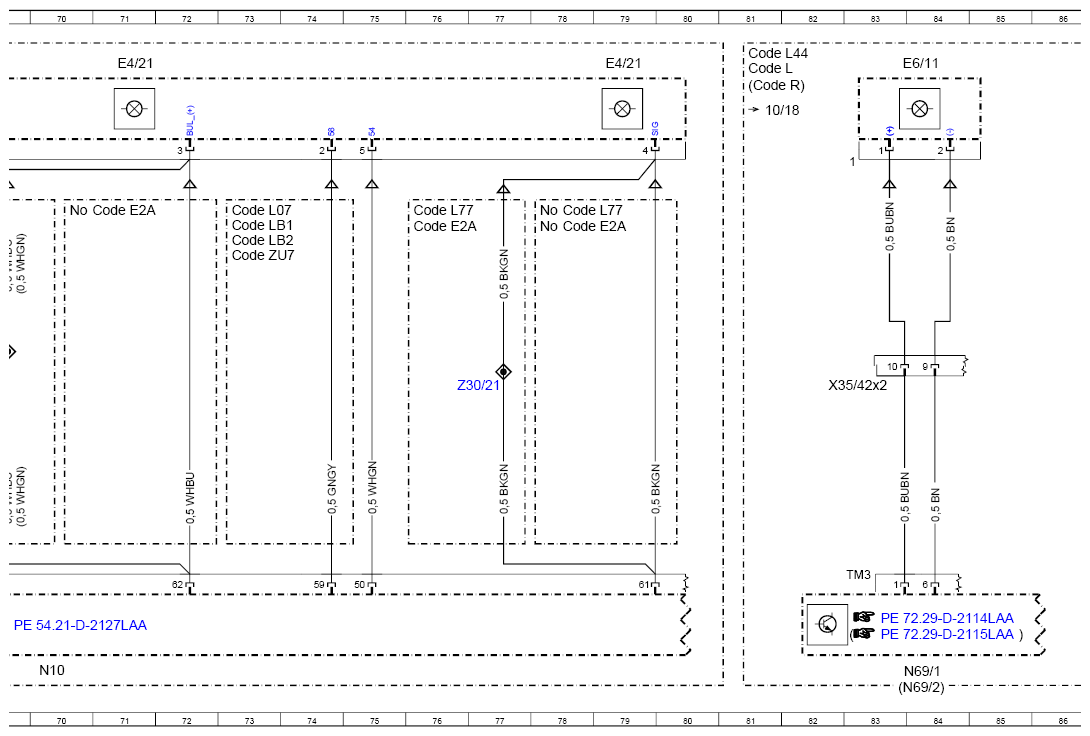

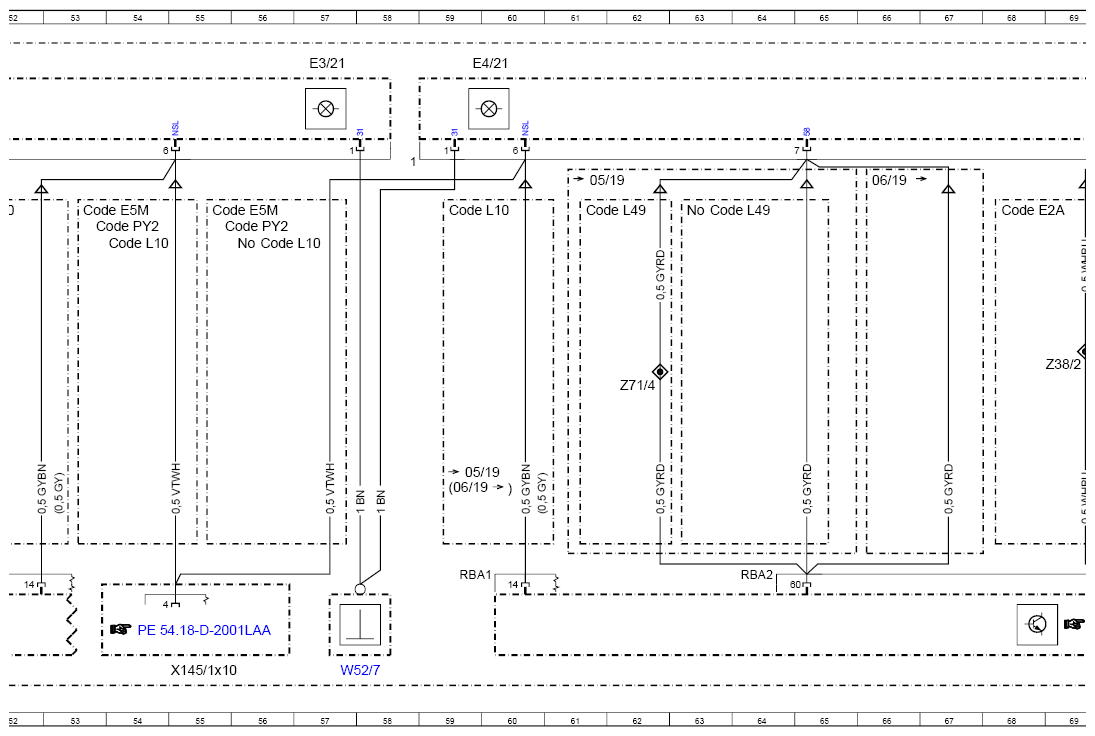

| E4/21 |
Right platform tail lamp |
71A |
| E4/21 |
Right platform tail lamp |
59A |
| E4/21 |
Right platform tail lamp |
79A |
| E5/1 |
Left fog lamp |
103A |
| E5/2 |
Right fog lamp |
107A |

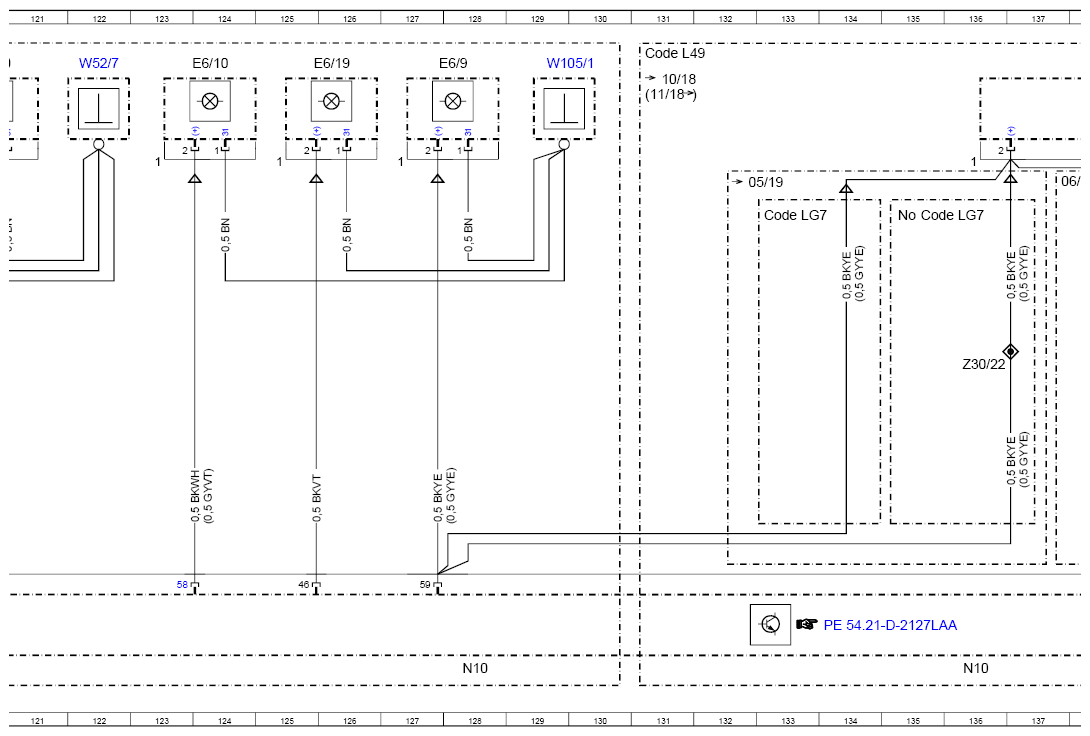

| E6/10 |
Right front side-marker lamp |
124A |

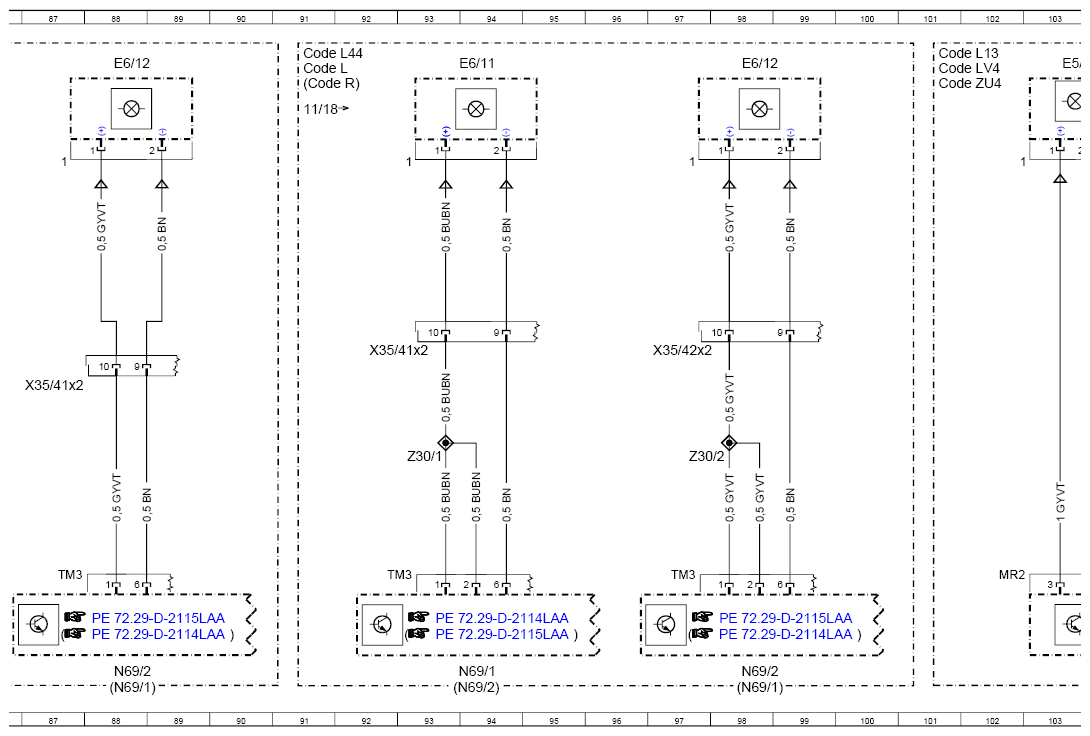

| E6/11 |
Outer left turn signal lamp |
84A |
| E6/11 |
Outer left turn signal lamp |
94A |
| E6/12 |
Outer right turn signal lamp |
88A |
| E6/12 |
Outer right turn signal lamp |
98A |
| E6/19 |
Left center side-marker lamp |
126A |
| E6/20 |
Right center side-marker lamp |
120A |

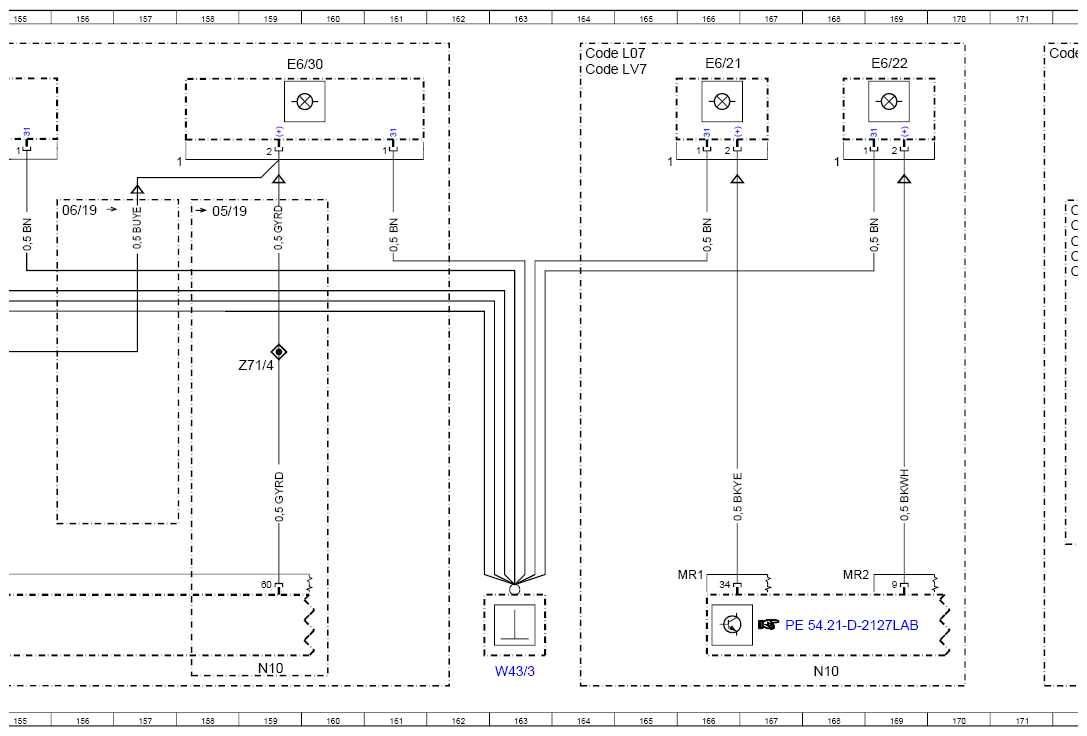

| E6/21 |
Left front clearance lamp |
166A |
| E6/22 |
Right front clearance lamp |
169A |

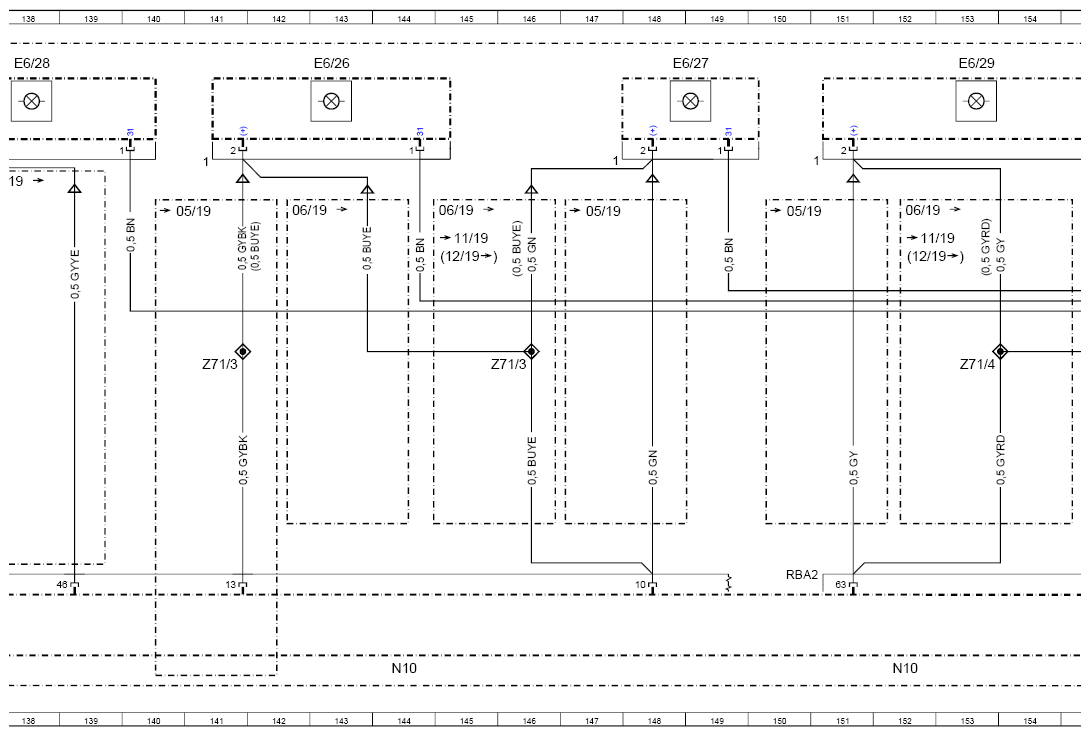

| E6/26 |
Left front position lamp |
143A |
| E6/27 |
Left center front position lamp |
148A |
| E6/28 |
Center front position lamp |
138A |
| E6/29 |
Right center front position lamp |
153A |
| E6/30 |
Right front position lamp |
159A |
| E6/7 |
Left rear side-marker lamp |
116A |
| E6/8 |
Right rear side-marker lamp |
118A |
| E6/9 |
Left front side-marker lamp |
128A |

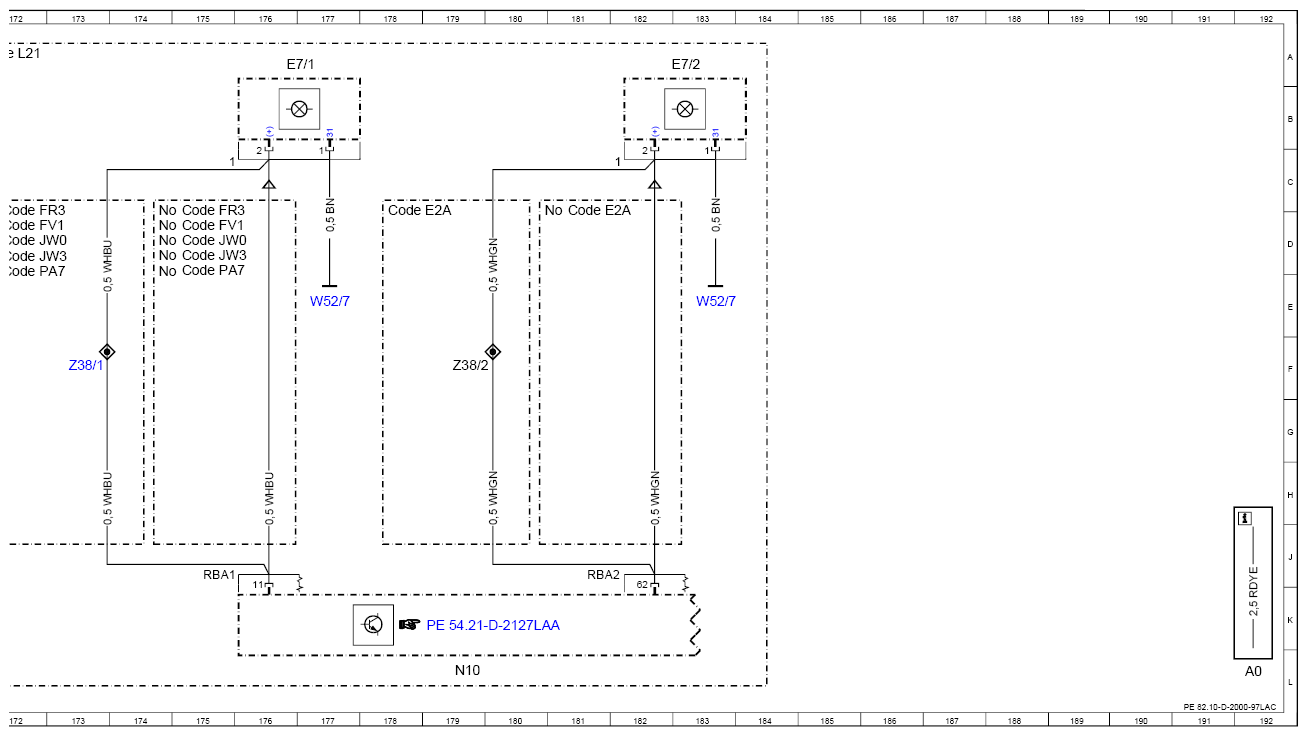

| E7/1 |
|
176A |
| E7/2 |
|
183A |
| N10 |
SAM control unit |
11L |
| N10 |
SAM control unit |
26L |
| N10 |
SAM control unit |
44L |
| N10 |
SAM control unit |
70L |
| N10 |
SAM control unit |
168L |
| N10 |
SAM control unit |
105L |
| N10 |
SAM control unit |
112L |
| N10 |
SAM control unit |
120L |
| N10 |
SAM control unit |
128L |
| N10 |
SAM control unit |
136L |
| N10 |
SAM control unit |
144L |
| N10 |
SAM control unit |
152L |
| N10 |
SAM control unit |
159L |
| N10 |
SAM control unit |
179L |
| N69/1 |
Driver door control unit |
94L |
| N69/1 |
Driver door control unit |
98L |
| N69/1 |
Driver door control unit |
84L |
| N69/1 |
Driver door control unit |
88L |
| N69/2 |
Front passenger door control unit |
98L |
| N69/2 |
Front passenger door control unit |
94L |
| N69/2 |
Front passenger door control unit |
88L |
| N69/2 |
Front passenger door control unit |
84L |
| W105/1 |
Driver seat frame ground point 1 |
129A |
| W2/7 |
Right front lamp unit 2 ground point |
108A |
| W29/8 |
Left D-pillar ground point |
18L |
| W29/8 |
Left D-pillar ground point |
113A |
| W43/3 |
Left firewall ground point |
163L |
| W52/7 |
Left rear longitudinal member ground point |
57L |
| W52/7 |
Left rear longitudinal member ground point |
122A |
| W52/7 |
Left rear longitudinal member ground point |
177E |
| W52/7 |
Left rear longitudinal member ground point |
183E |
| W9 |
Left front lamp unit ground point |
105A |
| X145/1x10 |
Body manufacturer electrical connector |
55L |
| X35/41x2 |
Driver door electrical connector 2 |
87F |
| X35/41x2 |
Driver door electrical connector 2 |
92F |
| X35/42x2 |
Front passenger door electrical connector 2 |
82F |
| X35/42x2 |
Front passenger door electrical connector 2 |
97F |
| Z30/1 |
Left turn signal indicator connector sleeve |
93G |
| Z30/2 |
Right turn signal indicator connector sleeve |
97G |
| Z30/20 |
Left turn signal lamp end sleeve |
13F |
| Z30/20 |
Left turn signal lamp end sleeve |
47F |
| Z30/21 |
Right turn signal lamp end sleeve |
21F |
| Z30/21 |
Right turn signal lamp end sleeve |
77F |
| Z30/22 |
Left side-marker lamp connector sleeve |
136F |
| Z38/1 |
Backup lamp connector sleeve |
3F |
| Z38/1 |
Backup lamp connector sleeve |
33F |
| Z38/1 |
Backup lamp connector sleeve |
173F |
| Z38/2 |
Backup lamp connector sleeve |
26F |
| Z38/2 |
Backup lamp connector sleeve |
69F |
| Z38/2 |
Backup lamp connector sleeve |
179F |
| Z71/3 |
Left tail lamp connector sleeve |
41F |
| Z71/3 |
Left tail lamp connector sleeve |
141F |
| Z71/3 |
Left tail lamp connector sleeve |
146F |
| Z71/4 |
Right tail lamp connector sleeve |
62F |
| Z71/4 |
Right tail lamp connector sleeve |
159F |
| Z71/4 |
Right tail lamp connector sleeve |
153F |
