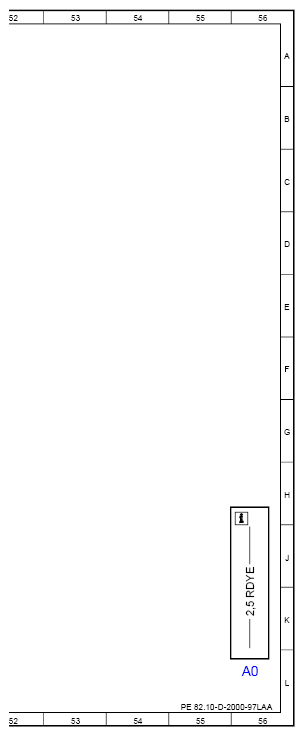

| A0 |
Color code key |
56L |
| Code F50 |
Base |
10D |
| Code F50 |
Base |
30D |
| Code L49 |
Identification lamps |
21F |
| Code L49 |
Identification lamps |
25E |
| Code PY2 |
Hymer Group scope of supply |
11D |
| Code PY2 |
Hymer Group scope of supply |
31D |
| Code ZU7 |
Canada national version |
21E |
| Code ZU7 |
Canada national version |
33D |
| Code ZU7 |
Canada national version |
46D |
| Code ZU7 |
Canada national version |
2D |
| Code ZU8 |
USA national version |
21F |
| Code ZU8 |
USA national version |
33D |
| Code ZU8 |
USA national version |
46D |
| Code ZU8 |
USA national version |
2D |

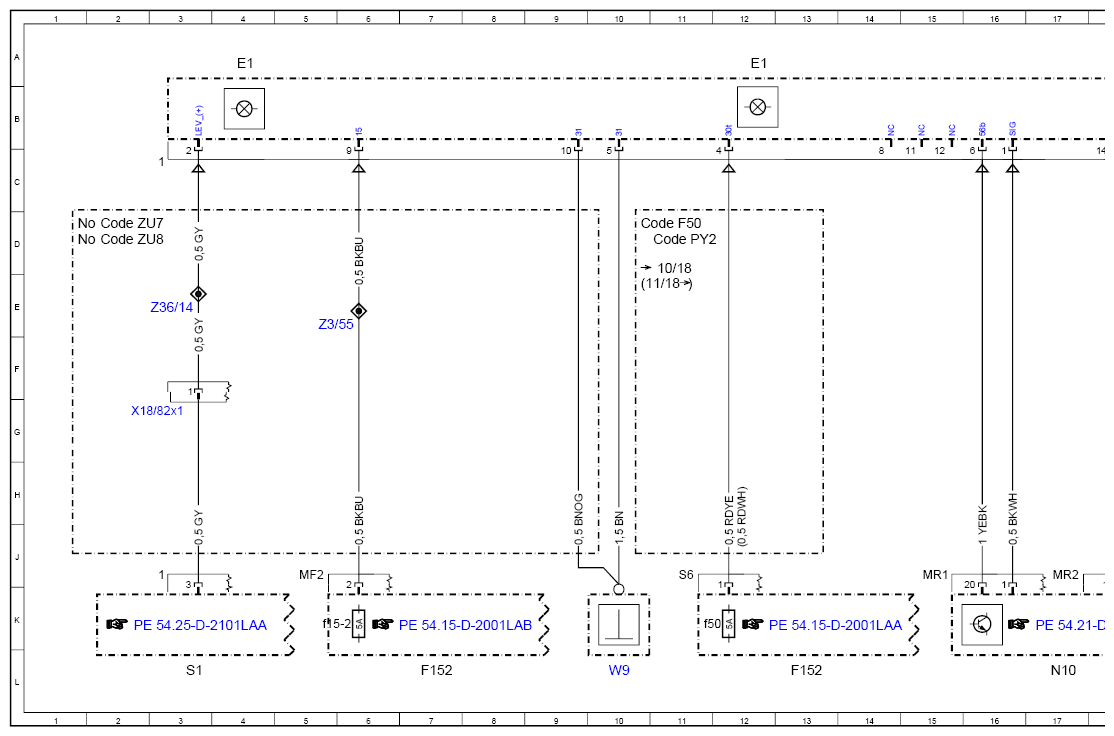

| E1 |
Left front lamp unit |
4A |
| E1 |
Left front lamp unit |
12A |
| E1 |
Left front lamp unit |
20A |

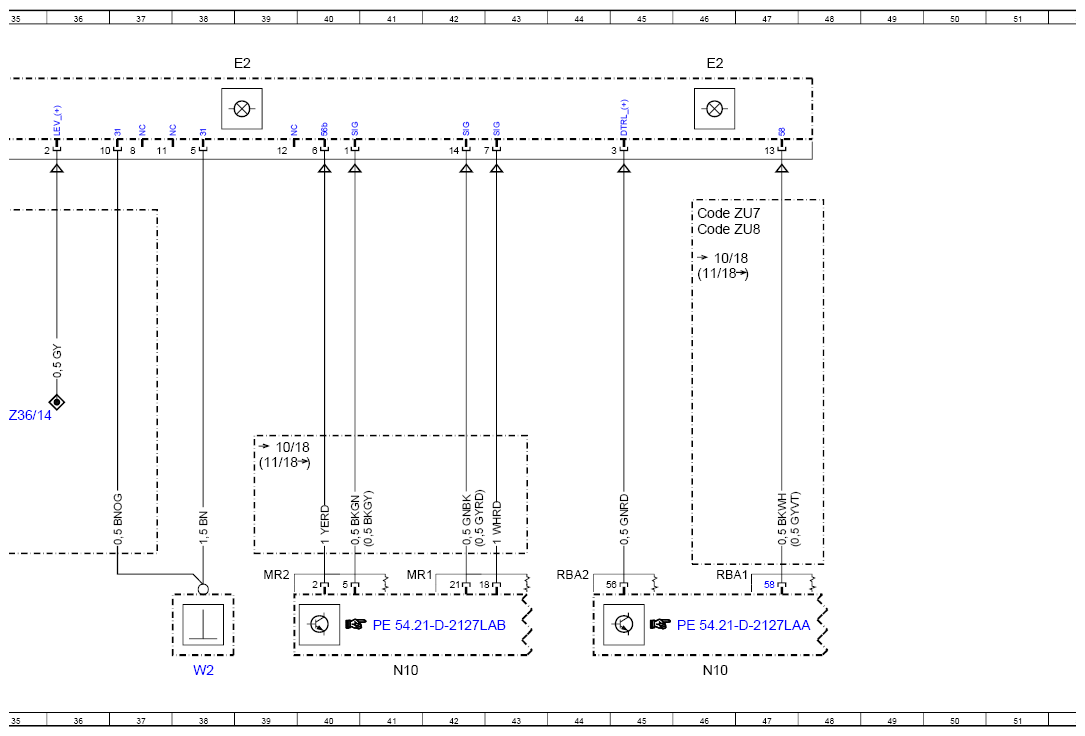

| E2 |
Right front lamp unit |
30A |
| E2 |
Right front lamp unit |
46A |
| E2 |
Right front lamp unit |
39A |

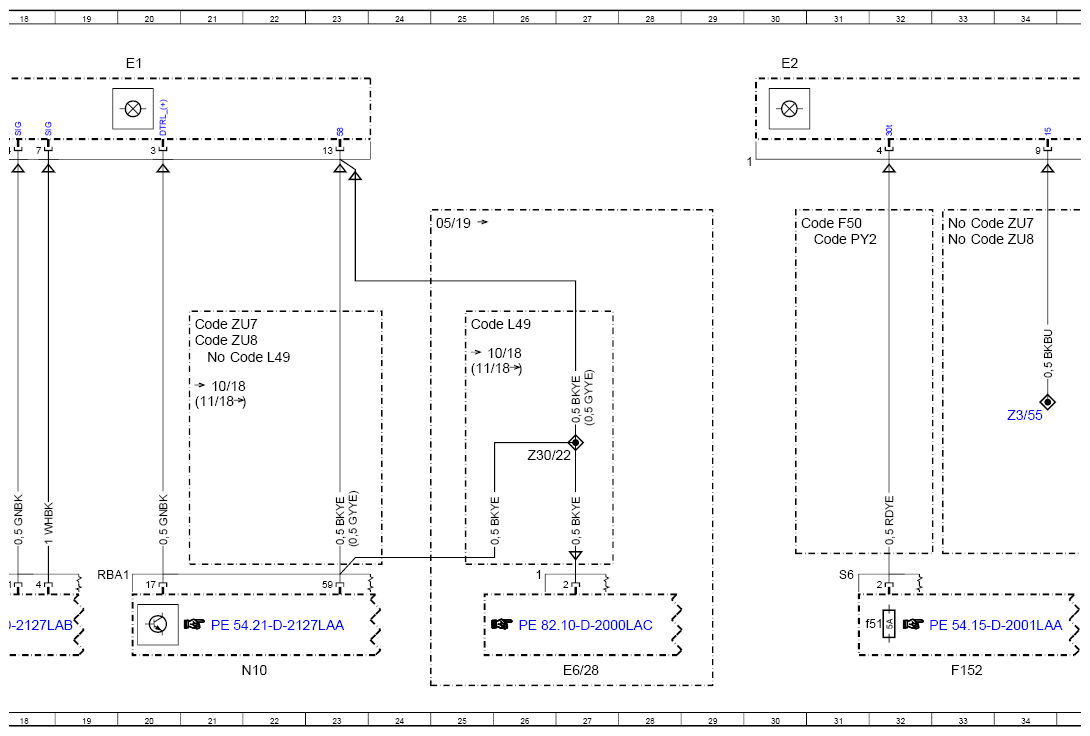

| E6/28 |
Center front position lamp |
27L |
| F152 |
Vehicle interior fuse and relay module |
13L |
| F152 |
Vehicle interior fuse and relay module |
7L |
| F152 |
Vehicle interior fuse and relay module |
33L |
| F152f15-2 |
Electrical fuse 15-2 |
6K |
| F152f50 |
Fuse 50 |
11K |
| F152f51 |
Fuse 51 |
32K |
| N10 |
SAM control unit |
17L |
| N10 |
SAM control unit |
22L |
| N10 |
SAM control unit |
46L |
| N10 |
SAM control unit |
41L |
| S1 |
Light switch |
3L |
| W2 |
Right front lamp unit ground point |
38L |
| W9 |
Left front lamp unit ground point |
10L |
| X18/82x1 |
Right cockpit/MWH electrical connector 1 |
2G |
| Z3/55 |
Terminal 15 end sleeve (headlamp range control) |
5E |
| Z3/55 |
Terminal 15 end sleeve (headlamp range control) |
34G |
| Z30/22 |
Left side-marker lamp connector sleeve |
26G |
| Z36/14 |
Headlamp range adjustment signal connector sleeve |
3E |
| Z36/14 |
Headlamp range adjustment signal connector sleeve |
35G |
