| A0 |
Color code key |
232L |
| B27 |
Motion detector |
214L |
| Code D46 |
Luggage carrier within body |
87F |
| Code D46 |
Luggage carrier within body |
105F |
| Code D46 |
Luggage carrier within body |
112F |
| Code D56 |
Full-width partition wall at C-pillar |
56G |
| Code D56 |
Full-width partition wall at C-pillar |
5C |
| Code D56 |
Full-width partition wall at C-pillar |
32F |
| Code H00 |
Hot air duct to passenger compartment |
48F |
| Code H00 |
Hot air duct to passenger compartment |
71F |
| Code H08 |
Uprated roof air conditioner |
2F |
| Code H08 |
Uprated roof air conditioner |
71F |
| Code HH7 |
Standard roof air conditioner |
2G |
| Code HH7 |
Standard roof air conditioner |
71G |
| Code HK4 |
Rear air conditioning system, uprated |
2G |
| Code HK4 |
Rear air conditioning system, uprated |
71G |
| Code L |
Valid for left-hand drive Vehicles |
205F |
| Code L65 |
Additional dome lamps with load/passenger compartment door contact |
20F |
| Code L65 |
Additional dome lamps with load/passenger compartment door contact |
67F |
| Code L65 |
Additional dome lamps with load/passenger compartment door contact |
16F |
| Code L71 |
Cargo area illumination via motion detector |
21 IF |
| Code LB9 |
11luminated exits |
192F |
| Code LB9 |
11luminated exits |
196F |
| Code LB9 |
11luminated exits |
200F |
| Code LC2 |
LED light strip in load compartment |
61F |
| Code R |
Valid for right-hand drive Vehicles |
205G |
| Code RY2 |
Tire pressure monitor |
216G |
| Code RY2 |
Tire pressure monitor |
222G |
| Code S23 |
Two-seater front passenger seat |
208F |
| Code S23 |
Two-seater front passenger seat |
205F |
| Code T16 |
Right sliding door |
192F |
| Code T16 |
Right sliding door |
200F |
| Code T19 |
Left sliding door |
196F |
| Code V36 |
Head liner |
67F |
| Code V36 |
Head liner |
16F |
| Code V36 |
Head liner |
2F |
| Code V36 |
Head liner |
48F |
| Code V36 |
Head liner |
71F |
| Code V36 |
Head liner |
56F |
| Code V36 |
Head liner |
5C |
| Code V36 |
Head liner |
33F |
| Code ZL3 |
National version for Latin America |
124F |

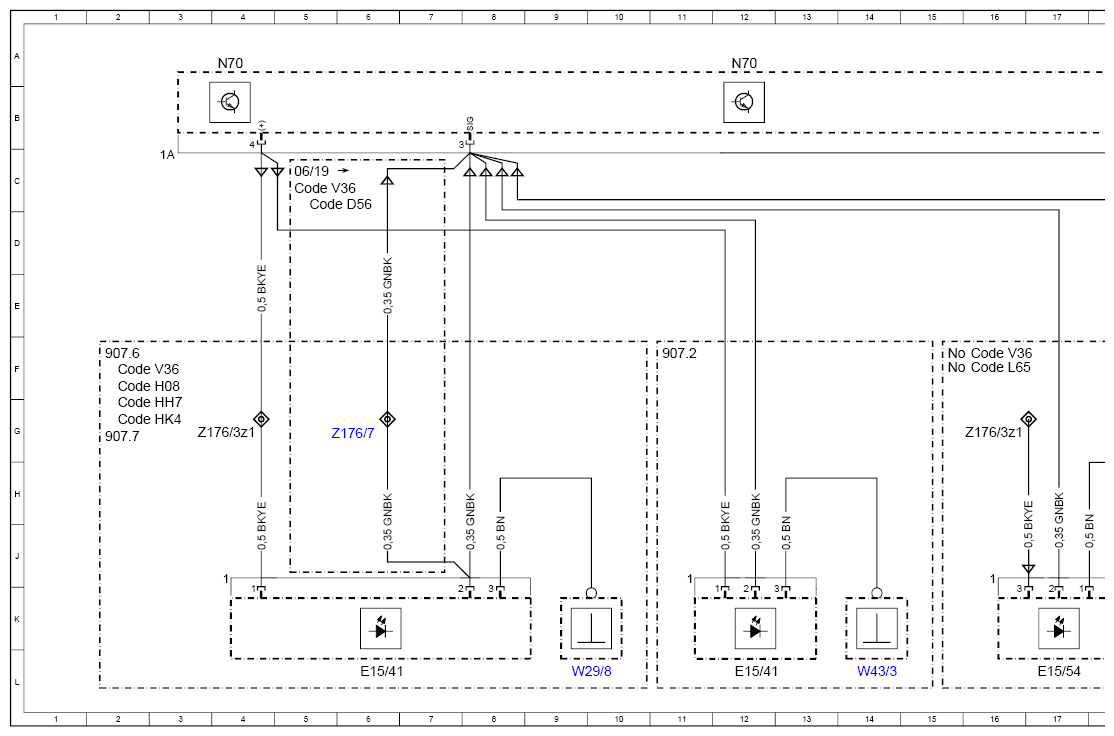

| E15/41 |
Rear dome lamp 1 |
6L |
| E15/41 |
Rear dome lamp 1 |
12L |

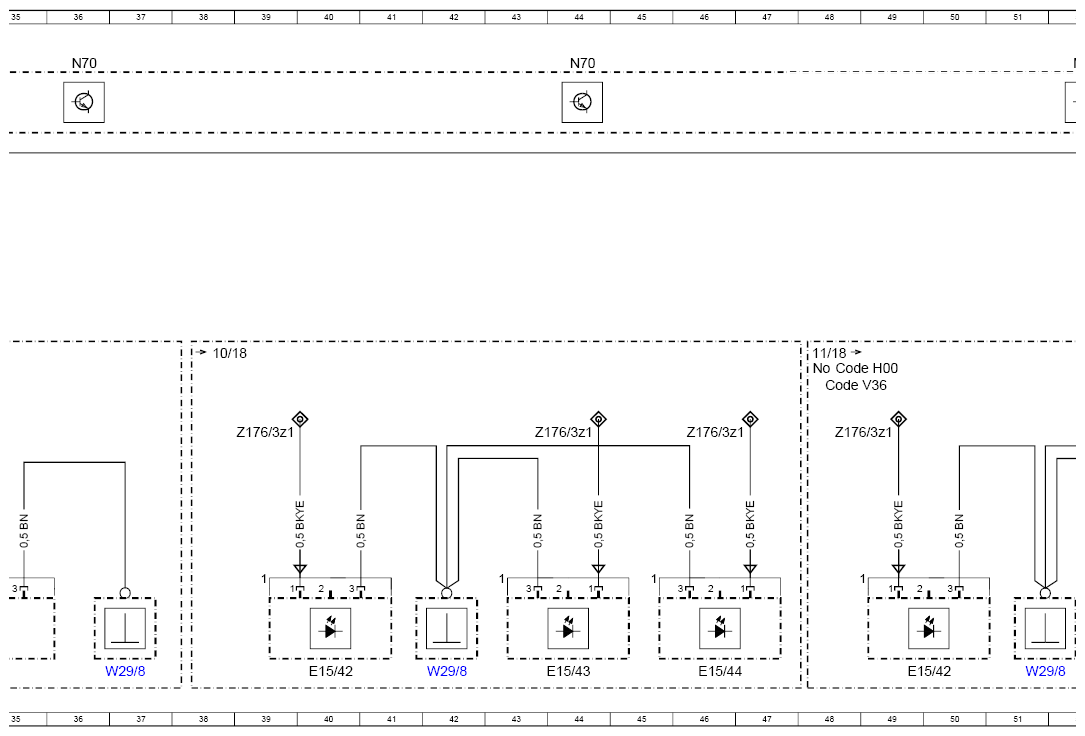

| E15/42 |
Rear dome lamp 2 |
40L |
| E15/42 |
Rear dome lamp 2 |
49L |
| E15/43 |
Rear dome lamp 3 |
44L |
| E15/43 |
Rear dome lamp 3 |
53L |
| E15/44 |
Rear dome lamp 4 |
46L |
| E15/44 |
Rear dome lamp 4 |
57L |
| E15/46 |
LED load compartment lamp, left |
22L |

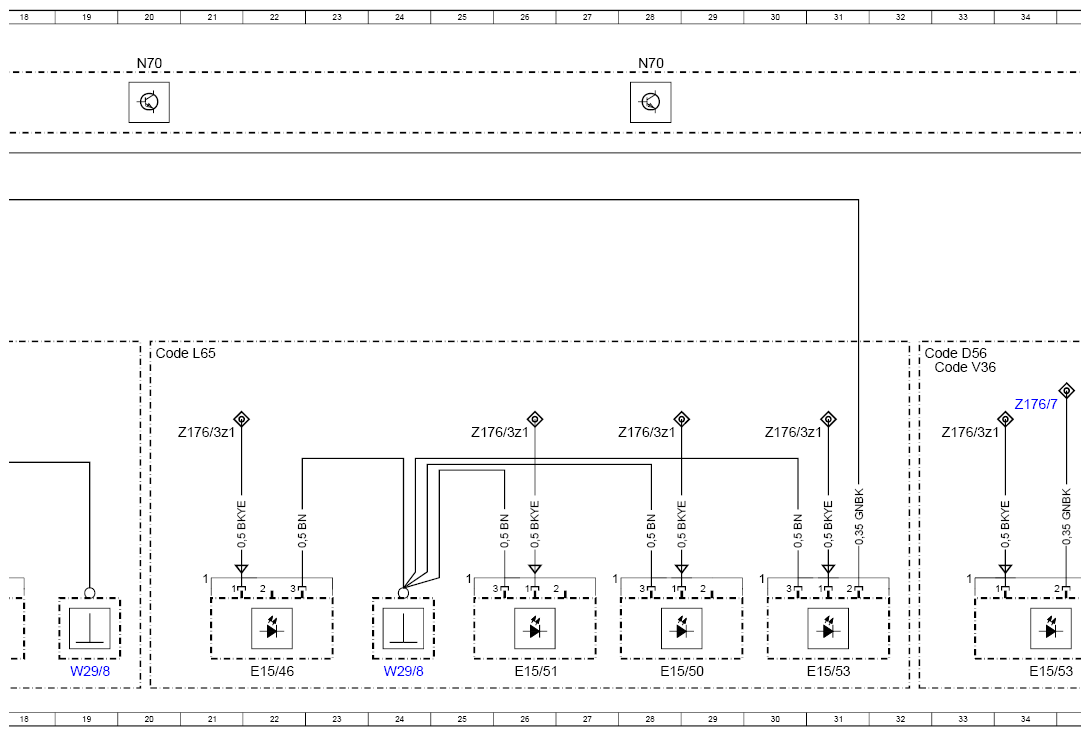

| E15/50 |
LED load compartment lamp 1, right |
28L |
| E15/51 |
LED load compartment lamp 2, right |
26L |
| E15/52 |
Right load compartment lamp |
68L |
| E15/53 |
LED load compartment lamp, rear |
31L |
| E15/53 |
LED load compartment lamp, rear |
34L |
| E15/54 |
Rear load compartment lamp |
17L |

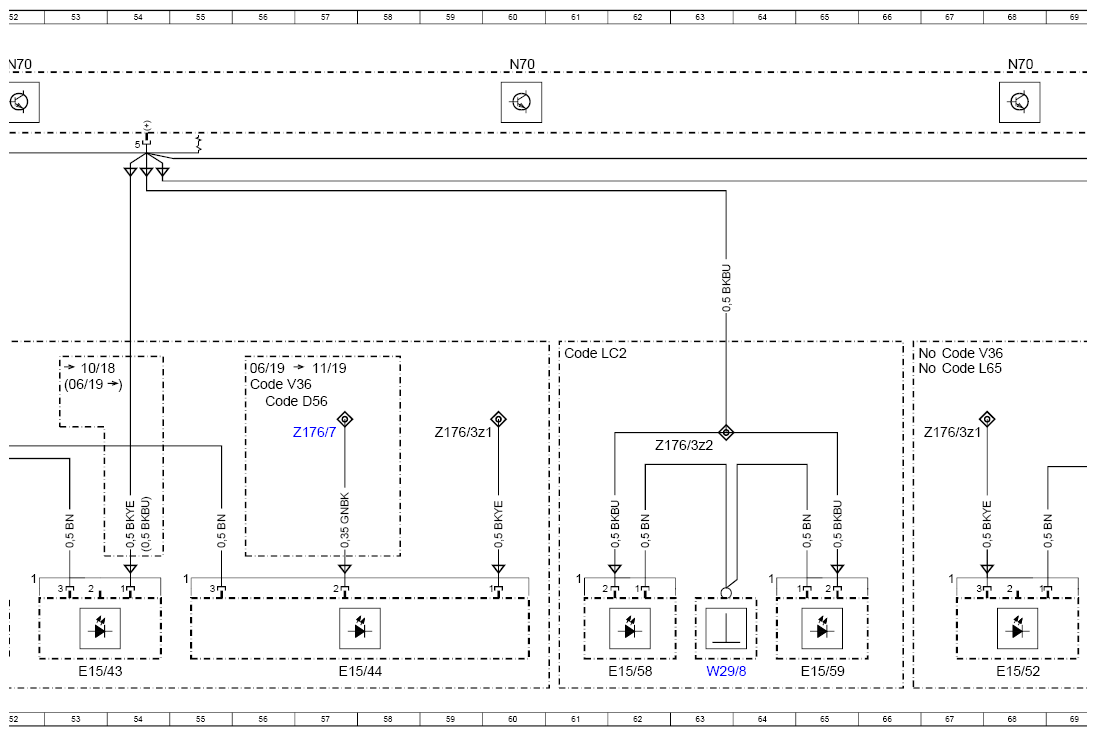

| E15/58 |
LED light strip 1 |
62L |
| E15/59 |
LED light strip 2 |
65L |

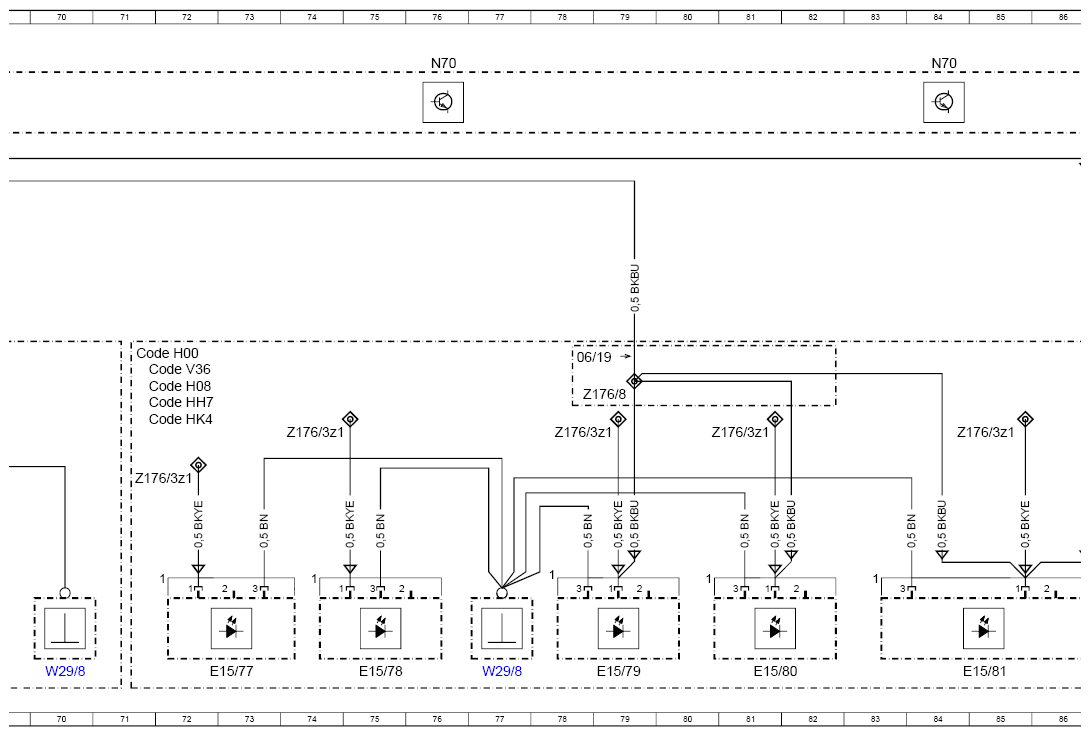

| E15/77 |
Dome lamp 1 with air duct |
73L |
| E15/78 |
Dome lamp 2 with air duct |
75L |
| E15/79 |
Dome lamp 3 with air duct |
79L |
| E15/80 |
Dome lamp 4 with air duct |
81L |
| E15/81 |
Dome lamp 5 with air duct |
85L |

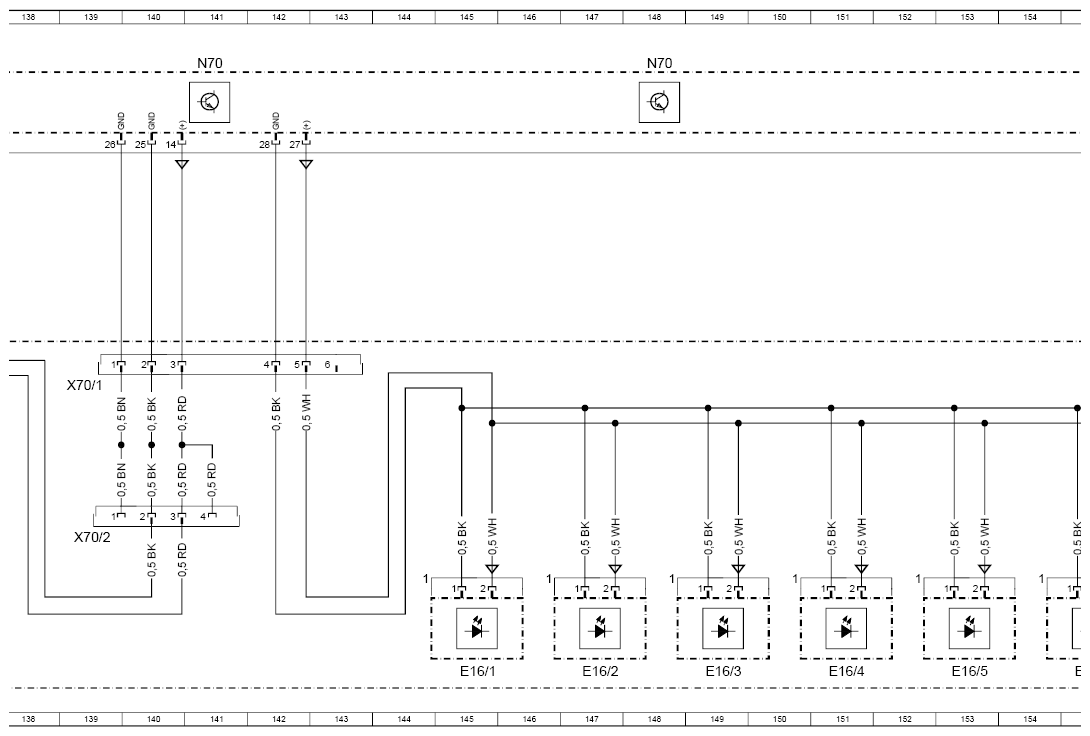

| E16/1 |

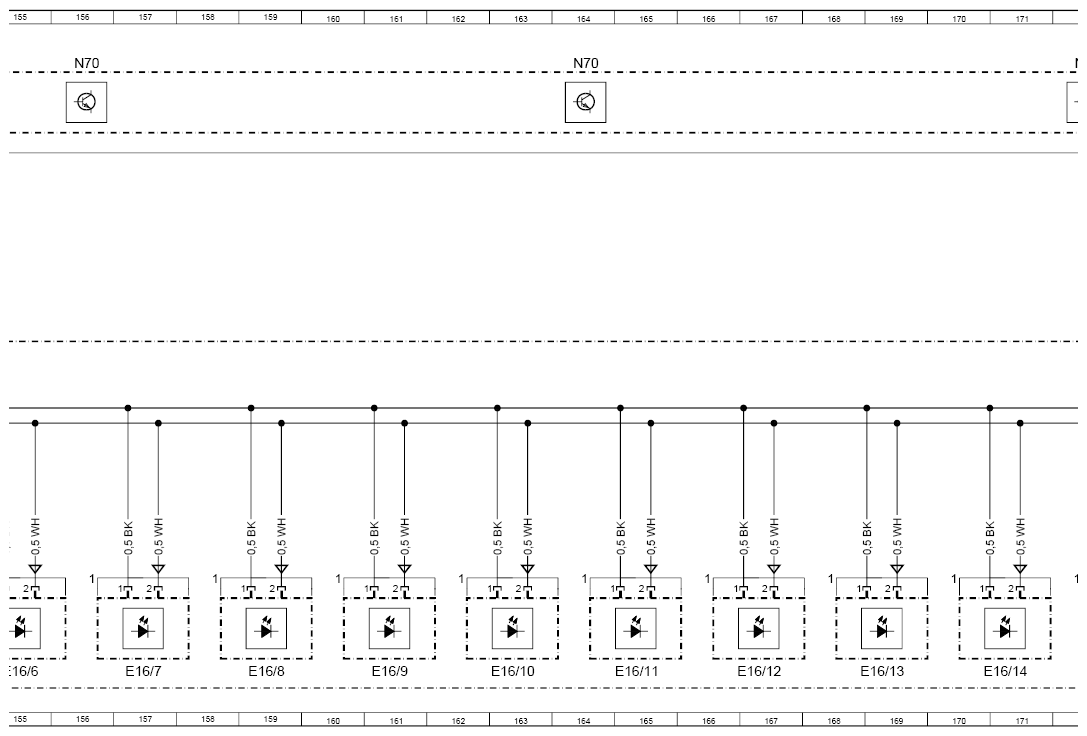

Reading lamp 1 |
145L |
| E16/10 |
Reading lamp 10 |
163L |
| E16/11 |
Reading lamp 11 |
165L |
| E16/12 |
Reading lamp 12 |
167L |
| E16/13 |
Reading lamp 13 |
169L |
| E16/14 |
Reading lamp 14 |
171L |

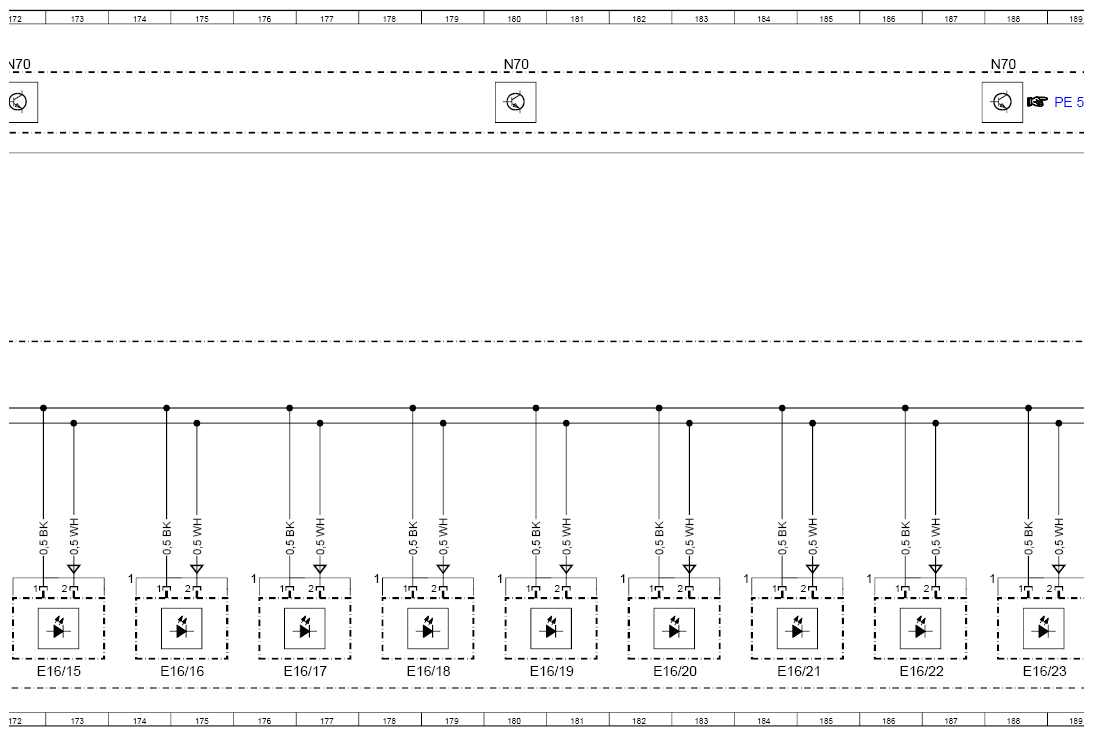

| E16/15 |
Reading lamp 15 |
173L |
| E16/16 |
Reading lamp 16 |
174L |
| E16/17 |
Reading lamp 17 |
176L |
| E16/18 |
Reading lamp 18 |
178L |
| E16/19 |
Reading lamp 19 |
180L |
| E16/2 |
Reading lamp 2 |
147L |
| E16/20 |
Reading lamp 20 |
182L |
| E16/21 |
Reading lamp 21 |
184L |
| E16/22 |
Reading lamp 22 |
186L |
| E16/23 |
Reading lamp 23 |
188L |
| E16/24 |
Reading lamp 24 |
190L |
| E16/3 |
Reading lamp 3 |
149L |
| E16/4 |
Reading lamp 4 |
151L |
| E16/5 |
Reading lamp 5 |
153L |
| E16/6 |
Reading lamp 6 |
155L |
| E16/7 |
Reading lamp 7 |
157L |
| E16/8 |
Read ng lamp 8 |
159L |
| E16/9 |
Reading lamp 9 |
161L |

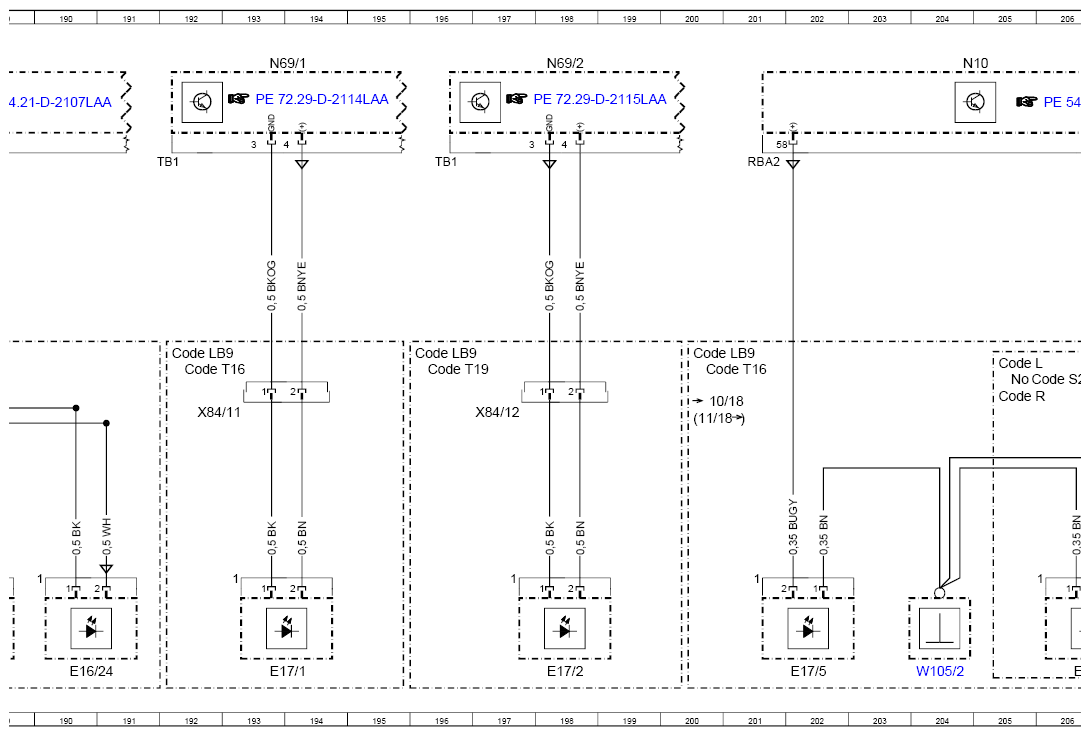

| E17/1 |
Driver door exit lamp |
193L |
| E17/2 |
Front passenger door exit lamp |
198L |
| E17/5 |
Left rear exit lamp |
202L |
| E17/6 |
Right rear exit lamp |
206L |
| E17/62 |
Right rear entrance lamp/exit lamp (front passenger bench seat) |
209L |

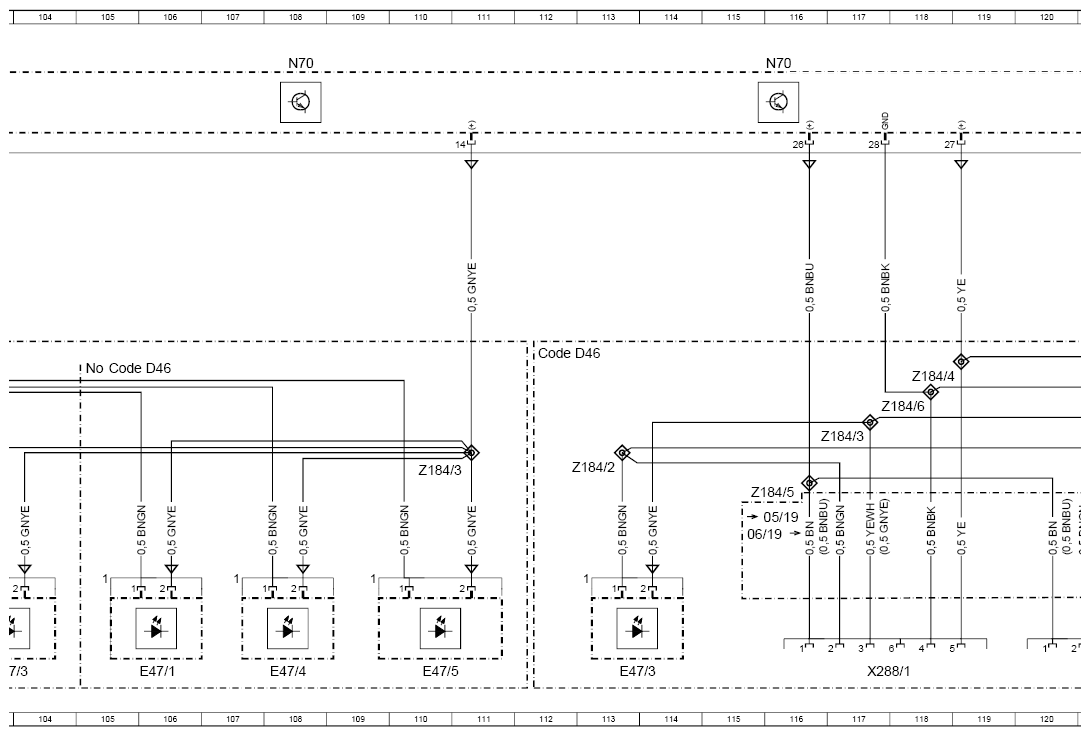

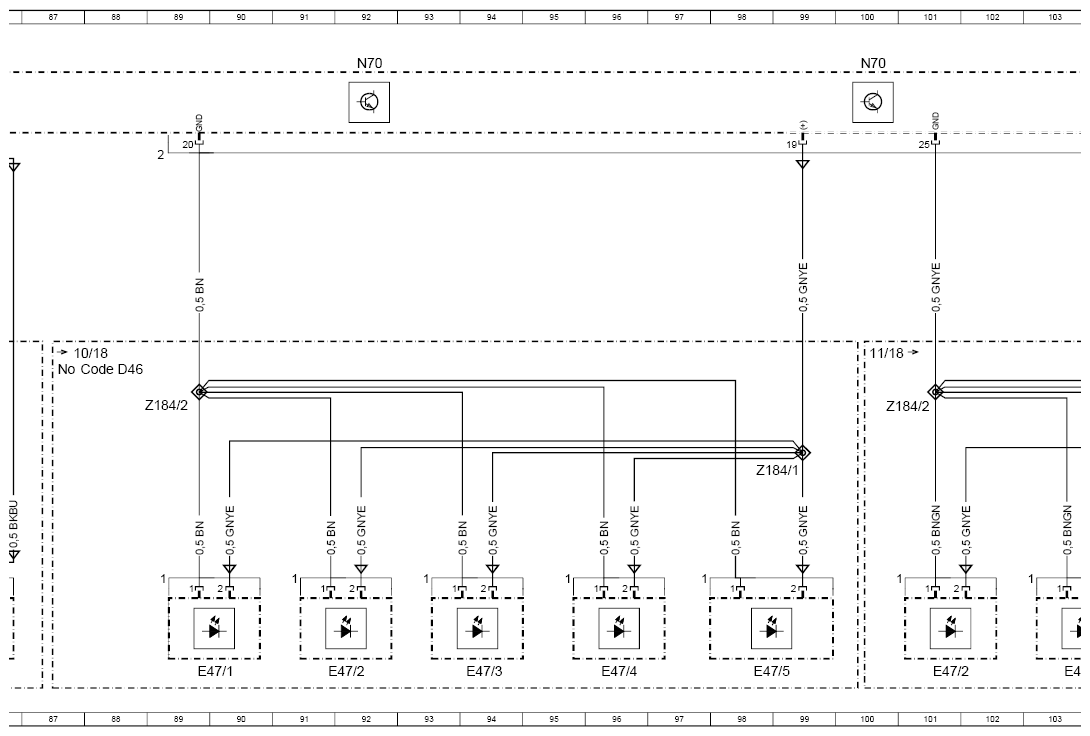

| E47/1 |
Left front emergency hammer illumination |
89L |
| E47/1 |
Left front emergency hammer illumination |
106L |
| E47/2 |
Center front emergency hammer illumination |
92L |
| E47/2 |
Center front emergency hammer illumination |
101L |
| E47/3 |
Right front emergency hammer illumination |
94L |
| E47/3 |
Right front emergency hammer illumination |
103L |
| E47/3 |
Right front emergency hammer illumination |
113L |
| E47/4 |
Left center emergency hammer illumination |
96L |
| E47/4 |
Left center emergency hammer illumination |
108L |
| E47/5 |
Right center emergency hammer illumination |
98L |
| E47/5 |
Right center emergency hammer illumination |
110L |

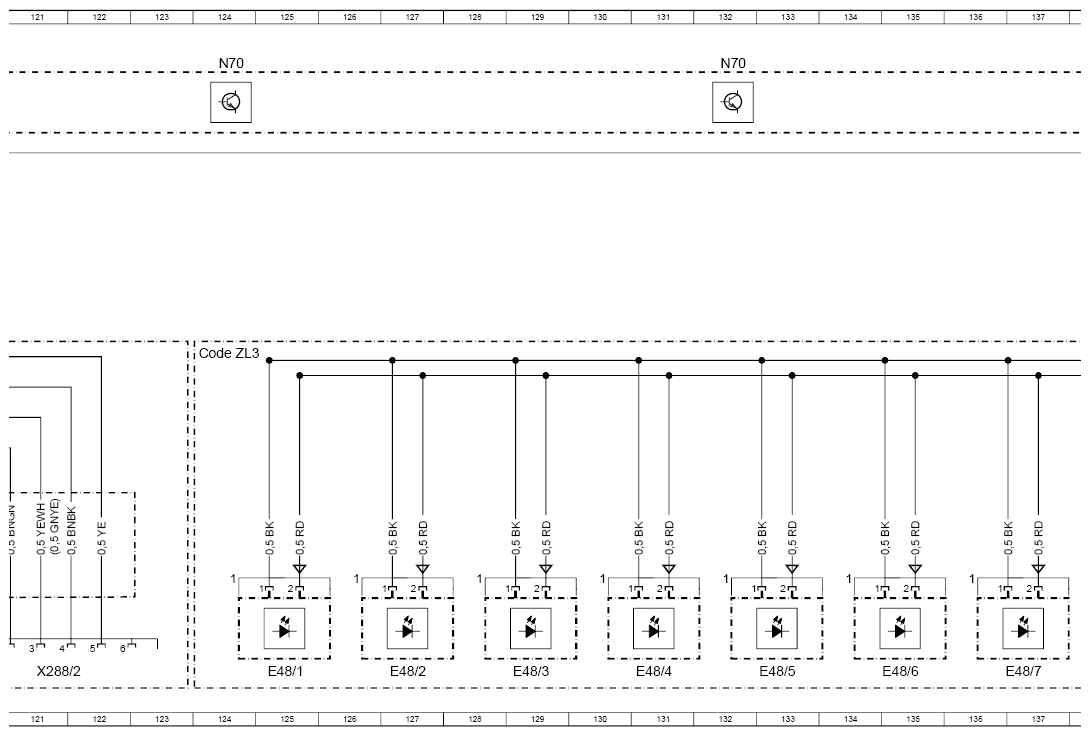

| E48/1 |
Left front emergency hammer illumination |
125L |
| E48/2 |
Center front emergency hammer illumination |
127L |
| E48/3 |
Right front emergency hammer illumination |
129L |
| E48/4 |
Left side wall emergency hammer illumination |
131L |
| E48/5 |
Right side wall emergency hammer illumination |
133L |
| E48/6 |
Left rear emergency hammer illumination |
135L |
| E48/7 |
Right rear emergency hammer illumination |
137L |

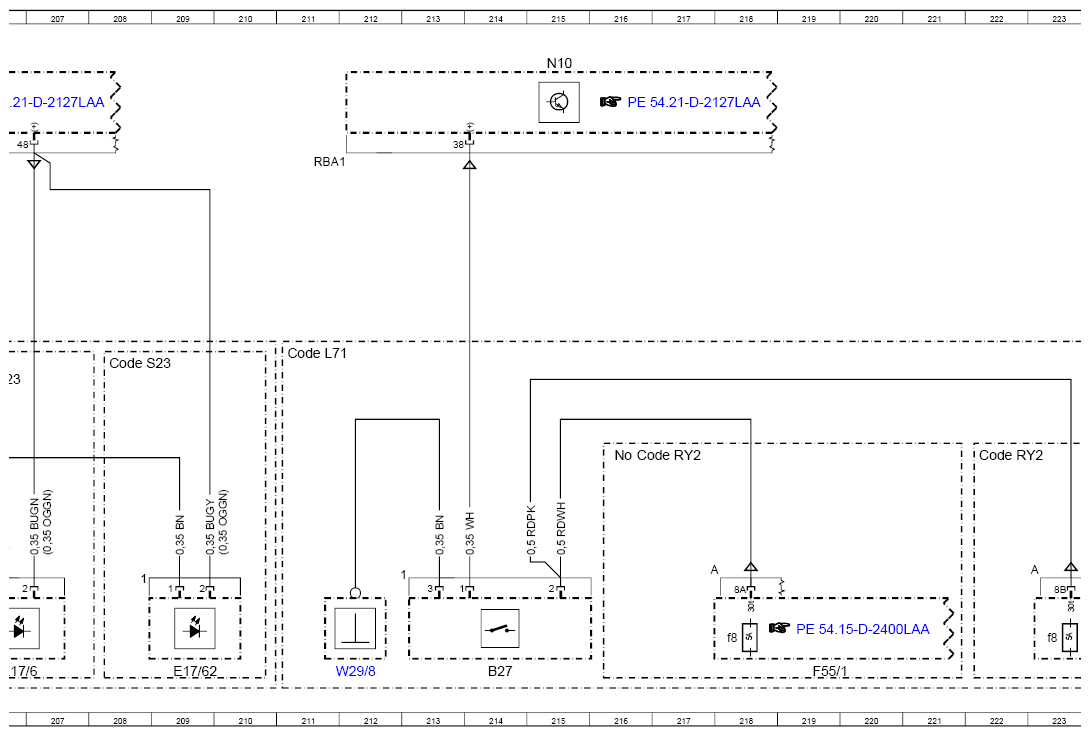

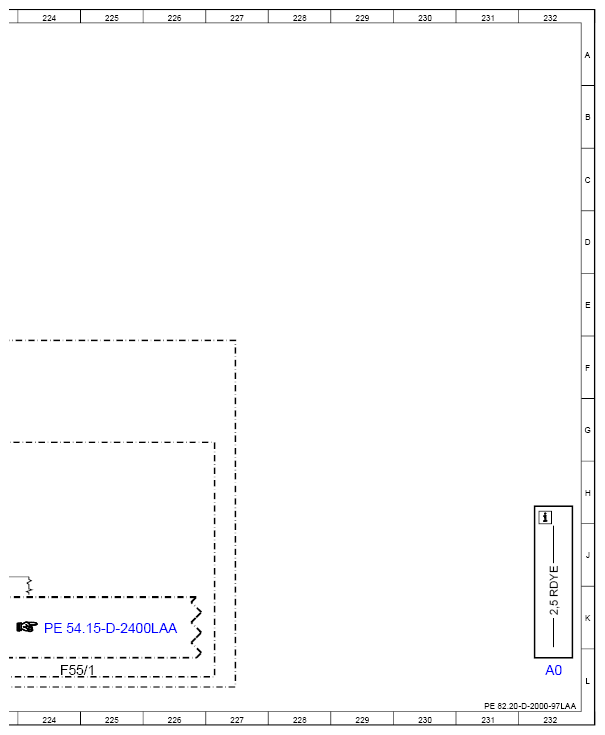

| F55/1 |
Fuse block (1, 9-pin) |
219L |
| F55/1 |
Fuse block (1, 9-pin) |
224L |
| F55/1f8 |
Fuse 8 |
218K |
| F55/1f8 |
Fuse 8 |
223K |
| N10 |
SAM control unit |
204A |
| N10 |
SAM control unit |
215A |
| N69/1 |
Driver door control unit |
193A |
| N69/2 |
Front passenger door control unit |
198A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
12A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
4A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
20A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
28A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
36A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
44A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
52A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
60A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
68A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
76A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
84A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
92A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
100A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
108A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
116A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
124A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
132A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
141A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
148A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
156A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
164A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
172A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
180A |
| N70 |
Overhead control panel (OCP [DBE]) control unit |
188A |
| W105/2 |
Driver seat frame ground point 2 |
204L |
| W29/8 |
Left D-pillar ground point |
9L |
| W29/8 |
Left D-pillar ground point |
42L |
| W29/8 |
Left D-pillar ground point |
70L |
| W29/8 |
Left D-pillar ground point |
77L |
| W29/8 |
Left D-pillar ground point |
24L |
| W29/8 |
Left D-pillar ground point |
19L |
| W29/8 |
Left D-pillar ground point |
63L |
| W29/8 |
Left D-pillar ground point |
51L |
| W29/8 |
Left D-pillar ground point |
212L |
| W29/8 |
Left D-pillar ground point |
37L |
| W43/3 |
Left firewall ground point |
14L |
| X288/1 |
Left luggage shelf illumination electrical connector |
117L |
| X288/2 |
Right luggage shelf illumination electrical connector |
121L |
| X70/1 |
Overhead control panel/interior lighting electrical connector |
139F |
| X70/2 |
Emergency hammer llumination electrical connector |
139 J |
| X84/11 |
Driver door exit lamp electrical connector |
192G |
| X84/12 |
Front passenger door exit lamp electrical connector |
197G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
25G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
16G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
30G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
20G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
67G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
84G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
80G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
78G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
74G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
71H |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
46G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
43G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
39G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
3G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
59G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
48G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
27G |
| Z176/3z1 |
Rear passenger compartment interior lighting end sleeve 1 |
33G |
| Z176/3z2 |
Rear passenger compartment interior lighting end sleeve 2 |
62G |
| Z176/7 |
Rear passenger compartment interior lighting button end sleeve |
56G |
| Z176/7 |
Rear passenger compartment interior lighting button end sleeve |
5G |
| Z176/7 |
Rear passenger compartment interior lighting button end sleeve |
34G |
| Z176/8 |
6 V lamp ground connection end sleeve |
78F |
| Z184/1 |
Emergency hammer illumination power supply end sleeve |
98H |
| Z184/2 |
Emergency hammer illumination ground connection end sleeve |
88G |
| Z184/2 |
Emergency hammer illumination ground connection end sleeve |
100G |
| Z184/2 |
Emergency hammer illumination ground connection end sleeve |
112H |
| Z184/3 |
Emergency hammer illumination power supply end sleeve |
110H |
| Z184/3 |
Emergency hammer illumination power supply end sleeve |
116G |
| Z184/4 |
Reading lamp end sleeve |
118F |
| Z184/5 |
Ambient lighting ground end sleeve |
115H |
| Z184/6 |
Luggage shelf illumination end sleeve |
117G |
