| A0 |
Color code key |
64L |
| Code L77 |
Electr. equipment for additional turn signal lamps |
16F |
| Code L77 |
Electr. equipment for additional turn signal lamps |
45F |

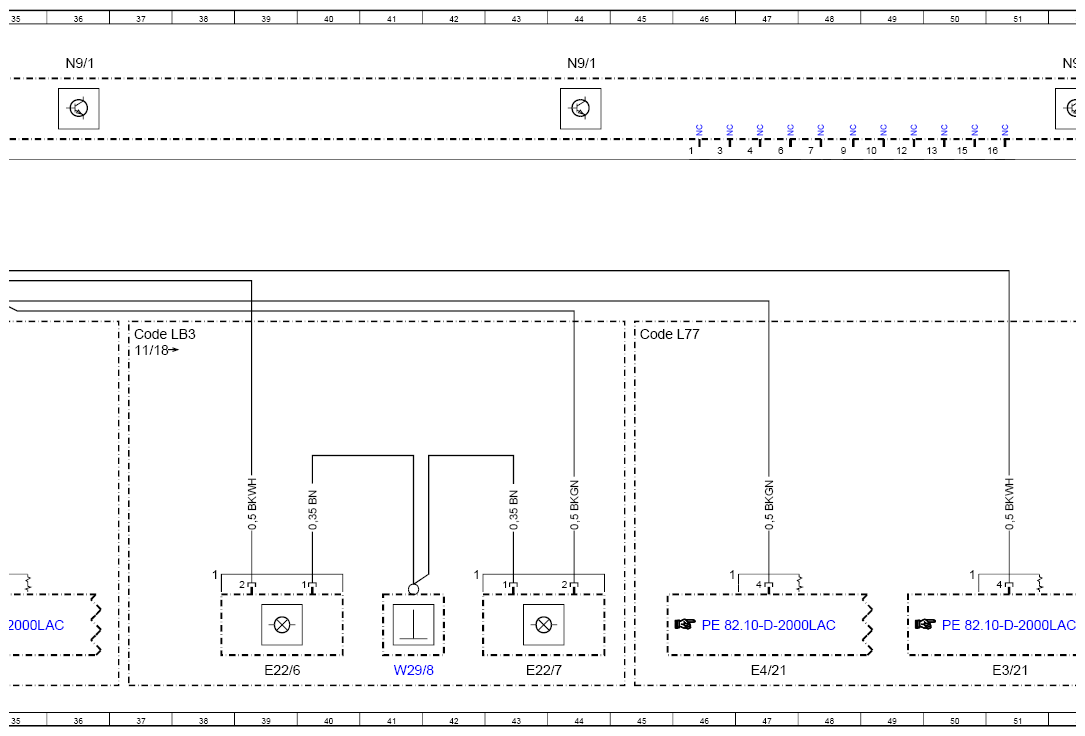

| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
9F |
| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
29F |
| Code LB3 |
Flat turn signal lamps, additional at rear on roof |
37F |
| E22/6 |
Left roof additional turn signal lamp |
11L |
| E22/6 |
Left roof additional turn signal lamp |
39L |
| E22/7 |
Right roof additional turn signal lamp |
15L |
| E22/7 |
Right roof additional turn signal lamp |
43L |
| E3 |
Left tail lamp |
31L |
| E3/21 |
Left platform tail lamp |
51L |
| E4 |
Right tail lamp |
35L |
| E4/21 |
Right platform tail lamp |
47L |
| F55/1 |
Fuse block (1, 9-pin) |
4L |
| F55/1f1 |
Fuse 1 |
3K |

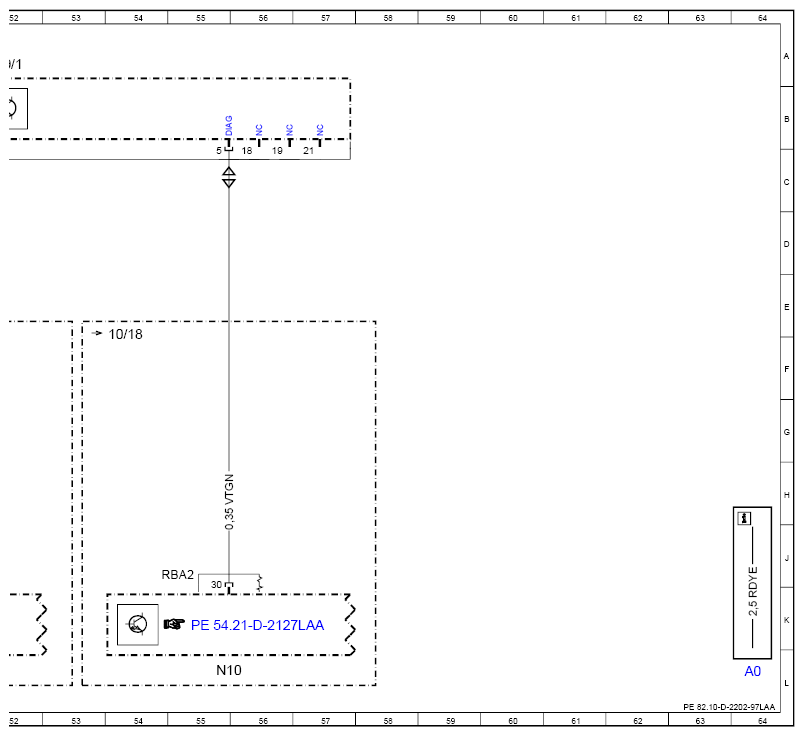

| N10 |
SAM control unit |
55L |
| N10 |
SAM control unit |
26L |

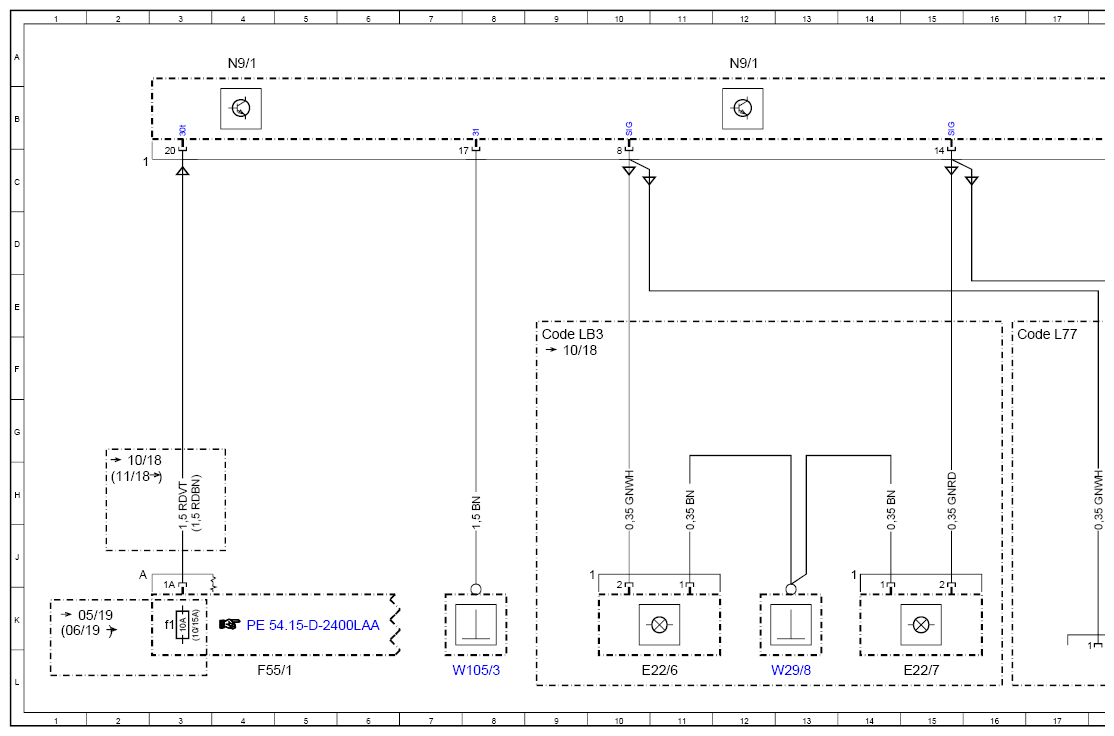

| N9/1 |
Additional turn signal module control unit |
4A |
| N9/1 |
Additional turn signal module control unit |
12A |
| N9/1 |
Additional turn signal module control unit |
20A |
| N9/1 |
Additional turn signal module control unit |
28A |
| N9/1 |
Additional turn signal module control unit |
36A |
| N9/1 |
Additional turn signal module control unit |
44A |
| N9/1 |
Additional turn signal module control unit |
52A |
| W105/3 |
Driver seat frame ground point 3 |
8L |
| W29/8 |
Left D-pillar ground point |
13L |
| W29/8 |
Left D-pillar ground point |
41L |
| W52/7 |
Left rear longitudinal member ground point |
20L |
| X52/10 |
Right rear additional turn signallamp electrical connector |
22L |
| X52/9 |
Left rear additional turn signallamp electrical connector |
18L |

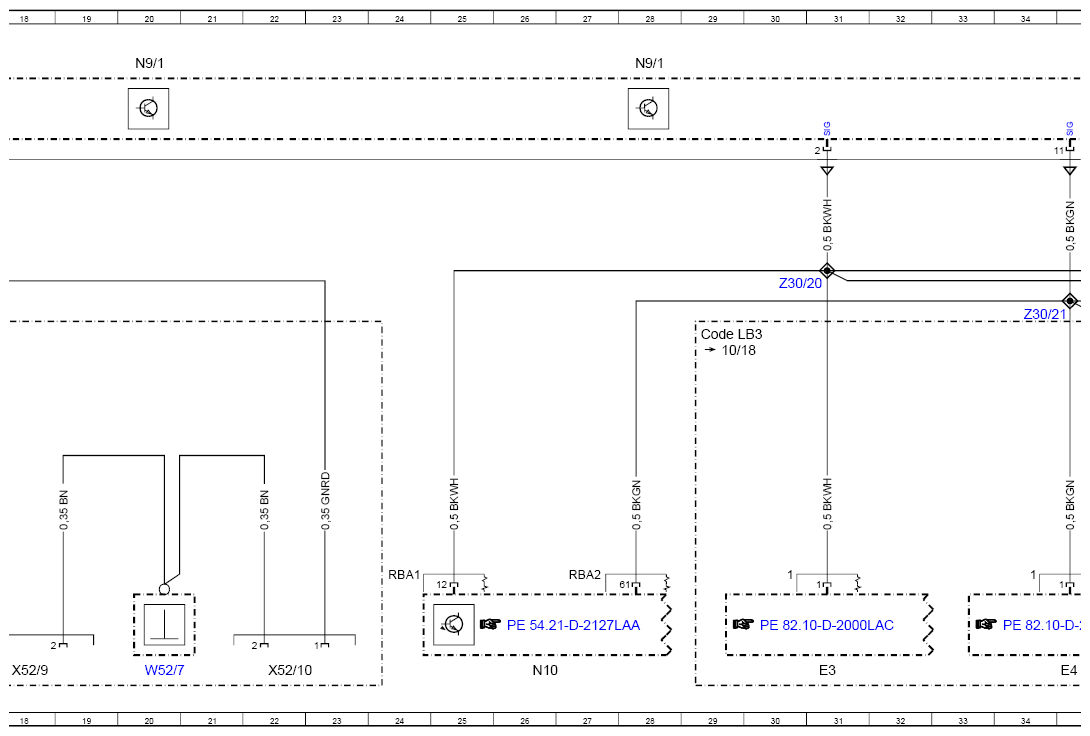

| Z30/20 |
Left turn signallamp end sleeve |
30E |
| Z30/21 |
Right turn signallamp end sleeve |
34E |
