| A0 |
Color code key |
96L |
| A46 |
Tone signal generator |
20A |
| A46 |
Tone signal generator |
28A |
| A46 |
Tone signal generator |
36A |
| A46 |
Tone signal generator |
44A |
| A46 |
Tone signal generator |
52A |
| A46 |
Tone signal generator |
60A |
| Code JV7 |
Siren preinstallation |
1A |
| Code JV7 |
Siren preinstallation |
20E |
| Code JV7 |
Siren preinstallation |
53E |
| Code LB7 |
Left front and right rear rotating beacons, yellow |
65A |
| Code LB7 |
Left front and right rear rotating beacons, yellow |
85F |
| Code LB8 |
Left front rotating beacon, yellow |
65A |
| Code LB8 |
Left front rotating beacon, yellow |
82F |
| Code LB8 |
Left front rotating beacon, yellow |
82F |
| Code LB8 |
Left front rotating beacon, yellow |
79F |
| Code LV1 |
Preinsta11ation, rotating beacons |
1A |
| Code LV1 |
Preinstallation, rotating beacons |
42E |
| Code PZ9 |
Rear ladder rack |
83G |
| Code PZ9 |
Rear ladder rack |
79F |

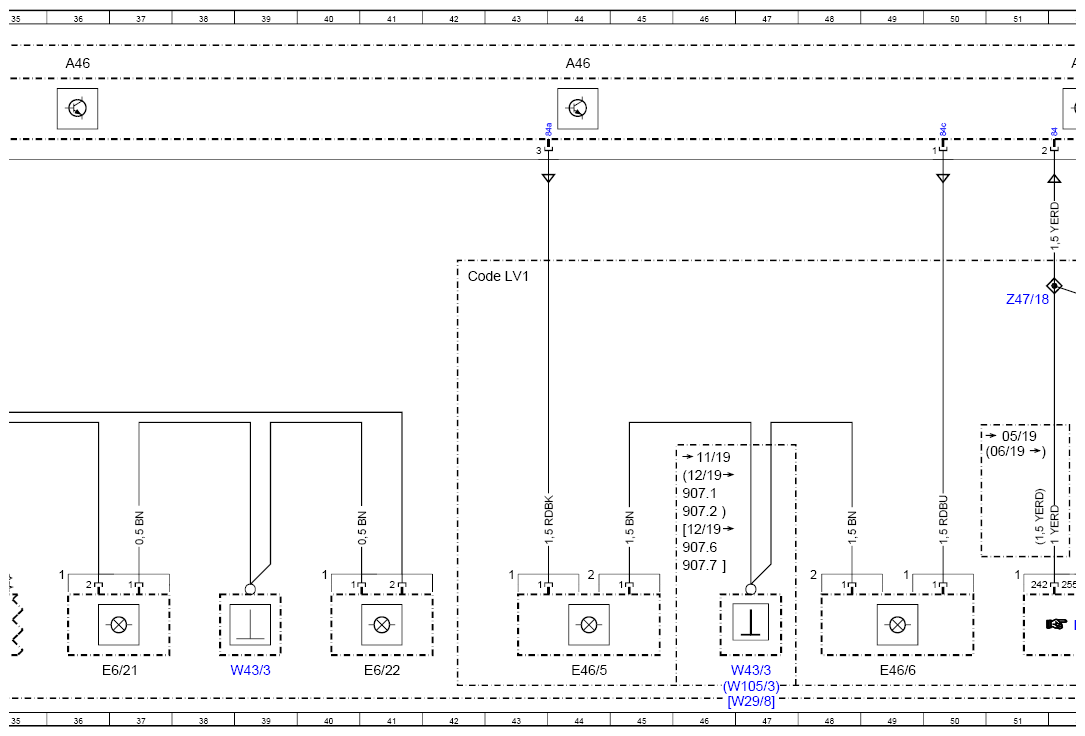

| E46/1 |
Left front rotating beacon |
84L |
| E46/4 |
Right rear rotating beacon |
86L |
| E46/5 |
Blue left front rotating beacon |
44L |
| E46/6 |
Blue right front rotating beacon |
49L |
| E6/21 |
Left front clearance lamp |
37L |
| E6/22 |
Right front clearance lamp |
41L |
| F152 |
Vehicle interior fuse and relay module |
69L |
| F152f40 |
Fuse 40 |
67K |
| F55/4 |
Fuse block 4 (9-pin) |
3L |
| F55/4f36 |
Fuse 36 |
2K |

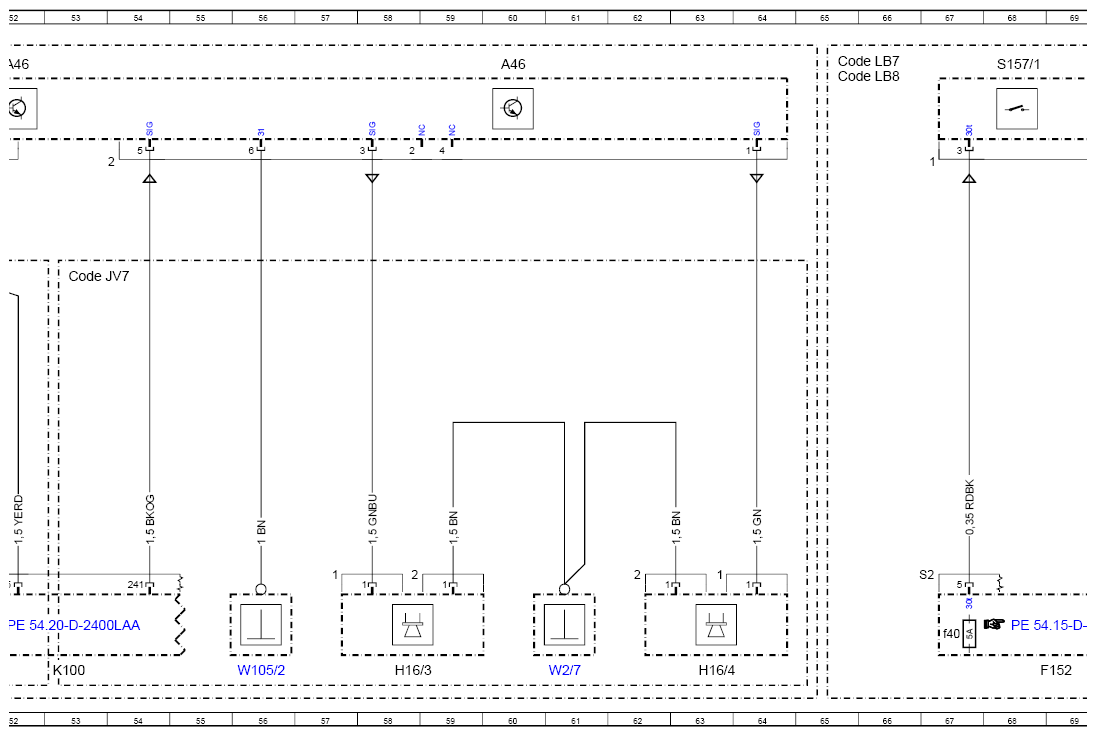

| H16/3 |
Low siren |
58L |
| H16/4 |
High siren |
63L |
| K100 |
Driver seat base relay holder |
53L |
| K100 |
Driver seat base relay holder |
24L |
| N10 |
SAM control unit |
33L |
| N1C |
SAM control unit |
8L |
| N10 |
SAM control unit |
75L |

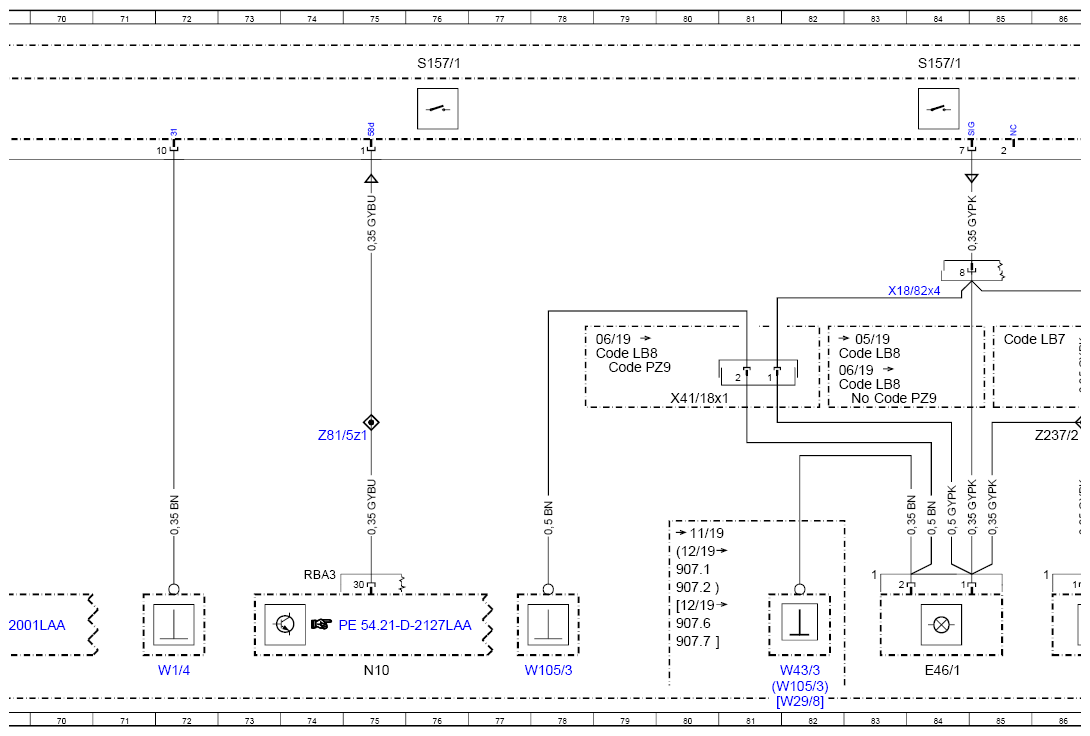

| S157/1 |
Rotating beacon switch |
68A |
| S157/1 |
Rotating beacon switch |
76A |
| S157/1 |
Rotating beacon switch |
90A |
| S157/1 |
Rotating beacon switch |
84A |
| S157/5 |
Rotating beacon with tone sequence switch |
15L |

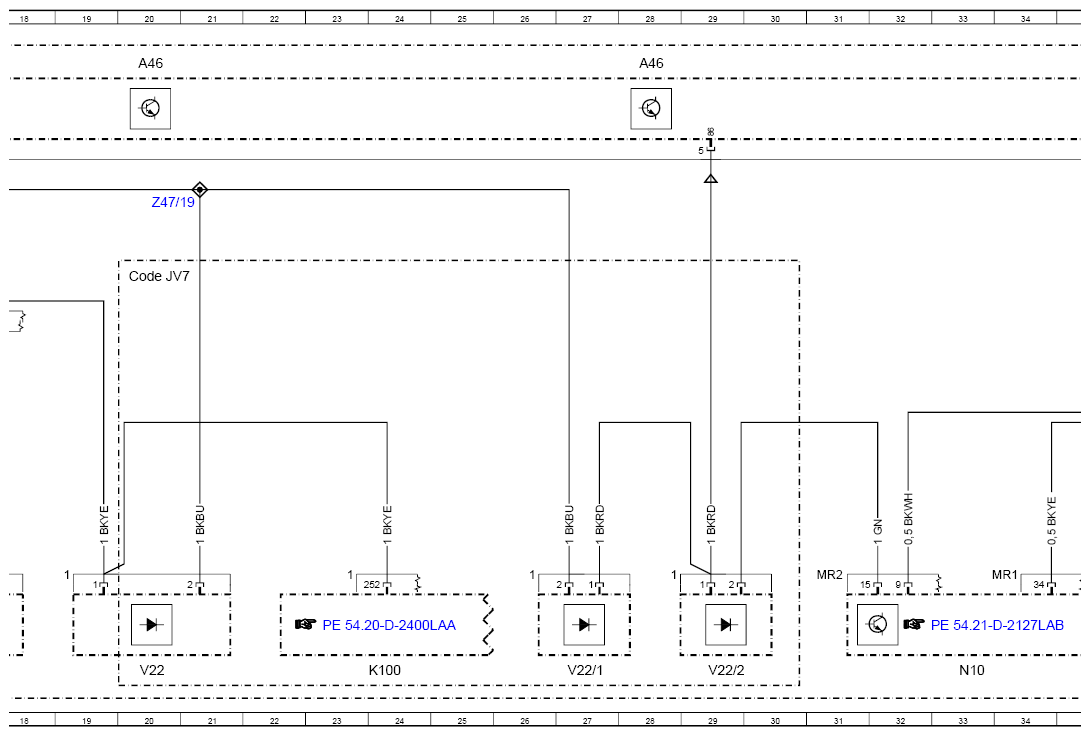

| V22 |
Tone sequence diode |
20L |
| V22/1 |
Tone sequence/horn decoupling diode |
27L |
| V22/2 |
Horn/tone sequence decoupling diode |
29L |
| W1/4 |
HLS cockpit ground point |
11L |
| W1/4 |
HLS cockpit ground point |
72L |
| W105/2 |
Driver seat frame ground point 2 |
56L |
| W105/3 |
Driver seat frame ground point 3 |
78L |
| W105/3 |
Driver seat frame ground point 3 |
47L |
| W105/3 |
Driver seat frame ground point 3 |
82L |
| W2/7 |
Right front lamp unit 2 ground point |
61L |
| W29/8 |
Left D-pillar ground point |
88L |
| W29/8 |
Left D-pillar ground point |
47L |
| W29/8 |
Left D-pillar ground point |
82L |
| W43/3 |
Left firewall ground point |
39L |
| W43/3 |
Left firewall ground point |
47L |
| W43/3 |
Left firewall ground point |
82L |

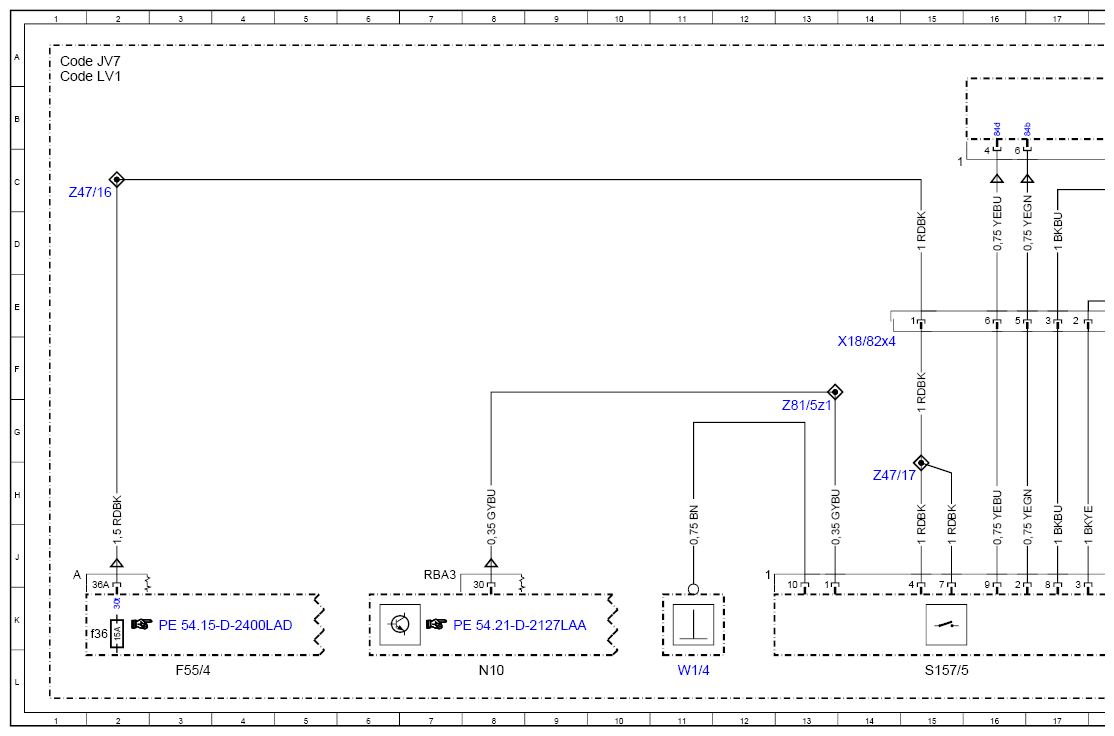

| X18/82x4 |
Right cockpit/MWH electrical connector 4 |
13F |
| X18/82x4 |
Right cockpit/MWH electrical connector 4 |
83E |
| X41/18x1 |
Rotating beacon electrical connector |
80G |
| Z237/2 |
Rotating beacon connector sleeve |
86G |
| Z47/16 |
Rotating beacon with tone sequence circuit 30 connector sleeve |
2C |
| Z47/17 |
Rotating beacon with tone sequence circuit 30 connector sleeve |
14H |
| Z47/18 |
Rotating beacon with tone sequence terminal 84 end sleeve |
51E |
| Z47/19 |
Rotating beacon with tone sequence terminal 71 end sleeve |
20C |
| Z81/5z1 |
Cockpit terminal 58d end sleeve 1 |
13G |
| Z81/5z1 |
Cockpit terminal 58d end sleeve 1 |
74G |
