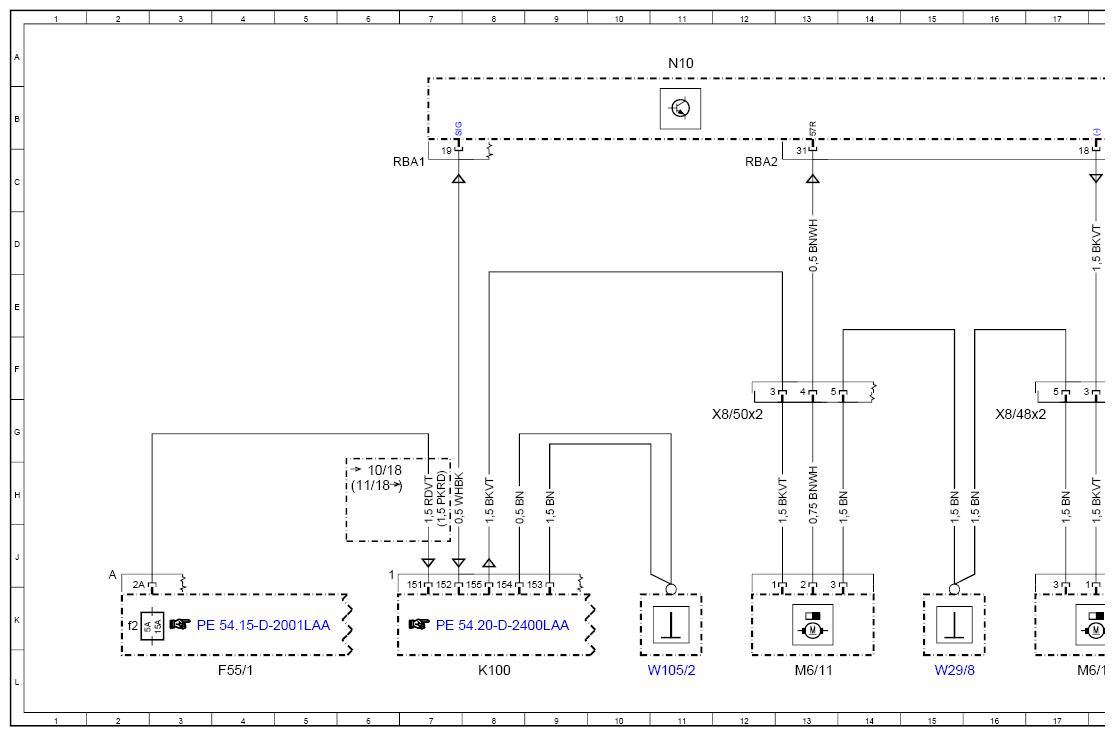

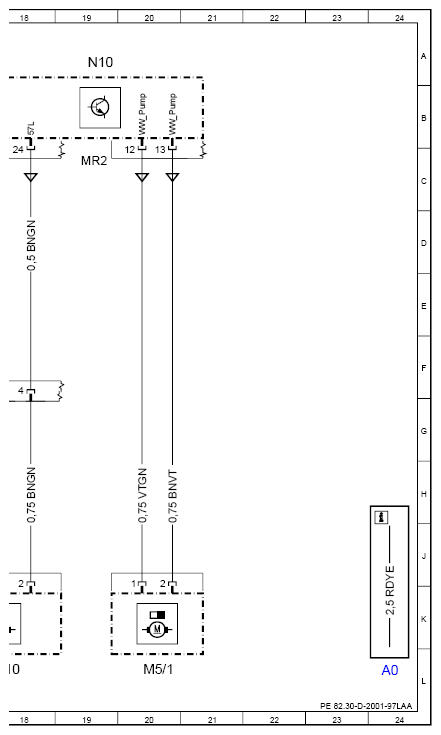

Wiring Diagram For Rear Window Wiper - Pe82.30-D-2001-97LAA

Code:	Designation:	Position:
A0	Color code key	24L
F55/1	Fuse block (1, 9-pin)	4L
F55/1f2	Fuse 2	2K
K100	Driver seat base relay holder	8L
M5/1	Windshield washer system pump	20L
M6/10	Left rear-end door wiper motor	17L
M6/11	Right rear-end door wiper motor	13L
N10	SAM control unit	11A
N10	SAM control unit	19A
W105/2	Driver seat frame ground point 2	11L
W29/8	Left D-pillar ground point	15L
X8/48x2	Left rear-end door electrical connector 2	16G
X8/50x2	Right rear-end door electrical connector 2	12G
