| A0 |
Color code key |
201L |
| A26/17 |

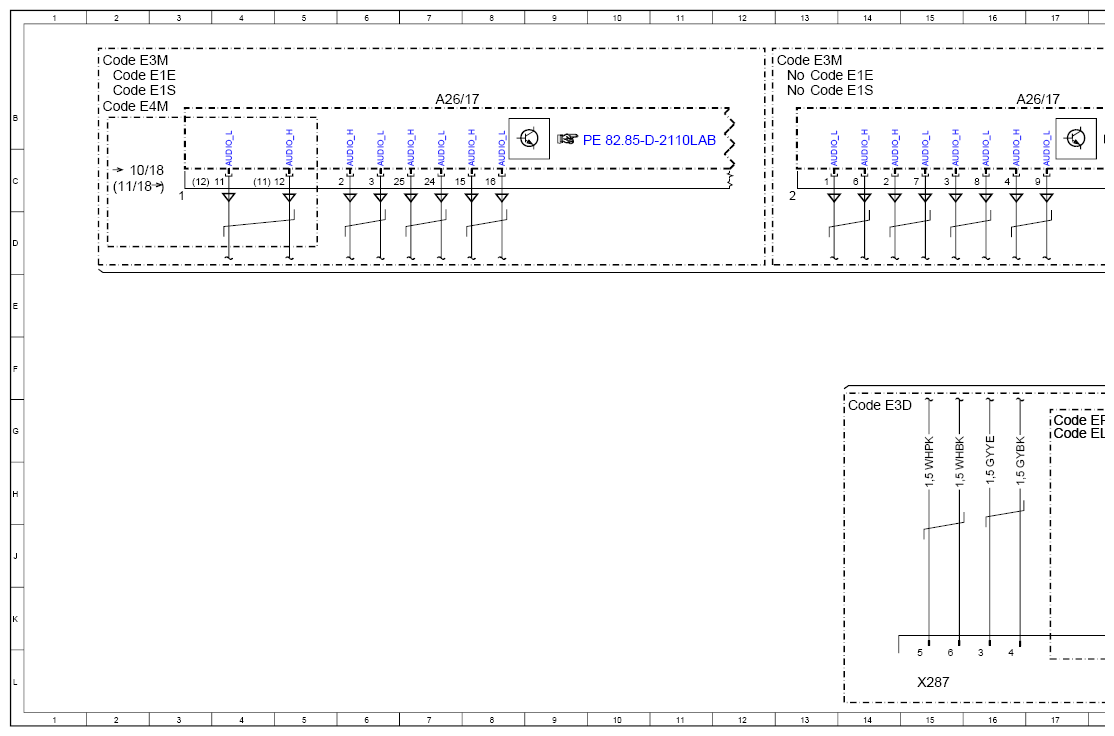

Head unit |
7B |
| A26/17 |
Head unit |
17B |
| Code E1E |
Navigation |
13A |
| Code E1E |
Navigation |
2A |
| Code E10 |
Entry-1 eve I radio |
21A |
| Code E1S |
Satel1ite radio |
13B |
| Code E1S |
Sate11ite radio |
2B |
| Code E3D |
Pre-installation for DSP box |
14G |
| Code E3D |
Pre-installation for DSP box |
22G |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
13A |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
2A |
| Code E4M |
MBUX multimedia system with 10.25-inch touchscreen |
2B |
| Code E77 |
Additional speakers |
112F |
| Code E77 |
Additional speakers |
193F |
| Code E77 |
Additional speakers |
46C |
| Code E77 |
Additional speakers |
61C |
| Code E77 |
Additional speakers |
119F |
| Code EL9 |
Front and rear two-way speaker system |
112F |
| Code EL9 |
Front and rear two-way speaker system |
193F |
| Code EL9 |
Front and rear two-way speaker system |
118F |
| Code EL9 |
Front and rear two-way speaker system |
25G |
| Code EL9 |
Front and rear two-way speaker system |
25G |
| Code EP7 |
Electrics pre-installation for rear speakers |
109F |
| Code EP7 |
Electrics pre-installation for rear speakers |
191F |
| Code EP7 |
Electrics pre-installation for rear speakers |
25G |
| Code EP7 |
Electrics pre-installation for rear speakers |
25G |
| Code ERO |
Radio pre installation |
30A |
| H23/1 |
Left front tweeter |
47L |
| H23/1 |
Left front tweeter |
62L |
| H23/11 |
Left rear tweeter |
116L |
| H23/11 |
Left rear tweeter |
120L |

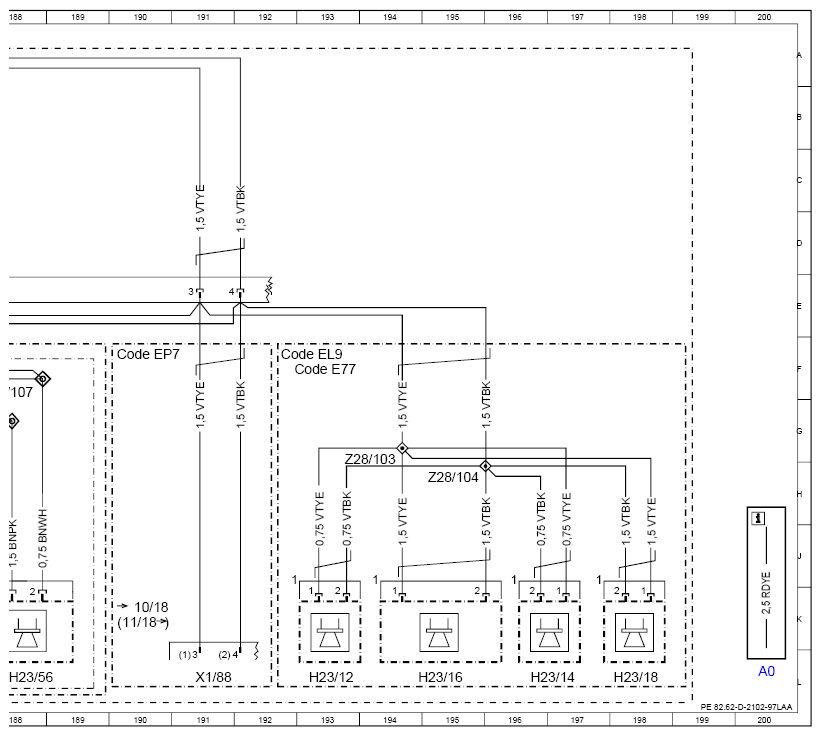

| H23/12 |
Right rear tweeter |
194L |
| H23/12 |
Right rear tweeter |
160L |
| H23/13 |
Additional left rear tweeter |
112L |
| H23/14 |
Additional right rear tweeter |
197L |
| H23/15 |
Left rear woofer/mid-range speaker |
114L |
| H23/15 |
Left rear woofer/mid-range speaker |
126L |
| H23/16 |
Right rear woofer/mid-range speaker |
196L |
| H23/16 |
Right rear woofer/mid-range speaker |
158L |
| H23/17 |
Additional left rear woofer/mid-range speaker |
117L |
| H23/18 |
Additional right rear woofer/mid-range speaker |
199L |
| H23/2 |
Right front tweeter |
54L |
| H23/2 |
Right front tweeter |
75L |
| H23/51 |
Left sliding door tweeter |
136L |
| H23/51 |
Left sliding door tweeter |
149L |
| H23/52 |
Right sliding door tweeter |
88L |
| H23/52 |
Right sliding door tweeter |
96L |
| H23/52 |
Right sliding door tweeter |
170L |
| H23/52 |
Right sliding door tweeter |
187L |

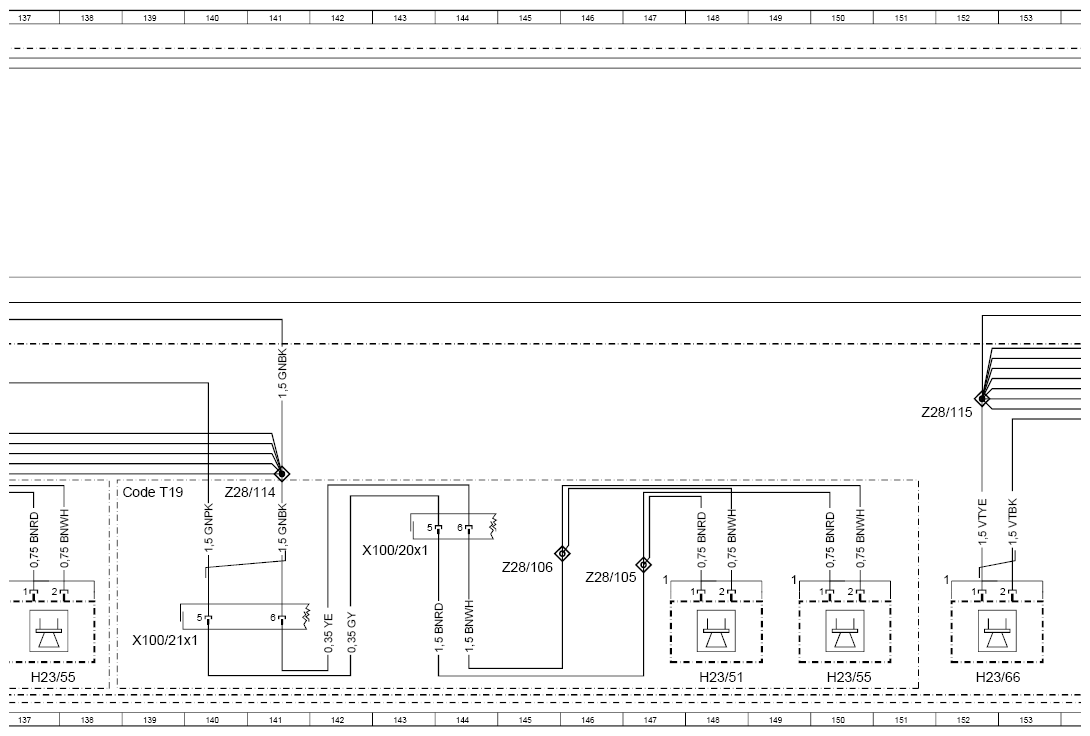

| H23/55 |
Left sliding door woofer/mid-range speaker |
138L |
| H23/55 |
Left sliding door woofer/mid-range speaker |
151L |
| H23/56 |
Right sliding door woofer/mid-range speaker |
90L |
| H23/56 |
Right sliding door woofer/mid-range speaker |
98L |
| H23/56 |
Right sliding door woofer/mid-range speaker |
172L |
| H23/56 |
Right sliding door woofer/mid-range speaker |
189L |
| H23/61 |
Left side wall trim tweeter |
122L |
| H23/61 |
Left side wall trim tweeter |
68L |

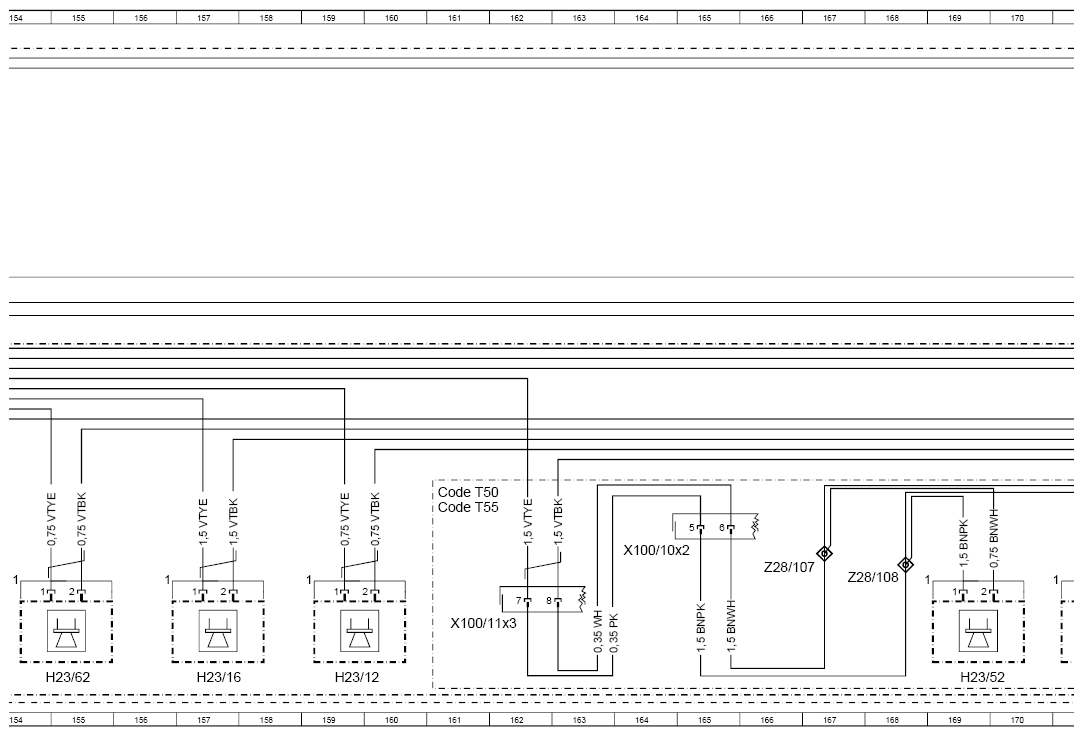

| H23/62 |
Right side wall trim tweeter |
156L |
| H23/62 |
Right side wall trim tweeter |
81L |

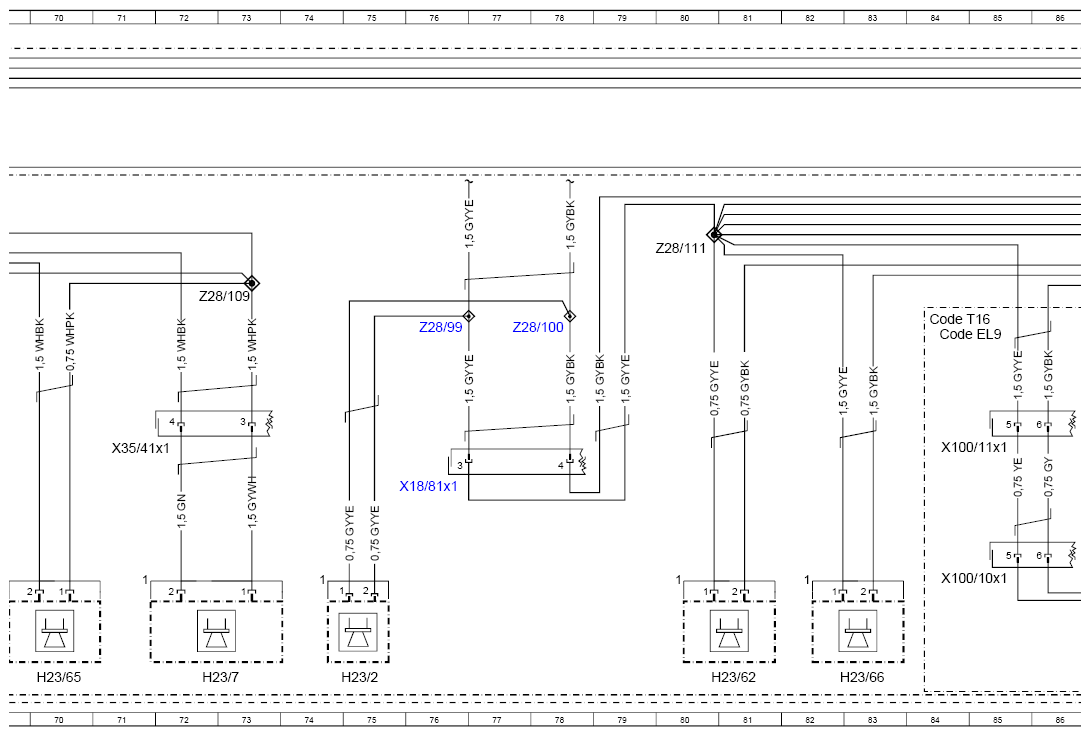

| H23/65 |
Left side wall trim woofer/mid-range speaker |
124L |
| H23/65 |
Left side wall trim woofer/mid-range speaker |
70L |
| H23/66 |
Right side wall trim woofer/mid-range speaker |
153L |
| H23/66 |
Right side wall trim woofer/mid-range speaker |
83L |

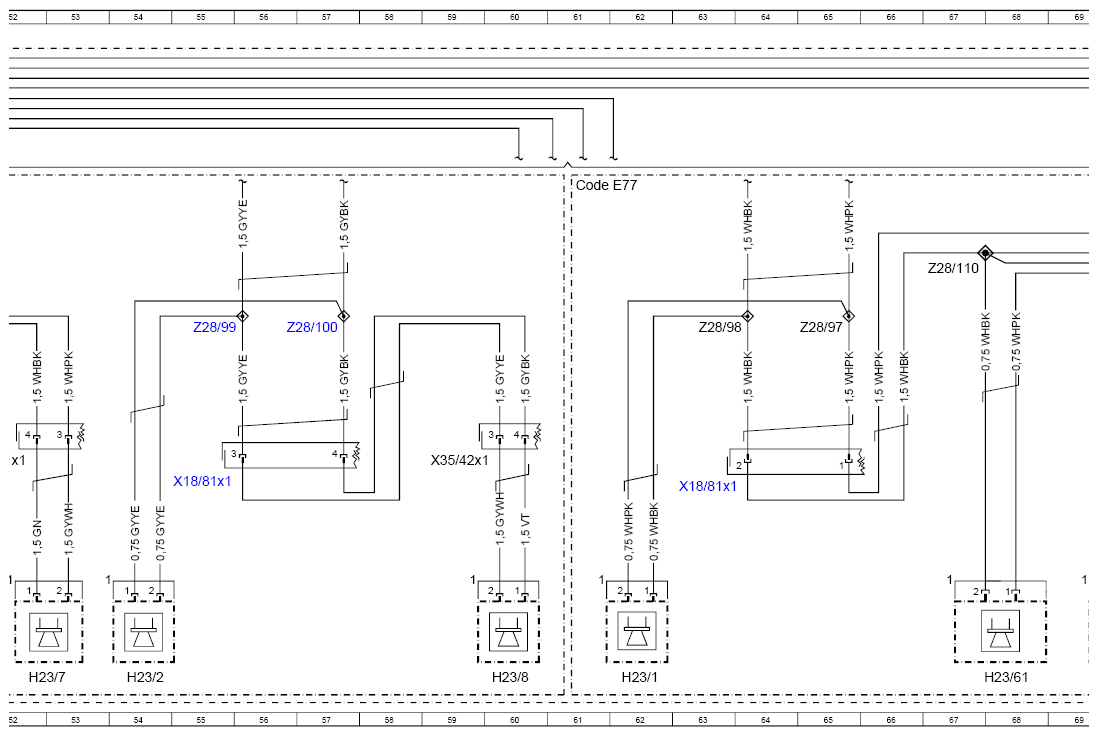

| H23/7 |
Left front door woofer/midrange speaker |
52L |
| H23/7 |
Left front door woofer/midrange speaker |
72L |
| H23/8 |
Right front door woofer/midrange speaker |
60L |
| H23/8 |
Right front door woofer/midrange speaker |
107L |

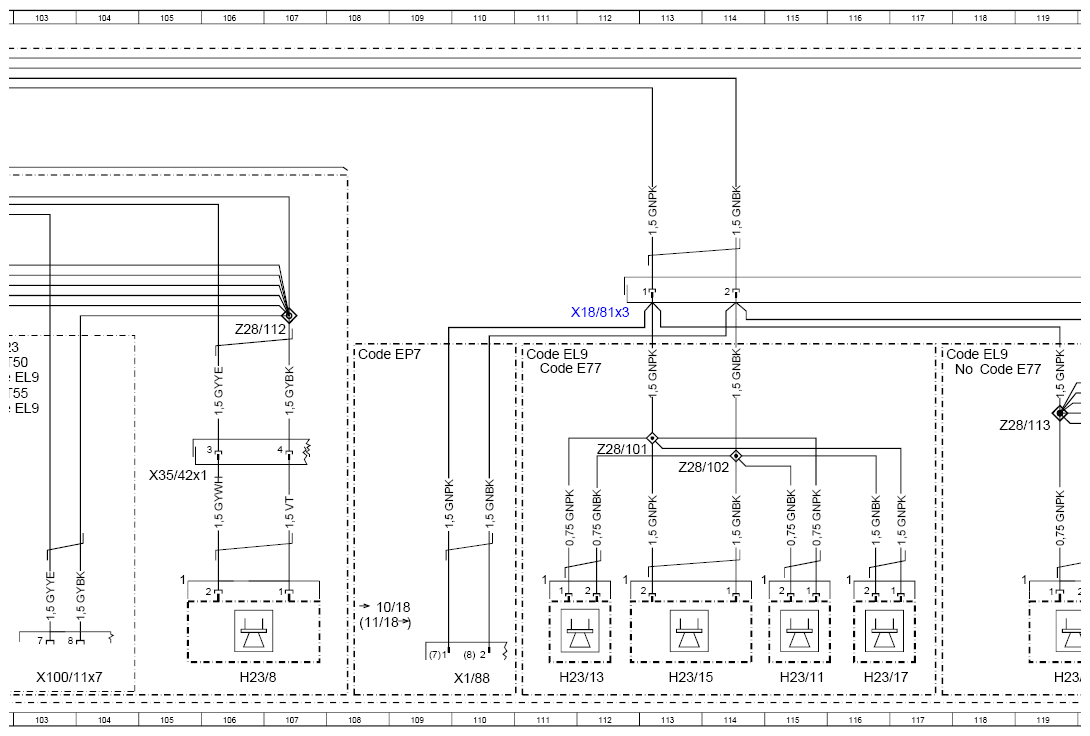

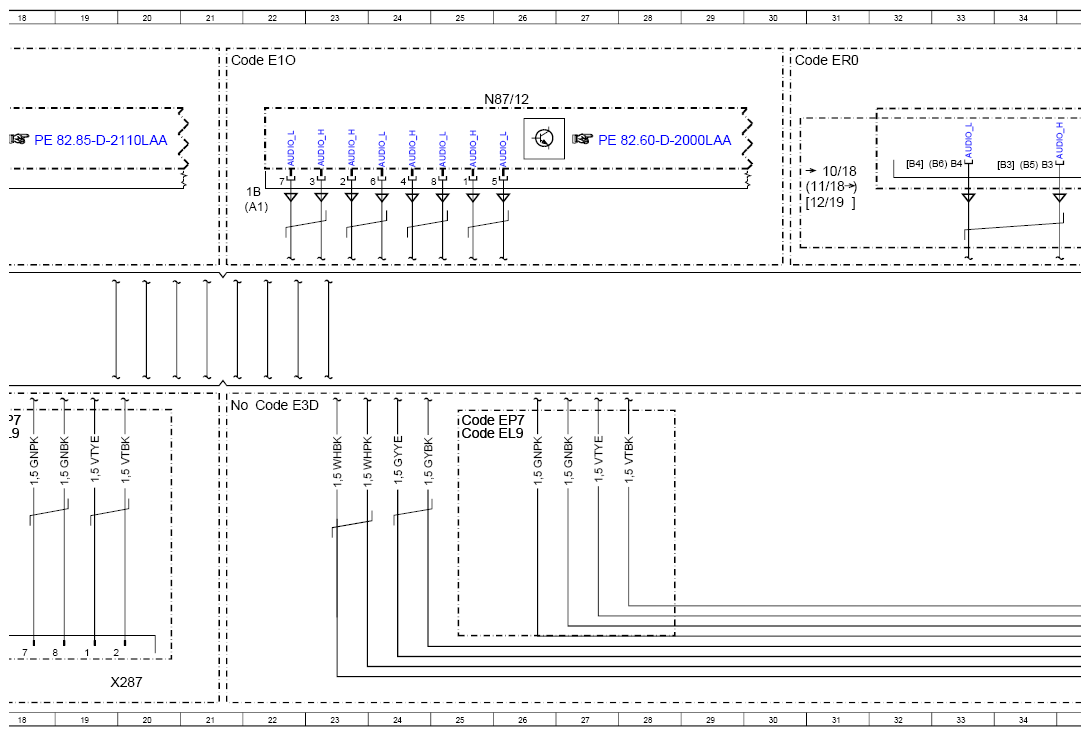

| N87/12 |
Rad io |
26B |
| X1/88 |
Rear speaker pre-installation electrical connector |
111L |
| X1/88 |
Rear speaker pre-installation electrical connector |
192L |

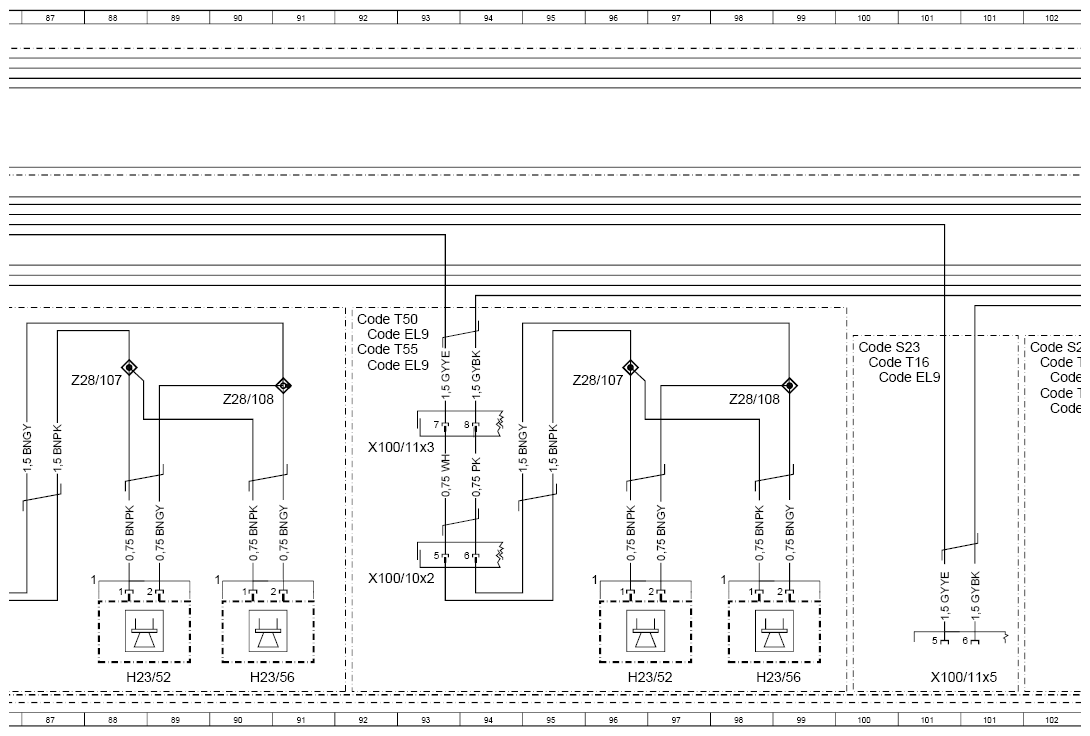

| X100/10x1 |
Right sliding door electrical connector 1 |
84J |
| X100/10x1 |
Right sliding door electrical connector 1 |
184G |
| X100/10x2 |
Right sliding door electrical connector 2 |
92J |
| X100/10x2 |
Right sliding door electrical connector 2 |
165 J |
| X100/11x1 |
Right sliding door (B-pillar) electrical connector 1 |
84G |
| X100/11x1 |
Right sliding door (B-pillar) electrical connector 1 |
180K |
| X100/11x3 |
Right sliding door (B-pillar) electrical connector 3 |
92G |
| X100/11x3 |
Right sliding door (B-pillar) electrical connector 3 |
162K |
| X100/11x5 |
Right sliding door (B-pillar) electrical connector 5 |
178L |
| X100/11x5 |
Right sliding door (B-pillar) electrical connector 5 |
101L |

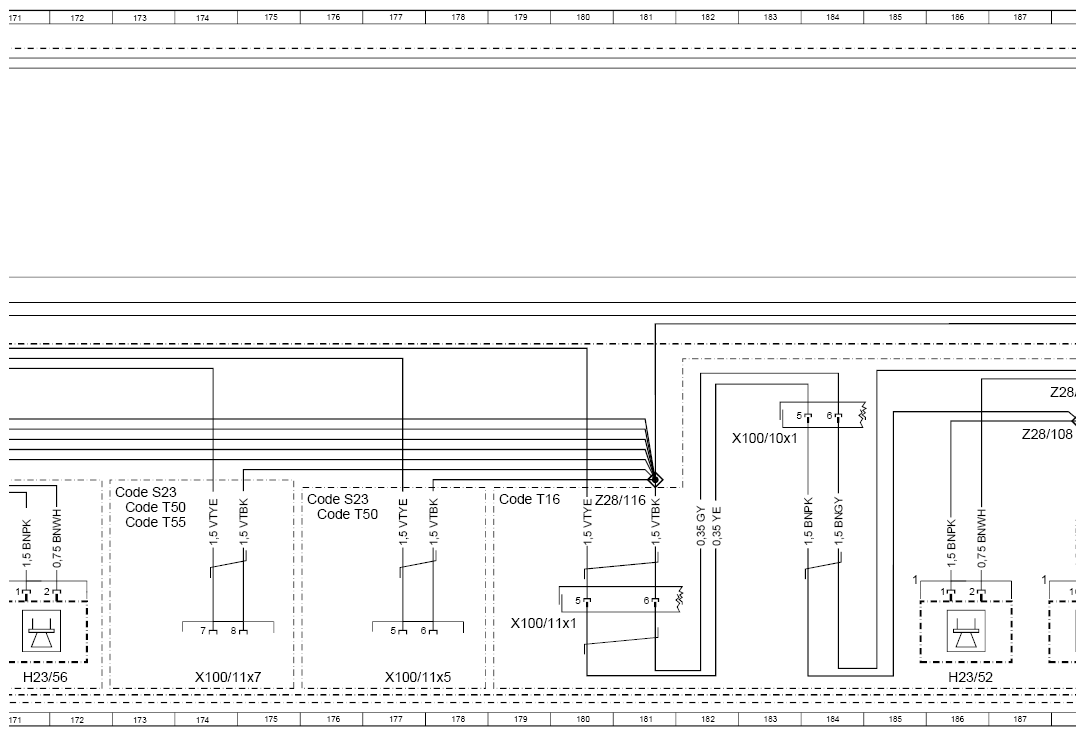

| X100/11x7 |
Right sliding door (B-pillar) electrical connector 7 |
175L |
| X100/11x7 |
Right sliding door (B-pillar) electrical connector 7 |
104L |

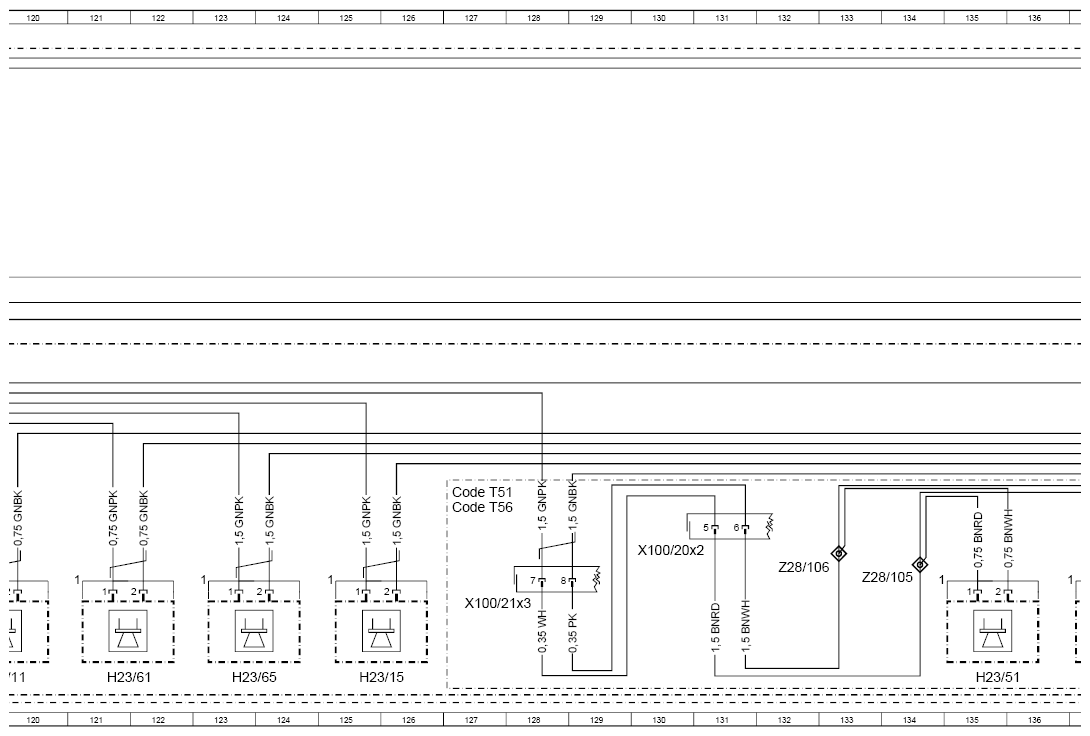

| X100/20x1 |
Left sliding door electrical connector 1 |
144 J |
| X100/20x2 |
Left sliding door electrical connector 2 |
131J |
| X100/21x1 |
Left sliding door (B-pillar) electrical connector 1 |
140K |
| X100/21x3 |
Left sliding door (B-pillar) electrical connector 3 |
128K |
| X18/81x1 |
Left cockpit/MWH electrical connector 1 |
48H |
| X18/81x1 |
Left cockpit/MWH electrical connector 1 |
55H |
| X18/81x1 |
Left cockpit/MWH electrical connector 1 |
63H |
| X18/81x1 |
Left cockpit/MWH electrical connector 1 |
76H |
| X18/81x3 |
Left cockpit/MWH electrical connector 3 |
113E |
| X287 |
DSP box electrical connector |
15L |
| X287 |
DSP box electrical connector |
20L |
| X35/41x1 |
Driver door electrical connector 1 |
52H |
| X35/41x1 |
Driver door electrical connector 1 |
71G |
| X35/42x1 |
Front passenger door electrical connector 1 |
59H |
| X35/42x1 |
Front passenger door electrical connector 1 |
106H |

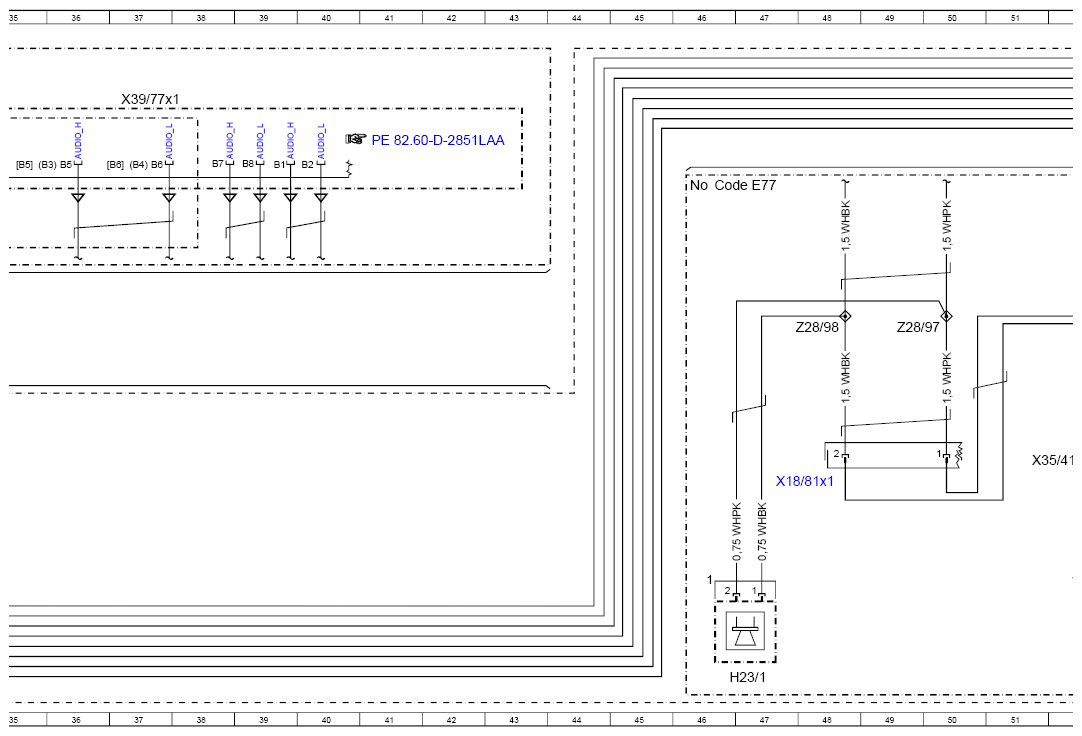

| X39/77x1 |
Radio pre-installation electrical connector 1 |
37B |
| Z28/100 |
Right front speaker connector sleeve (-) |
57E |
| Z28/100 |
Right front speaker connector sleeve (-) |
78E |
| Z28/101 |
Left rear speaker end sleeve (+) |
113G |
| Z28/102 |
Left rear speaker end sleeve (-) |
115H |
| Z28/103 |
Right rear speaker end sleeve (+) |
195H |
| Z28/104 |
Right rear speaker end sleeve (-) |
196H |
| Z28/105 |
Left sliding door speaker end sleeve (+) |
135 J |
| Z28/105 |
Left sliding door speaker end sleeve (+) |
147J |
| Z28/106 |
Left sliding door speaker end sleeve (-) |
133 J |
| Z28/106 |
Left sliding door speaker end sleeve (-) |
146 J |
| Z28/107 |
Right sliding door speaker end sleeve (+) |
88F |
| Z28/107 |
Right sliding door speaker end sleeve (+) |
96F |
| Z28/107 |
Right sliding door speaker end sleeve (+) |
167 J |
| Z28/107 |
Right sliding door speaker end sleeve (+) |
189F |
| Z28/108 |
Right sliding door speaker end sleeve (-) |
90G |
| Z28/108 |
Right sliding door speaker end sleeve (-) |
98G |
| Z28/108 |
Right sliding door speaker end sleeve (-) |
169J |
| Z28/108 |
Right sliding door speaker end sleeve (-) |
188G |
| Z28/109 |
Left front rear-end speaker end sleeve (+) |
73E |
| Z28/110 |
Left front rear-end speaker end sleeve (-) |
67D |
| Z28/111 |
Right front rear-end speaker end sleeve (+) |
80D |
| Z28/112 |
Right front rear-end speaker end sleeve (-) |
107E |
| Z28/113 |
Rear left rear speaker end sleeve (+) |
120G |
| Z28/114 |
Rear left rear speaker end sleeve (-) |
142H |
| Z28/115 |
Rear right rear speaker end sleeve (+) |
153G |
| Z28/116 |
Rear right rear speaker end sleeve (-) |
182H |
| Z28/97 |
Left front speaker connector sleeve (+) |
49E |
| Z28/97 |
Left front speaker connector sleeve (+) |
65E |
| Z28/98 |
Left front speaker connector sleeve (-) |
48E |
| Z28/98 |
Left front speaker connector sleeve (-) |
63E |
| Z28/99 |
Right front speaker connector sleeve (+) |
55E |
| Z28/99 |
Right front speaker connector sleeve (+) |
76E |
