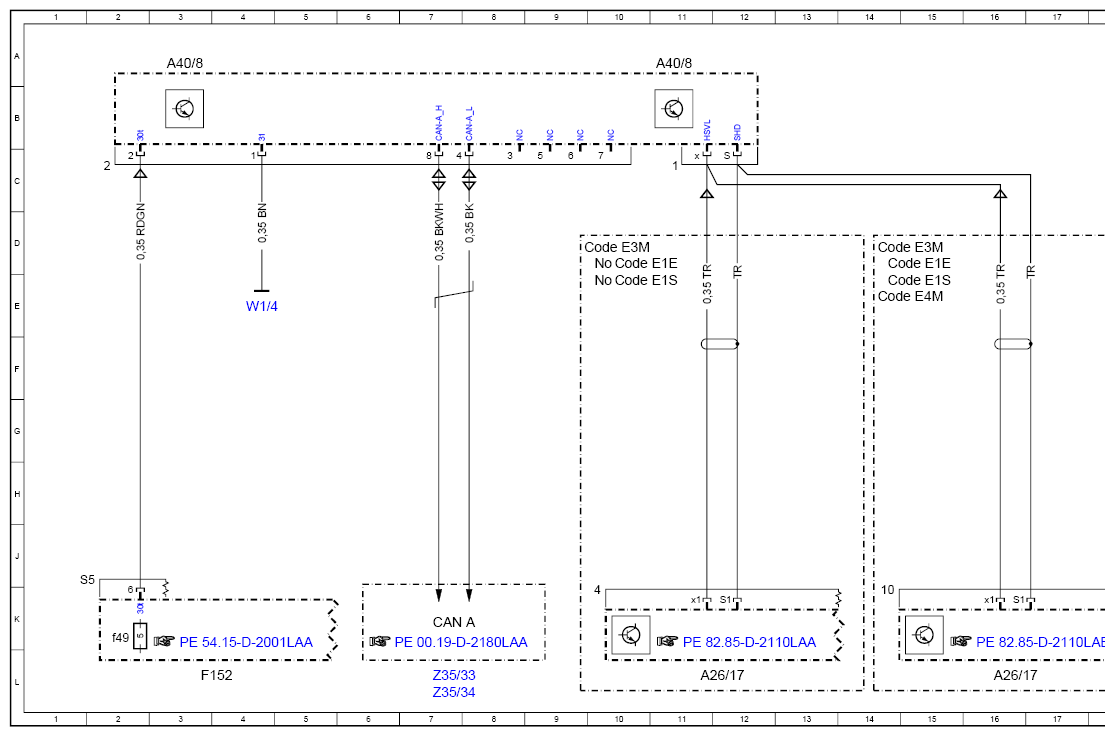

| A0 |
Color code key |
23L |
| A26/17 |
Head unit |
11L |
| A26/17 |
Head unit |
16L |
| A40/8 |
Audio/COMAND display control unit |
3A |
| A40/8 |
Audio/COMAND display control unit |
11A |
| CAN A |
Telematics CAN |
7K |
| Code E1E |
Navigation |
10D |
| Code E1E |
Navigation |
14D |
| Code E1S |
Satellite radio |
10E |
| Code E1S |
Satellite radio |
14E |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
9D |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
14D |
| Code E4M |
MBUX multimedia system with 10. 25-inch touchscreen |
14E |
| F152 |
Vehicle interior fuse and relay module |
3L |
| F152f49 |
Fuse 49 |
2K |
| W1/4 |
HLS cockpit ground point |
4E |
| Z35/33 |
Telematics CAN (high) connector sleeve |
7L |
| Z35/34 |
Telematics CAN (low) connector sleeve |
7L |
