| A0 |
Color code key |
184L |

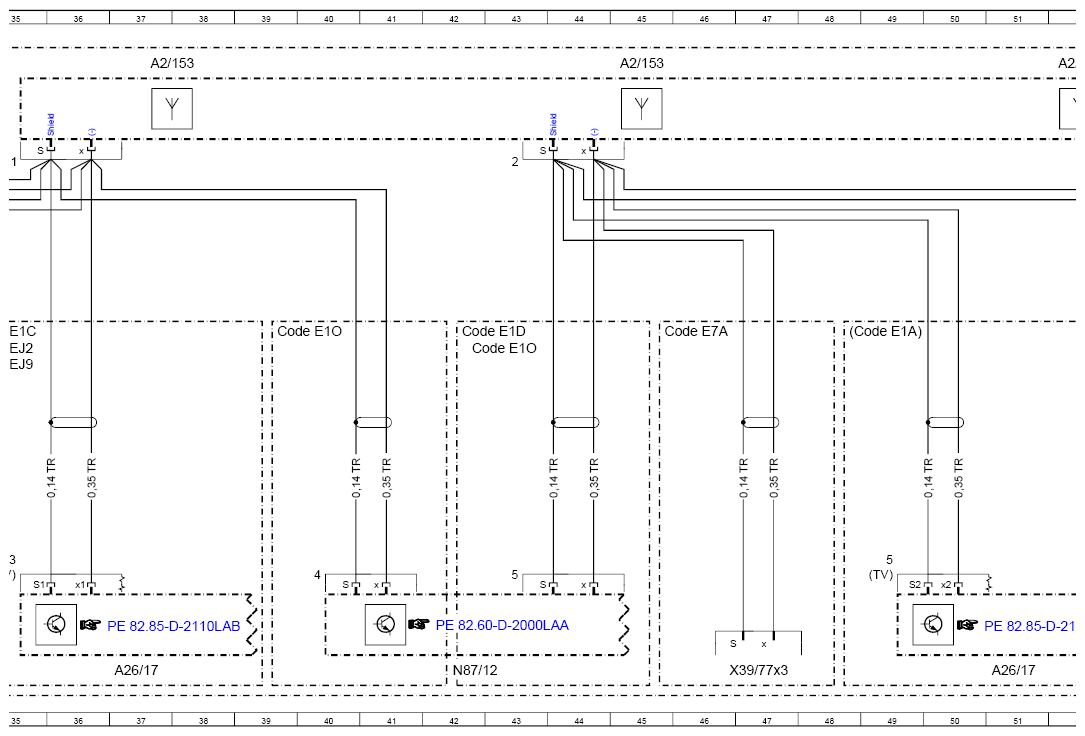

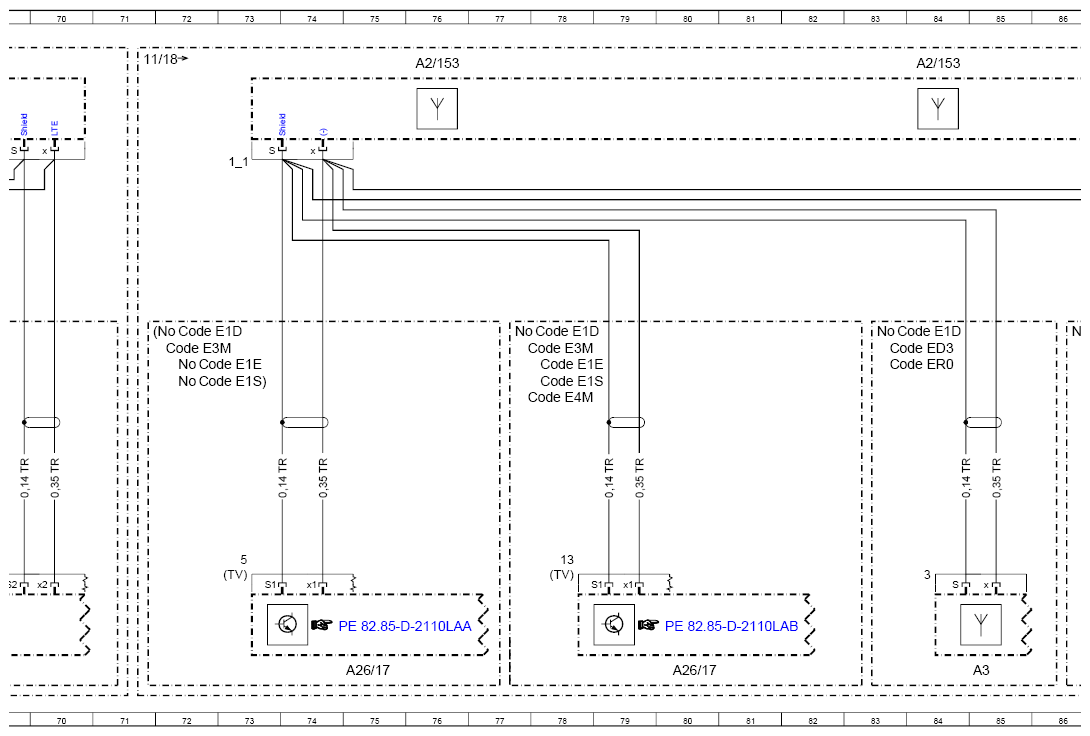

| A2/153 |
Roof antenna |
45A |
| A2/153 |
Roof antenna |
37A |
| A2/153 |
Roof antenna |
60A |
| A2/153 |
Roof antenna |
68A |
| A2/153 |
Roof antenna |
84A |
| A2/153 |
Roof antenna |
76A |
| A2/153 |
Roof antenna |
92A |
| A2/153 |
Roof antenna |
100A |
| A2/153 |
Roof antenna |
115A |
| A2/153 |
Roof antenna |
129A |
| A2/153 |
Roof antenna |
136A |
| A2/153 |
Roof antenna |
144A |
| A2/153 |
Roof antenna |
52A |

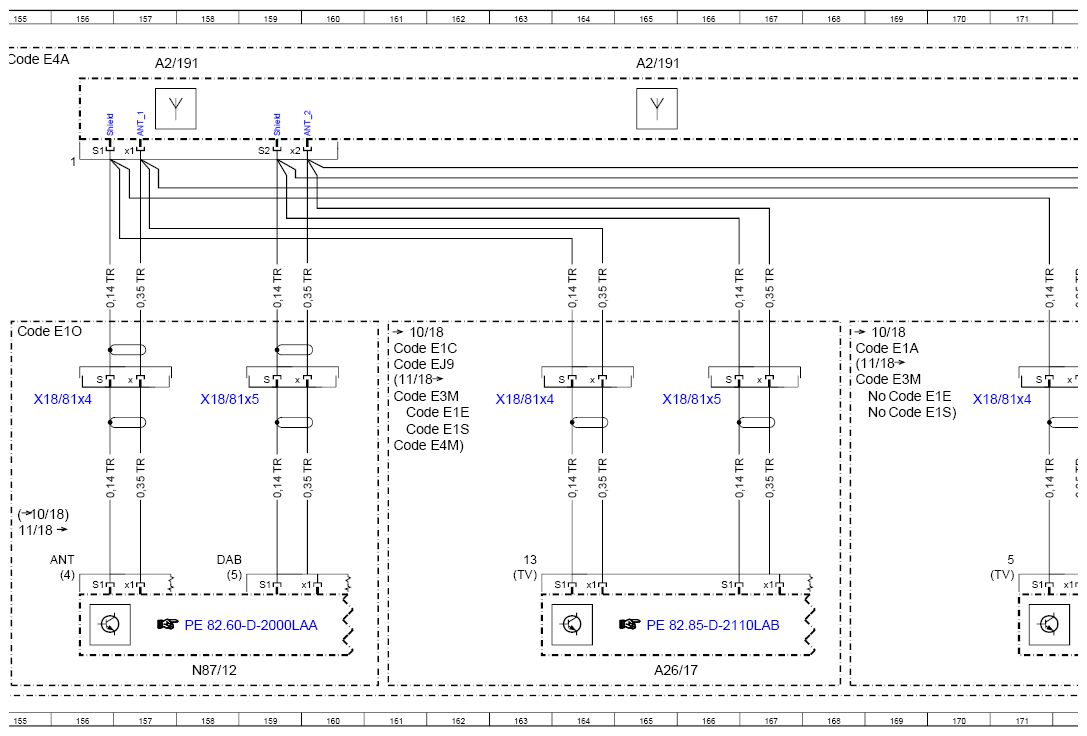

| A2/191 |
Antenna switchbox |
157A |
| A2/191 |
Antenna switchbox |
165A |
| A2/191 |
Antenna switchbox |
173A |
| A2/191 |
Antenna switchbox |
28L |
| A2/191 |
Antenna switchbox |
180A |
| A26/17 |
Head unit |
32L |
| A26/17 |
Head unit |
173L |
| A26/17 |
Head unit |
165L |
| A26/17 |
Head unit |
134L |
| A26/17 |
Head unit |
37L |
| A26/17 |
Head unit |
51L |
| A26/17 |
Head unit |
56L |
| A26/17 |
Head unit |
75L |
| A26/17 |
Head unit |
80L |
| A26/17 |
Head unit |
95L |
| A26/17 |
Head unit |
100L |
| A26/17 |
Head unit |
115L |
| A26/17 |
Head unit |
120L |
| A3 |
Antenna voltage converter |
19L |
| A3 |
Antenna voltage converter |
105L |
| A3 |
Antenna voltage converter |
85L |
| Code E1A |
MBCONNECT-5 |
29E |
| Code E1A |
MBCONNECT-5 |
48E |
| Code E1A |
MBCONNECT-5 |
168F |
| Code E1C |
Audio 25 |
34E |
| Code E1C |
Audio 25 |
53E |
| Code E1C |
Audio 25 |
161F |
| Code E1D |
Digital radio (DAB) |
42E |
| Code E1D |
Digital radio (DAB) |
72E |
| Code E1D |
Digital radio (DAB) |
78E |
| Code E1D |
Digital radio (DAB) |
83E |
| Code E1D |
Digital radio (DAB) |
86E |
| Code E1D |
Digital radio (DAB) |
91E |
| Code E1D |
Digital radio (DAB) |
97E |
| Code E1D |
Digital radio (DAB) |
103E |
| Code E1D |
Digital radio (DAB) |
106E |
| Code E1D |
Digital radio (DAB) |
126E |
| Code E1E |
Navigation |
56E |
| Code E1E |
Navigation |
92F |
| Code E1E |
Navigation |
98F |
| Code E1E |
Navigation |
72F |
| Code E1E |
Navigation |
78F |
| Code E1E |
Navigation |
112F |
| Code E1E |
Navigation |
117F |
| Code E1E |
Navigation |
131F |
| Code E1E |
Navigation |
161G |
| Code E1E |
Navigation |
169G |
| Code E10 |
Entry-level radio |
39E |
| Code E10 |
Entry-level radio |
42F |
| Code E10 |
Entry-level radio |
155E |
| Code E10 |
Entry-level radio |
19F |
| Code E10 |
Entry-level radio |
106F |
| Code E10 |
Entry-level radio |
86F |
| Code E10 |
Entry-level radio |
126F |
| Code E1S |
Satellite radio |
92F |
| Code E1S |
Satellite radio |
98F |
| Code E1S |
Satellite radio |
72F |
| Code E1S |
Satellite radio |
78F |
| Code E1S |
Satellite radio |
112F |
| Code E1S |
Satellite radio |
117F |
| Code E1S |
Satellite radio |
131F |
| Code E1S |
Satellite radio |
161G |
| Code E1S |
Satellite radio |
169G |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
4F |
| Code E2I |
Auxiliary battery for retrofit consumers, interior compartment |
4G |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
4F |
| Code E2M |
Auxiliary battery for retrofit consumers, engine compartment |
4G |
| Code E3D |
Pre-installation for DSP box |
4G |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
19F |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
92F |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
97F |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
72F |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
77F |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
111E |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
117E |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
131E |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
161G |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
168F |
| Code E4A |
Antenna interface for radio, navigation and cellular telephone system |
19E |
| Code E4A |
Antenna interface for radio, navigation and cellular telephone system |
155A |
| Code E4M |
MBUX multimedia system with 10.25-inch touchscreen |
19F |
| Code E4M |
MBUX multimedia system with 10. 25-inch touchscreen |
97G |
| Code E4M |
MBUX multimedia system with 10. 25-inch touchscreen |
77G |
| Code E4M |
MBUX multimedia system with 10.25-inch touchscreen |
117F |
| Code E4M |
MBUX multimedia system with 10.25-inch touchscreen |
131F |
| Code E4M |
MBUX multimedia system with 10. 25-inch touchscreen |
161G |
| Code E7A |
Digital radio (DAB) pre-installation |
45E |
| Code E7A |
Digital radio (DAB) pre-installation |
123E |
| Code ED3 |
Antenna for radio, navigation and cellular telephone system |
59E |
| Code ED3 |
Antenna for radio, navigation and cellular telephone system |
16E |
| Code ED3 |
Antenna for radio, navigation and cellular telephone system |
103F |
| Code ED3 |
Antenna for radio, navigation and cellular telephone system |
83F |
| Code ED3 |
Antenna for radio, navigation and cellular telephone system |
142E |
| Code ED3 |
Antenna for radio, navigation and cellular telephone system |
150F |
| Code EE1 |
230 V socket |
4E |
| Code EE3 |
115 V socket |
4F |
| Code EJ2 |
Audio 20 |
34F |
| Code EJ2 |
Audio 20 |
53F |
| Code EJ9 |
C0MAND Online |
34F |
| Code EJ9 |
C0MAND Online |
53F |
| Code EJ9 |
C0MAND Online |
56F |
| Code EJ9 |
C0MAND Online |
161F |
| Code ERO |
Radio pre installation |
16F |
| Code ERO |
Radio pre installation |
2E |
| Code ERO |
Radio pre installation |
103F |
| Code ERO |
Radio pre installation |
83F |
| Code EV3 |
Pre-installation of electrical scope for cargo lift gate |
4G |
| Code JH2 |
Communication module (UMTS) for digital services |
62E |
| Code JH2 |
Communication module (UMTS) for digital services |
65E |
| Code JH3 |
Communication module (LTE) for digital services |
62F |
| Code JH3 |
Communication module (LTE) for digital services |
68E |
| Code JH3 |
Communication module (LTE) for digital services |
136E |
| Code JH3 |
Communication module (LTE) for digital services |
145E |
| Code JH3 |
Communication module (LTE) for digital services |
151F |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
62F |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
65F |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
136F |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
145F |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
151F |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
62F |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
68F |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
136F |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
145F |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
151G |
| F152 |
Vehicle interior fuse and relay module |
9L |
| F152f28 |
Fuse 28 |
8K |
| F55/4 |
Fuse block 4 (9-pin) |
178L |
| F55/4f30 |
Fuse 30 |
176K |
| N112/9 |
HERMES control unit |
66L |
| N112/9 |
HERMES control unit |
139L |
| N112/9 |
HERMES control unit |
147L |
| N87/12 |
Radio |
42L |
| N87/12 |
Radio |
158L |
| N87/12 |
Radio |
108L |
| N87/12 |
Radio |
128L |
| N87/12 |
Radio |
88L |
| W105/3 |
Driver seat frame ground point 3 |
12L |
| W105/3 |
Driver seat frame ground point 3 |
181L |
| X1/83x1 |
GPS antenna electrical connector 1 |
60L |
| X1/83x1 |
GPS antenna electrical connector 1 |
143L |
| X1/84 |
GSM antenna electrical connector |
152L |
| X18/81x4 |
Left cockpit/MWH electrical connector 4 |
155G |
| X18/81x4 |
Left cockpit/MWH electrical connector 4 |
170G |
| X18/81x4 |
Left cockpit/MWH electrical connector 4 |
163G |
| X18/81x4 |
Left cockpit/MWH electrical connector 4 |
21G |
| X18/81x5 |
Left cockpit/MWH electrical connector 5 |
158G |
| X18/81x5 |
Left cockpit/MWH electrical connector 5 |
173G |
| X18/81x5 |
Left cockpit/MWH electrical connector 5 |
165G |
| X39/77x1 |
Radio pre-installation electrical connector 1 |
3L |
| X39/77x2 |
Radio pre-installation electrical connector 2 |
26L |
| X39/77x3 |
Radio pre-installation electrical connector 3 |
47L |
| X39/77x3 |
Radio pre-installation electrical connector 3 |
124L |
| Z3/12 |
Circuit 15R connector sleeve |
6F |
