Sprinter 3500XD 2D Cab Chassis
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Interior/Illumination Lights
>>
Electrical System -- Body - Capacities, Specifications, Forms, Wiring Diagrams & Special Tools
>>
Wiring Diagrams
>>

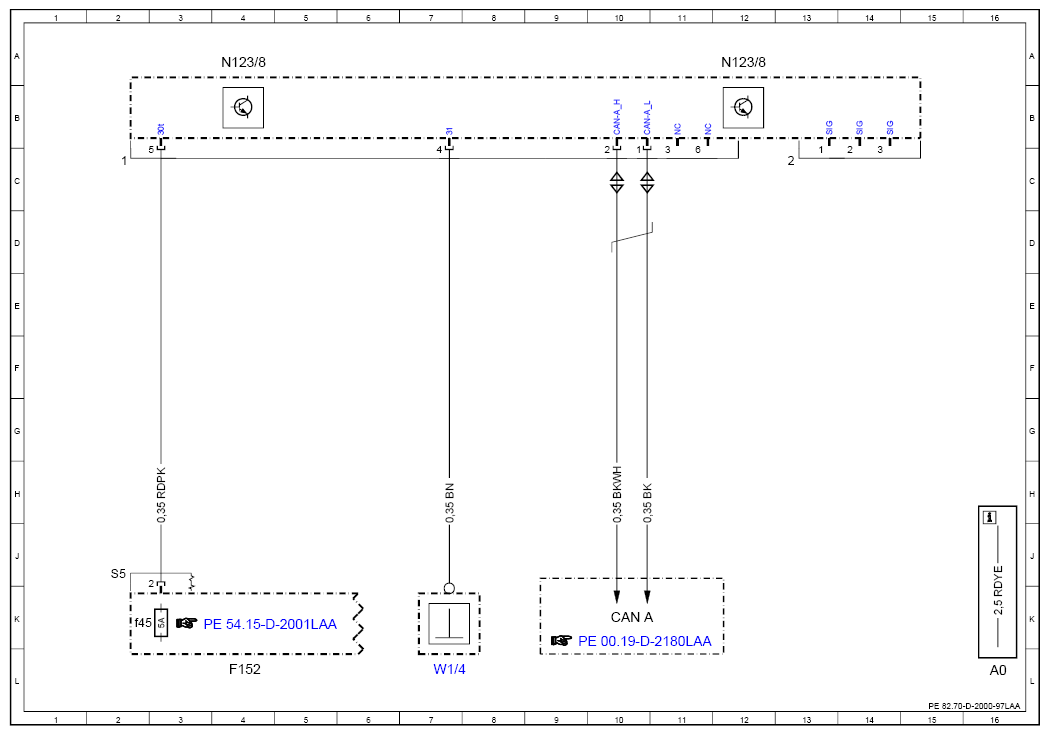

Telephone (Tel) Wiring Diagram - Pe82.70-D-2000-97LAA
Telephone (Tel) Wiring Diagram - Pe82.70-D-2000-97LAA
Code:
Designation:
Position:
A0
Color code key
16L
CAN A
Telematics CAN
10K
F152
Vehicle interior fuse and relay module
4L
F152f45
Fuse 45
2K
N123/8
Mobile phone cradle control unit
4A
N123/8
Mobile phone cradle control unit
12A
W1/4
HLS cockpit ground point
7L
