| A1 |
Instrument cluster |
18B |
| A1 |
Instrument cluster |
50B |

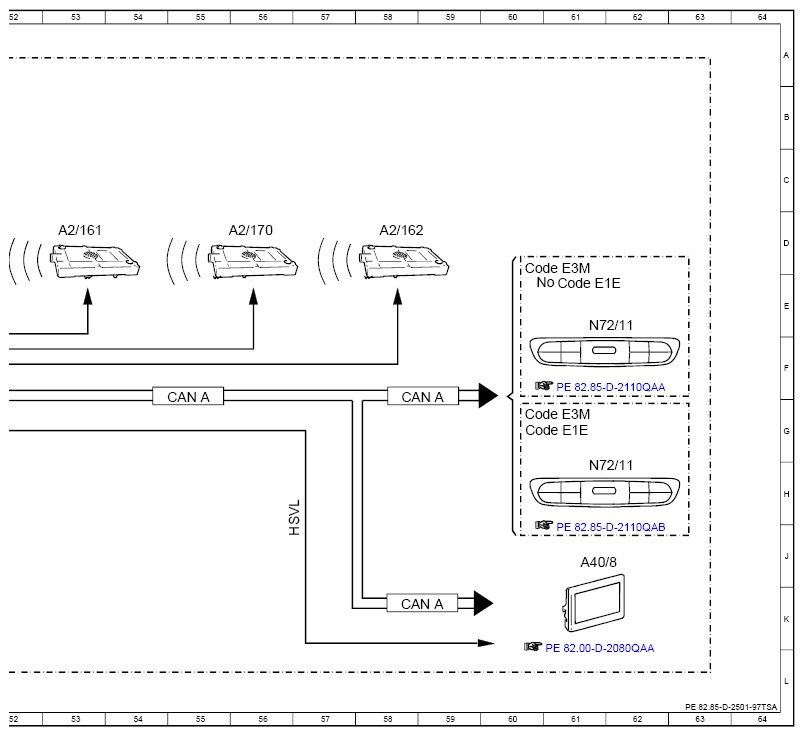

| A2/161 |
WLAN antenna 1 |
22D |
| A2/161 |
WLAN antenna 1 |
53D |
| A2/162 |
Wi-fi antenna 2 |
27D |
| A2/162 |
Wi-fi antenna 2 |
58D |
| A2/170 |
Bluetooth® and WLAN antenna |
24D |
| A2/170 |
Bluetooth® and WLAN antenna |
56D |
| A26/17 |
Head unit |
18H |
| A26/17 |
Head unit |
18E |
| A26/17 |
Head unit |
50H |
| A26/17 |
Head unit |
50E |
| A40/8 |
Audio/COMAND display control unit |
30J |
| A40/8 |
Audio/COMAND display control unit |
61J |
| B25/1 |
Microphone |
42K |
| B25/1 |
Microphone |
10K |
| B25/12 |
Hands-free system microphone |
45K |
| B25/12 |
Hands-free system microphone |
14K |
| B25/20 |
Driver hands-free system microphone |
43K |
| B25/20 |
Driver hands-free system microphone |
47K |
| B25/20 |
Driver hands-free system microphone |
12K |
| B25/20 |
Driver hands-free system microphone |
15K |
| B25/21 |
Front passenger hands-free system microphone |
47K |
| B25/21 |
Front passenger hands-free system microphone |
15K |
| CAN A |
Telematics CAN |
27G |
| CAN A |
Telematics CAN |
23G |
| CAN A |
Telematics CAN |
27K |
| CAN A |
Telematics CAN |
58G |
| CAN A |
Telematics CAN |
55G |
| CAN A |
Telematics CAN |
58K |
| CAN HM1 |
User interface CAN |
11C |
| CAN MMI |
User interface CAN |
14E |
| CAN MMI |
User interface CAN |
15F |
| CAN MMI |
User interface CAN |
15C |
| CAN MMI |
User interface CAN |
43C |
| CAN MMI |
User interface CAN |
46E |
| CAN MMI |
User interface CAN |
47F |
| CAN MMI |
User interface CAN |
47C |
| CAN LR |
Steering wheel CAN |
5G |
| CAN LR |
Steering wheel CAN |
36G |
| Code E1E |
Navigation |
18E |
| Code E1E |
Navigation |
17G |
| Code E1E |
Navigation |
29E |
| Code E1E |
Navigation |
29G |
| Code E1E |
Navigation |
49E |
| Code E1E |
Navigation |
49G |
| Code E1E |
Navigation |
61E |
| Code E1E |
Navigation |
60G |
| Code E1E |
Navigation |
42J |
| Code E1E |
Navigation |
45J |
| Code E1E |
Navigation |
10J |
| Code E1E |
Navigation |
13J |
| Code E1S |
Satellite radio |
18E |
| Code E1S |
Satellite radio |
17H |
| Code E1S |
Satellite radio |
29E |
| Code E1S |
Satellite radio |
29G |
| Code E1S |
Satellite radio |
10J |
| Code E1S |
Satellite radio |
13J |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
17D |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
17G |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
29D |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
29G |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
49D |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
49G |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
60D |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
60G |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
41J |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
45J |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
10J |
| Code E3M |
MBUX multimedia system with 7-inch touchscreen |
13J |
| Code F50 |
Base |
43J |
| Code F50 |
Base |
42J |
| Code F50 |
Base |
47J |
| Code F50 |
Base |
45J |
| Code F50 |
Base |
12J |
| Code F50 |
Base |
10J |
| Code F50 |
Base |
15J |
| Code F50 |
Base |
14J |
| Code JH3 |
Communication module (LTE) for digital services |
41D |
| Code JH3 |
Communication module (LTE) for digital services |
10D |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
41D |
| Code JH4 |
Communication module (UMTS) for ERA-GLONASS |
10D |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
41E |
| Code JH6 |
Pre-installation for com.-module for digital services (LTE) |
10E |
| Flex E |
Chassis FlexRay |
8E |
| Flex E |
Chassis FlexRay |
39E |
| HSVL |
High-speed video Iink |
25H |
| HSVL |
High-speed video Iink |
56H |
| N112/9 |
HERMES control unit |
42E |
| N112/9 |
HERMES control unit |
11E |
| N135 |
Steering wheel electronics |
2H |
| N135 |
Steering wheel electronics |
33H |
| N72/11 |
Head unit control panel control unit |
30E |
| N72/11 |
Head unit control panel control unit |
30H |
| N72/11 |
Head unit control panel control unit |
61E |
| N72/11 |
Head unit control panel control unit |
61H |
| N73/8 |
Electronic ignition lock (EZS) control unit |
8B |
| N73/8 |
Electronic ignition lock (EZS) control unit |
39B |
| N80 |
Steering column tube module (MRM) control unit |
8F |
| N80 |
Steering column tube module (MRM) control unit |
39F |
| S163/1 |
Instrument cluster multifunction steering wheel button group |
2C |
| S163/1 |
Instrument cluster multifunction steering wheel button group |
33C |
| S163/2 |
Head unit multifunction steering wheel button group |
4C |
| S163/2 |
Head unit multifunction steering wheel button group |
35C |
