Overview Of Special Tools - SN00.00-D-0080-11AL
Model 907
with code ZL3 (National version for Latin America)
VEHICLE
| Adapter | |
| Use | For mounting the wheel mirrors and/or measurement pickups of the wheel alignment measurement system. |
| Tool Number | 907 589 00 31 00 |
| Function group | 40 |
| kit | B |
| Category | Mercedes-Benz Basic Operation mandatory/without exception |
| Note | In combination with 124 589 01 31 00 quick clamping device and 124 589 01 31 20 spacer pin (5 times in set). |
| Welding device | |
| Use | Welding fixture for correct positioning of front longitudinal frame member repair shoe. |
| Tool Number | 907 589 00 23 00 |
| Function group | 61 |
| kit | K |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/released for cooperation. |
| Press-out tool | |
| Use | Knock-out tool for pressing holder out of piston rod of brake unit on brake pedal. |
| Tool Number | 907 589 00 32 00 |
| Function group | 43 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/without exception and Mercedes-Benz Vans Basic Operation mandatory/released alternative. |
| Welding device | |
| Use | Welding fixture for correct positioning of upper front longitudinal member without use of straightening bench and straightening set. |
| Tool Number | 907 589 01 23 00 |
| Function group | 61 |
| kit | K |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/released for cooperation. |
| Note | In combination with 639 589 00 61 00 engine support fixture (smart passenger cars/Mercedes-Benz Passenger Cars/Vans Basic Operation mandatory/without exception). |
| Spreader | |
| Use | Spreader for removal of steering knuckle. |
| Tool Number | 177 589 00 31 00 |
| Function group | 33 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/without exception. |
6-SPEED MANUAL TRANSMISSION
| Socket wrench bit | |
| Use | Socket wrench socket for removal/installation of output flange. |
| Tool Number | 700 589 01 09 00 |
| Function group | 26 |
| kit | B |
| Note | Currently not illustrated. |

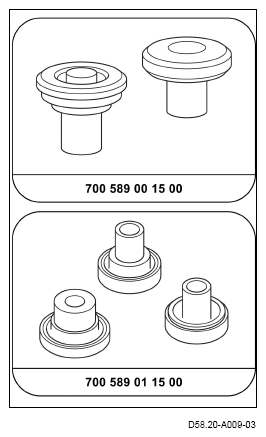

| Drift | |
| Use | Drift for pounding in radial shaft sealing rings. |
| Tool Number | 700 589 00 15 00 |
| Function group | 26 |
| kit | B |
| Drift | |
| Use | Drift for pounding in radial shaft sealing rings. |
| Tool Number | 700 589 01 15 00 |
| Function group | 26/27 |
| kit | B |
6-SPEED MANUAL TRANSMISSION
| Box wrench bit | |
| Use | For removal/installation of brake lines, brake hoses, and hydraulic lines. |
| Tool Number | 000 589 77 03 00 |
| Function group | 26/42 |
| kit | B |
| Note | Open box wrench bit, 14 mm, 1/4" square drive. |
| Drift | |
| Use | For installing cap into transmission housing front section. |
| Tool Number | 055 589 00 15 00 |
| Function group | 26 |
| kit | B |
| Note | In combination with 055 589 00 40 00 handle. Only for Sprinters in Latin America. |
| Puller | |
| Use | Remove puller for cap on front section of transmission housing. |
| Tool Number | 055 589 00 33 00 |
| Function group | 26 |
| kit | B |
| Note | Only for Sprinters in Latin America. |
| Handle | |
| Use | Handle for plugging in various drifts. |
| Tool Number | 055 589 00 40 00 |
| Function group | 26 |
| kit | B |
| Note | Only for Sprinters in Latin America. |
| Sleeve | |
| Use | For protecting the sealing rings on the shafts during installation of the transmission cover. |
| Tool Number | 055 589 07 14 00 |
| Function group | 26 |
| kit | C |
| Set of stop plugs | |
| Use | Set of stop plugs for sealing open lines to protect against dirt and dust. |
| Tool Number | 129 589 00 91 00 |
| Function group | 26/27/28 |
| kit | B |
| Note | The set consists of 15 subgroups with 116 parts. |
