Overview Of Special Tools - SN00.00-D-0080-11A
Model 907 with engine 642, 651
except code ZL3 (National version for Latin America)
The number of figures is not complete, as the remaining illustrations were not available by the copy deadline.

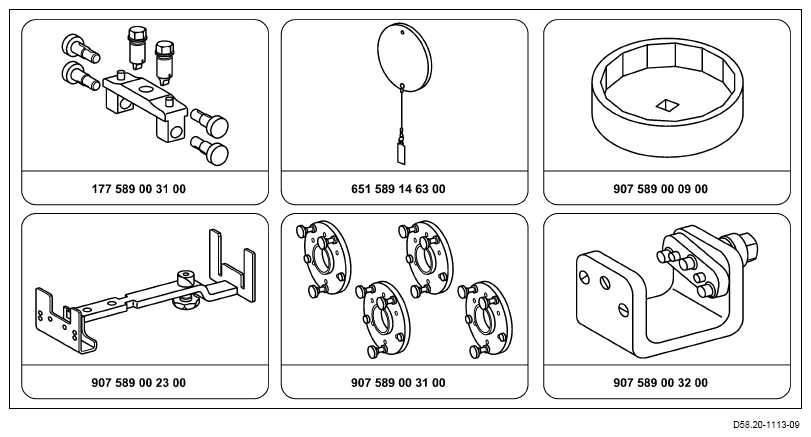

| Model 907 | |
| Adapter | |
| Use | For mounting the wheel mirrors and/or measurement pickups of the wheel alignment measurement system. |
| MB number | 907 589 00 31 00 |
| FG | 40 |
| kit | B |
| Category | Mercedes-Benz Basic Operation mandatory/without exception |
| Note | In combination with 124 589 01 31 00 quick clamping device and 124 589 01 31 20 spacer pin (5x in set) |
| Welding device | |
| Use | Welding fixture for correct positioning of front longitudinal frame member repair shoe. |
| MB number | 907 589 00 23 00 |
| FG | 61 |
| kit | K |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/released for cooperation |
| Note | - |
| Press-out tool | |
| Use | Knock-out tool for pressing holder out of the piston rod of brake unit at brake pedal. |
| MB number | 907 589 00 32 00 |
| FG | 43 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/without exception and Mercedes-Benz Vans Basic Operation mandatory/released alternative |
| Note | - |
| Welding device | |
| Use | Welding fixture for correct positioning of upper front longitudinal member without use of straightening bench and straightening set. |
| MB number | 907 589 01 23 00 |
| FG | 61 |
| kit | K |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/released for cooperation |
| Note | - |
| Model 910 | |
| Support braces | |
| Use | Support for lifting engine using engine support fixture. |
| MB number | 910 589 00 63 00 |
| FG | 22 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/without exception |
| Note | In combination with 639 589 00 61 00 engine support fixture (smart passenger cars/Mercedes-Benz Passenger Cars/Vans Basic Operation mandatory/without exception). |
| Spreader | |
| Use | Spreader for removal of steering knuckle. |
| MB number | 177 589 00 31 00 |
| FG | 33 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/without exception |
| Note | - |
| Socket wrench | |
| Use | Socket wrench for operation of nut of suspension strut at suspension strut tower. |
| MB number | 907 589 00 09 00 |
| FG | 32 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Special Operation |
| Note | - |
| Engine OM 651 in model 910 | |
| Assembly tool | |
| Use | Assembly tool for positionally accurate pre-assembly of diesel particulate filter (DPF) and diesel oxidation catalytic converter (DOC). |
| MB number | 651 589 13 63 00 |
| FG | 14 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars/Vans Basic Operation mandatory/without exception |
| Note | - |
| Protective ring | |
| Use | Protective ring for protection of decoupler during removal and installation of transmission. |
| MB number | 651 589 14 63 00 |
| FG | 01 26 27 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Special Operation |
| Note | - |
| Retaining lock | |
| Use | Retaining lock for locking starter ring gear with installed transmission. |
| MB number | 651 589 11 40 00 |
| FG | 03 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Special Operation |
| Note | - |
| 6-speed manual transmission, major assembly model designation 700.760 | |
| Drift | |
| Use | Drift punch for driving in radial shaft sealing ring at transmission for right side shaft. |
| MB number | 700 589 16 15 00 |
| FG | 26 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Special Operation |
| Note | - |
| Drift | |
| Use | Drift punch for installation of radial shaft sealing ring at transmission for left side shaft. |
| MB number | 700 589 17 15 00 |
| FG | 26 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/without exception |
| Note | - |
| Drift | |
| Use | Drift punch for installation of radial shaft sealing ring at drive shaft of transmission. |
| MB number | 700 589 18 15 00 |
| FG | 26 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Special Operation |
| Note | - |
| 9-speed automatic transmission, major assembly model designation 700.750 | |
| Drift | |
| Use | Drift for installing radial shaft sealing ring to drive shaft of automatic transmission. |
| MB number | 700 589 13 15 00 |
| FG | 26 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/without exception |
| Note | - |
| Drift | |
| Use | Drift punch for installation of radial shaft sealing rings of side shafts. |
| MB number | 700 589 14 15 00 |
| FG | 26 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/without exception |
| Note | - |
| Drift | |
| Use | Drift punch for installation of radial shaft sealing ring of park pawl shaft. |
| MB number | 700 589 15 15 00 |
| FG | 26 |
| kit | B |
| Category | Mercedes-Benz Passenger Cars Basic Operation mandatory/without exception |
| Note | - |
