Overall Vehicle - SN00.00-D-0001-02A
Model 907 with engine 642, 651
Model designation code
Example: 907 153 13
| Vehicle model designation | Structure | Permissible total mass | Wheelbase | Steering | Version |
|---|---|---|---|---|---|
| 907 | 1 = chassis | 2 = 3000 kg | 1 = 3250 mm | 1 = left-hand drive vehicle | 3 = complete/chassis/platform |
| 2 = chassis with crewcab | 3 = 3500 kg | 3 = 3665 mm | 2 = right-hand drive vehicle | - | |
| 6 = panel van | 4 = 4000 kg | 5 = 4325 mm | - | - | |
| 7 = crewbus | 5 = 5000 kg | 7 = 4325 mm long overhang 2015 mm | - | - | |
| 8 = bus | - | - | - | - |
Example: 910 133 13
| Vehicle model designation | Structure | Permissible total mass | Wheelbase | Steering | Version |
|---|---|---|---|---|---|
| 910 | 0 = traction head | 2 = 3000 kg | 0 = 0 mm | 1 = left-hand drive vehicle | 3 = complete/chassis |
| 1 = chassis | 3 = 3500 kg | 1 = 3259 mm | 2 = right-hand drive vehicle | - | |
| 6 = panel van | 4 = 4000 kg | 3 = 3924 mm | - | - |

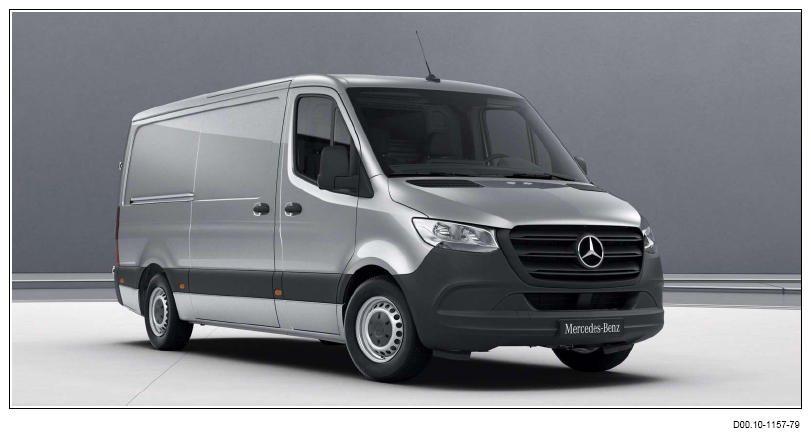

Sprinter panel van with standard roof and rear wheel drive, model 907

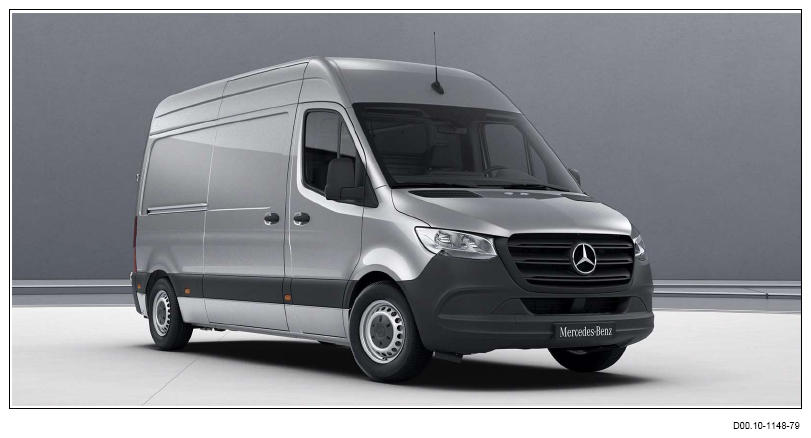

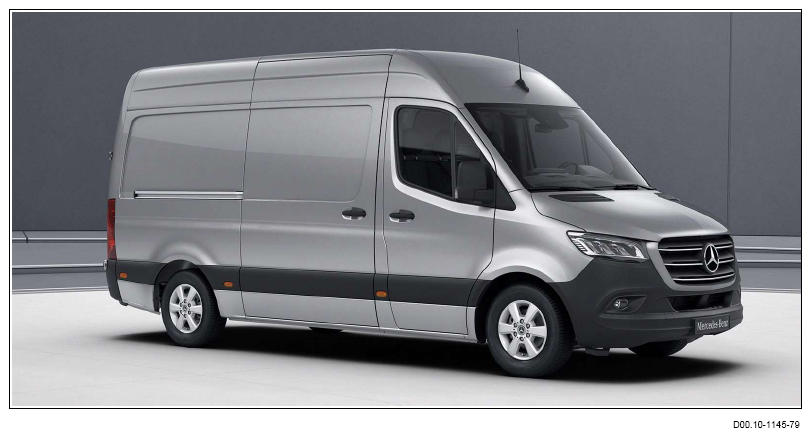

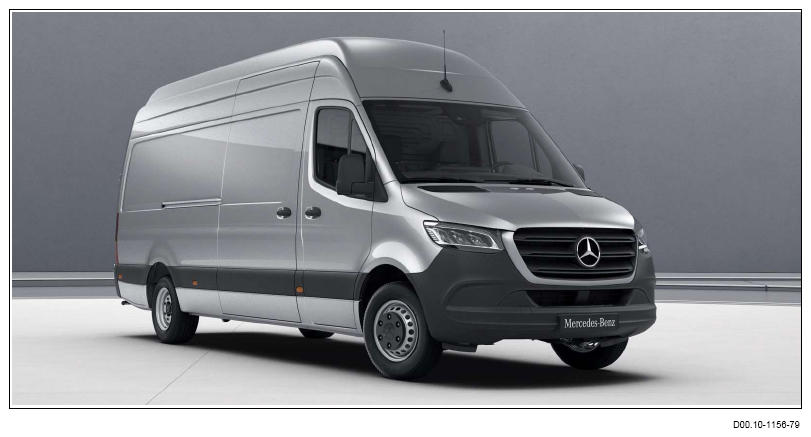

Sprinter panel van with high roof and rear wheel drive, model 907
Sprinter panel van with super high roof and rear wheel drive, model 907

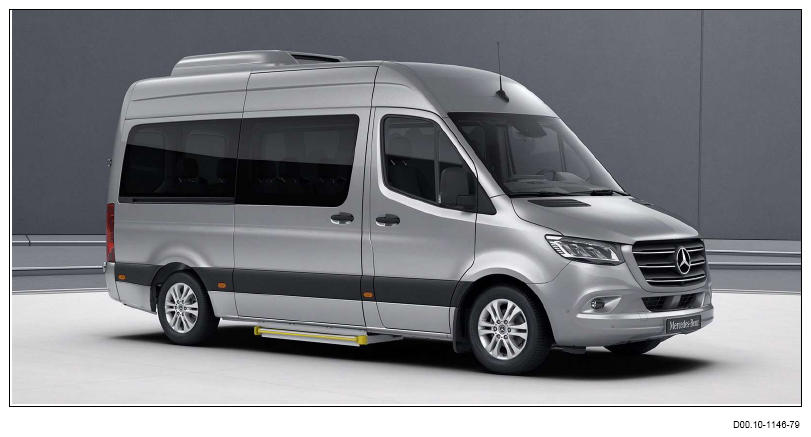

Sprinter Tourer with high roof and rear wheel drive, model 907

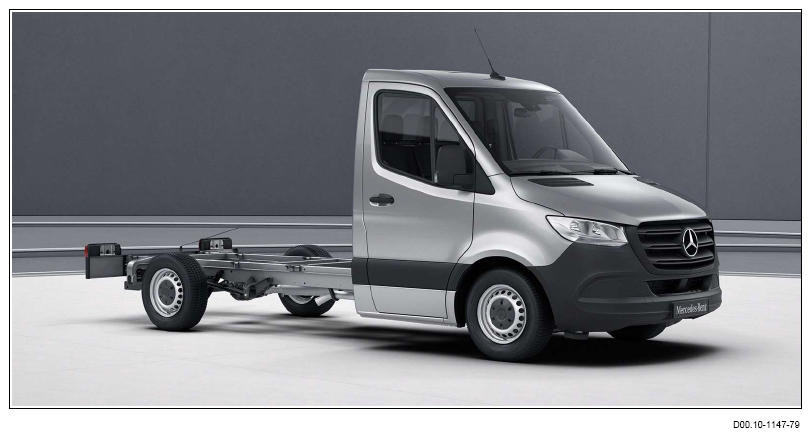

Sprinter chassis with rear wheel drive, model 907
Exterior
The external appearance of the new Sprinter has been redesigned in the following areas or provided with new design elements:
- Radiator trim
- Bumper
- Side wall
- Doors
- Front end design
- Optional LED High Performance headlamps and partial full LED rear lamps
Interior concept
- Instrument panel and instrument cluster redesigned
- Modular stowage compartment concept with USB ports and wireless charging pad for smartphones
- New Telematics Generation NTG 6
- Multifunction steering wheel with, among other things, Touch Control buttons
- Automatic transmission can be operated via gearshift lever or gearshift paddles on steering wheel
- 80 mm lower entrance without step at rear portal in vehicles with front wheel drive

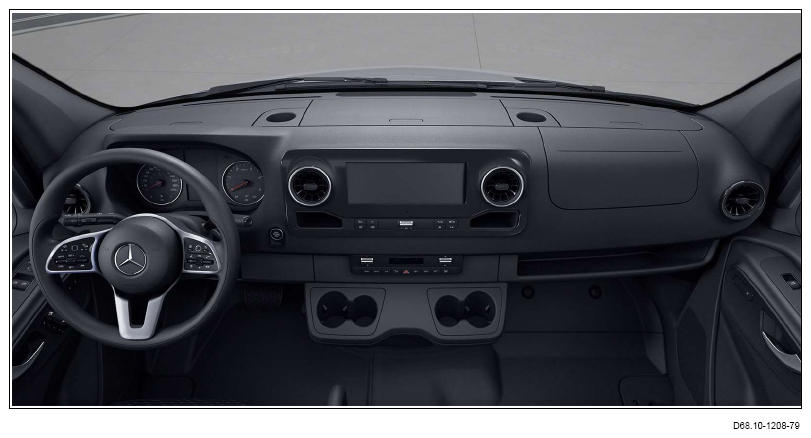

Instrument panel

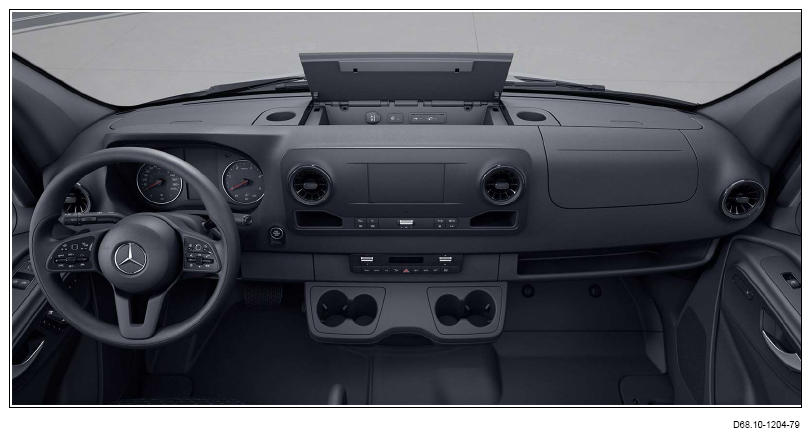

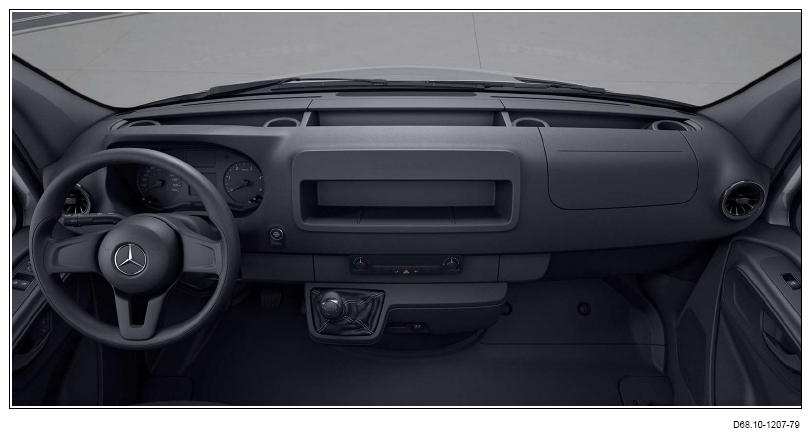

Equipment with code FJ7 (Center area with stowage compartment) and code F3F (Front passenger optimized center console)

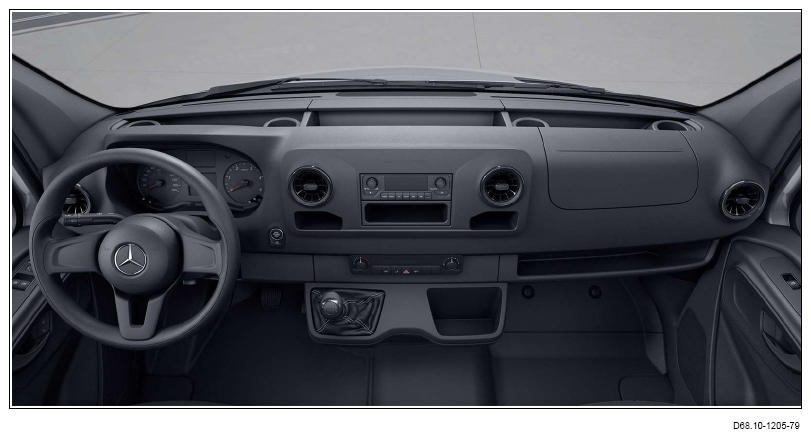

Equipment with code FJ6 (Center area with 2 DIN stowage compartments and air vent)
Equipment with code EJ2 (Audio 20), center area with one DIN stowage compartment and air vents
MBUX multimedia system with 7" touchscreen

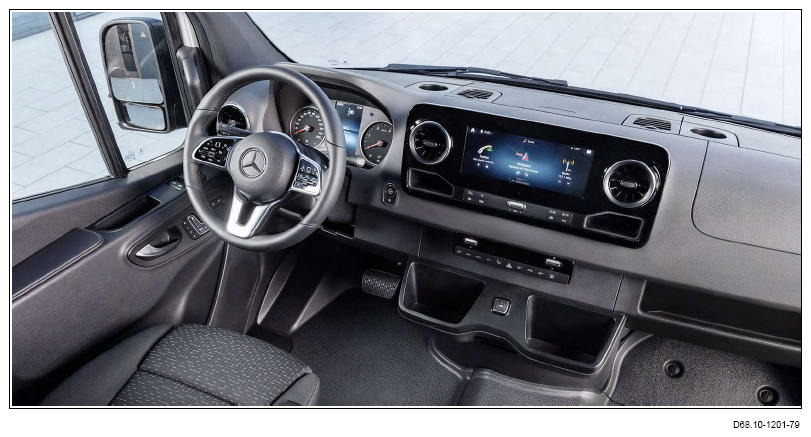

MBUX multimedia system with 10.25" touchscreen
The redesigned instrument panel offers an individually configurable, modularly designed stowage compartment concept. This includes easily accessible stowage facilities, optionally with covers and diverse connection and charging options for mobile end devices. The Sprinter has, as standard, two stowage compartments on the left and right with a total of four cup holders, in each case two in the driver's stowage compartment and two in the front passenger stowage compartment. The center stowage compartment can optionally be provided with a hinged lid.
The center area is characterized by a large stowage compartment with Sprinter logo. The Sprinter model 907 has, as standard, in this area two DIN compartments and two additional air vents. The Sprinter has, as standard, two air vents in piano-lacquer look on the left and right for the driver and front passenger.
The center console has one large stowage compartment on the right of the gearshift lever in vehicles with manual transmission. Vehicles with automatic transmission have two large stowage compartments. Additional cup holders can optionally be ordered instead of the stowage compartments. If the code F3F (Front passenger optimized shift console) is selected as an option, the stowage compartment and/or the cup holder is omitted on the front passenger side. The Sprinter model 907 has a stowage compartment under the cockpit on the front passenger side. The stowage compartment can be additionally ordered for the Sprinter model 910 as special equipment.
Interior concept

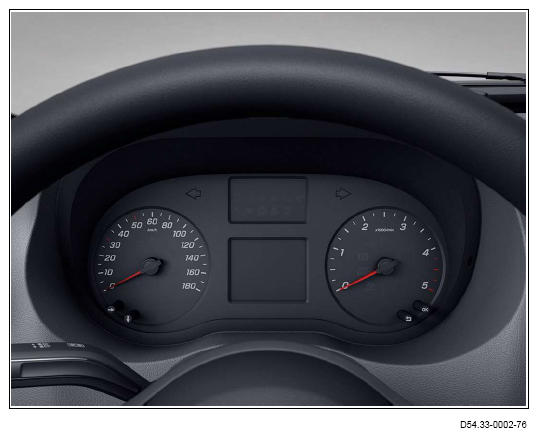

Standard instrument cluster
CODE JK5 (Instrument cluster with color display)
The standard instrument cluster has two large analog displays for the vehicle speed and engine speed. The 3.5" monochrome pixel matrix display shows the:
- Time
- Outside temperature
- Fill level display for the fuel and AdBlue®
- Total distance and trip distance
- Gear indicator
- Trip computer
- If necessary, the status displays of available driver assistance systems
A display section located above the pixel matrix display contains indicator and warning lamps. The multifunction display is operated via buttons on the instrument cluster or optionally via steering wheel buttons.

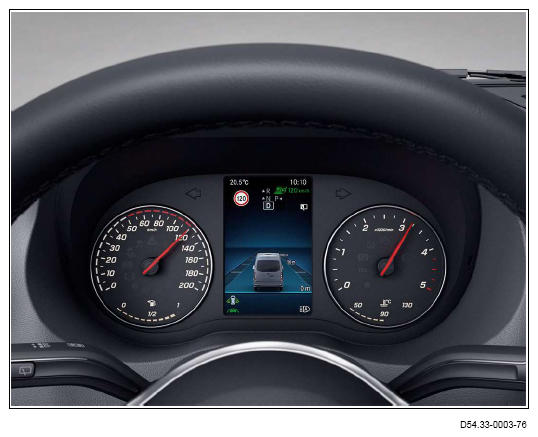

CODE JK5 (Instrument cluster with color display)
The instrument cluster with color display has two large analog displays
with chrome ring surround for:
- Vehicle speed
- Engine speed
- Fuel level indicator
- Coolant temperature
A high-resolution 5.5" color display located in the center allows for clear menu navigation in the field of vision of the driver. All information can, depending on the selected vehicle equipment, be selected in the menu and displayed:
- Navigation
- Radio
- Media
- Telephone
- Service Vehicle settings
- Driver assistance system
- Trip computer with ECO Score and composite mileage
The menu selection is realized on the multifunction steering wheel via the left upper Touch Control field.
Seats
Standard driver seat

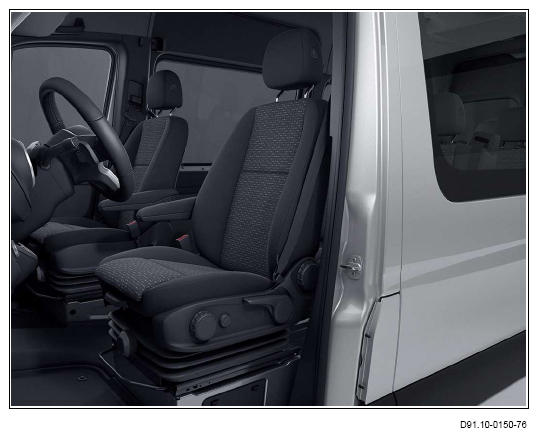

Driver's seat code SB1 (Comfort driver's seat)
Driver's seat code SB3 (Comfort suspension seat, driver's seat)
Sprinter Tourer passenger seats

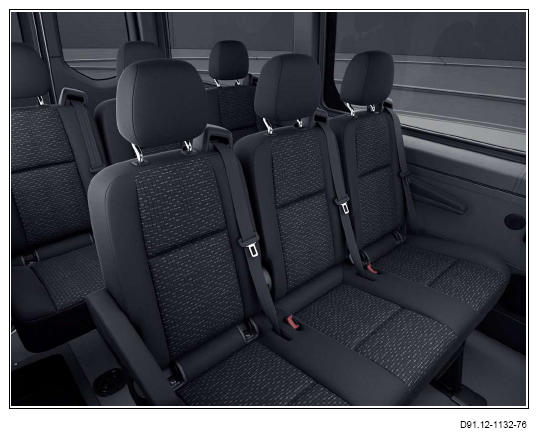

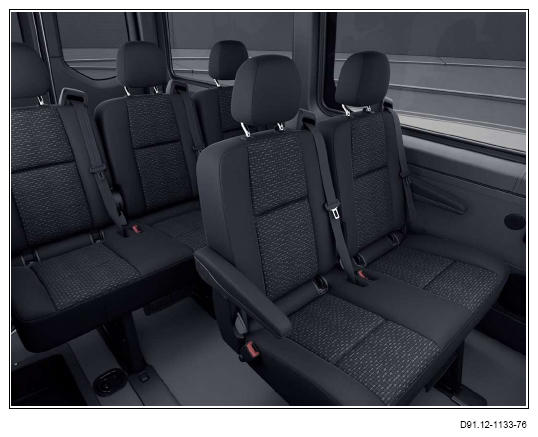

Equipment with code U62 (Passenger compartment seats, 3-passenger bench seat, 1st seat row, narrow) and code U63 (Passenger compartment seats, 3-passenger bench seat, 2nd seat row)

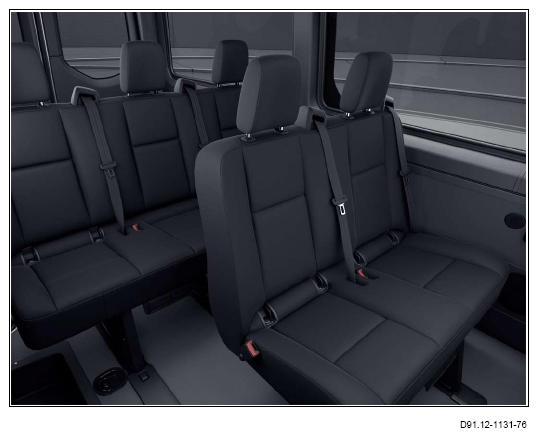

Equipment with code U60 (Passenger compartment seats, 2-passenger bench seat, 1st seat row) and code U63 (Passenger compartment seats, 3-passenger bench seat, 2nd seat row)

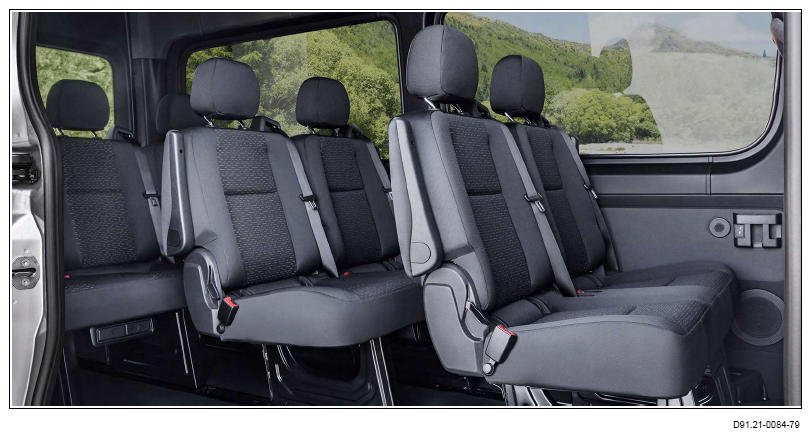

Equipment with code UY1 (3-passenger bench seat, narrow, comfort, 1st seat row) and code UY5 (3-passenger bench seat, comfort, 2nd seat row)
Equipment with code US1 (2-passenger bench seat, comfort, 1st rear seat row) and code UY5 (3-passenger bench seat, comfort, 2nd seat row)

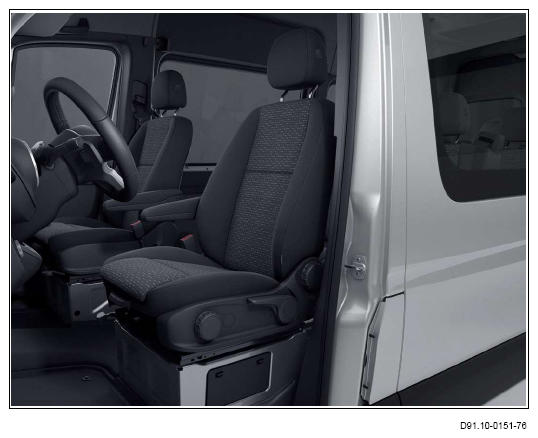

Front seats
The 6-way standard driver' seat has a seat backrest that can be adjusted by up to 69° as well as fore/aft adjustment and height adjustment. In the case of the 2-way standard front passenger seat, the seat backrest can also be adjusted by up to 69° in the inclination. Both seats are delivered with 2-way head restraints.
For the driver's seat, the code S22 (Armrest for driver's seat) and the code SK0 (Luxury head restraint, driver's seat) can also be ordered.
Code SB1 (Comfort driver's seat) and code SB2 (Comfort front passenger seat)
The seats stand out due to the diverse adjustment options:
- Fore/aft adjustment of 260 mm
- Increased seat backrest adjustment up to 69°
- Height adjustment by 60 mm
- Seat cushion inclination adjustment of 5.5°
- Seat cushion fore/aft adjustment of 60 mm
- 2-way head restraint
The Sprinter is delivered, as standard, with discrete, black fabric covers in Maturin black. The following components have the same solid color fabric:
- Seat cushion
- Seat backrest
- Seat cushion side bolsters
- Backrest side bolsters
- Seat backs
- Head restraints
The imitation leather cover ARTICO black man-made leather can optionally be selected. The side bolsters, the sitting and seat back surfaces as well as the head restraints have an imitation leather cover. The side bolsters of the seat backrest padding on the driver's side are designed in genuine leather. The hard-wearing imitation leather covers can be easily cleaned with water and a suitable soap-based cleaning agent.
In combination with code SE4 (Front-passenger seat lumbar support) and code SE5 (Driver's seat lumbar support), the seats have the AGR quality seal (Campaign for Healthier Backs e.V.).
Code SF1 (Electrically adjustable driver's seat) and SF2 (Electrically adjustable front passenger seat)
In the case of the electrically adjustable front seats, the seat position can be conveniently adjusted - except for the head restraint and seat cushion length adjustment, via the chrome-plated switches of the operating unit in the driver's and/or front passenger door. The integrated memory function on the driver and front passenger side saves up to three seat adjustments.
The electrically adjustable seats are always equipped with a lumbar support and seat heating. The three-stage electrical seat heating allows for the individual heating of the front seats and can be operated via buttons in the door trim.
Code SB3 (Comfort suspension seat, driver's seat) and code SB4 (Comfort suspension seat, front passenger seat)
The suspension seat is based on the comfort driver's seat and/or comfort front passenger seat that is mounted on a mechanically/hydraulically sprung seat frame base.
Seat covers
The imitation leather cover ARTICO black man-made leather is not available in combination with:
- Code SB9 (Driver's Seat Plus)
- Code S20 (Front passenger seat, static, folding)

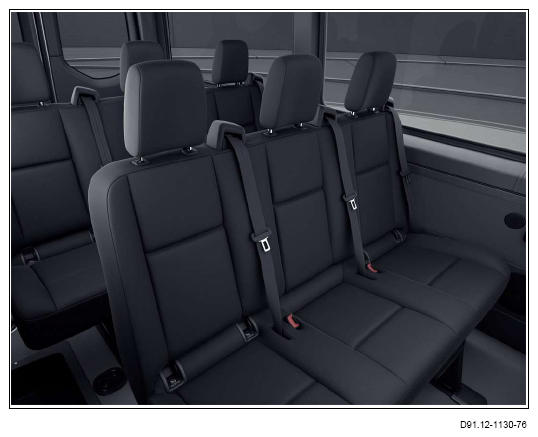

Rear seats
The rear seats are connected via black long seat pans recessed in the floor. In Sprinter Tourers and passenger panel vans with seats, these always have at least a two-piece design and basically offer mounting possibilities at fixed positions for seats in the first and second seat rows. A variable longitudinal positioning of the seat rows is not possible. Where a third row of seats is ordered, the long seat pans are extended by one segment for connection purposes. The number of adjacent long seat pan rows is determined by the ordered seat variants and the number of console anchorages at the seat frame base.
Seat covers
The comfort seating is only available in the fabric Caluma black or in ARTICO black man-made leather.
Easy Mounting release
New in all offered bench seats is the Easy Mounting release via a central lever. In addition, the transport is facilitated by transport rollers mounted at the rear on the seat frame base. The higher position of the release handle allows for a comfortable release and lifting of the bench seat out of the lock. The transport rollers facilitate the transport and maneuvering of the bench seats. The weight increases in the case of comfort seating by approx. 10 kg per seat row in comparison to the standard seats.
Drive
- Tried-and-tested and fuel consumption-optimized 4- and 6-cylinder diesel engines OM 651 and OM 642
- AdBlue® tank with 22 l capacity
- Rear wheel drive in model 907
- Command Trac based on the rear wheel drive in Sprinter model 907

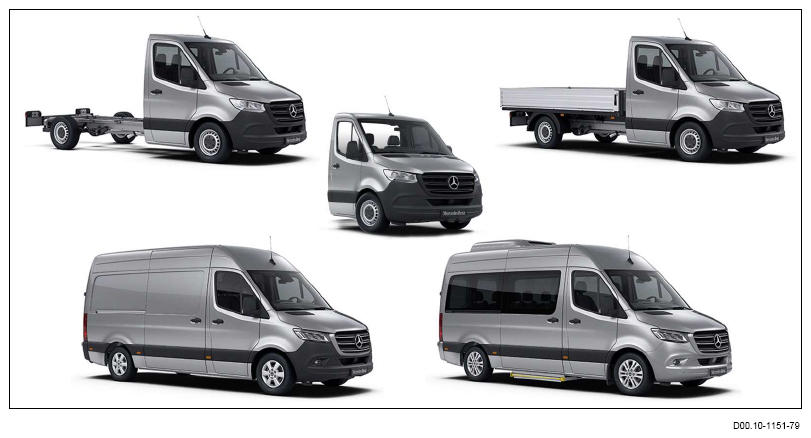

Structure
The Sprinter with rear wheel drive, model 907, will be offered at market launch in the following versions:
- Panel van
- Tourer
- Single cab chassis
- Crewcab chassis
