Information On Avoiding Damage To Flexible Steel Lines - Ah00.10-P-0003-01A

Model all (4xWD, CAR, Light transporter, TRUCK, smart)

Assembly notes

If the braided stainless steel line is kinked and clamped off, the inner hose may be damaged.

This reduces the service life of the braided stainless steel line.

• Bending the braided stainless steel line when removing/installing is impermissible.
• Clamping the braided stainless steel line off, e.g. during assembly work, is impermissible.
• A minimum bending radius of 50 mm must be maintained.
• Twisting the braided stainless steel line when removing/installing is impermissible.
• Replace damaged braided stainless steel lines.

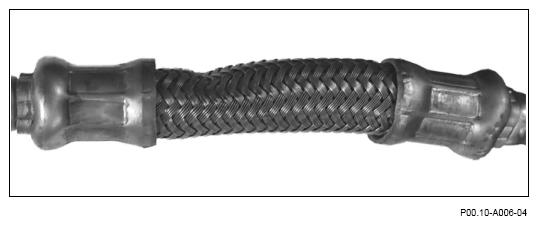

Twisted braided stainless steel line

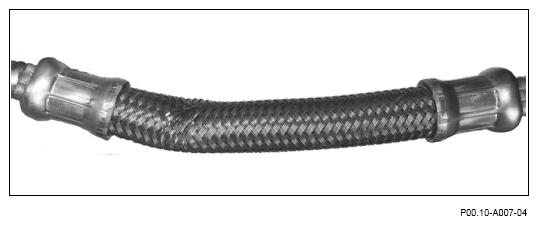

Kinked or clamped off braided stainless steel line
