Retrofit Rpm Sensor For Digital Tachograph (DTCO), 2ND Generation - An54.61-D-2002-02TS

Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A

Model 907 with transmission 722.9

with code ZG1 (Engageable all-wheel drive)

except code J4V (Pre-installation of EU intelligent tachograph)

except code JD2 (Tachograph digital EC with rpm + aux-recorder)

except code JD6 (Intelligent tachograph, EU)

except code JV6 (Tachograph pre-installation kit)

Model 907 with transmission 722.9

with code ZG3 (Engageable all-wheel drive with gear reduction)

except code J4V (Pre-installation of EU intelligent tachograph)

except code JD2 (Tachograph digital EC with rpm + aux-recorder)

except code JD6 (Intelligent tachograph, EU)

except code JV6 (Tachograph pre-installation kit)

Number	Designation		Model 907
BA54.61-N-1001-01TS	Screw, tachograph rotational speed sensor to transmission housing	Nm	4

Number	Designation	Order number
BR00.45-Z-1001-06A	Long-life grease	A 000 989 63 51 11

Do not kink any electric lines and ensure that they are routed without any chafing.

This prevents damage.

1. Clean opening (1.1) in transmission housing.
2. Clean thread (1.2).
3. Lightly grease sealing ring of rotational speed sensor (6).
4. Install rotational speed sensor (6).

   Model 907 with transmission 722.9 and with code ZG1 (All-wheel drive, engageable) or code ZG3 (Engageable all-wheel drive with rear reduction)

   The rotational speed sensor (6) is installed in the transfer case.

5. Screw in screw/bolt (7).

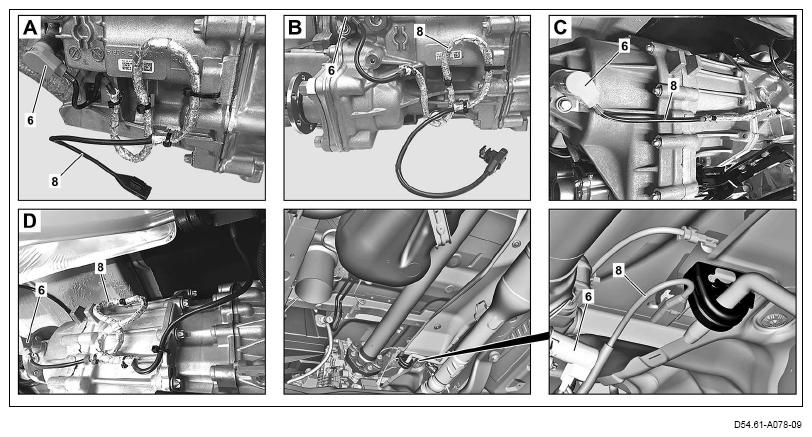

6. Route electric line (8) as shown and fix in place using cable ties.

   Model 907 with code GD8 (6-speed manual transmission, ECO Gear 360) except code N05 (Power take-off countershaft (2c) without flange), model 907 with code GD9 (6-speed manual transmission, ECO Gear 480)

   See Fig. A.

   Model 907 with code GD8 (6-speed manual transmission, ECO Gear 360) with code N05 (Power take-off countershaft (2c) without flange)

   See Fig. B.

   Model 907 with code ZG1 (All-wheel drive, engageable) or code ZG3 (Engageable all-wheel drive with gear reduction)

   See fig. C.

   Model 907 with code G42 (7G-TRONIC PLUS) with code ZG1 (All-wheel drive, engageable), Model 907 with code G42 (7G-TRONIC PLUS) with code ZG3 (Engageable all-wheel drive with transmission ratio)

   See fig. D.

7. Connect plug of rotational speed sensor (6) to plug of 2nd generation digital tachograph (DTCO) electrical wiring harness.
