| AO |
Color code key |
184L |
| A106/1 |
Left electric step |
101L |
| A106/1 |
Left electric step |
69L |
| A106/2 |
Right electric step |
93L |
| A56 |
Tachograph control unit |
146L |
| A56 |
Tachograph control unit |
152L |
| CAN ABH |
Body manufacturer CAN |
157K |
| CAN ABH |
Body manufacturer CAN |
165K |
| CAN ABH |
Body manufacturer CAN |
174K |
| CAN ABH |
Body manufacturer CAN |
169K |
| CAN ABH |
Body manufacturer CAN |
161K |
| CAN ABH |
Body manufacturer CAN |
178K |
| CAN AE |
Peripheral device CAN |
146K |
| CAN AE |
Peripheral device CAN |
152K |
| CAN B |
Interior CAN |
142K |
| Code BR9 |
Preinstallation for Telma retarder |
155D |
| Code BR9 |
Preinstallation for Telma retarder |
159D |
| Code BR9 |
Preinstallation for Telma retarder |
172E |
| Code BR9 |
Preinstallation for Telma retarder |
177D |
| Code C2A |
Air springs, V-signal actuation |
129A |
| Code CB2 |
Air suspension comfort suspension |
127A |
| Code E5M |
Extension of PSM standard contact |
177E |
| Code F28 |
Base with doors |
145E |
| Code F28 |
Base with doors |
145F |
| Code F28 |
Base with doors |
145G |
| Code F28 |
Base with doors |
149E |
| Code F28 |
Base with doors |
149F |
| Code F28 |
Base with doors |
149G |
| Code F50 |
Base |
145E |
| Code F50 |
Base |
145F |
| Code F50 |
Base |
145G |
| Code F50 |
Base |
149E |
| Code F50 |
Base |
149F |
| Code F50 |
Base |
149G |
| Code FE9 |
1 DIN slot under cockpit, front passenger side |
149D |
| Code FF8 |
1 DIN slot at front under headliner |
145E |
| Code FF8 |
1 DIN slot at front under headliner |
145F |
| Code FF8 |
1 DIN slot at front under headliner |
145G |
| Code FF8 |
1 DIN slot at front under headliner |
149E |
| Code FF8 |
1 DIN slot at front under headliner |
149F |
| Code FF8 |
1 DIN slot at front under headliner |
149G |
| Code H1B |
Tachograph controls at front under roof lining |
144H |
| Code H1B |
Tachograph controls at front under roof lining |
144J |
| Code J19 |
Automatic tachograph, 1 day/2 driver (EC) |
144D |
| Code J19 |
Automatic tachograph, 1 day/2 driver (EC) |
145H |
| Code J19 |
Automatic tachograph, 1 day/2 driver (EC) |
149E |
| Code J19 |
Automatic tachograph, 1 day/2 driver (EC) |
149H |
| Code J2B |
Tachograph controls under instrument panel, passenger side |
149H |
| Code J2B |
Tachograph controls under instrument panel, passenger side |
149J |
| Code JA3 |
Intelligent body control |
131D |
| Code JA3 |
Intelligent body control |
155D |
| Code JA3 |
Intelligent body control |
159E |
| Code JA3 |
Intelligent body control |
172D |
| Code JD2 |
EU digital tachograph with RPM+additional recorder |
144E |
| Code JD2 |
EU digital tachograph with RPM+additional recorder |
145H |
| Code JD2 |
EU digital tachograph with RPM+additional recorder |
149F |
| Code JD2 |
EU digital tachograph with RPM+additional recorder |
149H |
| Code J02 |
OLU pre-installation |
136D |
| Code J02 |
OLU pre-installation |
155E |
| Code J02 |
OLU pre-installation |
159E |
| Code J02 |
OLU pre-installation |
176D |
| Code JV6 |
Tachograph preinstallation |
144F |
| Code JV6 |
Tachograph preinstallation |
145H |
| Code JV6 |
Tachograph preinstallation |
149G |
| Code JV6 |
Tachograph preinstallation |
149J |
| Code JW3 |
Shutoff for backup warning system |
19G |
| Code JW3 |
Shutoff for backup warning system |
24G |
| Code JW3 |
Shutoff for backup warning system |
54E |
| Code JW3 |
Shutoff for backup warning system |
47E |
| Code JW3 |
Shutoff for backup warning system |
40E |
| Code M53 |
Constant RPM control |
7F |
| Code M53 |
Constant RPM control |
19A |
| Code MT4 |
Variable electronic RPM regulator |
7G |
| Code MT4 |
Variable electronic RPM regulator |
19A |
| Code MT4 |
Variable electronic RPM regulator |
28E |
| Code MW1 |
Engine run-on control (MWS) |
115A |
| Code N05 |
MB countershaft power take-off, (2c) |
7G |
| Code N05 |
MB countershaft power take-off, (2c) |
7H |
| Code N05 |
MB countershaft power take-off, (2c) |
54E |
| Code N05 |
MB countershaft power take-off, (2c) |
47E |
| Code N05 |
MB countershaft power take-off, (2c) |
40E |
| Code N07 |
MB countershaft power take-off, (2b) |
7G |
| Code N07 |
MB countershaft power take-off, (2b) |
7H |
| Code N07 |
MB countershaft power take-off, (2b) |
54E |
| Code N07 |
MB countershaft power take-off, (2b) |
47E |
| Code N07 |
MB countershaft power take-off, (2b) |
40E |
| Code N1V |
Pre-installation for power take-off |
7G |
| Code N1V |
Pre-installation for power take-off |
7H |
| Code N1V |
Pre-installation for power take-off |
54E |
| Code N1V |
Pre-installation for power take-off |
47E |
| Code N1V |
Pre-installation for power take-off |
40E |
| Code S23 |
Two-seater front passenger seat |
79A |
| Code T57 |
Right load compartment sliding door electric step |
11D |
| Code T57 |
Right load compartment sliding door electric step |
15D |
| Code T57 |
Right load compartment sliding door electric step |
88A |
| Code T57 |
Right load compartment sliding door electric step |
96A |
| Code T57 |
Right load compartment sliding door electric step |
67A |
| Code T57 |
Right load compartment sliding door electric step |
77A |
| Code T57 |
Right load compartment sliding door electric step |
79A |
| Code T57 |
Right load compartment sliding door electric step |
82A |
| Code T58 |
Left load compartment sliding door electric step |
15D |
| Code T58 |
Left load compartment sliding door electric step |
96A |
| Code T58 |
Left load compartment sliding door electric step |
68A |
| Code T58 |
Left load compartment sliding door electric step |
81A |
| Code ZH4 |
Off-road mode |
104A |

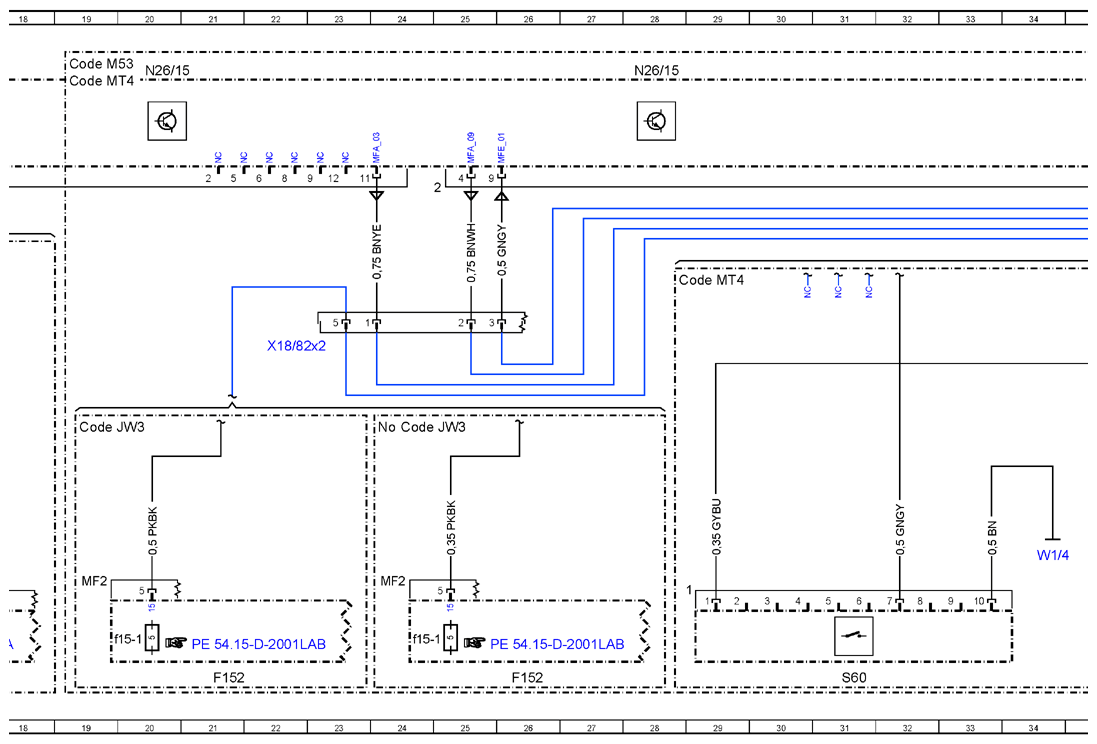

| F152 |
Vehicle interior fuse and relay module |
21L |
| F152 |
Vehicle interior fuse and relay module |
26L |
| F152f15-1 |
Electrical fuse 15-1 |
20K |
| F152f15-1 |
Electrical fuse 15-1 |
24K |
| F55/2 |
Fuse block 2 (9-pin) |
4L |
| F55/2f14 |
Fuse 14 |
3K |
| F55/2f15 |
Fuse 15 |
2K |
| F55/5 |
Fuse block 5 (9-pin) |
85L |
| F55/5f39 |
Fuse 39 |
84K |
| H13/5 |
Left step warning buzzer |
76L |
| H13/5 |
Left step warning buzzer |
82L |
| H13/6 |
Right step warning buzzer |
78L |
| H13/7 |
Passenger-side step warning buzzer (front passenger bench seat) |
80L |
| K100 |
Driver seat base relay holder |
13L |
| K100 |
Driver seat base relay holder |
17L |
| K100 |
Driver seat base relay holder |
73L |
| K100 |
Driver seat base relay holder |
97L |
| K100 |
Driver seat base relay holder |
89L |
| N10 |
SAM control unit |
142L |
| N10 |
SAM control unit |
118L |
| N10 |
SAM control unit |
106L |
| N10 |
SAM control unit |
56L |
| N10 |
SAM control unit |
37L |

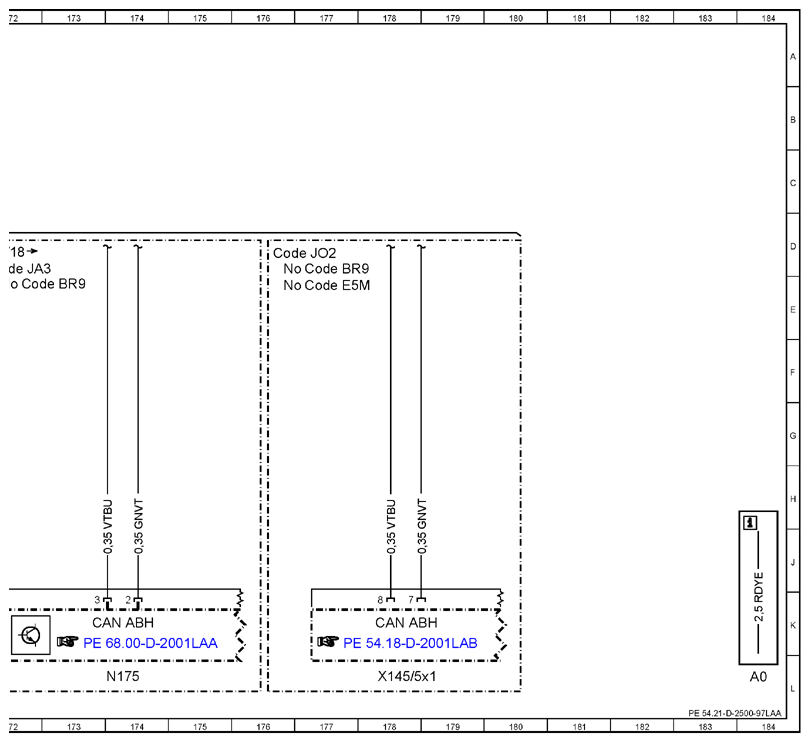

| N175 |
MB Advanced Control control unit |
133L |
| N175 |
MB Advanced Control control unit |
174L |
| N175 |
MB Advanced Control control unit |
169L |
| N26/15 |
Parameterizable special module (PSM) control unit |
4A |
| N26/15 |
Parameterizable special module (PSM) control unit |
12A |
| N26/15 |
Parameterizable special module (PSM) control unit |
20A |
| N26/15 |
Parameterizable special module (PSM) control unit |
28A |
| N26/15 |
Parameterizable special module (PSM) control unit |
36A |
| N26/15 |
Parameterizable special module (PSM) control unit |
44A |
| N26/15 |
Parameterizable special module (PSM) control unit |
52A |
| N26/15 |
Parameterizable special module (PSM) control unit |
60A |
| N26/15 |
Parameterizable special module (PSM) control unit |
76A |
| N26/15 |
Parameterizable special module (PSM) control unit |
84A |
| N26/15 |
Parameterizable special module (PSM) control unit |
92A |
| N26/15 |
Parameterizable special module (PSM) control unit |
100A |
| N26/15 |
Parameterizable special module (PSM) control unit |
108A |
| N26/15 |
Parameterizable special module (PSM) control unit |
124A |
| N26/15 |
Parameterizable special module (PSM) control unit |
132A |
| N26/15 |
Parameterizable special module (PSM) control unit |
140A |
| N26/15 |
Parameterizable special module (PSM) control unit |
148A |
| N26/15 |
Parameterizable special module (PSM) control unit |
156A |
| N26/15 |
Parameterizable special module (PSM) control unit |
164A |
| N26/18 |
Retarder control unit |
157L |
| N26/18 |
Retarder control unit |
165L |
| N97 |
Electronic level control [ENR] control unit |
129L |
| S166 |
Power take-off switch |
61L |
| S166/1 |
Power take-off limit switch |
65L |
| S2/7 |
Engine run-on button |
123L |

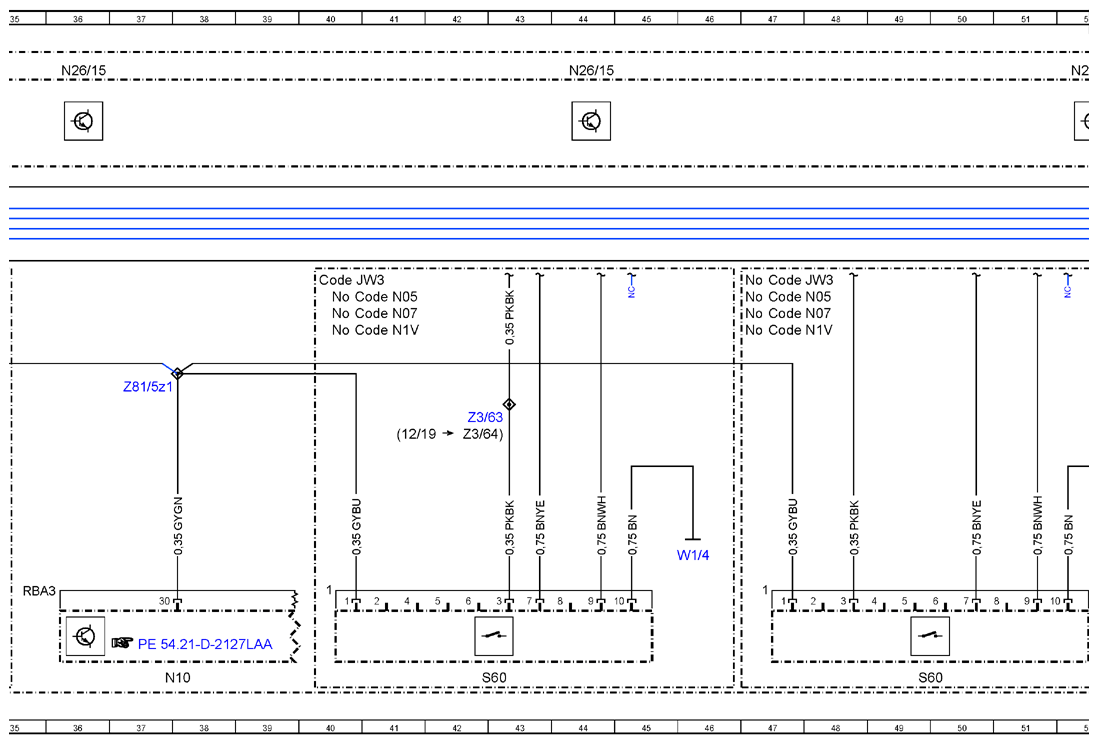

| S60 |
Working speed control switch (ON/OFF) |
49L |
| S60 |
Working speed control switch (ON/OFF) |
43L |
| S60 |
Working speed control switch (ON/OFF) |
31L |
| S76/16 |
Downhill Speed Regulation (DSR) switch |
111L |
| W1/4 |
HLS cockpit ground point |
126J |
| W1/4 |
HLS cockpit ground point |
114J |
| W1/4 |
HLS cockpit ground point |
64J |
| W1/4 |
HLS cockpit ground point |
53J |
| W1/4 |
HLS cockpit ground point |
46J |
| W1/4 |
HLS cockpit ground point |
34J |
| W105/1 |
Driver seat frame ground point 1 |
6F |
| W105/3 |
Driver seat frame ground point 3 |
66J |
| W9/7 |
Left front ground point 2 |
10J |
| X145/5x1 |
Body manufacturer electrical connector |
137L |
| X145/5x1 |
Body manufacturer electrical connector |
161L |
| X145/5x1 |
Body manufacturer electrical connector |
178L |
| X18/82x2 |
Right cockpit/MWH electrical connector 2 |
22F |
| X18/82x3 |
Right cockpit/MWH electrical connector 3 |
123F |
| X18/82x5 |
Right cockpit/MWH electrical connector 5 |
111F |
| X18/82x7 |
Right cockpit/MWH electrical connector 7 |
151G |
| Y68/5 |
Power take-off solenoid valve |
9L |
| Z254/1 |
Left step connector sleeve |
73F |
| Z254/1 |
Left step connector sleeve |
100F |
| Z254/2 |
Right step connector sleeve |
92F |
| Z3/63 |
Terminal 15 end sleeve (power take-off) |
42G |
| Z3/64 |
Terminal 15 end sleeve (cockpit) |
42G |
| Z37/111 |
Body manufacturer CAN end sleeve (high) |
164G |
| Z37/112 |
Body manufacturer CAN end sleeve (low) |
165G |
| Z81/5z1 |
Cockpit terminal 58d end sleeve 1 |
120F |
| Z81/5z1 |
Cockpit terminal 58d end sleeve 1 |
37F |
| Z81/5z2 |
Cockpit terminal 58d end sleeve 2 |
58F |

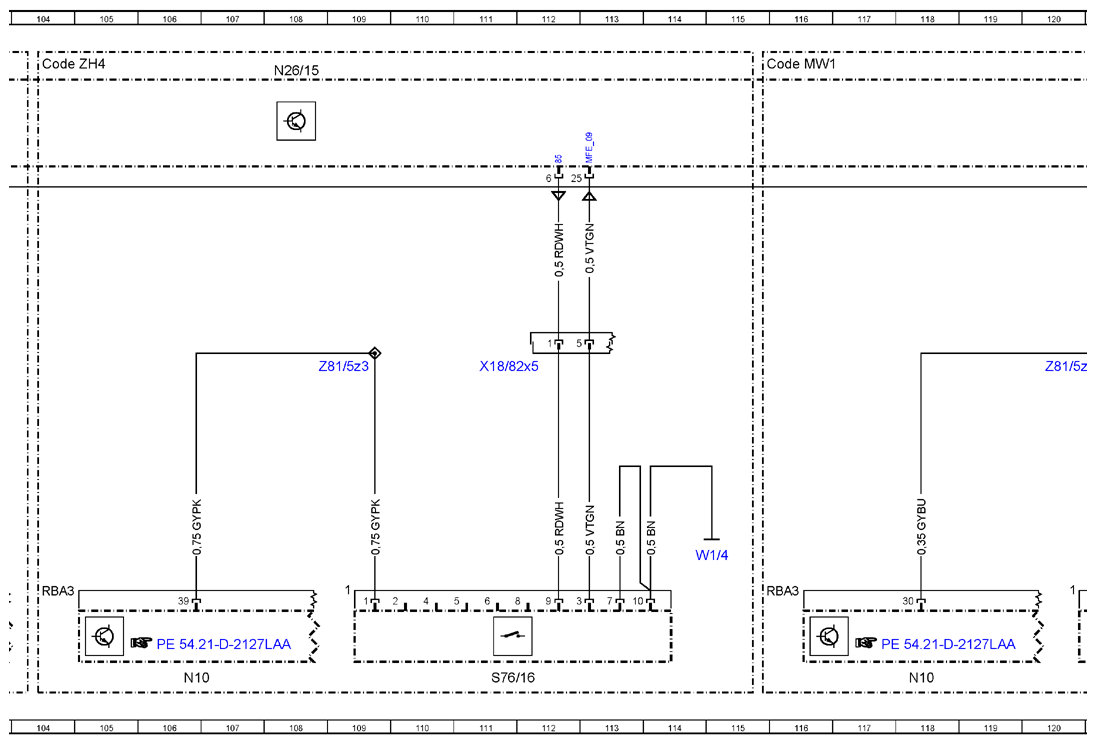

| Z81/5z3 |
Cockpit terminal 58d end sleeve 3 |
109F |
