Cavity preservation following repair work - AR97.20-P-1500RK

MODEL 231

The following differentiation is made for cavity preservation:

Fig 1: Cavity Preservation Differentiation

Courtesy of MERCEDES-BENZ USA

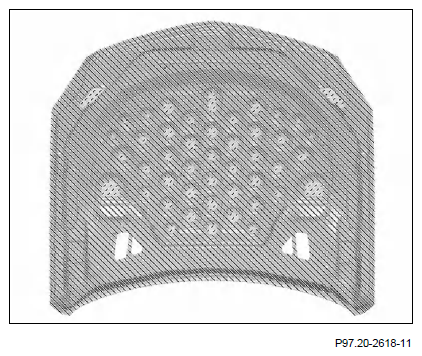

Engine hood

Fig 2: Engine Hood Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

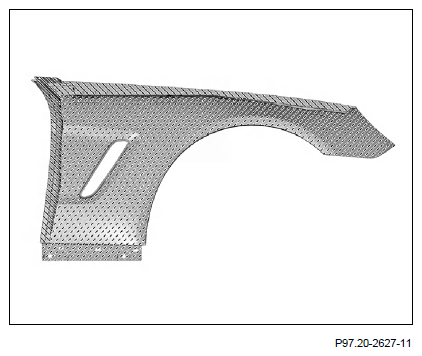

Front fender

Fig 3: Front Fender Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

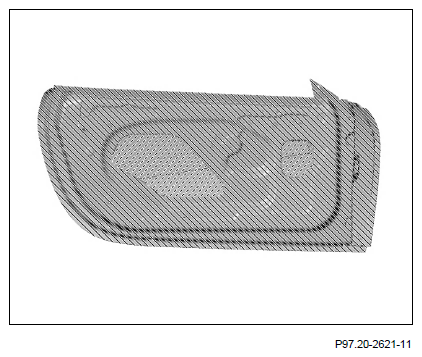

Front door

Fig 4: Front Door Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

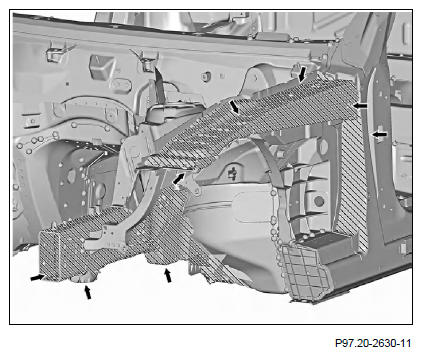

Front longitudinal member

Fig 5: Front Longitudinal Member Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

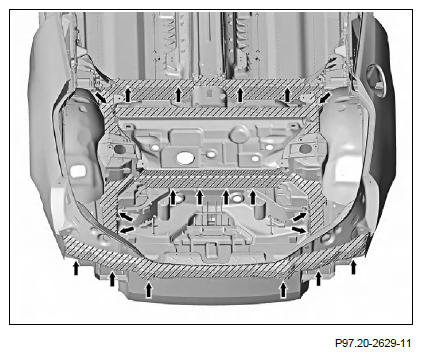

Rear longitudinal member

Fig 6: Rear Longitudinal Member Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

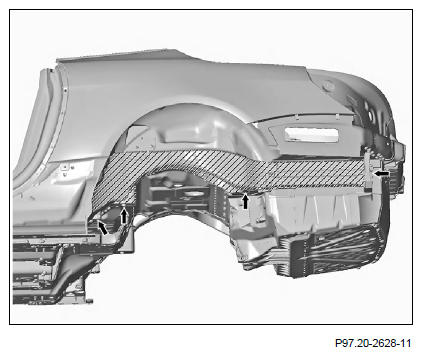

Rear end

Fig 7: Rear End Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

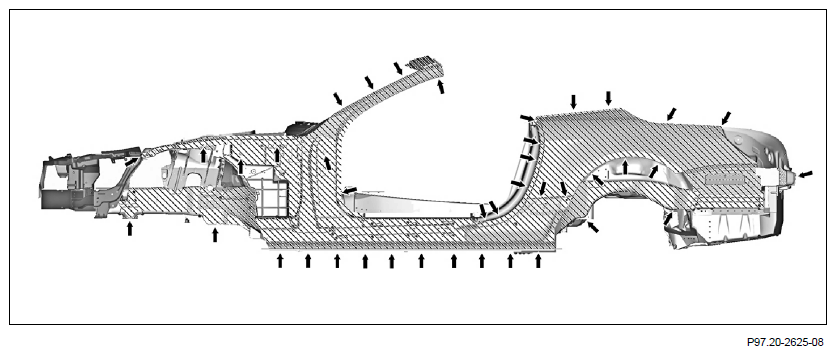

Upper front longitudinal member, A-pillar, side wall paneling and lower side longitudinal member

Fig 8: Front Longitudinal Member, A-Pillar, Side Wall Paneling And Lower Side Longitudinal Member Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

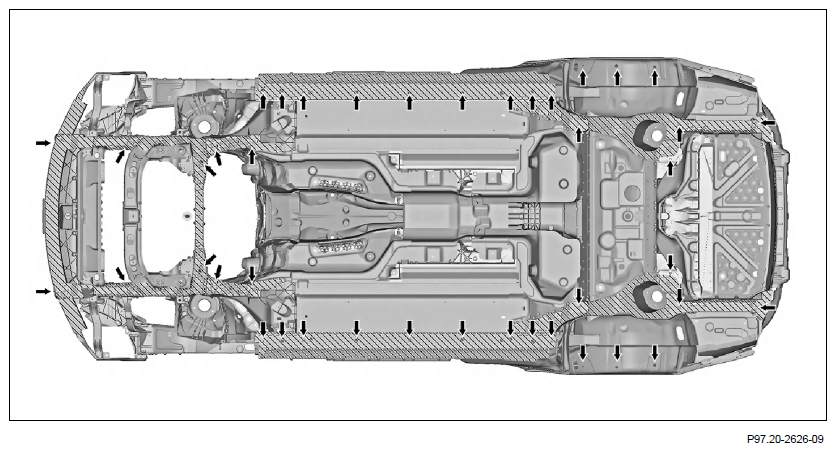

Underfloor

Fig 9: Underfloor Cavity Preservation Area

Courtesy of MERCEDES-BENZ USA

Picture no., etc.	Work notes
	Risk of explosion and poisoning caused by solvent vapors and gasses. Risk of injury to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot objects and keep well away from all potential sources of ignition. Use only in well-ventilated areas; wear respiratory protection.	AS97.00-Z-0001-01A
	Notes on cavity preservation		AH97.20-P-0001-01B

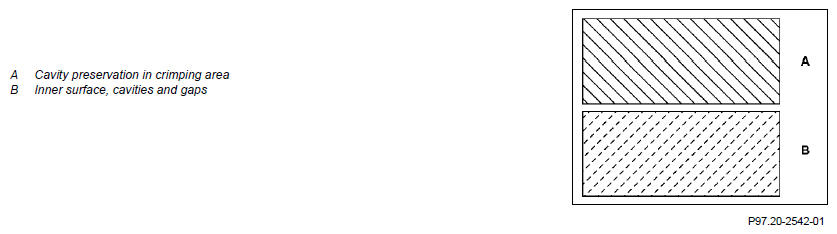

A	Cavity preservation in crimping area	Install from inside through openings (arrows) with hook probe. Apply cavity preservation with spraying hose and nozzle (spraying angle 360°) as far as possible into cavities. Cavity preservation, solvent-free (1 l container)	*BR00.45-Z-1003-05A
B	Inner surface, cavities and gaps	Uniformly moisten cavity preservation. Cavity preservation, solvent-free (1 l container)	*BR00.45-Z-1003-05A

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1003-05A	Cavity preservation, solvent-free (1 l container)	A 000 986 72 70 05
