Remove/install engine mount or engine crossmember at the rear - AR22.10-P-1180RKC

ENGINE 279 in MODEL 231

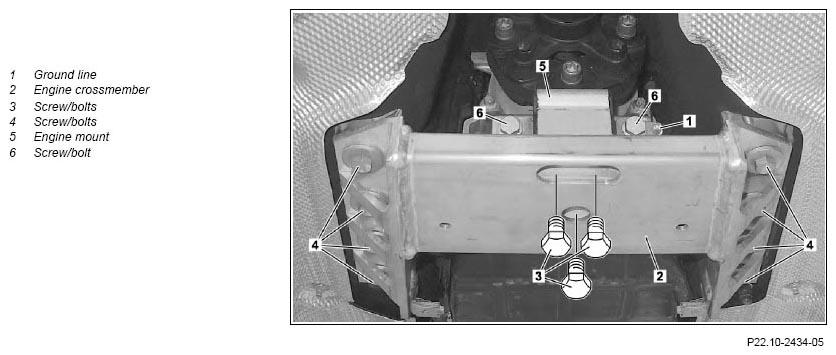

Fig 1: Engine Mount Or Engine Crossmember At Rear Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1	Secure vehicle on vehicle lift		AR00.60-P-0100TX
2	Remove rear part section of engine compartment paneling		AR61.20-P-1105RK
3	Unclip ground line (1) on engine crossmember (2)
4	Remove screw/bolt (3)	Rear engine mount on engine support	*BA22.10-P-1004-03E
5	Raise transmission with a telescopic lifter and transmission plate by about 10 mm
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
6	Remove engine crossmember (2)	To do this, unscrew screw/bolts (4). Bolt, rear engine support to frame floor assembly	*BA22.10-P-1005-03E
7	Remove rear engine mount (5)	To do so, remove the screw/bolts (6). Bolt connecting rear engine mount to bracket or transmission	*BA22.10-P-1003-03E
8	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			MODEL 231
BA22.10-P-1003-03E	Bolt connecting rear engine mount to bracket or transmission	M8	Nm	50
		M10	Nm	50

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		MODEL 231
BA22.10-P-1004-03E	Rear engine mount on engine support	Nm	30

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				MODEL 231
BA22.10-P-1005-03E	Bolt, rear engine support to frame floor assembly	M10x22	silver	Nm	-
			Black	Nm	-
		M10x24	Black	Nm	-
		M10x38	Nm		45
