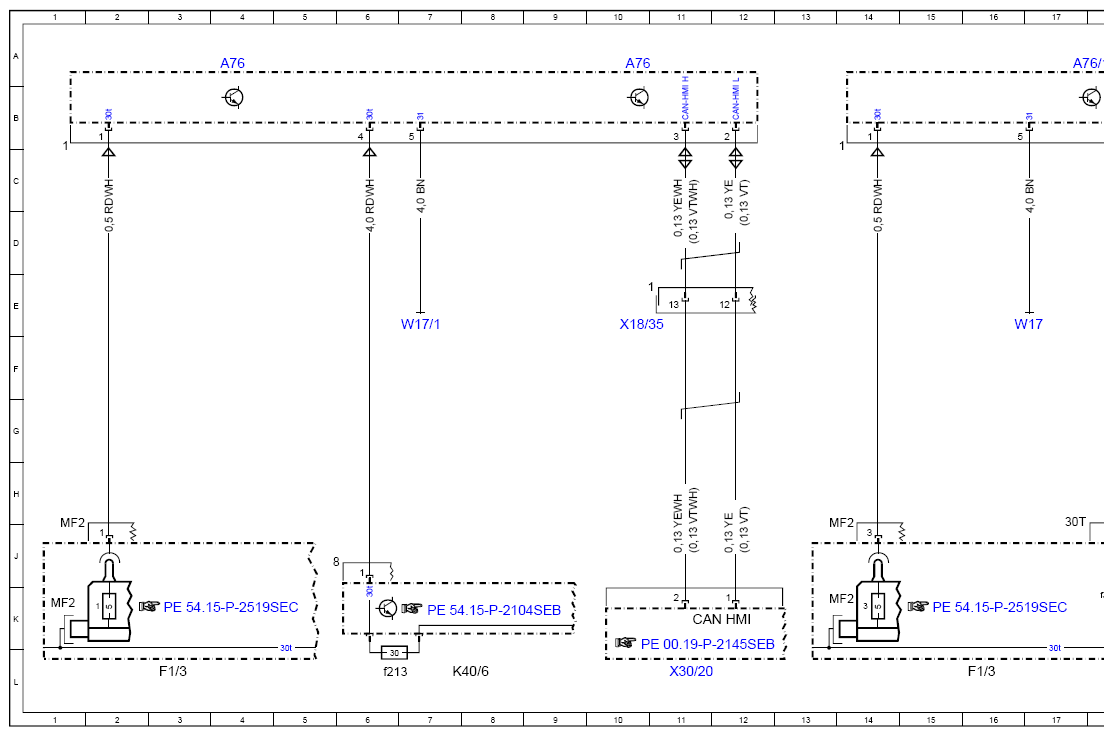

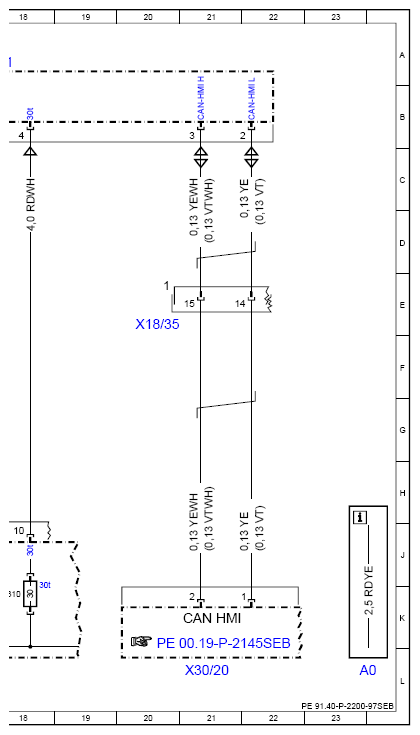

Wiring Diagram For Reversible Emergency Tensioning Retractor - PE91.40-P-2200-97SEB
Model 217, 222 as of model year 2018 Control unit A76, control unit A76/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| A76 | Left front reversible emergency tensioning retractor | 4A |
| A76 | Left front reversible emergency tensioning retractor | 10A |
| A76/1 | Right front reversible emergency tensioning retractor | 17A |
| CAN HMI | User interface CAN | 11K |
| CAN HMI | User interface CAN | 21K |
| F1/3 | Passenger-side A-pillar fuse box | 3L |
| F1/3 | Passenger-side A-pillar fuse box | 16L |
| F1/3MF2 | Multiple fuse 2 | 1K |
| F1/3MF2 | Multiple fuse 2 | 14K |
| F1/3f310 | Fuse 310 | 18K |
| K40/6 | Driver-side fuse and relay module | 8L |
| K40/6f213 | Fuse 213 | 6L |
| W17 | Right rear seat ground point | 16E |
| W17/1 | Left rear seat ground point | 7E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 10E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 20E |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 11L |
| X30/20 | User interface CAN (CAN HMI) potential distributor electrical connector | 21L |
