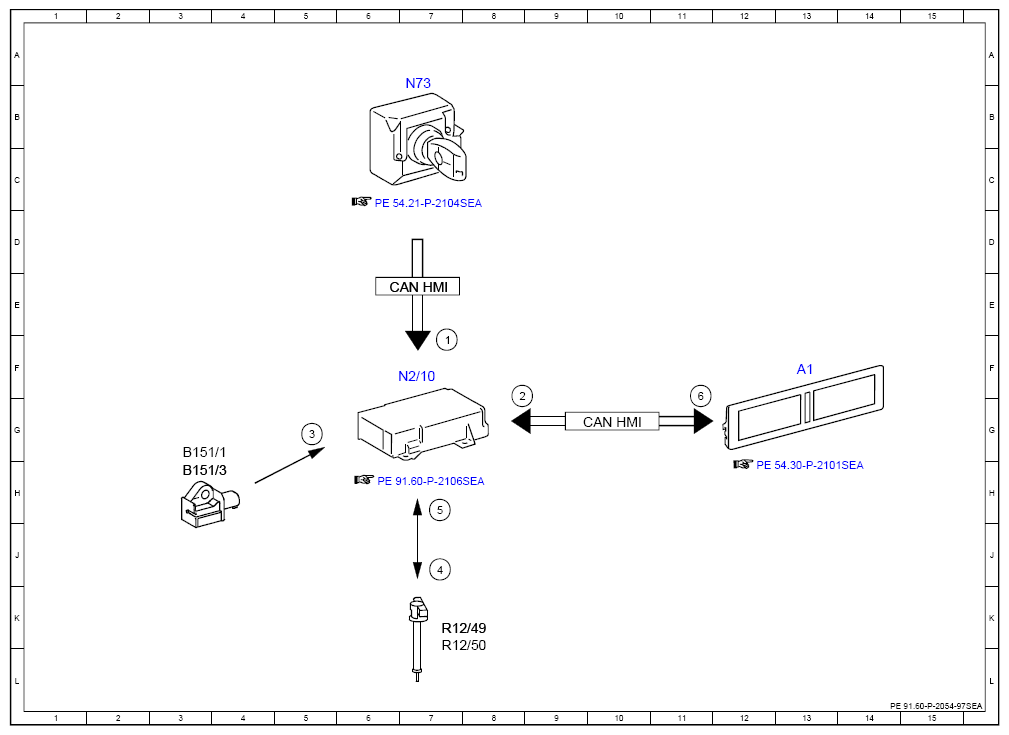

Function Schematic For Electric Pedestrian Protection - PE91.60-P-2054-97SEA
Model 217, 222 with code U60 (Active Bonnet (Pedestrian protection))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 7F |
| 2 | Vehicle speed, signal | 8G |
| 3 | Pedestrian protection sensor, status | 5G |
| 4 | Squib, actuation | 7J |
| 5 | Active engine hood squib, status | 7H |
| 6 | Instrument cluster message, request | 11G |
| A1 | Instrument cluster | 13F |
| B151/1 | Left front bumper pedestrian protection sensor | 3G |
| B151/3 | Right front bumper pedestrian protection sensor | 3H |
| CAN HMI | User interface CAN | 7E |
| CAN HMI | User interface CAN | 10G |
| N2/10 | Supplemental restraint system control unit | 6F |
| N73 | Electronic ignition switch control unit | 7B |
| R12/49 | Left active engine hood squib | 7K |
| R12/50 | Right active engine hood squib | 7L |
