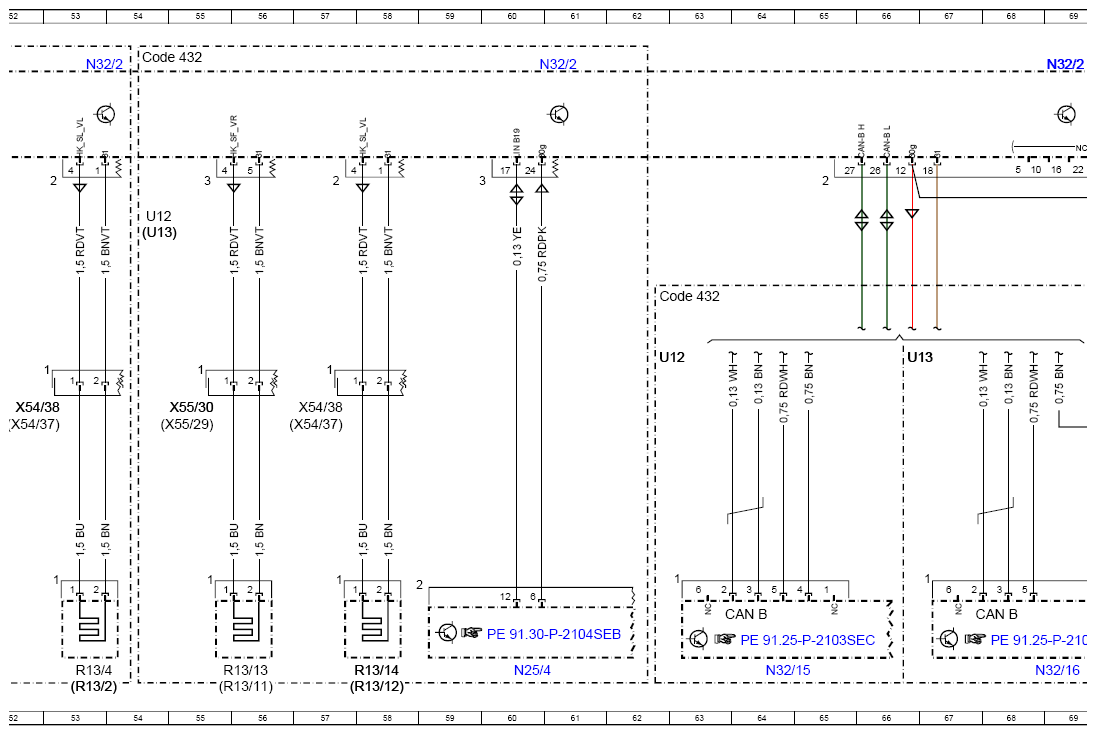

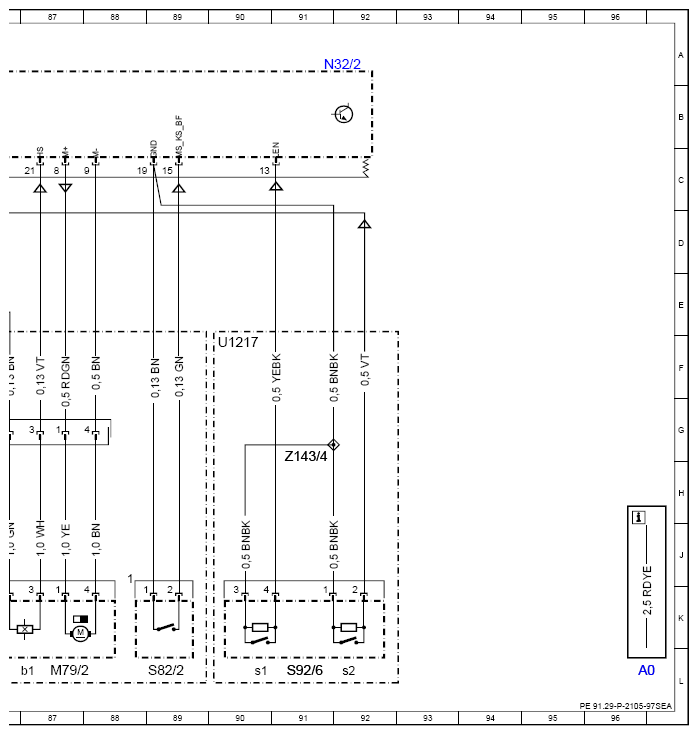

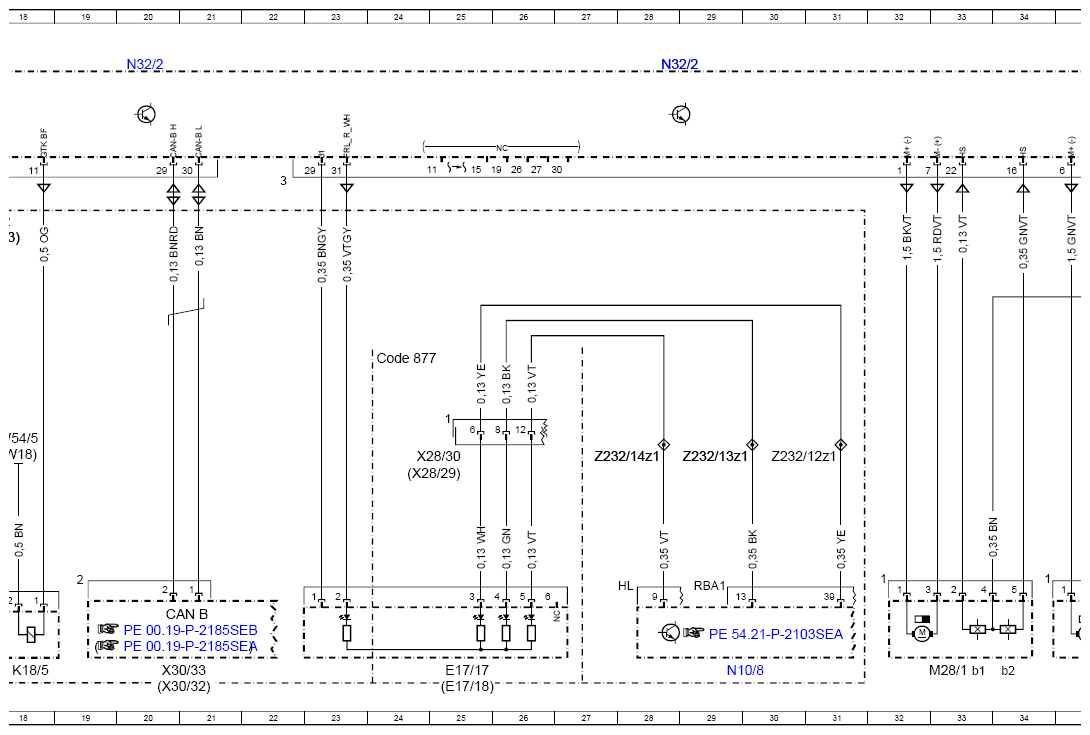

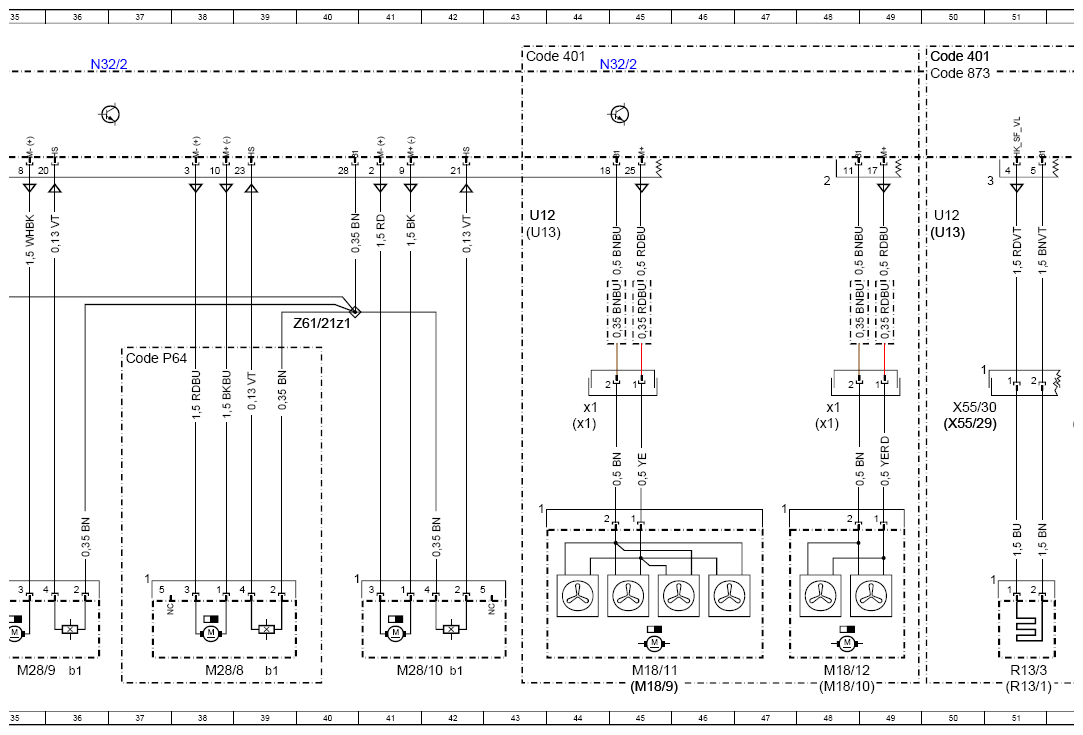

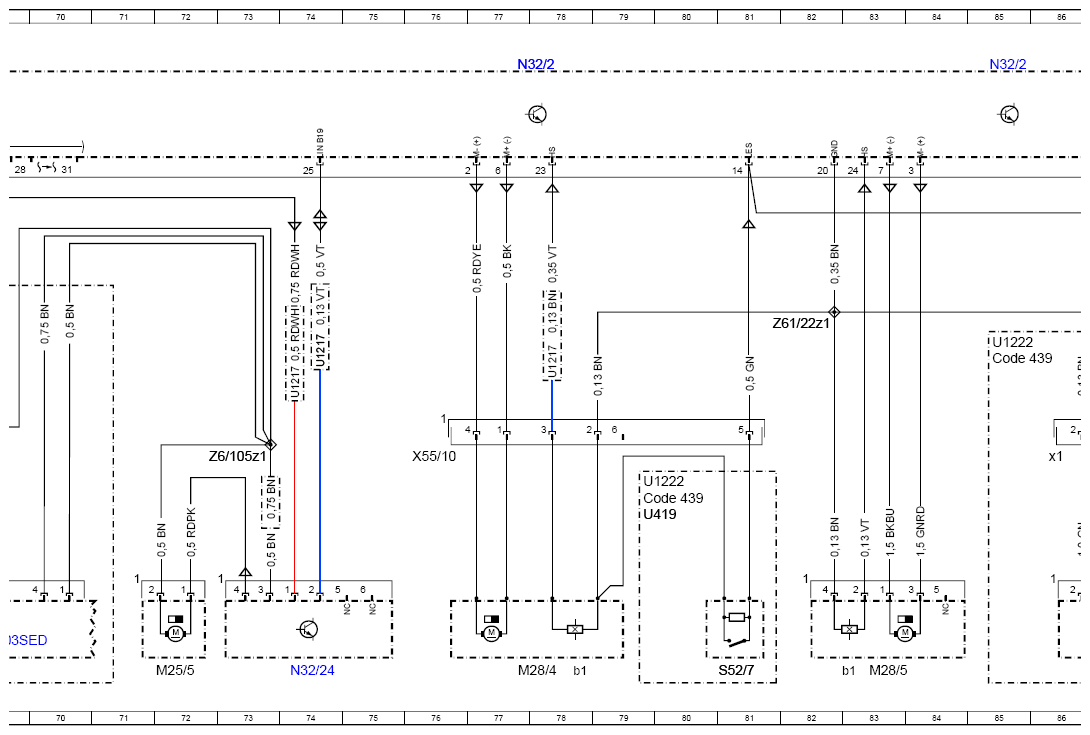

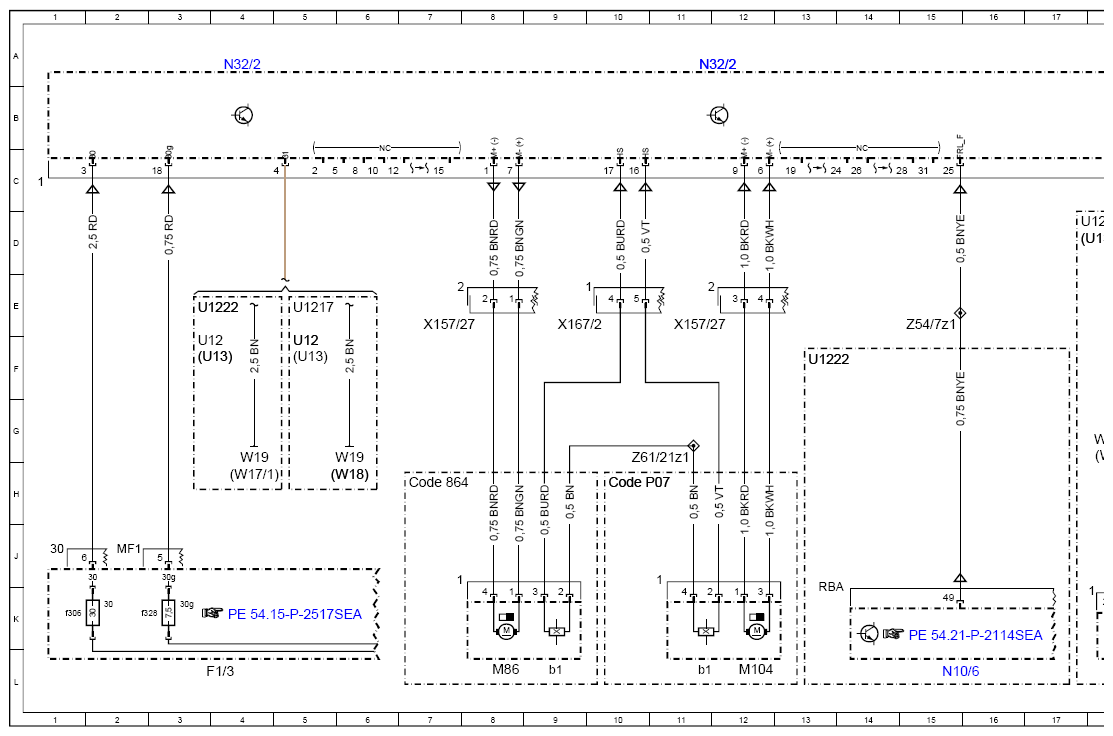

Wiring Diagram Of Front Passenger-Side Seat Control Module - PE91.29-P-2105-97SEA
Model 217 up to model year 2018 Control unit N32/2
Model 222 up to model year 2018 Control unit N32/2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| CAN B | Interior CAN | 20K |
| CAN B | Interior CAN | 64K |
| CAN B | Interior CAN | 68K |
| Code 401 | Seat climate control for driver and front passenger | 43A |
| Code 401 | Seat climate control for driver and front passenger | 50A |
| Code 432 | Left and right front dynamic multicontour seat | 54A |
| Code 432 | Left and right front dynamic multicontour seat | 62E |
| Code 439 | EASY ADJUST luxury head restraint | 85F |
| Code 439 | EASY ADJUST luxury head restraint | 79H |
| Code 864 | Rear compartment entertainment | 7H |
| Code 873 | Right and left front seat heaters | 50A |
| Code 877 | Ambiance illumination | 24F |
| Code P07 | Chauffeur package | 10H |
| Code P64 | Memory package | 37F |
| E17/17 | Right rear footwell lamp | 25L |
| E17/18 | Left rear footwell lamp | 25L |
| F1/3 | Right A-pillar fuse box | 4L |
| F1/3f306 | Fuse 306 | 1K |
| F1/3f328 | Fuse 328 | 2K |
| K18/5 | Seat belt comfort-fit function solenoid, front passenger seat | 18L |
| M104 | Footrest adjustment actuator motor | 12L |
| M104b1 | Footrest adjustment Hall sensor | 11L |
| M18/10 | Left front backrest seat ventilation motors | 48L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 48G |
| M18/11 | Right front seat cushion seat ventilation motors | 45L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 44G |
| M18/12 | Right front backrest seat ventilation motors | 48L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 48G |
| M18/9 | Left front seat cushion seat ventilation motors | 45L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 44G |
| M25/5 | Front passenger seat lumbar support pneumatic pump | 72L |
| M28/1 | Front passenger seat fore/aft adjustment motor | 33L |
| M28/10 | Front passenger seat height adjustment motor | 41L |
| M28/10b1 | Front passenger seat, seat height adjustment Hall sensor, | 42L |
| M28/1b1 | Seat fore/aft adjustment Hall sensor 1, front passenger seat | 33L |
| M28/1b2 | Seat fore/aft adjustment Hall sensor 2, front passenger seat | 34L |
| M28/4 | Front passenger seat head restraint adjustment motor | 77L |
| M28/4b1 | Head restraint adjustment Hall sensor, front passenger seat | 78L |
| M28/5 | Front passenger seat backrest inclination adjustment motor | 83L |
| M28/5b1 | Backrest inclination Hall sensor, front passenger seat | 83L |
| M28/8 | Seat cushion length adjustment motor, front passenger seat | 38L |
| M28/8b1 | Seat cushion length adjustment Hall sensor, front passenger seat | 39L |
| M28/9 | Seat inclination adjustment motor, front passenger seat | 35L |
| M28/9b1 | Seat inclination adjustment Hall sensor, front passenger seat | 36L |
| M79/2 | Front passenger seat head restraint inclination motor | 87L |
| M79/2b1 | Front passenger seat head restraint inclination Hall sensor | 87L |
| M79/2x1 | Front passenger seat head restraint inclination motor electrical connector | 86H |
| M86 | Screen adjustment actuator motor | 8L |
| M86b1 | Screen adjustment Hall sensor | 9L |
| N10/6 | Front SAM control unit | 15L |
| N10/8 | Rear SAM control unit | 29L |
| N25/4 | Front passenger seat heater control unit | 60L |
| N32/15 | Left front multicontour seat control unit | 64L |
| N32/16 | Right front multicontour seat control unit | 69L |
| N32/2 | Front passenger seat control unit | 4A |
| N32/2 | Front passenger seat control unit | 11A |
| N32/2 | Front passenger seat control unit | 20A |
| N32/2 | Front passenger seat control unit | 28A |
| N32/2 | Front passenger seat control unit | 36A |
| N32/2 | Front passenger seat control unit | 77A |
| N32/2 | Front passenger seat control unit | 61A |
| N32/2 | Front passenger seat control unit | 45A |
| N32/2 | Front passenger seat control unit | 53A |
| N32/2 | Front passenger seat control unit | 85A |
| N32/2 | Front passenger seat control unit | 69A |
| N32/2 | Front passenger seat control unit | 91A |
| N32/24 | Front passenger seat lumbar support adjustment control unit | 74L |
| R13/1 | Left front seat sitting surface heated cushion | 51L |
| R13/11 | Left front seat cushion side bolster heater pad | 56L |
| R13/12 | Left front seat backrest side bolster heater pad | 58L |
| R13/13 | Right front seat cushion side bolster heater pad | 56L |
| R13/14 | Right front seat backrest side bolster heater pad | 58L |
| R13/2 | Left front backrest heated cushion | 53L |
| R13/3 | Right front seat sitting surface heated cushion | 51L |
| R13/4 | Right front backrest heated cushion | 53L |
| S52/7 | Front passenger seat head restraint (inserted) microswitch | 81L |
| S82/2 | Front passenger head restraint inclination microswitch | 89L |
| S92/6 | Right backrest release/inclination microswitch | 91L |
| S92/6s1 | Right backrest release microswitch | 90L |
| S92/6s2 | Right backrest inclination microswitch | 92L |
| U12 | Valid for left-hand drive vehicles | 54D |
| U12 | Valid for left-hand drive vehicles | 50D |
| U12 | Valid for left-hand drive vehicles | 43D |
| U12 | Valid for left-hand drive vehicles | 17D |
| U12 | Valid for left-hand drive vehicles | 62F |
| U12 | Valid for left-hand drive vehicles | 3F |
| U12 | Valid for left-hand drive vehicles | 5F |
| U1217 | Valid for model series 217 | 90F |
| U1217 | Valid for model series 217 | 74F |
| U1217 | Valid for model series 217 | 74F |
| U1217 | Valid for model series 217 | 78F |
| U1217 | Valid for model series 217 | 5E |
| U1222 | Valid for model series 222 | 13F |
| U1222 | Valid for model series 222 | 85F |
| U1222 | Valid for model series 222 | 79H |
| U1222 | Valid for model series 222 | 3E |
| U13 | Valid for right-hand drive vehicles | 54D |
| U13 | Valid for right-hand drive vehicles | 50D |
| U13 | Valid for right-hand drive vehicles | 43D |
| U13 | Valid for right-hand drive vehicles | 17D |
| U13 | Valid for right-hand drive vehicles | 66F |
| U13 | Valid for right-hand drive vehicles | 3F |
| U13 | Valid for right-hand drive vehicles | 5F |
| U419 | Valid for removable front passenger seat head restraint | 79H |
| W17/1 | Left rear seat ground point | 4H |
| W18 | Left front seat crossmember ground point | 18G |
| W18 | Left front seat crossmember ground point | 6H |
| W19 | Right front seat crossmember ground point | 4H |
| W19 | Right front seat crossmember ground point | 6H |
| W54/5 | Right rear wheel well ground point | 18G |
| X157/27 | Front passenger seat heater control unit ambiance illumination electrical connector | 7E |
| X157/27 | Front passenger seat heater control unit ambiance illumination electrical connector | 11E |
| X167/2 | Passenger-side rear seat entertainment system electrical connector | 9E |
| X28/29 | Frame floor assembly/driver seat electrical connector | 25H |
| X28/30 | Frame floor assembly/front passenger seat electrical connector | 25H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 20L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 20L |
| X54/37 | Left front seat backrest heater pad electrical connector | 57G |
| X54/37 | Left front seat backrest heater pad electrical connector | 52G |
| X54/38 | Right front seat backrest heater pad electrical connector | 57G |
| X54/38 | Right front seat backrest heater pad electrical connector | 52G |
| X55/10 | Electrical connection, head restraint adjustments, front passenger seat | 76H |
| X55/29 | Left front seat surface heater pad electrical connector | 50G |
| X55/29 | Left front seat surface heater pad electrical connector | 55G |
| X55/30 | Right front seat surface heater pad electrical connector | 50G |
| X55/30 | Right front seat surface heater pad electrical connector | 55G |
| Z143/4 | Left front backrest microswitch connector sleeve | 91G |
| Z232/12z1 | LED K1 ambiance illumination connector sleeve (yellow) | 30G |
| Z232/13z1 | LED K2 ambiance illumination connector sleeve (blue) | 29G |
| Z232/14z1 | LED K3 ambiance illumination connector sleeve (red) | 28G |
| Z54/7z1 | Footwell illumination connector sleeve | 15E |
| Z6/105z1 | Front passenger seat lumbar support ground line connector sleeve | 73G |
| Z61/21z1 | Connector sleeve, circuit 31 Hall sensors, front passenger seat | 11G |
| Z61/21z1 | Connector sleeve, circuit 31 Hall sensors, front passenger seat | 40E |
| Z61/22z1 | Left rear seat heater circuit 31 connector sleeve | 82E |
