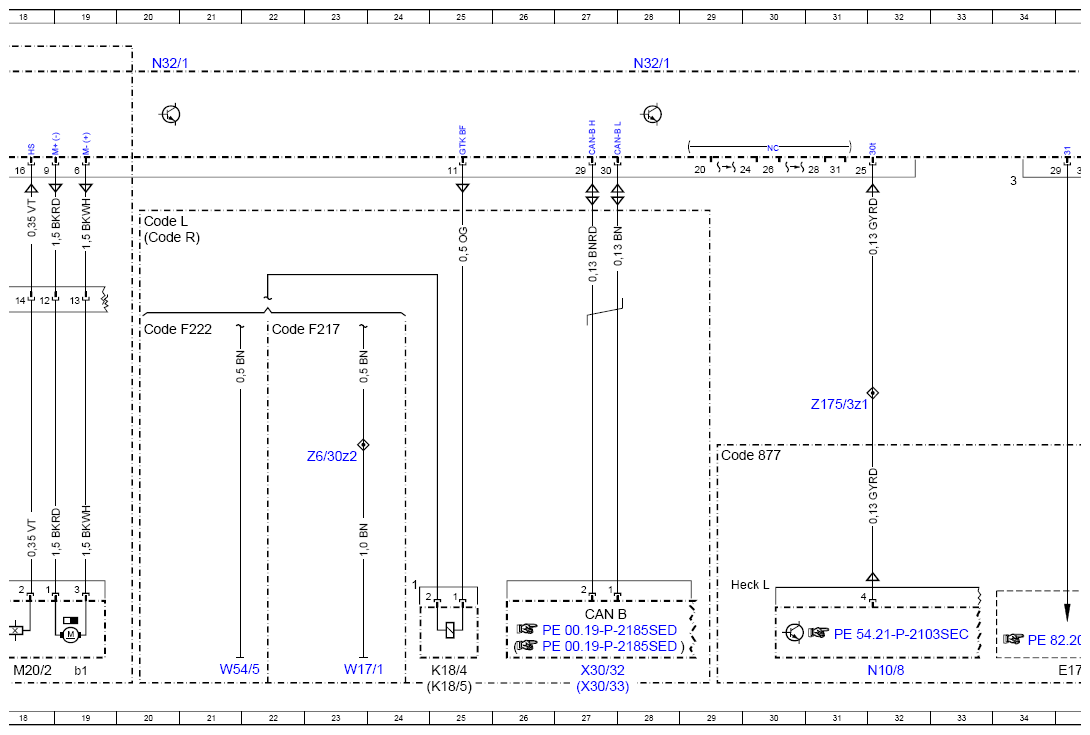

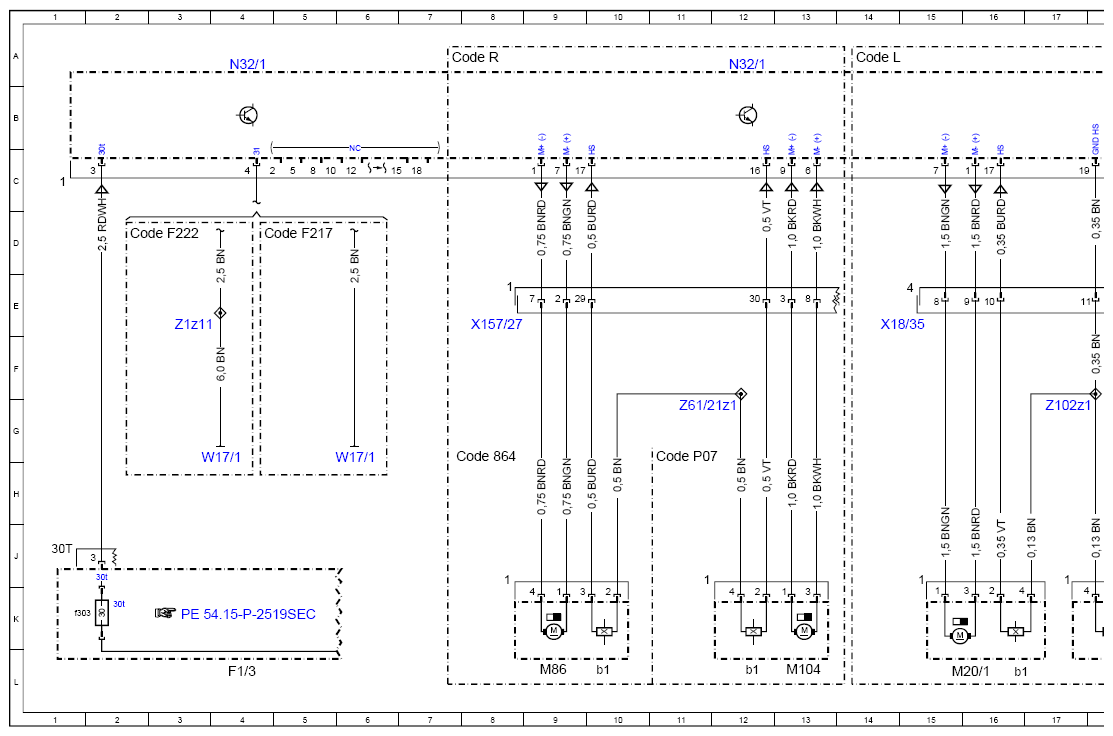

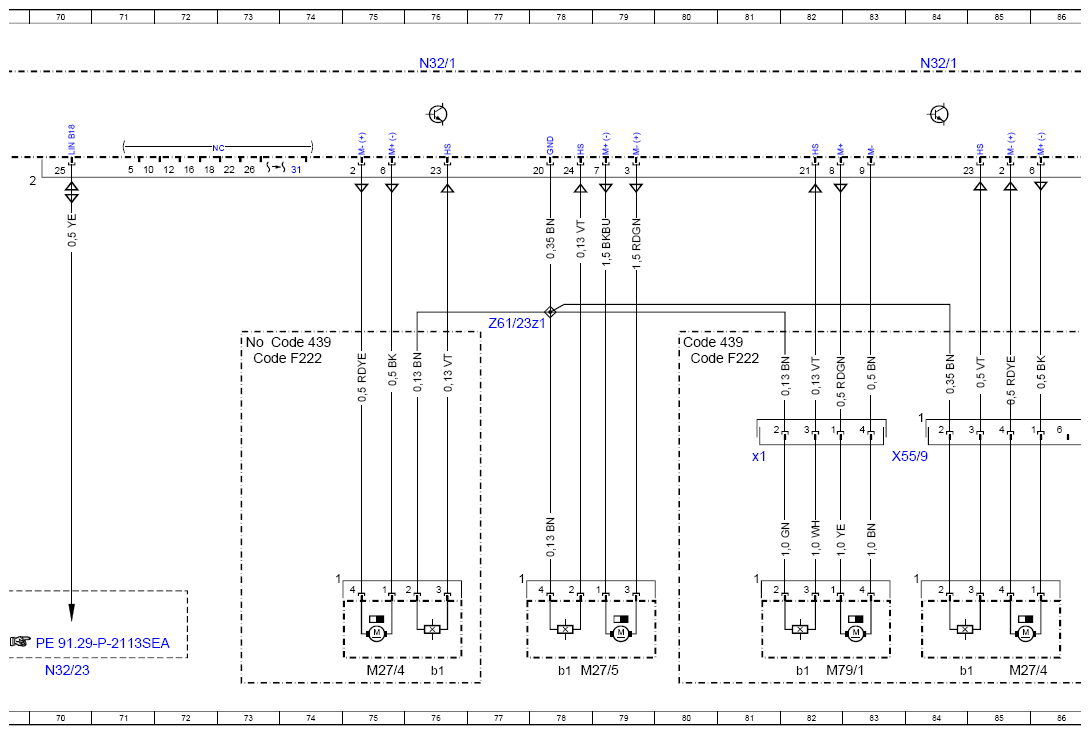

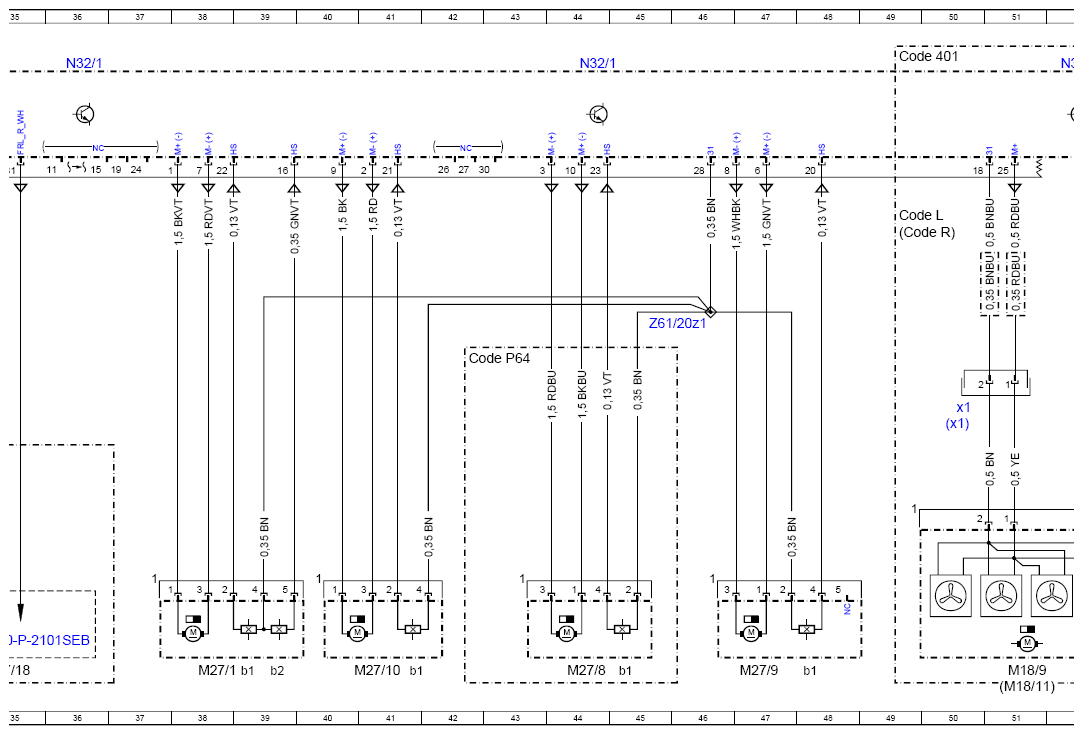

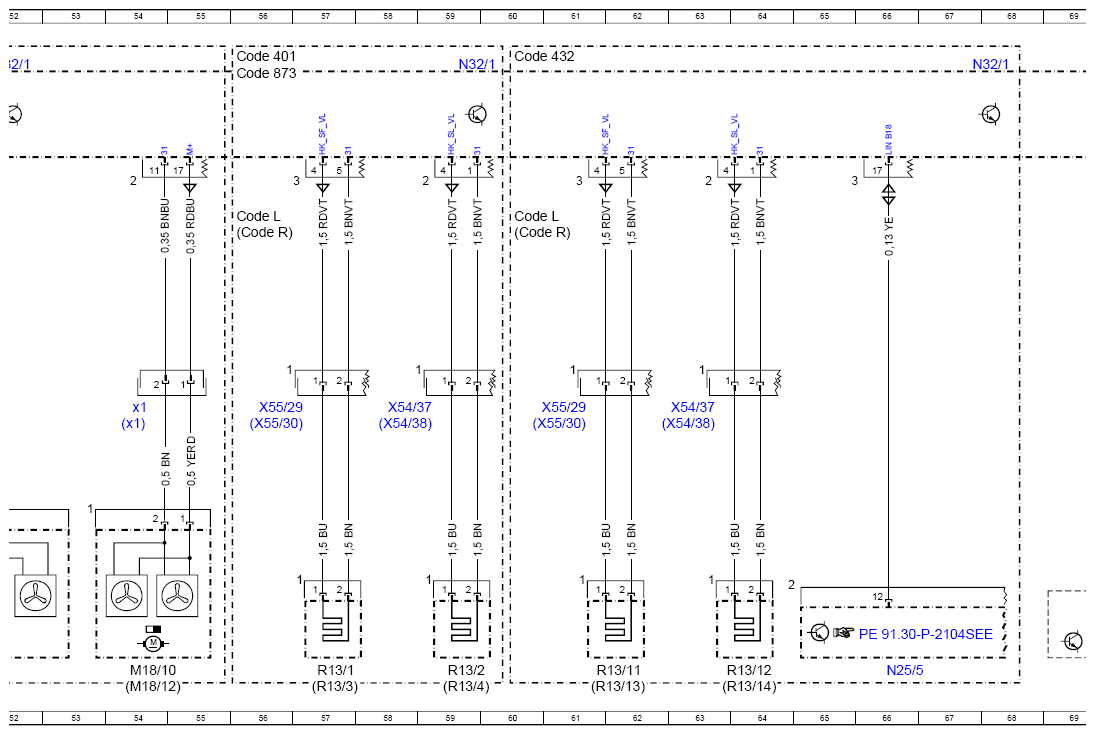

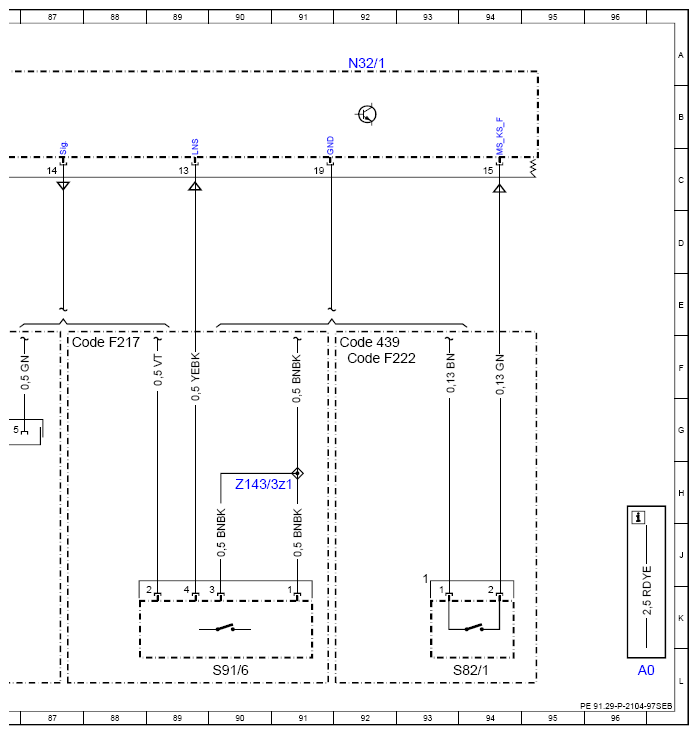

Wiring Diagram Of Driver-Side Seat Control Module - PE91.29-P-2104-97SEB
Model 217, 222 as of model year 2018 Control unit N32/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 96L |
| CAN B | Interior CAN | 27K |
| Code 401 | Seat climate control for driver and front passenger | 56A |
| Code 401 | Seat climate control for driver and front passenger | 49A |
| Code 432 | Left and right front dynamic multicontour seat | 60A |
| Code 439 | EASY ADJUST luxury head restraint | 73F |
| Code 439 | EASY ADJUST luxury head restraint | 80F |
| Code 439 | EASY ADJUST luxury head restraint | 92F |
| Code 864 | Rear compartment entertainment | 7G |
| Code 873 | Right and left front seat heaters | 56A |
| Code 877 | Ambiance illumination | 29G |
| Code F217 | MODEL SERIES 217 | 4D |
| Code F217 | MODEL SERIES 217 | 22E |
| Code F217 | MODEL SERIES 217 | 87F |
| Code F222 | MODEL SERIES 222 | 2D |
| Code F222 | MODEL SERIES 222 | 20E |
| Code F222 | MODEL SERIES 222 | 73F |
| Code F222 | MODEL SERIES 222 | 80F |
| Code F222 | MODEL SERIES 222 | 92F |
| Code L | LEFT-HAND DRIVE | 14A |
| Code L | LEFT-HAND DRIVE | 20D |
| Code L | LEFT-HAND DRIVE | 49D |
| Code L | LEFT-HAND DRIVE | 56D |
| Code L | LEFT-HAND DRIVE | 60D |
| Code P07 | Chauffeur package | 11G |
| Code P64 | Memory package | 42F |
| Code R | RIGHT-HAND DRIVE | 7A |
| Code R | RIGHT-HAND DRIVE | 20D |
| Code R | RIGHT-HAND DRIVE | 56D |
| Code R | RIGHT-HAND DRIVE | 49D |
| Code R | RIGHT-HAND DRIVE | 60D |
| E17/18 | Left rear footwell lamp | 35L |
| F1/3 | Passenger-side A-pillar fuse box | 4L |
| F1/3f303 | Fuse 303 | 1K |
| K18/4 | Seat belt comfort-fit function solenoid, driver seat | 25L |
| K18/5 | Seat belt comfort-fit function solenoid, front passenger seat | 25L |
| M104 | Footrest adjustment actuator motor | 13L |
| M104b1 | Footrest adjustment Hall sensor | 12L |
| M18/10 | Left front backrest seat ventilation motors | 54L |
| M18/10x1 | Left front backrest seat ventilation motor electrical connector | 54G |
| M18/11 | Right front seat cushion seat ventilation motors | 51L |
| M18/11x1 | Right front seat cushion seat ventilation motor electrical connector | 50G |
| M18/12 | Right front backrest seat ventilation motors | 54L |
| M18/12x1 | Right front backrest seat ventilation motor electrical connector | 54G |
| M18/9 | Left front seat cushion seat ventilation motors | 51L |
| M18/9x1 | Left front seat cushion seat ventilation motor electrical connector | 50G |
| M20/1 | Steering column in/out adjustment motor | 15L |
| M20/1b1 | Steering column in/out Hall sensor | 16L |
| M20/2 | Steering column up/down adjustment motor | 18L |
| M20/2b1 | Steering column up/down Hall sensor | 19L |
| M27/1 | Driver seat fore/aft adjustment motor | 38L |
| M27/10 | Driver seat height adjustment motor | 41L |
| M27/10b1 | Driver seat, seat height adjustment Hall sensor, | 41L |
| M27/1b1 | Seat fore/aft adjustment Hall sensor 1, driver seat | 39L |
| M27/1b2 | Seat fore/aft adjustment Hall sensor 2, driver seat | 39L |
| M27/4 | Driver seat head restraint adjustment motor | 75L |
| M27/4 | Driver seat head restraint adjustment motor | 85L |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 76L |
| M27/4b1 | Head restraint adjustment Hall sensor, driver seat | 84L |
| M27/5 | Driver seat backrest inclination adjustment motor | 78L |
| M27/5b1 | Backrest inclination Hall sensor, driver seat | 78L |
| M27/8 | Seat cushion length adjustment motor, driver seat | 44L |
| M27/8b1 | Seat cushion length adjustment Hall sensor, driver seat | 45L |
| M27/9 | Seat inclination adjustment motor, driver seat | 47L |
| M27/9b1 | Seat inclination adjustment Hall sensor, driver seat | 48L |
| M79/1 | Driver seat head restraint inclination motor | 82L |
| M79/1b1 | Driver seat head restraint inclination Hall sensor | 82L |
| M79/1x1 | Driver seat head restraint inclination motor electrical connector | 81H |
| M86 | Screen adjustment actuator motor | 9L |
| M86b1 | Screen adjustment Hall sensor | 10L |
| N10/8 | Rear SAM control unit | 32L |
| N25/5 | Driver seat heater control unit | 66L |
| N32/1 | Driver seat control unit | 4A |
| N32/1 | Driver seat control unit | 12A |
| N32/1 | Driver seat control unit | 20A |
| N32/1 | Driver seat control unit | 28A |
| N32/1 | Driver seat control unit | 36A |
| N32/1 | Driver seat control unit | 44A |
| N32/1 | Driver seat control unit | 52A |
| N32/1 | Driver seat control unit | 59A |
| N32/1 | Driver seat control unit | 67A |
| N32/1 | Driver seat control unit | 76A |
| N32/1 | Driver seat control unit | 84A |
| N32/1 | Driver seat control unit | 92A |
| N32/23 | Driver seat lumbar support adjustment control unit | 70L |
| R13/1 | Left front seat sitting surface heated cushion | 57L |
| R13/11 | Left front seat cushion side bolster heater pad | 62L |
| R13/12 | Left front seat backrest side bolster heater pad | 64L |
| R13/13 | Right front seat cushion side bolster heater pad | 61L |
| R13/14 | Right front seat backrest side bolster heater pad | 64L |
| R13/2 | Left front backrest heated cushion | 59L |
| R13/3 | Right front seat sitting surface heated cushion | 57L |
| R13/4 | Right front backrest heated cushion | 59L |
| S82/1 | Driver head restraint inclination microswitch | 94L |
| S91/6 | Left backrest release/inclination microswitch | 90L |
| W17/1 | Left rear seat ground point | 6H |
| W17/1 | Left rear seat ground point | 4H |
| W17/1 | Left rear seat ground point | 23L |
| W54/5 | Right rear wheel well ground point | 21L |
| X157/27 | Front passenger seat heater control unit ambiance illumination electrical connector | 8E |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 15E |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 27L |
| X30/33 | Right interior CAN (CAN B) potential distributor electrical connector | 27L |
| X54/37 | Left front seat backrest heater pad electrical connector | 58G |
| X54/37 | Left front seat backrest heater pad electrical connector | 63G |
| X54/38 | Right front seat backrest heater pad electrical connector | 58G |
| X54/38 | Right front seat backrest heater pad electrical connector | 63G |
| X55/29 | Left front seat surface heater pad electrical connector | 56G |
| X55/29 | Left front seat surface heater pad electrical connector | 61G |
| X55/30 | Right front seat surface heater pad electrical connector | 56G |
| X55/30 | Right front seat surface heater pad electrical connector | 61G |
| X55/9 | Electrical connection, head restraint adjustments, driver seat | 84H |
| Z102z1 | Steering column adjustment motor connector sleeve | 17G |
| Z143/3z1 | Left backrest release microswitch circuit 31 connector sleeve | 90H |
| Z175/3z1 | Rear footwell lamps ambiance illumination connector sleeve, power supply | 31G |
| Z1z11 | Circuit 31 connector sleeve | 3E |
| Z6/30z2 | Circuit 31 connector sleeve | 23G |
| Z61/20z1 | Connector sleeve, circuit 31 Hall sensors, driver's seat | 46E |
| Z61/21z1 | Connector sleeve, circuit 31 Hall sensors, front passenger seat | 11G |
| Z61/23z1 | Right rear seat heater circuit 31 connector sleeve | 77E |
