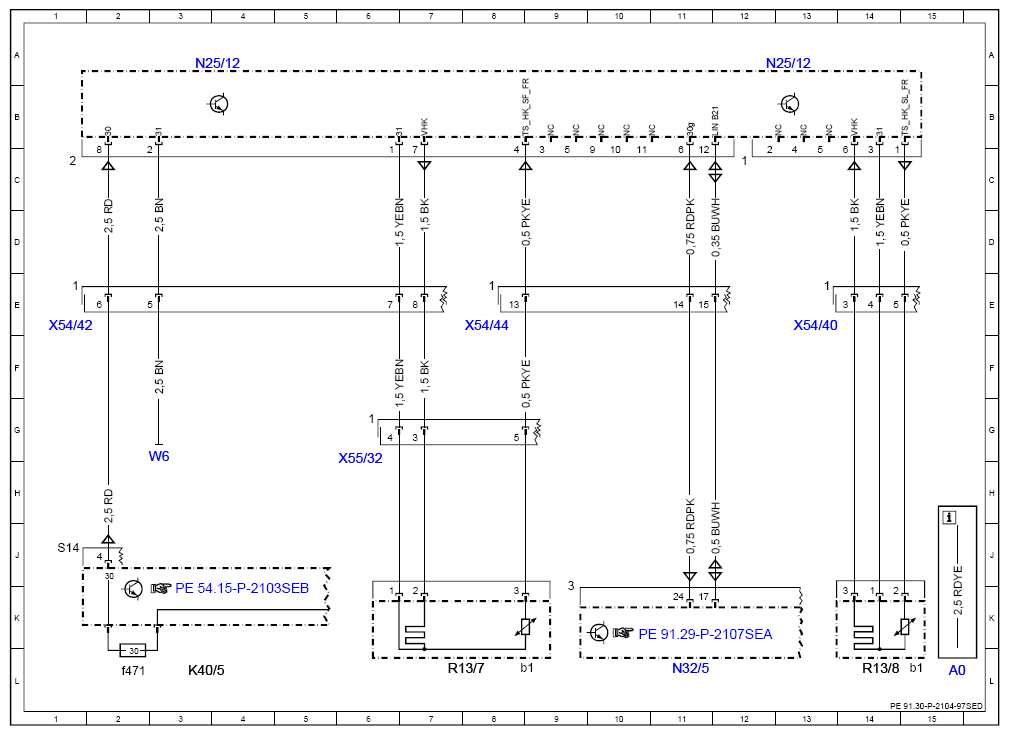

Wiring Diagram For Seat Heater Control Unit - PE91.30-P-2104-97SED
Model 222 up to model year 2018 with code P43 (Rear seat comfort package) Control unit N25/12
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f471 | Fuse 471 | 2L |
| N25/12 | Right rear seat heater control unit | 3A |
| N25/12 | Right rear seat heater control unit | 13A |
| N32/5 | Right rear seat control unit | 11L |
| R13/7 | Right rear seat sitting surface heated cushion | 7L |
| R13/7b1 | Right rear seat sitting surface heater pad temperature sensor | 8L |
| R13/8 | Right rear backrest heater pad | 14L |
| R13/8b1 | Right rear seat backrest heater pad temperature sensor | 15L |
| W6 | Left wheel arch trunk ground point | 3G |
| X54/40 | Right rear backrest heater pad electrical connector | 13E |
| X54/42 | Frame floor assembly/right rear seat backrest electrical connector | 1E |
| X54/44 | Frame floor assembly/right rear seat backrest electrical connector | 8E |
| X55/32 | Right rear seat sitting surface heater pad electrical connector | 6H |
