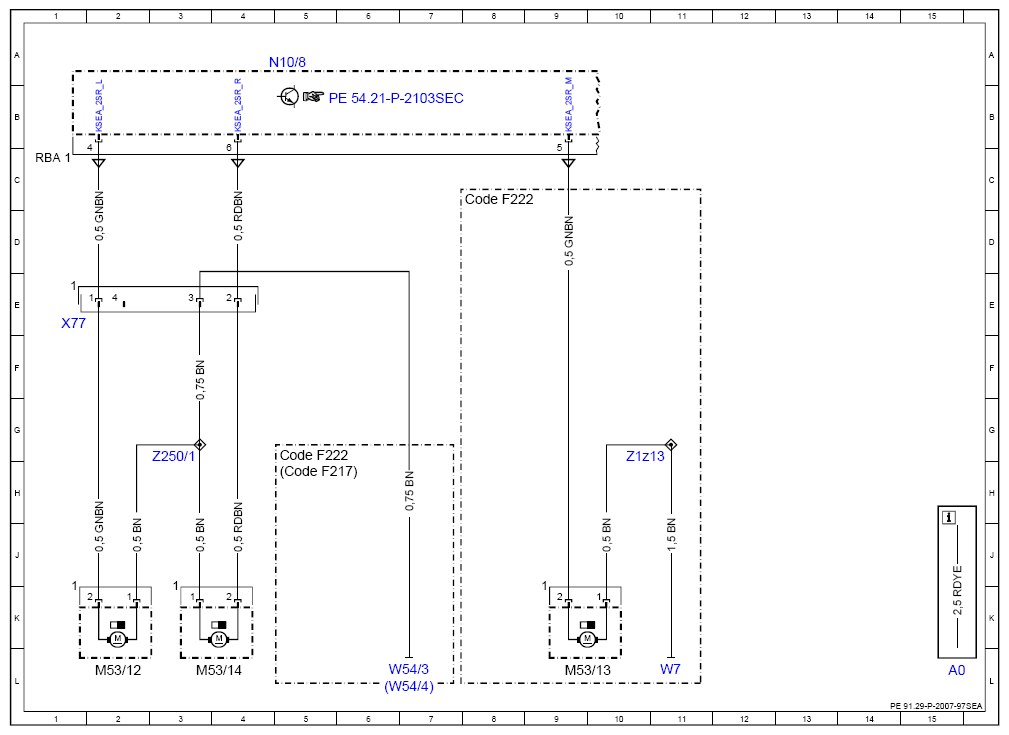

Wiring Diagram For Rear Seat Adjustment/Release - PE91.29-P-2007-97SEA
Model 217, 222 as of model year 2018 Actuators M53/12, M53/13, and M53/14
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| Code F217 | MODEL SERIES 217 | 5H |
| Code F222 | MODEL SERIES 222 | 8C |
| Code F222 | MODEL SERIES 222 | 5G |
| M53/12 | Left rear passenger compartment head restraint release actuator | 2L |
| M53/13 | Center rear passenger compartment head restraint release actuator | 9L |
| M53/14 | Right rear passenger compartment head restraint release actuator | 3L |
| N10/8 | Rear SAM control unit | 5A |
| W54/3 | Left rear wheel well ground point | 7L |
| W54/4 | Left rear wheel well ground point (vehicle interior) | 6L |
| W7 | Right wheel house trunk ground point | 11L |
| X77 | Rear backrest head restraint release electrical connector | 1E |
| Z1z13 | Circuit 31 connector sleeve | 10G |
| Z250/1 | Head restraint adjustment motor circuit 31 connector sleeve | 3G |
