Wiring Diagram For Rear Heated Seats Control Unit - PE91.30-P-2101-97SEB

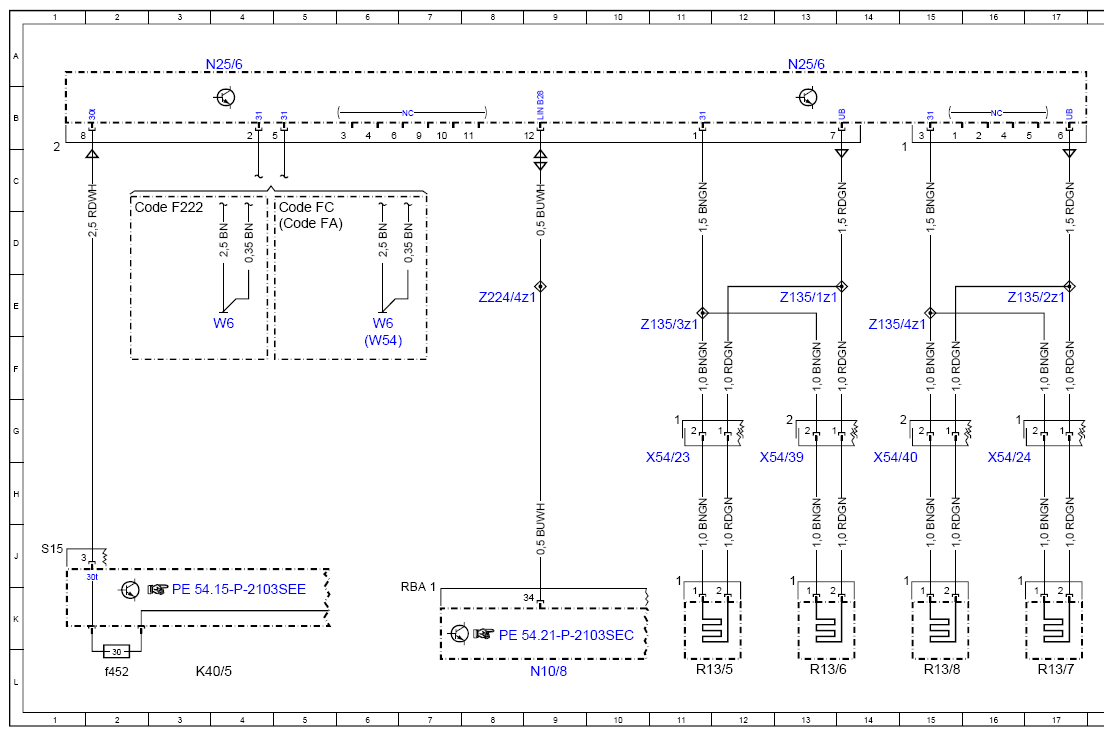

Model 217, 222 as of model year 2018 with code 872 (Heated rear seats) Control unit N25/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code F222 | MODEL SERIES 222 | 2D |
| Code FA | CABRIOLET | 5D |
| Code FC | COUPE | 5D |
| K40/5 | Rear fuse and relay module | 3L |
| K40/5f452 | Fuse 452 | 2L |
| N10/8 | Rear SAM control unit | 9L |
| N25/6 | Rear seat heaters control unit | 13A |
| N25/6 | Rear seat heaters control unit | 4A |
| R13/5 | Left rear seat sitting surface heated cushion | 11L |
| R13/6 | Left rear backrest heated cushion | 13L |
| R13/7 | Right rear seat sitting surface heated cushion | 17L |
| R13/8 | Right rear backrest heater pad | 15L |
| W54 | Right rear wheel well ground point | 6F |
| W6 | Left wheel arch trunk ground point | 4E |
| W6 | Left wheel arch trunk ground point | 6E |
| X54/23 | Left rear seat sitting surface heater pad electrical connector | 11H |
| X54/24 | Right rear seat sitting surface heater pad electrical connector | 16H |
| X54/39 | Left rear backrest heater pad electrical connector | 13H |
| X54/40 | Right rear backrest heater pad electrical connector | 14H |
| Z135/1z1 | Left rear seat heater pad circuit 30 connector sleeve | 13E |
| Z135/2z1 | Right rear seat heater pad circuit 30 connector sleeve | 17E |
| Z135/3z1 | Left rear seat heater pad circuit 31 connector sleeve | 11E |
| Z135/4z1 | Right rear seat heater pad circuit 31 connector sleeve | 14E |
| Z224/4z1 | Connector sleeve, heater LIN | 8E |
