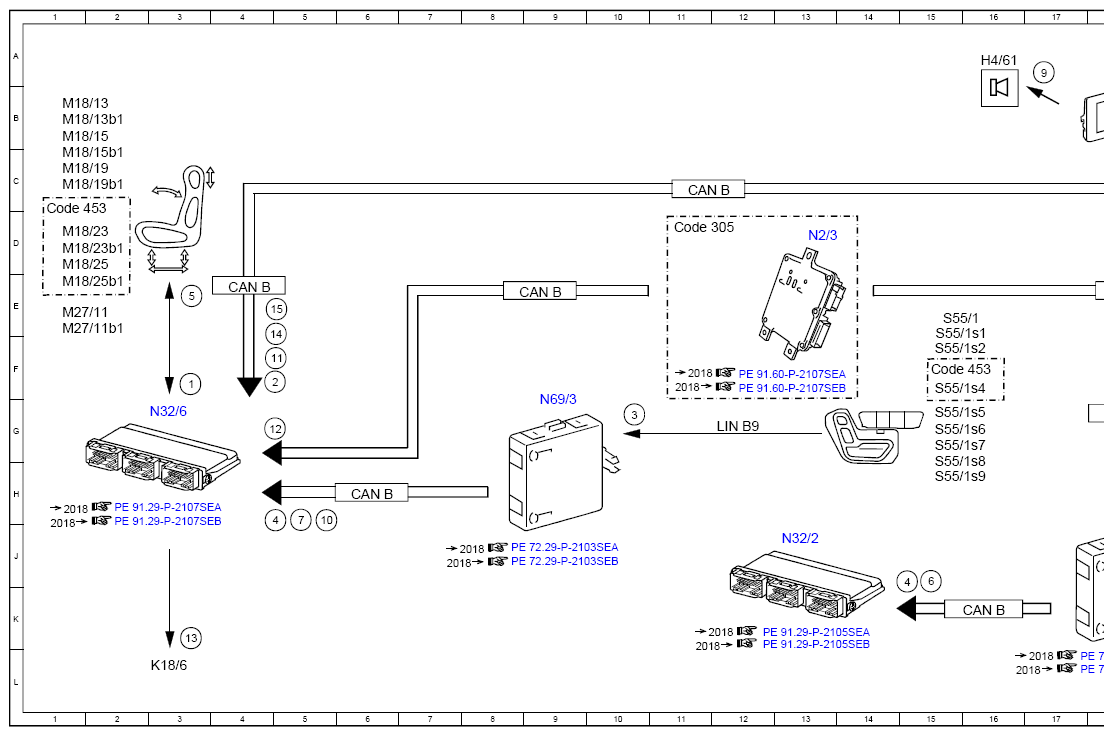

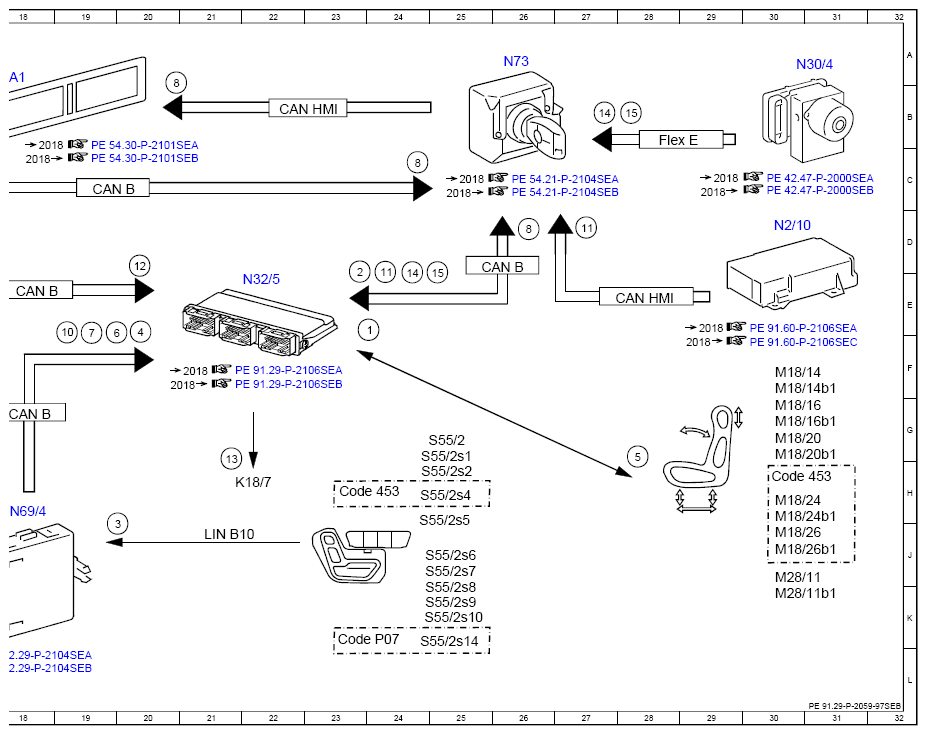

Electrical Function Schematic For Seat Adjustment (ESE) - PE91.29-P-2059-97SEB
Model 222 with code 223 (Electric backrest adjustment and head restraints)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Hall sensors, signal | 3F |
| 1 | Hall sensors, signal | 23E |
| 10 | Adopt memory position, request | 5H |
| 10 | Adopt memory position, request | 19E |
| 11 | Seat belt buckle switch, status | 4F |
| 11 | Seat belt buckle switch, status | 24E |
| 11 | Seat belt buckle switch, status | 27D |
| 12 | Active belt buckle setting, status | 5G |
| 12 | Active belt buckle setting, status | 20D |
| 13 | Seat belt comfort-fit function solenoid, actuation | 3K |
| 13 | Seat belt comfort-fit function solenoid, actuation | 21G |
| 14 | PRE-SAFE®, status | 27B |
| 14 | PRE-SAFE®, status | 24E |
| 14 | PRE-SAFE®, status | 4F |
| 15 | Adjust PRE-SAFE®, request | 5E |
| 15 | Adjust PRE-SAFE®, request | 25D |
| 15 | Adjust PRE-SAFE®, request | 28B |
| 2 | Circuit 15R, status | 5F |
| 2 | Circuit 15R, status | 23E |
| 3 | Seat adjustment switch group, status | 10G |
| 3 | Seat adjustment switch group, status | 19J |
| 4 | Manual adjustment, request | 5H |
| 4 | Manual adjustment, request | 15J |
| 4 | Manual adjustment, request | 20E |
| 5 | Seat adjustment motor, actuation | 3E |
| 5 | Seat adjustment motor, actuation | 28G |
| 6 | Right rear front passenger seat adjustment active, signal | 15J |
| 6 | Right rear front passenger seat adjustment active, signal | 19E |
| 7 | Store memory position, request | 5H |
| 7 | Store memory position, request | 19E |
| 8 | Acknowledgment tone after memory positions stored successfully, request | 20A |
| 8 | Acknowledgment tone after memory positions stored successfully, request | 24B |
| 8 | Acknowledgment tone after memory positions stored successfully, request | 26C |
| 9 | Speaker, actuation | 17A |
| A1 | Instrument cluster | 18A |
| CAN B | Interior CAN | 4E |
| CAN B | Interior CAN | 18G |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 26D |
| CAN B | Interior CAN | 16K |
| CAN B | Interior CAN | 11C |
| CAN B | Interior CAN | 19C |
| CAN B | Interior CAN | 18E |
| CAN B | Interior CAN | 9E |
| CAN HMI | User interface CAN | 22B |
| CAN HMI | User interface CAN | 28E |
| Code 305 | Rear PRE-SAFE | 11D |
| Code 453 | Rear reclining seats | 23H |
| Code 453 | Rear reclining seats | 30H |
| Code 453 | Rear reclining seats | 15F |
| Code 453 | Rear reclining seats | 1D |
| Code P07 | Chauffeur package | 23K |
| Flex E | Chassis FlexRay | 28B |
| H4/61 | Instrument cluster speaker | 16A |
| K18/6 | Seat belt comfort-fit function solenoid, left rear seat | 3L |
| K18/7 | Seat belt comfort-fit function solenoid, right rear seat | 22H |
| LIN B10 | Right rear door LIN | 21J |
| LIN B9 | Left rear door LIN | 12G |
| M18/13 | Left rear seat head restraint height adjustment motor | 1B |
| M18/13b1 | Left rear seat head restraint height adjustment Hall sensor | 1B |
| M18/14 | Right rear seat head restraint height adjustment motor | 30F |
| M18/14b1 | Right rear seat head restraint height adjustment Hall sensor | 30F |
| M18/15 | Left rear seat head restraint inclination adjustment motor | 1B |
| M18/15b1 | Left rear seat head restraint inclination adjustment Hall sensor | 1C |
| M18/16 | Right rear seat head restraint inclination adjustment motor | 30G |
| M18/16b1 | Right rear seat head restraint inclination adjustment Hall sensor | 30G |
| M18/19 | Left rear seat cushion inclination adjustment motor | 1C |
| M18/19b1 | Left rear seat cushion inclination adjustment Hall sensor | 1C |
| M18/20 | Right rear seat cushion inclination adjustment motor | 30G |
| M18/20b1 | Right rear seat cushion inclination adjustment Hall sensor | 30G |
| M18/23 | Left rear seat leg rest inclination adjustment motor | 1D |
| M18/23b1 | Left rear seat leg rest inclination adjustment Hall sensor | 1D |
| M18/24 | Right rear seat leg rest inclination adjustment motor | 30H |
| M18/24b1 | Right rear seat leg rest inclination adjustment Hall sensor | 30H |
| M18/25 | Left rear seat leg rest fore/aft adjustment motor | 1D |
| M18/25b1 | Left rear seat leg rest fore/aft adjustment Hall sensor | 1E |
| M18/26 | Right rear seat leg rest fore/aft adjustment motor | 30J |
| M18/26b1 | Right rear seat leg rest fore/aft adjustment Hall sensor | 30J |
| M27/11 | Left rear seat backrest inclination adjustment motor | 1E |
| M27/11b1 | Left rear seat backrest inclination adjustment Hall sensor | 1E |
| M28/11 | Right rear seat backrest inclination adjustment motor | 30J |
| M28/11b1 | Right rear seat backrest inclination adjustment Hall sensor | 30K |
| N2/10 | Supplemental restraint system control unit | 30D |
| N2/3 | Active belt buckle control unit | 13D |
| N30/4 | Electronic Stability Program control unit | 31A |
| N32/2 | Front passenger seat control unit | 13J |
| N32/5 | Right rear seat control unit | 22E |
| N32/6 | Left rear seat control unit | 3G |
| N69/3 | Left rear door control unit | 9G |
| N69/4 | Right rear door control unit | 18H |
| N73 | Electronic ignition switch control unit | 26A |
| S55/1 | Left rear seat adjustment switch group | 15E |
| S55/1s1 | Left rear seat head restraint adjustment switch | 15F |
| S55/1s2 | Left rear seat inclination adjustment switch | 15F |
| S55/1s4 | Left rear seat leg rest switch | 15F |
| S55/1s5 | Left rear seat backrest adjustment switch | 15G |
| S55/1s6 | Left rear seat memory function switch | 15G |
| S55/1s7 | Left rear seat memory switch 1 | 15G |
| S55/1s8 | Left rear seat memory switch 2 | 15H |
| S55/1s9 | Left rear seat memory switch 3 | 15H |
| S55/2 | Right rear seat adjustment switch group | 25G |
| S55/2s1 | Right rear seat head restraint adjustment switch | 25G |
| S55/2s10 | Front passenger seat or right rear seat adjustment switch | 25K |
| S55/2s14 | Right rear seat recline position switch | 25K |
| S55/2s2 | Right rear seat inclination adjustment switch | 25H |
| S55/2s4 | Right rear seat leg rest switch | 25H |
| S55/2s5 | Right rear seat backrest adjustment switch | 25J |
| S55/2s6 | Right rear seat memory function switch | 25J |
| S55/2s7 | Right rear seat memory switch 1 | 25J |
| S55/2s8 | Right rear seat memory switch 2 | 25K |
| S55/2s9 | Right rear seat memory switch 3 | 25K |
